Comelit RF1MCW Technical Manual
Comelit RF1MCW Technical Manual

Comelit RF1MCW Technical Manual

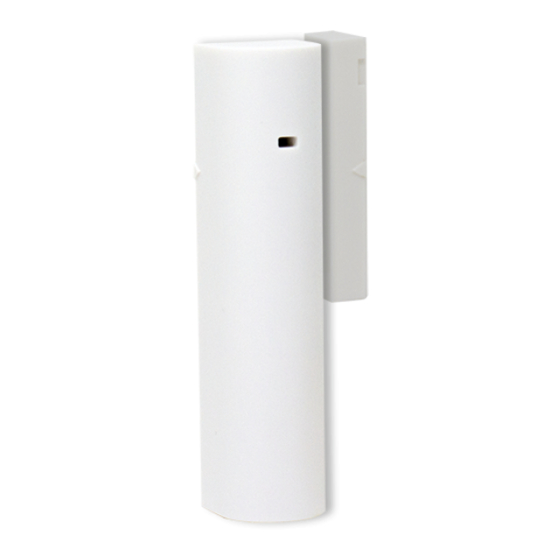

Radio magnetic contact with 1 or 2 wired inputs

Advertisement

Quick Links

art:
RF1MCW-RF1MCB
RF2MCW-RF2MCB
T E C H N I C A L M A N U A L
Radio magnetic contact with
1 or 2 wired inputs
Wireless magnetic contacts RF1MCW, RF1MCB,
RF2MCW and RF2MCB have an auxiliary wired
input for the connection and transmission of an
independent zone in the control panel. The magnetic
contacts have two reed switches to allow flexible
positioning of the external magnet. Excellent radio
range and long battery life guarantee consistent
performance over time.

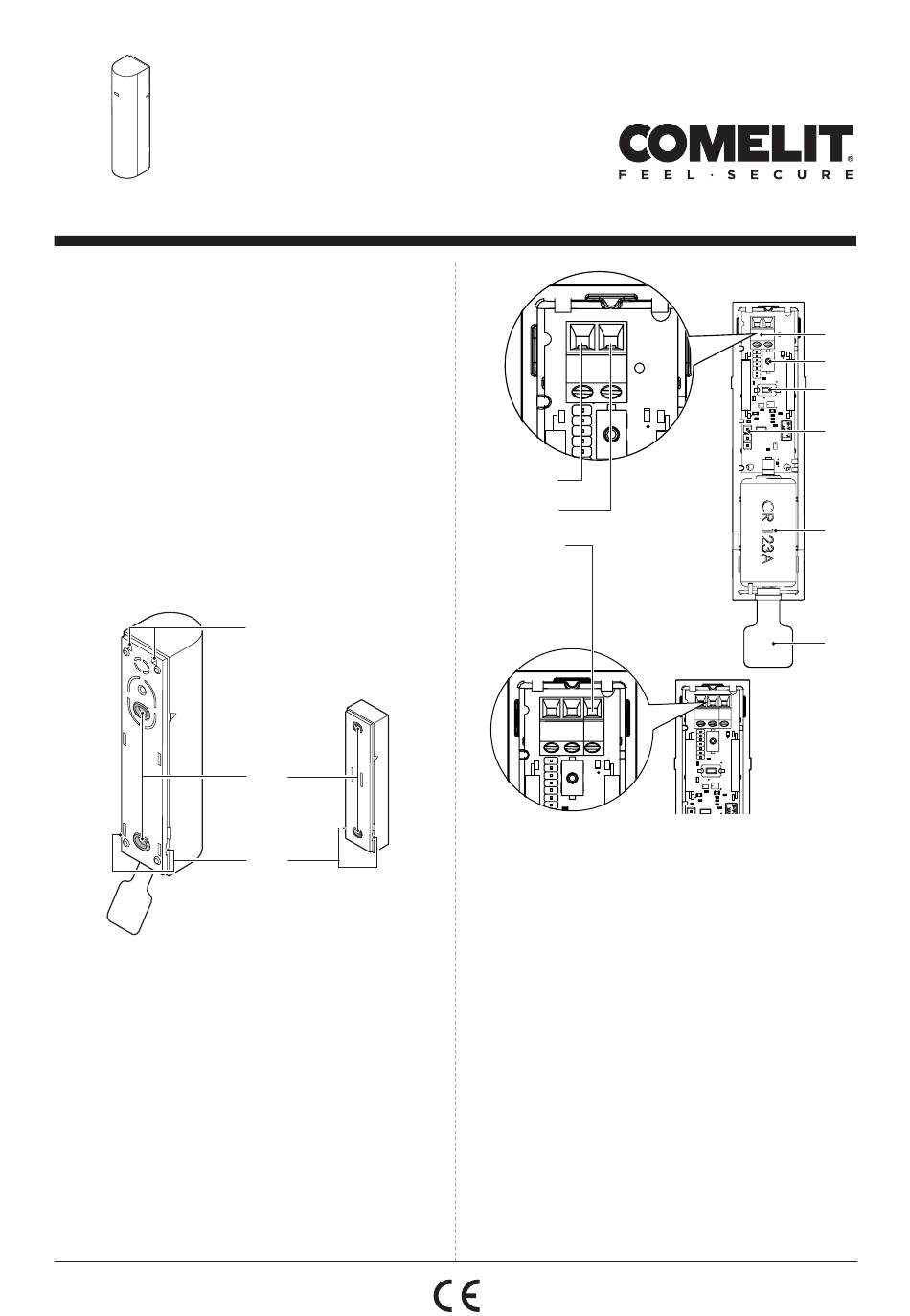

DESCRIPTION
1
2
3
Zone "B"
COM
Zone "C" *
1. Cable route
2. Fixing holes
3. Opening clip
4. Terminal block
5. Tamper switch
6. "ENROLL" register key
7. Configuration jumpers
8. CR123A battery
9. Battery tab
* = models RF2MCW and RF2MCB only
RF1MCW
RF1MCB
4
5
6
7
8
9
RF2MCW
RF2MCB
