Comelit RF12PIR Technical Manual

art:
RF12PIR
T E C H N I C A L M A N U A L
Radio volumetric sensor 12
m

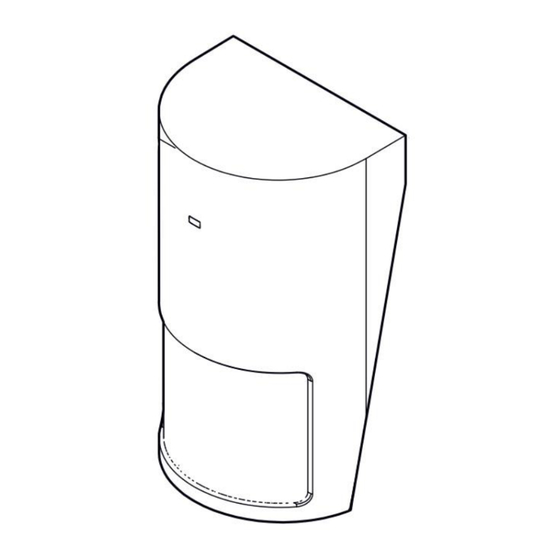

RF12PIR is a wireless infrared motion sensor with
an innovative design which, thanks to Comelit
bidirectional protocol, provides the option of
disabling detection if the alarm is disarmed. Fully
configurable via the control panel in terms of the
number of pulses, LED enabling and sleep time, it is
also equipped with several jumpers for configuration
of the main parameters.

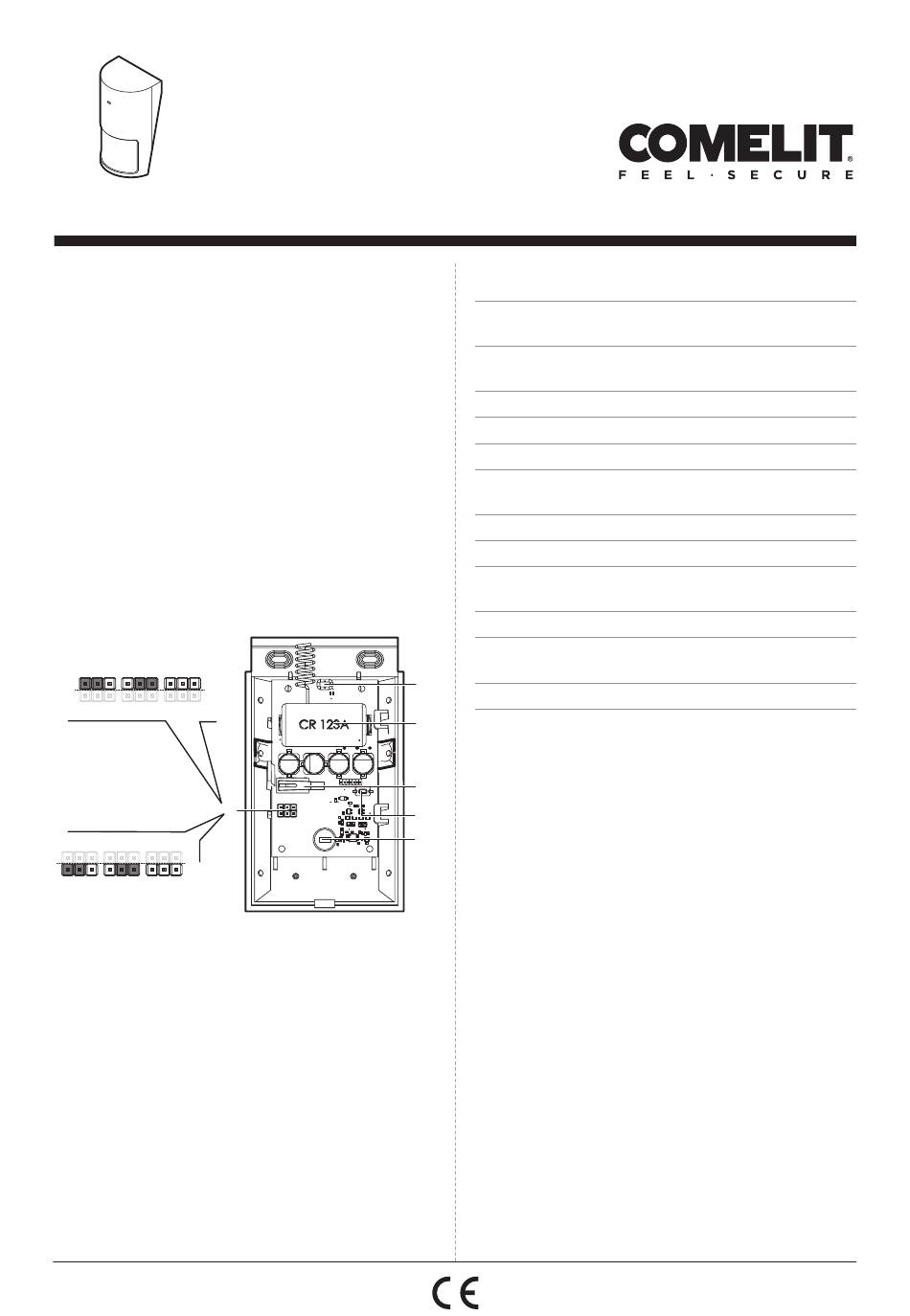

DESCRIPTION
1 Pulse 2 Pulses REMOTE
Pulse
jumper
LED jumper
LED OFF LED ON REMOTE
1. Configuration jumpers
2. 3-Colour LED
3. CR123A battery
4. Tamper switch
5. Register key
6. PIR sensor
1
TECHNICAL SPECIFICATIONS
RF communication
TX/RX RF range
(open air)
Coverage range 90° - 12 m
Mounting height 1.8 m - 3 m
Energy saving mode √
BRK004 ceiling/wall
backplate
Tamper switch √
Low voltage threshold 2,6 V
Current absorbed
(TX / Standby)
EMC immunity EN 50130-4
Operating temperature
2
Dimensions 55 x 63 x 118 mm
3
REGISTRATION
4
Refer to the full control panel programming
manual for further information.
5
6
√ Make sure the sensor has not been registered
previously. If it has, follow the reset procedure.
1. Access the RF radio zone registration menu
on the control panel or via the programming
software.
2. Select the zone you want to acquire and confirm:
the control panel will now wait to receive a
registration signal from the device.
At this point there are two ways of registering the
sensor on the control panel:
• Option A: remove the battery removal tab (if
present on the device).
• Option B: press the "ENROLL" key on the sensor
board.
» The red LED flashes slowly while waiting for the
control panel to confirm acquisition.
» The LED displays the acquisition result and
provides signal (RSSI) indication:
Bidirectional
type 868.05 - 869.95 MHz
1500 m
Optional
26mA / 4μA
-10 to 50°C
range
