Comelit RFDT12CE Technical Manual
Comelit RFDT12CE Technical Manual

Comelit RFDT12CE Technical Manual

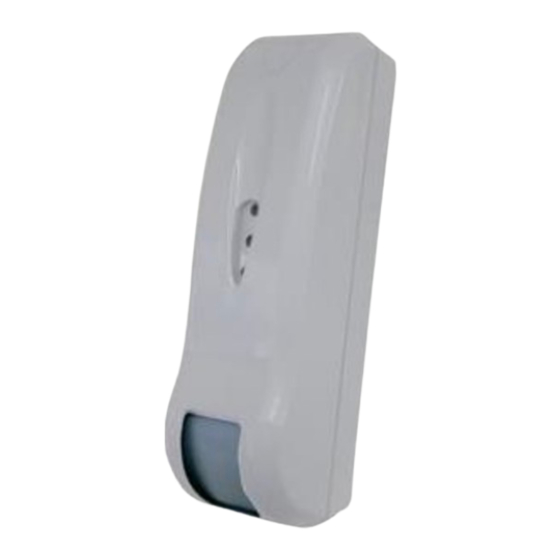

Double technology outdoor radio detector, curtain effect
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

IT
EN
TECHNICAL
MANUALE
MANUAL
TECNICO
RFDT12CE
Sensore radio doppia tecnologia da esterno, effetto tenda.
Double technology outdoor radio detector, curtain effect

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RFDT12CE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Comelit RFDT12CE

  • Page 1 TECHNICAL MANUALE MANUAL TECNICO RFDT12CE Sensore radio doppia tecnologia da esterno, effetto tenda. Double technology outdoor radio detector, curtain effect...
  • Page 2 1.DESCRIZIONE Questo sensore, grazie alle sue ridotte dimensioni, è particolarmente indicato nella protezione di porte, finestre e vetrine e, grazie ai materiali impiegati ed alla tecnologia evoluta, può essere utilizzato in qualsiasi installazione all’aperto dove si renda necessario proteggere aree ben definite (per esempio, pareti).
  • Page 3 Staffa di montaggio angolare reversibile Staffa di montaggio a parete 3.DESCRIZIONE SCHEDA...
  • Page 4 • Assicurarsi che il ricetrasmettitore si trovi nella modalità di apprendimento in • base alle istruzioni di programmazione della centrale di allarme Comelit. Effettuare una trasmissione premendo e rilasciando il pulsante “ENROLL” del rilevatore; • in questo modo verrà avviata la trasmissione dei dati di "apprendimento" dal dispositivo al ricetrasmettitore del pannello di controllo.
  • Page 5: Diagrammi Di Copertura

    In un dispositivo precedentemente registrato, l'indicazione del segnale RSSI può essere riattivata premendo il tasto di registrazione. Reset di un dispositivo 1. Premere il tasto ENROLL per almeno 7 secondi »» Attendere la conferma del reset: il LED verde lampeggerà rapidamente tre volte, seguito da un lungo lampeggio rosso e uno verde lungo.
  • Page 6 7.INDICAZIONI DI INSTALLAZIONE...
  • Page 7: Specifiche Tecniche

    8.SPECIFICHE TECNICHE Parametro Condizione Valore Alimentazione (batteria) 3.6V Protezione inversione Sì Selezionabile via dip- Tempo inibizione tra allarmi 3÷6 minuti switch Temperatura ambiente 25 Portata IR max 12 m °C Portata MW max 12 m Selezionabile via dip- Segnalazione batt. scarica Sì...
  • Page 8 Pagina lasciata intenzionalmente bianca...
  • Page 9 1. DESCRIPTION Is an outdoor miniaturized double technology detector, particularly suitable for being installed on windows. Its characteristics make it suitable for any external place, and wherever it is necessary to protect some specific areas. The detector creates a very narrow curtain barrier (about 7.5°) and it has an adjustable covered area up to 12m.
  • Page 10: Pcb Overview

    Angular reversibile mounting bracket Wall mounting bracket 3. PCB OVERVIEW...
  • Page 11 4. SETUP TEST MODE Open the cover, bring the dip4 ON, close the cover. By now, the LEDs are always active and the sensor does not inhibit more. Adjust the flow rate of the infrared and / or microwave. After tests completed open the cover, bring the dip4 to OFF and close the cover.
  • Page 12: Side View

    Resetting a device: 1. Press the ENROL button for at least 7 seconds »» Wait for reset confirmation: green LED shall blink quickly three times followed by one long red and one long green blink. 6. DETECTION PATTERN CHART SIDE VIEW MW IR 30 cm 12 m...
  • Page 13 7. GENERAL INSTALLATION GUIDE Windows and door protection...
  • Page 14: Technical Characteristics

    8. TECHNICAL CHARACTERISTICS Parameter Condition Value Power supply (battery) 3.6V Protection power supply inversion Inibition time between Selectable by dip-switch 3÷6 minutes alarm Range IR max Temperature 25 °C 12 m Range MW max 12 m Low battery reporting Selectable by dip-switch Range Test Selectable by dip-switch Test run time...
  • Page 15 This page intentionally left blank...
  • Page 16 Made in Italy...
