Water detector

Specifications:

• Relay output: NC / NO selectable, 1A-120V AC / 1A-24V DC (not inductive)

• External terminal length: 35mm max

• Case: ABS, white

• Length for additional remote sensors: 100m max

• Additional remote sensors: 8 max

• Power supply: 12V DC

• Current absorption: 20mA max (15mA in stand by)

• Dimensions (W x H x D): 60 x 90 × 25 mm

• Open the cover of the water detector

• Fix the water detector on the wall near the floor as much as possible

• Loosen the screws that lock the terminals and adjust them at the height you want

• Tighten the screws to lock the terminals

• Make the electrical connections

• Close the cover of the detector

Note: to connect the remote sensors, we suggest using cable of optimal (two conductors of 0.5 mm

that the cable installed in humid atmosphere can create leakage damages to the operation of the device.

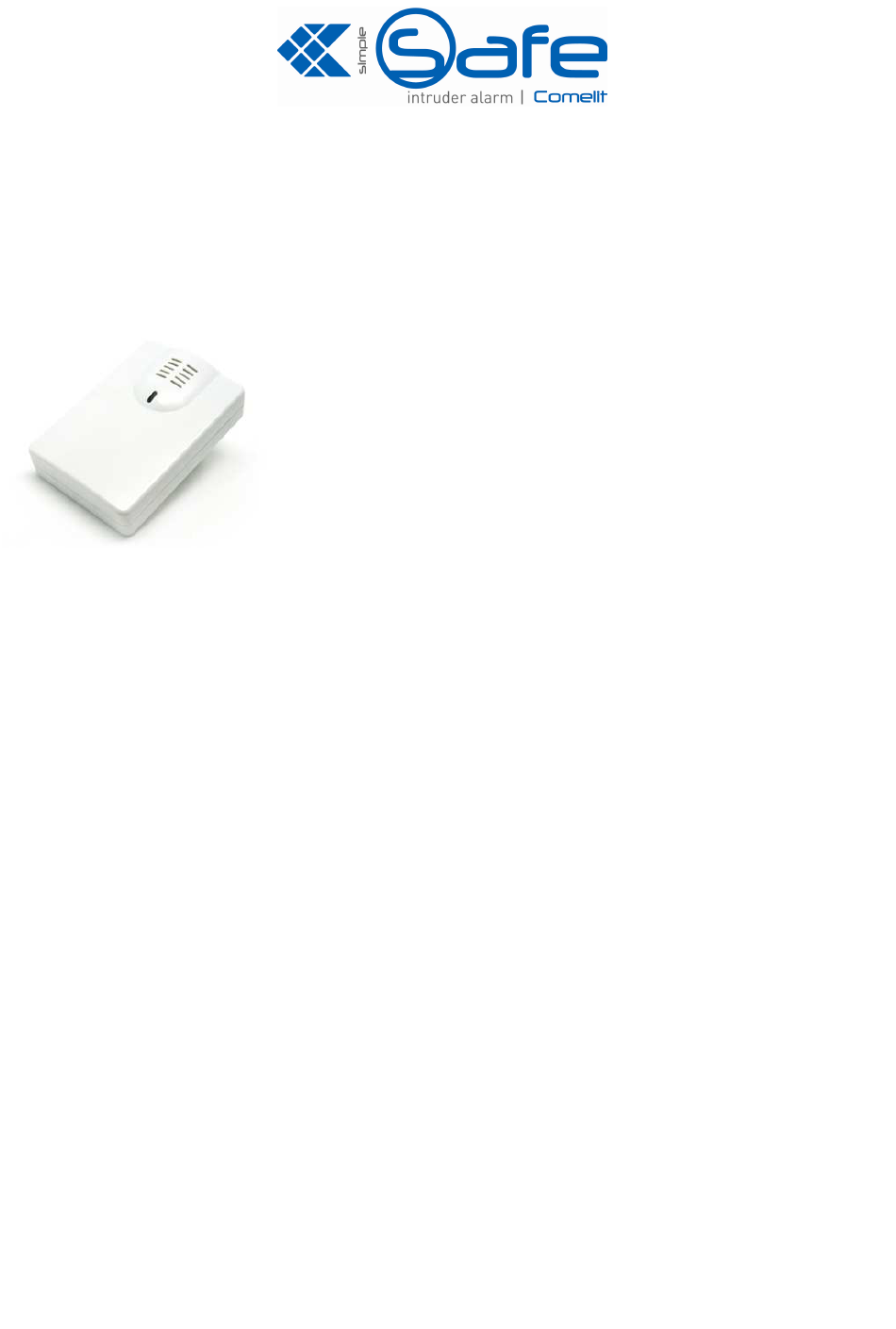

WATER DETECTOR

ART. 30009009

Ideal for water level detector, tank filling check,

pipes breaking, underwater pump troubles, non

inflammables conductive liquids.

) to avoid
