Owner’s Manual PLR 20S/25S/25D/33D Table of Contents Manual Updates ........................5 Safety Information ........................6 General Safety ......................7 Important Information ......................8 Improper Usage ......................9 General View of Liftgate ......................10 PLR D Series Liftgate (Dual Cylinder) ................10 PLR S Series Liftgate (Single Cylinder) .................
Page 4
Owner’s Manual PLR 20S/25S/25D/33D Warranty ............................ 35 Contact Address ........................36 Company Information: Company Name: Advisor Name: Vehicle Year Make & Model: Liftgate Information: Liftgate Serial Number: Liftgate Model Number: Date of Purchase: Date of Installation: Thank you for choosing INTERLIFT Liftgates. Rev.
Owner’s Manual PLR 20S/25S/25D/33D Safety Information This manual follows the Guidelines set forth in ANSI X535.4-2007 for alerting you to possible hazards and their potential severity. ! DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Owner’s Manual PLR 20S/25S/25D/33D General Safety REMEMBER! It is the fleet manager’s responsibility to educate the operator on the liftgate and its intended use. The operator’s attention should be drawn to the permitted load limits and an understanding of the operation to ensure safety throughout the operation.
Owner’s Manual PLR 20S/25S/25D/33D Improper operation of this liftgate may result in severe personal injury or death. DO NOT operate unless you have been properly instructed, have read and are familiar with the procedures in this manual. We have designed this manual to illustrate the steps needed for the basic operation of this PLR liftgate. It also provides safety information and simple preventive maintenance tips.
3) Call your INTERLIFT Liftgates Authorized Service Center for assistance. 4) Call INTERLIFT Liftgates for assistance in the USA at 888-774-5844. You can also contact INTERLIFT Liftgates by fax (562) 924-8318 or on the internet- www.palfinger.com For technical support, contact INTERLIFT Liftgates or an authorized INTERLIFT service center. www.palfinger.com...

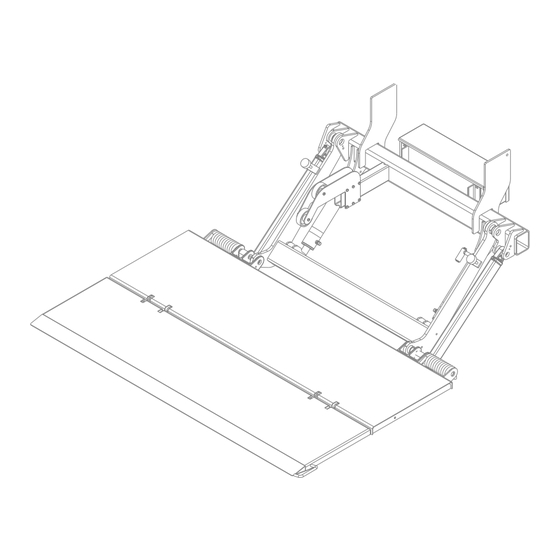

Owner’s Manual PLR 20S/25S/25D/33D General View of Liftgate PLR D Series Liftgate (Dual Cylinder) Bed Extension Mount Plate Platform Hydraulic Roll-Off Power Wheels Unit Double Action Lift Cylinders Mount Plate Load Center Springs* of Gravity Hydraulic Power Unit Mount Frame Liftarm Parallel Arm Cart Stops...
Owner’s Manual PLR 20S/25S/25D/33D PLR S Series Liftgate (Single Cylinder) Bed Extension Hydraulic Power Unit Mount Plate Hydraulic Platform Power Roll-Off Unit Wheels Double Action Mount Lift Cylinder Load Center Springs* Plate of Gravity Mount Frame Liftarm Parallel Arm Cart Stops (Optional) Platform *No spring installed on left side for 42“...
Owner’s Manual PLR 20S/25S/25D/33D Maximum Load and Placing of Load on Platform Every INTERLIFT Liftgate is rated up to a maximum load. The point of maximum load is rated at a defined distance. The center point of maximum load is at 24” from the rear of the bed extension out to the platform, Fig.2.
Owner’s Manual PLR 20S/25S/25D/33D Operation of Liftgate Operation by Toggle Switch/Hand Held Remote Control Always stand clear of platform area when operating the liftgate. To Open Liftgate 1. Power on the liftgate by switching the ON/OFF switch ON. ON/OFF switch location for a truck is located in the cab, Fig.3, for a trailer it will be located on the dock bumper strut, Fig.4.
Page 14
Owner’s Manual PLR 20S/25S/25D/33D 4. Use the handle on the main to manually pull the platform away from the roll off wheels down to the ground, Fig.9. Unhook the chain on the side of the platform that secures the main section to the tip. Use the handle on the tip section to manually unfold the tip, Fig.10.
Owner’s Manual PLR 20S/25S/25D/33D Hand Held Remote Control (Optional) Reminder: Do not store remote inside refrigerated vehicles. Control will be damaged. 1. Lowering Down Press and hold the black button to lower platform. 2. Lifting Up Press and hold the white button to raise platform. White Button Lift UP Lift DOWN...
Owner’s Manual PLR 20S/25S/25D/33D Platform Cart Stops Operation (Optional) Aluminum Platform Cart Stops 1. Push the cart stop latch out toward the curb side, Fig.14. Both cart stops will spring open automatically once the latch has been moved from its original position, Fig.15. 2.
Page 17
Owner’s Manual PLR 20S/25S/25D/33D Steel Platform Cart Stops 1. Each cart stop is equipped with a retaining latch. Push each latch inward to open the cart stop, Fig.17. The cart stop will automatically spring open once the latch has been pushed, Fig.18. 2.
Owner’s Manual PLR 20S/25S/25D/33D Preventive Maintenance and Quick Check The PLR needs preventive maintenance to perform at its fullest capability. Lubricate and inspect regularly. Also, check hoses, cables, controls, etc. and make sure these components are not damaged. REPAIR OR REPLACE FAULTY PARTS IMMEDIATELY Maintenance and Care The following “inspection and maintenance”...
Owner’s Manual PLR 20S/25S/25D/33D Lubrication Properly lubricated, the PLR series Liftgates will ensure longevity. Lubricate the liftgate at the same time as the truck/trailer. Grease more frequently if the liftgate is often used. The liftgate should be greased every 500 cycles (depending on use – estimated every 3 month). All bearing points must be lubricated in accordance with the maintenance intervals from Section 6.1.
Page 20
Owner’s Manual PLR 20S/25S/25D/33D 4 Zerks: - 1 Lift arm Open enclosure to - 1 Parallel arm check and refill oil. - 2 Cylinder 4 Zerks: - 1 Lift arm - 1 Parallel arm - 1 Shackle 4 Zerks: - 1 Cylinder - 1 Lift arm - 1 Parallel arm - 2 Cylinder...
Owner’s Manual PLR 20S/25S/25D/33D Checking and Changing the Oil To check fluid: To begin, lower gate to ground and tilt platform down. Remove the cover from the Hydraulic Power Unit enclosure. The level of the oil should be between 1.0“ to 1.5“ from the top of the oil reservoir when the platform is at ground level.
Owner’s Manual PLR 20S/25S/25D/33D Decal Placement and Inspection For operator’s safety, all decals appearing in “Decal Kit” must be placed visibly on the control side of liftgate to be read by operator. This is typically a combination of decals on the liftgate and truck/trailer body.
Page 23
Owner’s Manual PLR 20S/25S/25D/33D Decal - C Decal - B Decal - A Decal - E Decal - F Decal - D Decal - G Decal – I Decal - H Decal – J Driver Side Curb Side Rev. 1.4...
Owner’s Manual PLR 20S/25S/25D/33D Quick Check List Operate the liftgate throughout its entire operation and check for noise and damage such as bent parts or cracked welds. Inspect all welds and fasteners that attach the mount frame to the truck. All pins and bolts that connect the lift arm to the mount frame and to the platform.
Owner’s Manual PLR 20S/25S/25D/33D Liftgate will not power on. 1. Check the shut off switch. Turn ON the ON/OFF switch located inside the vehicles cab (Truck) or on the dock bumper strut (Trailer). Strut Toggle Switch ON/OFF Switch Rocker Switch Location for Trucks ON/OFF Switch Location for Trailers...
Page 26
Owner’s Manual PLR 20S/25S/25D/33D 3. Are the vehicle batteries charged? Check batteries and the truck/trailer charging system. Start truck and run engine in fast idle for charging the batteries. If liftgate starts working, recharge and load test batteries. Measure battery voltages: Flooded Batteries = 12.6V;...
Owner’s Manual PLR 20S/25S/25D/33D Liftgate does not Lower Down Visually check the valves at cylinders for mechanical damage such as bent or broken valves. Open the cover at the Hydraulic Power Unit and unplug the black cable (#2) with the inline fuse. Unplug cable #6 from toggle switch to both the two wire release valve harnesses.
Owner’s Manual PLR 20S/25S/25D/33D Liftgate does not Lift Up Visually check the valves at cylinders for mechanical damage such as bent or broken valves. 2. Jump female end of cable #2 to small small positive connector on motor solenoid Be aware of your surroudings at all times. Do NOT stay between platform and truck body. 3.
Owner’s Manual PLR 20S/25S/25D/33D Wiring Diagram – Battery Setup *Resettable Circuit Breaker: 150 Amp Min. Replace with same amperage breaker when necessary. Ground: For optimal grounding, ground all batteries and power units to the body side rails of the vehicle. NOTICE: DO NOT attempt to jump in-line fuses with other objects other than the specified fuse.
Owner’s Manual PLR 20S/25S/25D/33D Cross Test on Single Pole Plug Charge System Testing of full system using a battery load tester. Start with testing each individual battery on both tractor and trailer before proceeding to check the system: A. 12V lead from tractor coil cord B.
Owner’s Manual PLR 20S/25S/25D/33D Hydraulic Schematics (Power Down) S1 & S2 - Release Valve for Lowering R1 & R2 - Flow Restrictor for limiting lower speed. S5 - Shift Valve is activated upon LOWER function only. Pilot to close check valve is NOT used on Power Down. Raise = M Power Down = M + S1&2 + S5 Dual Cylinder Option...
In order to assure quick delivery of spare parts, please always state the following information when making orders: Liftgate model & serial number. Parts manuals are available at www.palfinger.com if necessary. Designation and number of the spare part in accordance with the spare parts list.
