39215-408/Issue 1
4

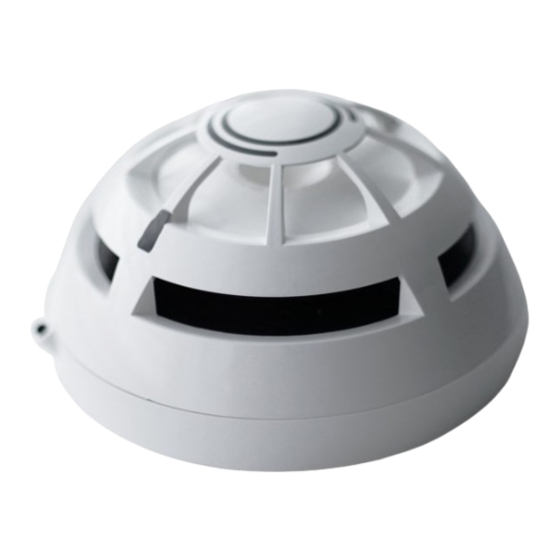

Soteria Multi-Sensor and Tri-Sensor Detectors
Installation Instructions
General
These instructions apply to the installation of the following products:
Part Number
Product Description
SA5100-810APO
Tri-Sensor Detector (Dual Optical/Heat/CO)
SA5100-710APO
Multi-Sensor Detector (Dual Optical/Heat)
SA5100-720APO
Multi-Sensor Detector (Dual Optical/Heat)
For a list of compatible bases, please see the table below. Please refer to the installation
guide (IG) of the relevant base for help on how to wire the base.
Part Number
Product Description
SA5000-200
XPERT 8 Base
45681-209
XPERT 7 Base - Deep
45681-210
XPERT 7 Base
45681-219
XPERT 7 Base - Heated
SA5300-300
Soteria Sounder Base
SA5300-320
Soteria VID Base (WT Fl)
SA5300-321
Soteria VID Base (RD Fl)
SA5300-350
Soteria Sounder VID Base (WT Fl)
SA5300-351
Soteria Sounder VID Base (RD Fl)
IG Number
39215-005
39214-481
39214-481
39214-382
39215-319
39215-319
39215-319
39215-319
39215-319
1
Advertisement
Related Manuals for Apollo Soteria SA5100-810APO
Summary of Contents for Apollo Soteria SA5100-810APO
- Page 1 39215-408/Issue 1 Soteria Multi-Sensor and Tri-Sensor Detectors Installation Instructions General These instructions apply to the installation of the following products: Part Number Product Description SA5100-810APO Tri-Sensor Detector (Dual Optical/Heat/CO) SA5100-710APO Multi-Sensor Detector (Dual Optical/Heat) SA5100-720APO Multi-Sensor Detector (Dual Optical/Heat) For a list of compatible bases, please see the table below. Please refer to the installation guide (IG) of the relevant base for help on how to wire the base.
- Page 2 Addressing Technical Data The address of the Soteria Multi-Sensor (Dual Optical/ Heat) and Tri-Sensor Detectors is set Part Number SA5100-810APO SA5100-710APO / SA5100-720APO using the DIL switch on the back of the devices. All segments of the switch are set to 0 or 1, Product Multi-Sensor Detector Tri-Sensor Detector...
