- Page 1 MDA 1 使用说明书/USER MANUAL 本说明书的内容可能会随版本更改如有变动, 恕不另行通知 The contents of this manual may be changed with the edition, and are subject to change without notice. Ver 1.0...
-
Page 2: Safety Notes
Dismantling, refitting, repairing by user in private. Causing damage by using some fittings instead of the designative or accredited ones. Cannot provide credible proof of purchase. 4.Sending it back to our company for repairing. 5.Contact your S.M.S.L Audio reseller for a return or replacement. - Page 3 Features Supports MQA decoding and MQA-CD; 2 pieces of ESS new generation high-end DAC chip ES9039Q2M; Adapts the latest Bluetooth chip of Qualcomm, supports LDAC 24bit/96kHz, APTX/HD, SBC and AAC; Utilizes 6 high-end dual op-amps OPA1612A and numerous audio-grade components; The brand-new third-generation XMOS XU-316, supports up to PCM 32bit/768kHz and DSD512;...
-
Page 4: Specifications
Specifications Input ....................... USB/Optical x2/Coaxial x2/Bluetooth Output ............................ RCA/XLR/HEADPHONE THD+N......................0.00005%(-124.5dB non-Weighting) Line output amplitude.............XLR 5.2Vrms 2.5Vrms 8.2Vrms Headphone output power..........16Ω 2.5Wx2 32Ω 1.7Wx2 Output Impedance............LINE OUT 100Ω HP OUT Near 0Ω 132dB Dynamic range..............XLR 127dB 122dB SNR ..................XLR 132dB 127dB 122dB USB transmission... -
Page 5: Remote Control

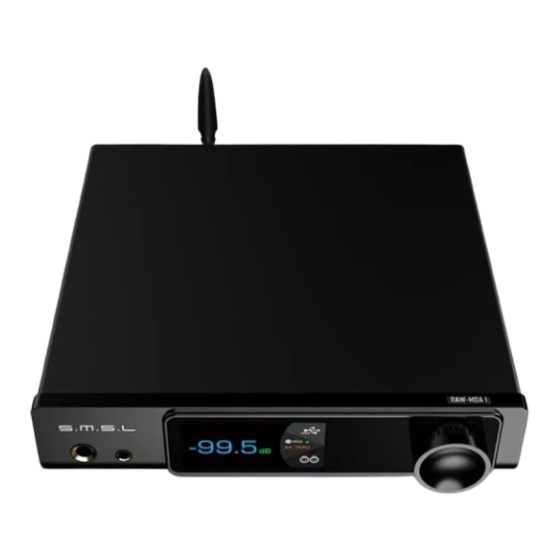

Remote control If the remote control is still ineffective when it is close to the machine, replace it with a new battery. If the user does not use the remote control for a long time, remove the battery of the remote control. - Page 6 Display Interface and Instructions Knob Remote window Standby indicator light 6.35mm headphone jack Display 4.4mm headphone jack Coaxial input 2 XLR outputs Coaxial input 1 Optical input 2 RCA outputs Bluetooth antenna Optical input 1 AC IN USB input...
- Page 7 Instructions NPUTS PUTS USB TYPE C ALL LINE OUT BLUETOOTH HEADPHONE OUT OPTICAL 1 BALANCED COAXIAL 1 UNBALANCED OPTICAL 2 COAXIAL 2 SOUND COLOR There are 9 sound color settings ： Rich1、 Rich2、 Rich3 HPA GAIN Tube1、 Tube2、 Tube3 Crystal1、 Crystal2、 Crystal3 HIGH This setting is usingthe DSP of DAC,to make some different sound color, all of these settings will not change the...
- Page 8 Instructions PCM FILTER MINIMUM PHASE MINIMUM FAST ROFF LINEAR FAST ROFF MINIMUM SLOW ROLL LINEAR FAST ROLR MINIMUM SLOW ROLR LINEAR SLOW ROLL...
- Page 9 Instructions DPLL MIN ~ MAX (A total of 15 kinds, the default is 7 kinds. The larger the number is, the stronger the range to adapt to jitter, and the smaller the number, the better the performance against clock jitter.) This DPLL setting is a special function of ESS series products.
- Page 10 About MQA MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download. The MDA1 includes MQA technology, which enables you to playback MQA audio files and streams, delivering the sound of the original master recording.
