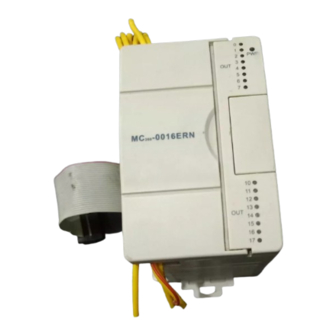

MC200 Series Passive I/O Expansion Module
User Quick Start Manual
Thank you for using MC200 series PLC. Before using the product,
please carefully read this manual so as to better understand it, fully use it,
and ensure safety. This quick start manual is to offer you a quick guide to the
design, installation, connection and maintenance of MC200 series PLC,
convenient for on-site reference.
For detailed product information, please refer to MC200 Series PLC
User Manual and MC200/MC100 Series PLC Programming Reference Manual .
For ordering the above user manuals, contact your Megmeet distributor or
sales office.
1. Product Introduction
1.1 Appearance and Part Names
Extension port cover
Connecting terminal cover
Extension cable plug
Extension cable
Status indicator
Connecting terminal

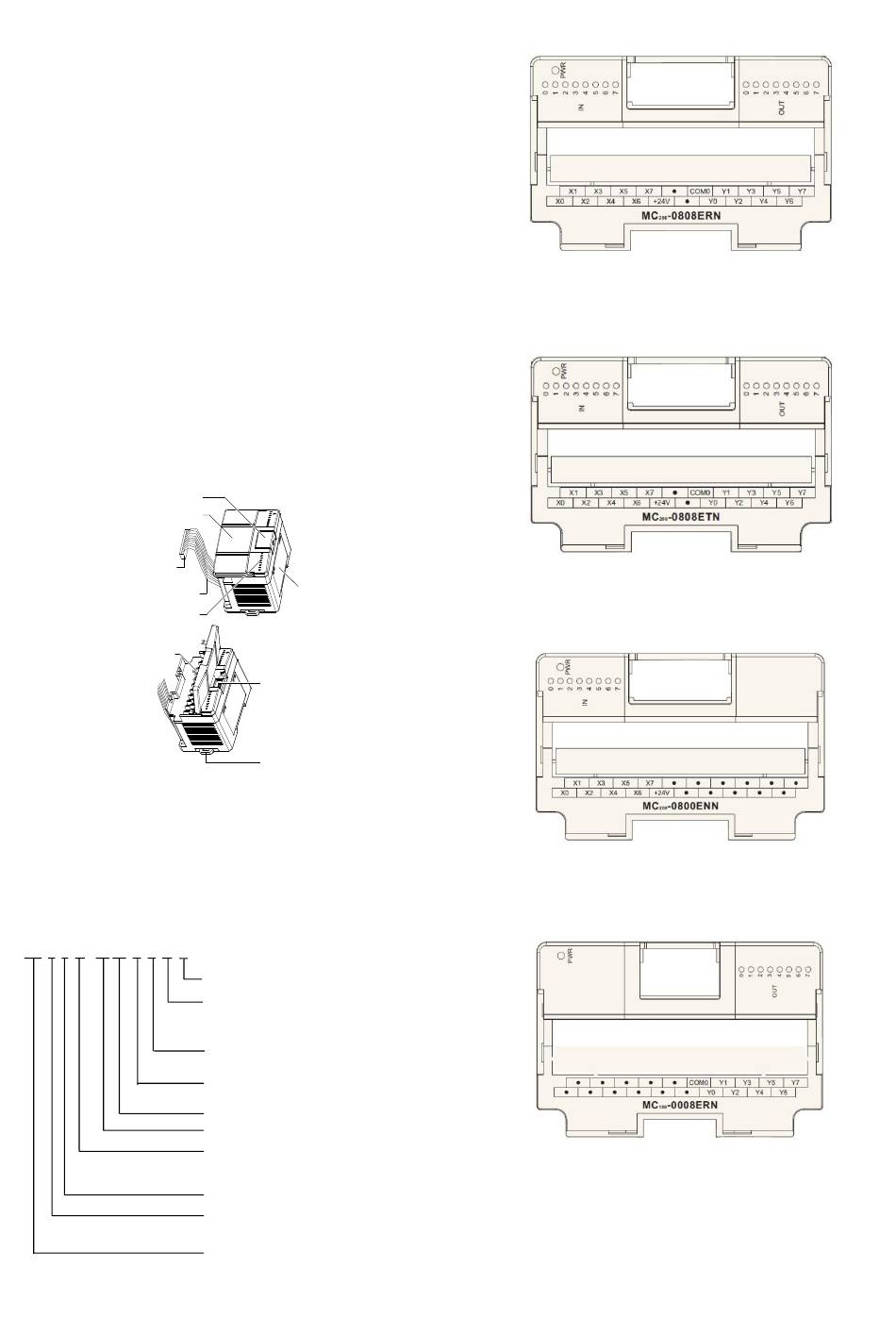

Fig. 1-1 Appearance and part name
1.2 Model Designation
The model designation is shown in the following figure.
x
MC 200
-0808 E
R
N
Figure 1-2 Model designation
Product label
Extension port
DIN clip
x
Special function
A: AC220V power input
D: DC24V power input
N: No external power input
R: Relay output
T: Transistor output
N: No output
B: Basic module
E: Expansion module
Output points: 8
Input points: 8
Sub-version, indicating the function/
structural change to the mainstream
module, following the alphabetic order
Version No.
Serial No.: 1: mini. 2: small. 3:
middle. 4: large.
Megmeet Controller module
1.3 Appearance and Terminal
MC200-0808ERN
Fig. 1-3 Appearance and terminal of MC200-0808ERN
MC200-0808ETN
Fig. 1-4 Appearance and terminal of MC200-0808ETN
MC200-0800ENN
Fig. 1-5 Appearance and terminal of MC200-0800ENN
MC200-0008ERN
Fig. 1-6 Appearance and terminal of MC200-0008ERN
