GGM GASTRO ELECTRIC OIL CLEANING SYSTEM 02 SAFETY INSTRUCTIONS ________________________________________________________________________ 2 01 PRODUCT___________________________________________________________________________________ 3 03 USAGE INSTRUCTIONS_______________________________________________________________________ 4 03‐01 Filtering Unit ___________________________________________________________ _ ____________ 4 03‐02 Control Unit __________________________________________________________ ___ __________ 5 03–03 Operating ________________________________________________________________ _____________ 6 04 SOLVING SOME PROBLEMS THAT MAY OCCUR ________________________________ ___ ______________ 8 05 TECHNICAL DOCUMENT _______________________________________________________________________ 9...
Page 2
01 SAFETY INSTRUCTIONS Incorrect operation of the product may result in danger and injury. The following should be noted. Possible hazards are marked with the following symbols. RISK OF SLIP DANGER May cause lubrication on Risk of injury if not the floor observed RISK OF ELECTRIC SHOCK OPERATING...
Page 3

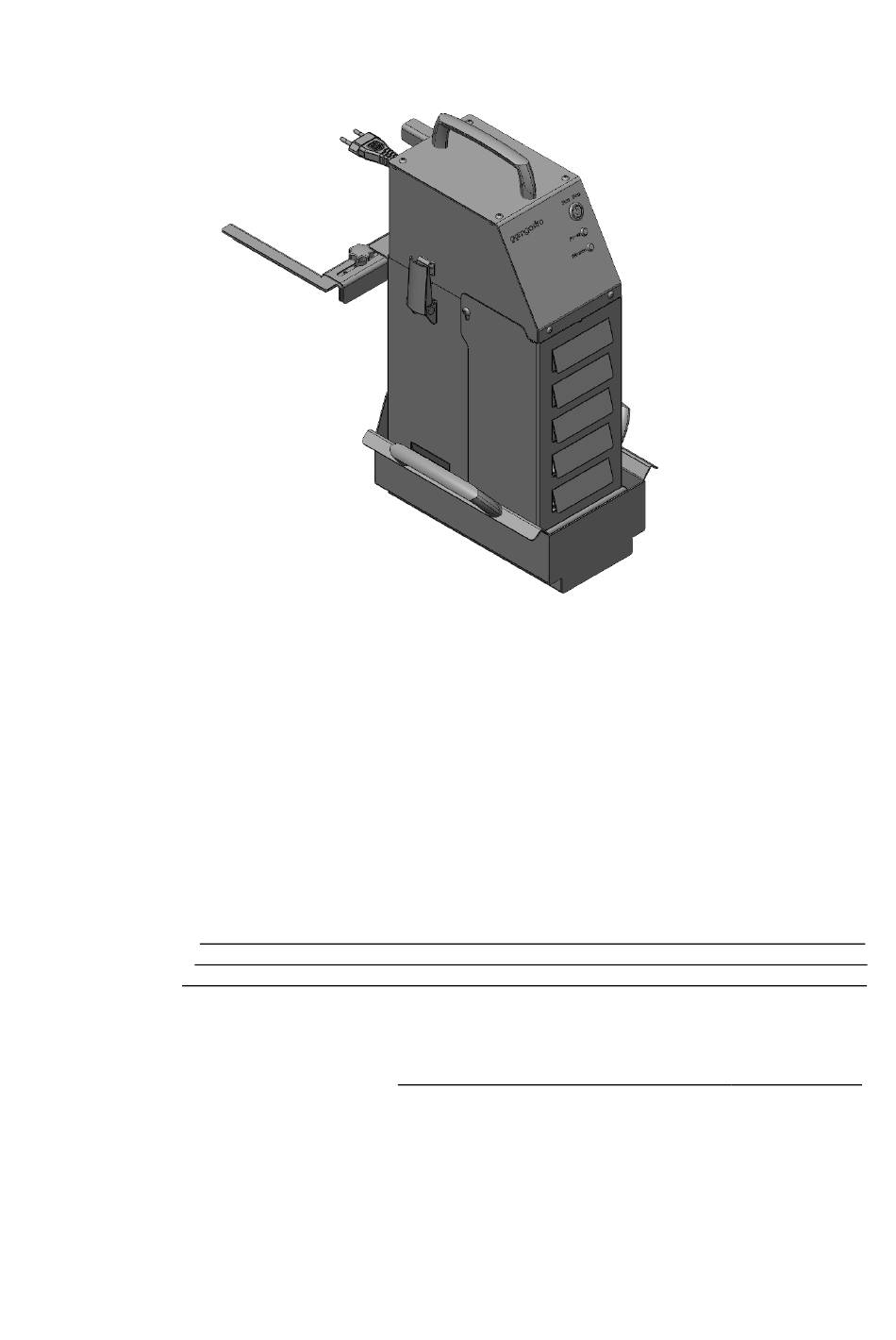

01 ‐ ELECTRIC OIL CLEANING SYSTEM UNITS 01‐01 CONTROL UNIT 01‐02 FILTRATION UNIT 01‐03 HANGING 01‐04 DRIP HOPPER APPARATUS...
Page 4
03 INSTRUCTIONS FOR USE 03‐01 Filtration Unit A) Hanging Apparatus Hanger B ) Articulated Locking Bottom (2 pcs) C ) Gripping Mechanism D) Movable Front cover gearwheel O ) Coupling Pins E) Oil Pump Pipe (Filter (Bag Fitting Flange) A) Hanging Apparatus Hanger : Adjustable Hanger for Positioning the Suspension Apparatus B) Articulated Locking Bottom :Fixes Control unit and Filtering unit to each other C) Gripping Mechanism : Gripping Mechanism Filters with Propeller System D) Movable Front Cover : It preserves the bag and Prevents Oil splashing in the Filtration Process E) Oil Pump Pipe...
Page 5
03 INSTRUCTIONS FOR USE 03‐02 Control Unit FRONT VIEW F) Carrying Handle G) Start – Stop Button H) Power Indicator – Green Light I ) Filter Indicator – Yellow Light J ) Articulated Lock Top (2 Pieces) BACK VIEW M ) Plug L ) On – Off Button N) Fuse Box F) Carrying Handle: Use This Handle to Carry the Product G) Start – Stop Button: It is the Start Filtering Button H) Power Indicator : Green Led Indicating That Energy Is Coming In I) Filter Indicator: Yellow Led Indicating that Filtering Has Started J) Articulated Lock Hook: Fastens the control unit and the Filtration unit to Each Other L) On ‐ Off Button : Turns the system on or off Plug : Allows Energy to Come N)Fuse Box: Box with Fuse...
Page 6
03 INSTRUCTIONS FOR USE 03‐03 Operating 1. Let's Open the Movable Front Cover ( D) 2. Oil Pump Pipe (E) Let's Install The Disposable Oil Filter on the Filter Bag Flange And Close The Lid ✘ ✔ 3. Please Attach the Control Unit (01‐01) to the Filtering Unit with the Help of Clutch Gear ( C ) and Clutch Pins ( O ) ( 01 ‐02 )
Page 7
4. Lock with Articulated Lock Bottom ( B ) and Articulated Lock Top ( J ), We complete the assembly in this way. ✘ ✘ ✔ 5. Place the Hanging Apparatus ( 01 – 03 ) or Directly Into the Hot Oil in accordance with the Specified Minimum and Maximum Limits, following the Safety Instructions, paying attention to its grids or thermal sensors 6. Activate the System from the On ‐ Off Button ( L ) on the Back of the Control Unit (01‐01) and the Power Indicator ( H ) Light on the Front Panel of the Control Unit will come on. 7. Press the Start – Stop Button (G) on the Front Panel of the Control Unit And Start the Filtering Process, the Filter Indicator Yellow Light ( I ) will light up. 8. After Finishing the Filtering Process, Take the Machine to the Drip Chamber ( 01 – 04 ) and wait for it to cool. Otherwise, Injuries may result! 9. Open the Front Door of the Cooling Machine, Unscrew the Disposable Filter Bag And Put It In the Appropriate Recycling Bin,...
Page 8
10 . After all the procedures, You can Wash the Filtration Unit ( 01 – 02 ) , the Drip Chamber ( 01 – 04 ) and the Hanging Apparatus (01 – 03 ) of the Machine, But DO NOT WASH the Control Unit! You can wipe it with a damp or dry cloth! ✔ ✔ WASHABLE WASHABLE ✘ DO NOT WASH! 04 – SOLVING SOME PROBLEMS THAT MAY OCCUR POSSIBLE PROBLEM POSSIBLE CAUSE SOLUTION * Check it with the Charge Indicator and Plug it in to * The Charge may be Over. be charge Power Indicator light is not lit * The fuse may have blown. * Replace the Glass Fuse Located on the Back * The Device Is Defective * Please contact the Technical Service * The Articulated Lock Is Loose * Tighten the Articulated Lock In Case Of Too Much Noise * Rotation System Malfunction * Please contact the Technical Service * Rubbing the device against Frutöz elements * Change the Position of the Device * The Filtration Bag Is Not Installed ...
Page 9
05 – TECHNICAL DOCUMENT TECHNICAL DATA GFR80E GFR30E GFR50E NOMINAL VOLTAGE 220 ‐ 240 V ~ ±10% 50 ‐ 60 Hz POWER 100 W DC MOTOR CONTROL ON ‐ OFF ve START ‐ STOP NOISE LEVEL < 50 DB OPERATING TEMPERATURE Control unit MAX 60 °C ‐ Filtering Unit MAX 180 °C STORAGE TEMPERATURE 8 °C ‐ 30 °C WEIGHT 7,85 kg 8,25 kg 8,67 kg...
