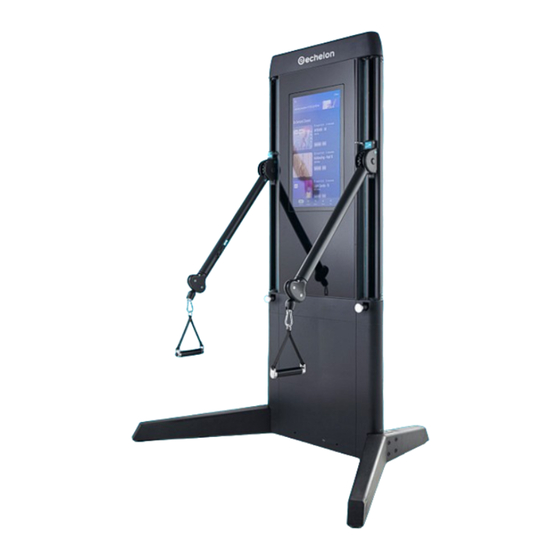

Echelon STRENGTH PRO Instruction Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

S T R E N G T H P R O

I N S T R U C T I O N

M A N U A L

Table of Contents

Need help?

Do you have a question about the STRENGTH PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Echelon STRENGTH PRO

Page 1 S T R E N G T H P R O I N S T R U C T I O N M A N U A L...
Page 2 Lou Lentine Founder & CEO Echelon Fitness Multimedia, LLC...
Page 3 Hello, I am Lou Lentine, Founder & CEO of Echelon, and I would like to welcome you to the Echelon community. You’ve made a great decision for yourself and your family. The Echelon Experience is an innovative combination of fitness products integrated with our state-of-the-art Echelon Fit app.
Page 4 FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT 15.21 FCC RF RADIATION EXPOSURE STATEMENT: You are cautioned that changes or modifications not expressly approved 1. This Transmitter must not be co-located or operating in conjunction with by the party responsible for compliance could void the user’s authority to any other antenna or transmitter.
Page 5 INNOVATION, SCIENCE AND ECONOMIC DEVELOPMENT CANADA (ISED) INNOVATION, SCIENCE ET DÉVELOPPEMENT ÉCONOMIQUE CANADA (ISED) THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CAUTION: EXPOSURE TO RADIO CANADIAN ICES-003. FREQUENCY RADIATION 1. To comply with the Canadian RF exposure compliance requirements, this CET APPAREIL NUMÉRIQUE DE CLASSE B EST device and its antenna must not be co-located or operating in conjunction CONFORME À...
Page 6 WARNING LABELS | WarnIng LaBELs...
Page 7 WarnIng LaBELs |...
Page 8: Table Of Contents
PARTS LIST �� 13 ECHELON STRENGTH PRO SPECIFICATIONS �� 18 ACCESSORIES & PORT SPECIFICATIONS �� 19 ASSEMBLY �� 20 USING THE ECHELON STRENGTH PRO �� 26 Arm Adjustments �� 21 Workouts �� 25 App Instructions �� 27 Connecting to the Echelon Fit App �� 38...
Page 9: Important Safety Instructions
1. For best machine performance keep the Echelon Strength Pro on a ® • The minimum clearance area behind the Echelon Strength Pro is 2.0 m dedicated 15amp circuit. (78.7 in) × the Echelon Strength Pro width. This area must be free of ®...
Page 10 ® are safely placed on handlebars during use. • When the Echelon® Strength Pro is not in use, position the arms so that Read the user manual fully and follow all instructions. This ensures the accessory attachment end is facing the ground and tucked into the your safety.
Page 11 Citric Acid, Acetic Acid, Alchohols, Calcium Chloride, Hypo Cholorite, Bromine Liquids, Diacetone & other derivatives. When not using the Echelon Strength Pro, unplug the unit and store the plug in ® a hard-to-reach area away from children or mentally handicapped individuals.
Page 12 IMPORTANT SAFETY INSTRUCTIONS (cont’d.) SKETCH A GROUNDING INSTRUCTIONS This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment- Grounded Outlet grounding conductor and a grounding plug.
Page 13: Parts List
PARTS LIST INCLUDES Strength Machine 2. Right Leg (Weighted) 3. Left Leg (Weighted) 4. Accessory Rack 5. Snap Hook ×2 6. Accessories (pg. 19) Handle Grips Ankle Strap Straight Bar Rope Grip Power Cord (Not Pictured) 8. Hardware Kit (Pg. 14) parTs LIsT |...
Page 14 HARDWARE PACK Do not open sections of hardware pack until they are needed. Part No. Hardware Kit (2) Hex Large Flat Head Full Tooth Bolt (8) M10×15 Hex Countersunk Head Full Tooth Bolt (8) M10×95 L-Shaped Wrench M2×17×50 Cross Recessed Pan Head Full Tooth Bolt (2) M5×20 Spring Washer (6) Ф...
Page 15 MASTER PARTS LIST MasTEr parTs LIsT |...
Page 16 Lateral Arm Adjustment Slider Left / Right Arm Accessory Attachment Horizontal Rotation Adjustment Pin Accessory Left / Right Side Power Switch & Ports Stabilizing Legs For replacement parts, refer to the MASTER PARTS LIST on page 15. | sTrEngTH prO spECIFICaTIOns...
Page 17: Accessories & Port Specifications
ACCESSORIES & PORT SPECIFICATIONS Handle Grips Straight Bar Pause & Resume Class Rope Grip Pause | Resume | Adjust Resistance Ankle Strap Power Reset Network Off/On Cable Switch Cable aCCEssOrIEs & pOrT spECIFICaTIOns |...
Page 18: Assembly
ASSEMBLY Assembly Setup Remove Main Frame from packaging and stand upright in assembly location. Remove wooden support panels from both sides of Main Frame, being sure to keep Main Frame stabilized. IMPORTANT NOTE: Main Frame will NOT stand without support before stabilizer legs are assembled. We recommend 2–3 people minimum for assembly.
Page 19 Assembling the Accessory Rack Attach Accessory Rack Cover (F21) into C-shaped holder (A13) with 2x bolt M5×20 (L04) and tighten. STEP assEMBLY |...
Page 20 BATTERY INSTALLATION Handle Grip Battery Installation Loosen and remove screws (A) from Handle Grip end cap without button using the included L-Shaped Wrench (L03). Remove End Cap (B) and Handle Tube (C). Insert Button Battery (D) into battery compartment with positive (+) pole facing upwards.
Page 21: Arm Adjustments
ARM ADJUSTMENTS Lateral rotation adjustment (9 levels). Lift arm a little bit for easy operation, slide and hold the slider (C26) following the arrow direction to unlock. Rotate arm vertically till proper position. Then release the slider (C26) to lock the position. There are 9 levels to choose from.
Page 22 ARM ADJUSTMENTS (cont’d.) Sliding up and down adjustment (11 levels). Pull up the 7-shaped lever (C51) to unlock, slide the arm up and down to the required height. release the 7-shaped lever (C51) to lock the position. There are 11 heights to choose from. STEP | arM adjusTMEnTs...
Page 23 Horizontal rotation adjustment (3 levels). Pull and hold the pull pin head (C14), rotate the arm horizontally to the required position. Release the pull-pin head into place to lock the position. STEP arM adjusTMEnTs |...
Page 24 STRENGTH MACHINE USED WITH BENCH Bench Not Provided The bench (not provided) is placed in front of the strength machine, adjust the arm to the proper position for variety exercises, e.g., squat presses, seated pull-ups. | sTrEngTH MaCHInE usEd WITH BEnCH...
Page 25: Workouts
WORKOUTS Shoulder Press Cable Squat Chest Fly Cable Kickback Bicep Curl Abdominal Crunch Incline Bench Press Rope Pull-Down Cable Twist WOrKOuTs |...
Page 26 USING THE ECHELON STRENGTH PRO Membership Activate Echelon Premier Membership to connect to classes. Activation You should have received an activation email after purchasing this product. Required Follow the link from the activation email. to Unlock Choose "Sign Up Now" and follow the prompts to complete your the Echelon membership enrollment.
Page 27: App Instructions
APP INSTRUCTIONS TERMINOLOGY CLASSES CLASS LIST FILTERS WORKOUT DETAILS END WORKOUT STATS app InsTruCTIOns |...
Page 28 Connecting to the Echelon Fit ® We recommend a welcome class, but any class will work. Ensure your Echelon Strength Pro is powered on. Press play. Follow the link from the activation email. Choose "Sign Up Now" and follow the prompts to complete your membership enrollment.
Page 29 GENERAL FUNCTIONALITY Introducing the Echelon Strength Pro CLASSES CLASS LIST The Classes Page can be found on the far left side of the navigation bar at the bottom of the screen. This page will show the available categories for classes.
Page 30 APP INSTRUCTIONS (cont’d.) GENERAL FUNCTIONALITY (cont'd.) How does the search work? CLASSES CLASS LIST The Search can be found by going to the Classes page and selecting the magnifying glass in the top left corner. On the search page you will see popular searches and recent searches. You can search for class names, keywords, instructors or class types.
Page 31 Where are Echelon Workouts found? 2. Select ‘Create Workout’ in the bottom right. Echelon workouts are found on the ‘Custom’ page. Once on the Custom 3. You will be prompted to enter a name for the new workout. page, the workouts will be split into 2 sections: 4.
Page 32 Freestyle via an option on the ‘Custom’ Tab, similar to where you would find Echelon Created Workouts. g. Once one, select ‘+ Add to Workout’. You will be taken back to the workout screen with all movements.
Page 33 RESISTANCE MODES What is a resistance mode? How to change resistance modes. Resistance modes can vary based on workout type, movements, When in a class, pause the workout. and preference. The modes are: Select the button in the top left that shows the current resistance mode. Standard —...
Page 34 APP INSTRUCTIONS (cont’d.) WIFI CONNECTION LOGIN WIFI Before logging in: Tap the WiFi icon in the upper right corner to enter the WiFi page. Select your network to connect. | app InsTruCTIOns...
Page 35 ME PAGE SETTINGS WIFI Already logged in: Tap the 'Me' icon in the bottom menu bar to enter the 'Me' page. Tap the Settings gear icon in the upper right corner to enter the Settings page. Tap WiFi and select your network. app InsTruCTIOns |...
Page 36 APP INSTRUCTIONS (cont’d.) BLUETOOTH CONNECTION ® BLUETOOTH DEVICES ME PAGE SETTINGS ® Tap the 'Me' icon in the bottom menu bar to enter the 'Me' page. Tap the Settings gear icon in the upper right corner to enter the Settings page. Tap Bluetooth Devices and select your Bluetooth ®...
Page 37 SMART ACCESSORIES CONNECTION ME PAGE SETTINGS SYNC ACCESSORIES Tap the 'Me' icon in the bottom menu bar to enter the 'Me' page. Tap the Settings gear icon in the upper right corner to enter the Settings page. Tap 'Sync Accessories' to select and pair the Straight Bar and Handle Grips.
Page 38: Connecting To The Echelon Fit
CONNECTING TO THE APP Connecting to the Echelon Fit ® 1. Ensure your Echelon® Strength Pro is both powered on. The power cord should be plugged into the wall and the base of the Echelon® Strength Pro. 2. Log in to the Echelon Fit® App.
Page 39: Care & Maintenance
3. When the Echelon® Strength Pro is not in use, position the arms so that the accessory attachment end is facing the ground and tucked into the sides of Daily | 4 the machine as to not obstruct foot traffic and avoid injury.
Page 40 Weekly (cont'd.) Weekly | 5-a 3. Dust and vacuum the Echelon® Strength Pro and the surrounding area. To clean underneath the Echelon® Strength Pro, turn off the power, and move the Echelon Strength Pro to an alternate location. Return the Echelon Strength Pro to its original location after cleaning.
Page 41 Assess the components around the cable pulley. If there is an intense build up of dust or debris, contact our customer service to schedule a technician to properly clean and restore the components before using your Echelon Strength Pro again.
Page 42: Customer Service
Submit a Request: Warranty Information Your Echelon Strength Pro comes with a 1-year parts ® and labor warranty. Should the need arise, all you need is a proof of purchase and our customer service team will be happy to assist. Additional 1- or 2-year extended warranties are available through customer service.
Page 43 NOTES...
Page 44 MODEL: ECH-STRENGTHPR ECHELON FITNESS MULTIMEDIA, LLC 605 CHESTNUT STREET, SUITE 700 CHATTANOOGA, TN 37450 ECHELONFIT�COM / ECHELONCOMMERCIAL�COM READ INSTRUCTIONS MADE IN PATENT REV: BEFORE OPERATING CHINA PENDING 04162024...
