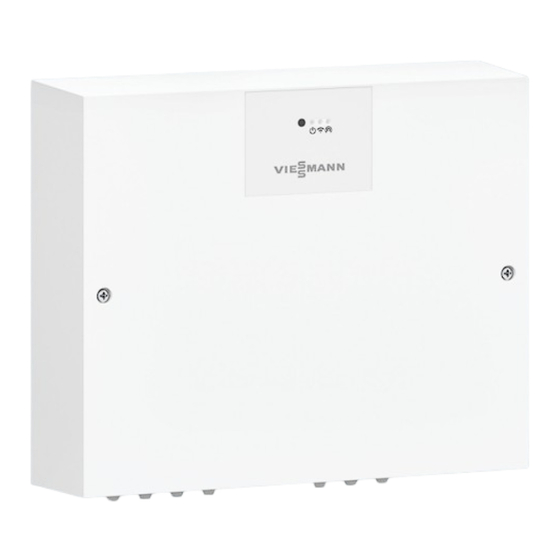

Viessmann VITOCONNECT V Operating Instructions Manual

Communication interface for remote monitoring and control of the vitovent 300-w ventilation unit via the internet
Hide thumbs Also See for VITOCONNECT V:
Table of Contents

Advertisement

Quick Links

Download this manual

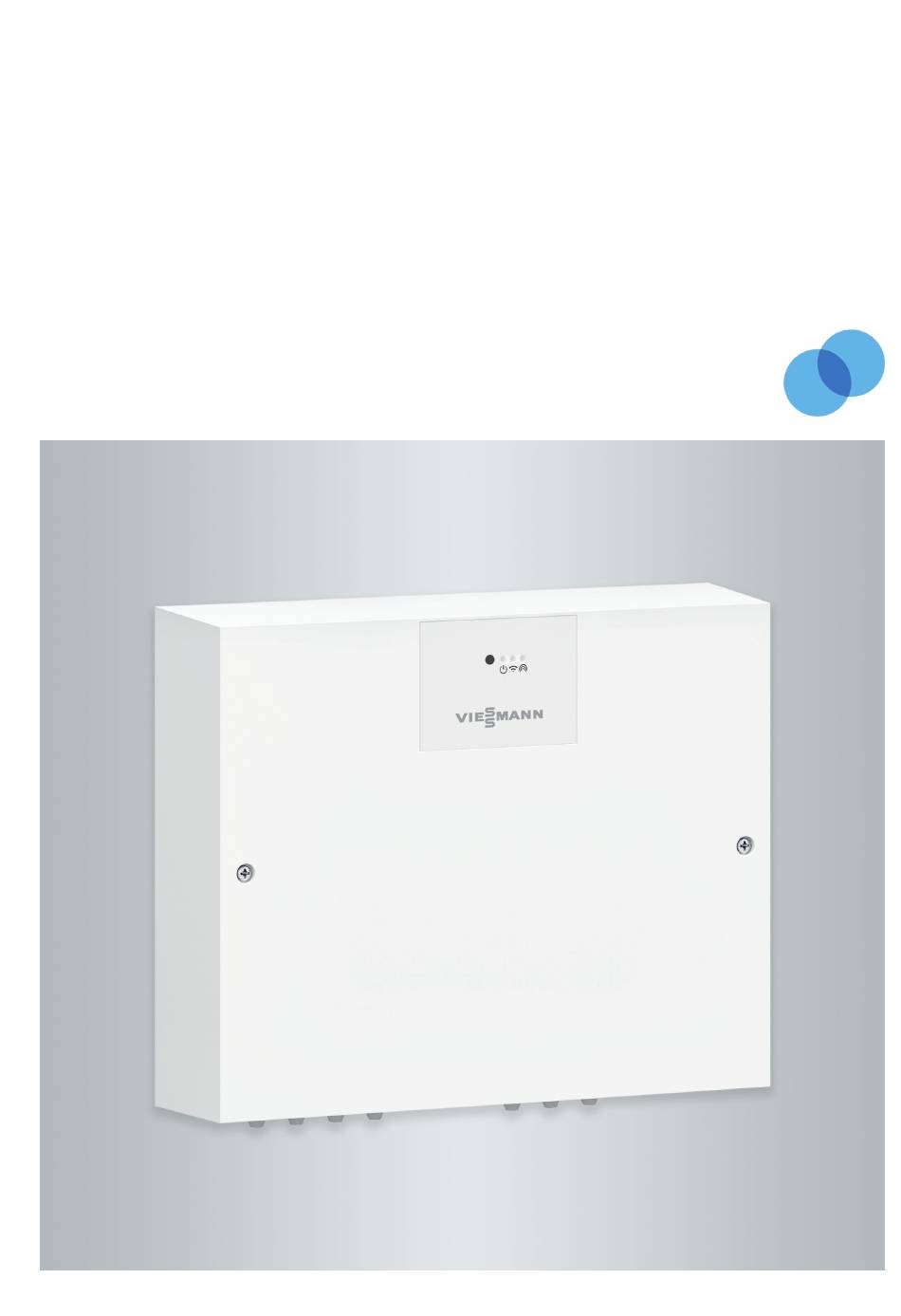

VIESMANN
Operating instructions
for the system user
Communication interface for remote monitoring and control of the Vitovent 300-W
ventilation unit via the internet
VITOCONNECT V
Please keep safe.
6218336 GB
4/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VITOCONNECT V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viessmann VITOCONNECT V

Summary of Contents for Viessmann VITOCONNECT V

  • Page 1 VIESMANN Operating instructions for the system user Communication interface for remote monitoring and control of the Vitovent 300-W ventilation unit via the internet VITOCONNECT V Please keep safe. 6218336 GB 4/2024...
  • Page 2 Safety instructions For your safety Please follow these safety instruc- tions closely to prevent accidents and material losses. Safety instructions explained Danger Note This symbol warns against the risk Details identified by the word "Note" of injury. contain additional information. Please note This symbol warns against the risk of material losses and environmen-...
  • Page 3 Safety instructions For your safety (cont.) Working on the appliance Auxiliary components, spare and wearing parts All settings and work on the appliance ■ must be performed as specified in Please note these operating instructions. Components that were not tested Further work on the appliance may with the system may cause system only be carried out by authorised con-...
  • Page 4 Safety instructions For your safety (cont.) Shutting down the system Please note If shutting down the appliance for an extended period of time, con- densate can form on the installed components, e.g. on the filters. This results in a risk of mould formation. Always leave the appliance switched on, even if there is nobody in the room.

  • Page 5: Table Of Contents

    Activating/deactivating access point ........... 17 ■ Setting up WiFi for the first time ............17 ■ Removing a registered Vitoconnect V from the ViCare app ....18 8. Information and messages Checking licence information ..............19 Checking licence information for the integral communication mod- ■...
  • Page 6 The relevant data protection regulations and terms of the system or the corresponding internet services. No use apply to the use of Viessmann apps. Viessmann liability is accepted for losses resulting from inappropri- accepts no liability for push notifications and email ate use.

  • Page 7: Symbols

    Do not dispose of component in domestic waste. Intended use The Vitoconnect V is only intended to be installed and With regard to the communication interfaces, ensure operated in conjunction with the Vitovent 300-W on site that the system requirements are maintained at mechanical ventilation unit, with due attention paid to all times for every transfer medium employed.

  • Page 8: Product Information

    It is possible to operate the ventilation unit in conjunc- a mobile device via the ViCare app. If your contractor tion with the Vitoconnect V via the following devices has connected the Vitoconnect V to a system network and apps:...

  • Page 9: Energy Saving Tips

    Introductory information Energy saving tips ■ If you are absent for a short period, reduce the venti- lation level. If you are going away, reduce the ventilation level for ■ the duration of your absence. Tips for greater comfort Demand-dependent mechanical ventilation If the air humidity is especially high or you are dealing with strong odours, e.g.

  • Page 10: Overview

    Notify your contractor if a fault message is permanently present. ■ Blinking red quickly. Fault message: A fault is present on the ventilation unit or on the Vitoconnect V. ■ The ventilation unit is not operational. ■ Call up the message in the ViCare app or on the Vitotrol 300-E.
  • Page 11 Operation on the Vitoconnect V Overview (cont.) Display Meaning Blinking white slowly. Ready for connection to the access point Starting to establish connection to the access point Steady white light. Connection to the access point is established. Blinking white quickly at Access point cannot be enabled because another leading control the same time.

  • Page 12: Requirements

    Operating ventilation unit with the ViCare app Requirements The ViCare app allows you to operate the entire sys- For further information on using the ViCare app: See tem via a mobile device, e.g. smartphone. www.vicare.info. The functions available depend on your system's equipment.

  • Page 13: Operating With The 4-Level Pushbutton

    Operating the ventilation unit with the remote control Operating with the 4-level pushbutton Set the required ventilation level using buttons 1 to 4. Level/button Ventilation level Ventilation for moisture protection: Minimum air flow rate Reduced ventilation: Reduced air flow rate Nominal ventilation: Standard air flow rate Intensive ventilation:...

  • Page 14: Operation With Vitotrol 300-E

    Operating instructions for the "Vitotrol 300-E" Other setting and display functions If the ventilation unit is operated alone without another ■ Low noise ventilation Viessmann appliance (such as a heat generator), ■ Intensive ventilation make all settings in the ventilation menu. ■...
  • Page 15 20 % regard- less of the time program. Note At least one ViCare climate sen- sor must be connected to the Vitoconnect V for this operating program. Quick select options 2 quick select options are available, "Intensive venti- Intensive ventilation lation"...
  • Page 16 The summer bypass opens or closes automatically above a fixed outside temperature limit of 7 °C. If the Vitovent 300-W is operated with a heat pump with Viessmann One Base, the bypass is only enabled when the heat pump is in cooling mode or standby mode.

  • Page 17: Setting Up The Internet Connection

    "Communication module" "Configure net- → → work". Follow the instructions in the ViCare app. 1. Activate the access point on the Vitoconnect V by briefly pressing operating button (see page 10). See chapter "Activating/deactivating access point" The ViCare app connects to the Vitoconnect V.

  • Page 18: Removing A Registered Vitoconnect V From The Vicare App

    Connecting the system Removing a registered Vitoconnect V from the ViCare app If the Vitoconnect V is installed in a rented property To do so, in the ViCare app select "Settings" "Gen- → and you have registered the system in the ViCare app, eral"...

  • Page 19: Checking Licence Information

    WiFi via the configuration page of your router. Calling up the licence information for third party components 1. Activate the access point on the Vitoconnect V: 5. On your connected mobile device, open the IP See chapter "Activating/deactivating access point".

  • Page 20: Checking Messages

    Checking messages Via the ViCare app or the Vitotrol 300-E, you can check messages from the Vitoconnect V and/or from the ventilation unit and see further information on the messages. Calling up information Information on the operating status of your system can be called up using the ViCare app.

  • Page 21: Switching The Mechanical Ventilation On And Off

    Switching on mechanical ventilation Danger Plug the power plugs for the Vitoconnect V and the A faulty or damaged power cable can lead to life ventilation unit into the socket. threatening accidents.

  • Page 22: Shows A Yellow Light

    Cause Remedy Fault message: In the ViCare app or on the Vitotrol 300-E: Fault on the Vitoconnect V or ventilation unit. Call up the message. ■ Make a note of the message. ■ Please notify your contractor.

  • Page 23: Cleaning

    Clean the casing of the ventilation unit and of the ■ We recommend that the ventilation unit and the duct- Vitoconnect V with a commercially available domes- work are serviced and, if required, cleaned regularly tic cleaning agent (non-scouring). (annually) by your HVAC contractor.
  • Page 24 Keyword index Keyword index Symbols 4-level pushbutton............13 Maintenance...............23 Maintenance message......... 20, 22 Mechanical ventilation Access point............17, 19 – Factory settings............8 App................12 – Saving energy............9 – Switching off............21 – Switching on............21 Button.................10 Messages..............20 Casing, cleaning............23 Overview..............10 Cleaning – Casing..............23 –...
  • Page 28 Your contact Contact your local contractor if you have any questions about your system or wish to arrange maintenance or repair work. You can find local contractors on the internet at www.viessmann.de. Viessmann Climate Solutions SE Viessmann Limited 35108 Allendorf / Germany...
