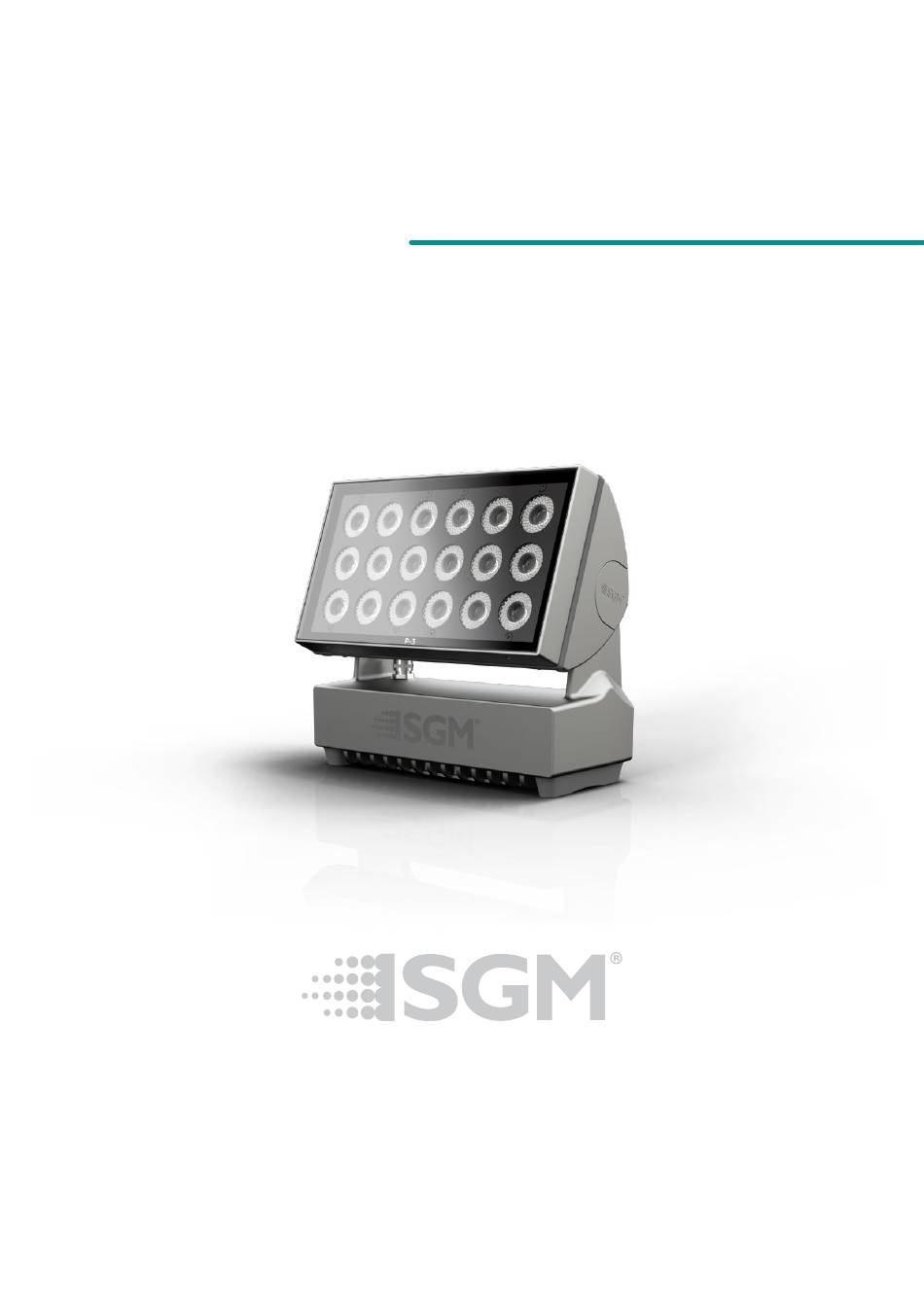

USER
MANUAL
P-3 Wash
POI
Document Revision A | Released 2024-07-23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-3 Wash POI and is the answer not in the manual?

Questions and answers

Related Manuals for SGM P-3 Wash POI

Summary of Contents for SGM P-3 Wash POI

  • Page 1 USER MANUAL P-3 Wash Document Revision A | Released 2024-07-23...

  • Page 2: P-3 Wash Poi Dimensions

    All dimensions in millimetres and inches. Drawing not to scale This manual covers installation, use, and maintenance of the P-3 SGM Series. A digital version is available at www.sgmlight.com or upon request via support@sgmlight.com. The information in this document is subject to change without notice.

  • Page 3: Table Of Contents

    P-3 WASH POI DIMENSIONS 4 SAFETY INFORMATION 5 BEFORE INSTALLING THIS PRODUCT 6 OVERVIEW 6 UNPACKING AND PREPARING FOR INSTALLATION 6 Unpacking 6 Application Considerations 7 INSTALLATION P-3 WASH POI 7  Identification and terminology of P-3 Wash POI 8 Settings 8  Temporarily Connecting Power FOR CONFIGURATION 8   Temporarily Connecting Data for Configuration 10  LED Indicator 11 BRACKET INSTALLATION 11 ...

  • Page 4: Safety Information

    WARNING! READ THE FOLLOWING SAFETY PRECAUTIONS CAREFULLY BE- FORE UNPACKING, INSTALLING, POWERING OR OPERATING THE DEVICE. SGM fixtures are intended for professional use only. They are not suitable for household use. Les fixtures SGM sont impropre à l’usage domestique. Uniquement à usage professionnel.

  • Page 5: Before Installing This Product

    BEFORE INSTALLING THIS PRODUCT VISUAL INSPECTION All users of the SGM fixtures should regularly clean those parts of the fixture directly exposed to the elements, such as the external housing and front lenses. Additionally, all owners of the SGM fixtures must periodically check the external housing of the fixture for structural breaks, deteri- oration, cracked lenses, or loose screws.

  • Page 6: Overview

    The range features multiple beam angles, LED engines and control protocols. The 3 series is an exterior rated, IP66 rated product line intended for permanent mounting. This User manual applies to a P-3 Wash POI equipped with an Ethernet- and CRMX module. Features and functional- ity may vary.

  • Page 7: Installation P-3 Wash Poi

    INSTALLATION P-3 WASH POI IDENTIFICATION AND TERMINOLOGY OF P-3 WASH POI A: 18 x LEDs B: Hex cap screw / tilt lock C: Cooling fans D: Dehumidifier E: Handle F: LED Indicator G: Hydrophobic membrane H: Power In/Out I: Hydrophobic membrane...

  • Page 8: Settings

    SETTINGS 3 Series fixtures are configured using either the user interface or SGM software; the SGM RDM Addressing Tool. This software is Windows® PC based and connects to the fixtures via DMX512/RDM using the SGM USB uploader cable. DMX Modes The fixture can be operated in different DMX modes.
  • Page 9 STEP 5: Disconnect up-loader cable from computer, then disconnect up-loader cable from fixture. Repeat Steps 2-5 for more fixtures. Multiple fixtures can be addressed and configured. Contact your SGM representa- tive for more information on multiple fixture addressing. Configuration through Ethernet The P-3 POI supports RDM over Art-Net.

  • Page 10: Led Indicator

    STEP 1: Using a SGM magnetic spanner tool, place the magnet close to the LED indicator, and wait for 3 seconds. The LED remains red as long as the hall sensor is activated. When the magnetic...

  • Page 11: Bracket Installation

    Step 3. Mount fixture in place by aligning the hole in the Omega bracket with suit- ably mounted hardware to structure. Figure 6: Omega bracket assembly P-3 Wash POI Product Version 1.0 | Revision A | Released 2024-07-23...

  • Page 12: Universal Bracket Attachment

    UNIVERSAL BRACKET ATTACHMENT M10 Countersunk Bolts POI Universal Bracket Fixture Using a bolt through this slot, the fixture will rotate around its center point, always use 2 bolts with washers. Figure 6: Universal bracket assembly...

  • Page 13: Permanent Mounting

    PERMANENT MOUNTING Carefully adjust the head until it is in the correct position. Apply a suitable grade of threadlocker to the threads of the two M6 hex bolts, ensuring even coverage. Using a callibrated torque wrench, tighten the bolts incrementally until the head is locked into place.

  • Page 14: Permanently Connecting Power & Data

    • The last fixture in line must have a resistor installed between the yellow and black data out wires. This is to terminate the DMX signal. • SGM fixtures provide a passive DMX Thru signal as DMX Out, instead of an active output signal. P-3 Wash POI...

  • Page 15: Power And Data Connections With Art-Net Or Sacn

    POWER AND DATA CONNECTIONS WITH ART-NET OR SACN Fixture Power Lead Fixture Data Lead Cat5e compatible Cat5e compatible cable cable 100-277 VAC 100-277 VAC 100-277 VAC 50-60 Hz 50-60 Hz 50-60 Hz To Luminaire To Luminaire Power Lead Data Lead Power Lead Data Lead Power Cable...

  • Page 16: Power And Data Connections With Wireless Dmx

    POWER AND DATA CONNECTIONS WITH WIRELESS DMX Fixture Power Lead Fixture Data Lead Wireless DMX Transmitter 100-277 VAC 100-277 VAC 100-277 VAC 50-60 Hz 50-60 Hz 50-60 Hz To Luminaire To Luminaire Data Lead Power Lead Data Lead Power Lead Power Cable Power Cable in Conduit...

  • Page 17: Rdm

    0x0090 GET/ SET Factory Defaults 0x8629 GET/SET Pixel-Flip 0x1001 Reset Fixture 0x8648 GET/SET Uni-Start 0x0120 DMX Slot info 0x8647 GET/SET IP-Address 0x0121 DMX Slot Description 0x8649 GET/SET Universe P-3 Wash POI Product Version 1.0 | Revision A | Released 2024-07-23...

  • Page 18: Accessories And Installation

    5. Fasten screws with 2,8 Nm of torque, use T20 size tool. PLEASE NOTE! IT IS RECOMMENDED TO USE THREAD LOCKER FLUID ON ALL SCREWS WHEN MOUNTING ANTI-GLARE SHIELD P-3 Wash POI Product Version 1.0 | Revision A | Released 2024-07-23...

  • Page 19: Maintenance

    MAINTENANCE FIRMWARE UPDATES The latest firmware, manuals and the SGM Network Admin tools are all available for free download a www.sgmlight. com. The SGM Light firmware tool is used to update firmware: Fixture firmware version can be identified by: • Connect either Std or POI uploader cable depending on which is more suitable for the installation •...

  • Page 20: Sgm Vacuum Test Kit

    Figure 12: SGM Uploader cable POI CLEANING SGM fixtures with IP65 or IP66-rating do not need any cleaning procedures inside the fixture. However, cleaning the front glass may be needed to achieve the maximum light output after exposure to dust, sand, or dirt. The exterior housing can also be cleaned to get a better look.

  • Page 21: Fixtures And Accessories

    P-3 Wash POI, RGBW4K, 10x40°, BL, Ethernet ........
  • Page 22 P-3 Wash POI, RGBW4K, 10x40°, GR, Ethernet ........
  • Page 23 P-3 Wash POI, RGBW4K, 10x40°, WH, Ethernet ........
  • Page 24 P-3 Wash POI, RGBW4K, 10x40°, BL, AirGlow ........
  • Page 25 P-3 Wash POI, RGBW3K, 10x40°, WH, Ethernet ........

  • Page 26: Accessories

    P-3 Wash POI, RGBW3K, 10x40°, WH, AirGlow ........

  • Page 27: Support Hotline

    SUPPORT HOTLINE SGM offers 24/7 technical support. https://sgmlight.com/about-sgm/contact-us APPROVALS AND CERTIFICATIONS Conforms to ..............2014/35/EU: Low Voltage Directive Conforms to .

  • Page 28: User Notes

    USER NOTES P-3 Wash POI Product Version 1.0 | Revision A | Released 2024-07-23...
  • Page 29 SGM LIGHT A/S Sommervej 23 8210 Aarhus V Denmark Tel: +45 70 20 74 00 info@sgmlight.com www.sgmlight.com...
