Rollixo Optimo RTS

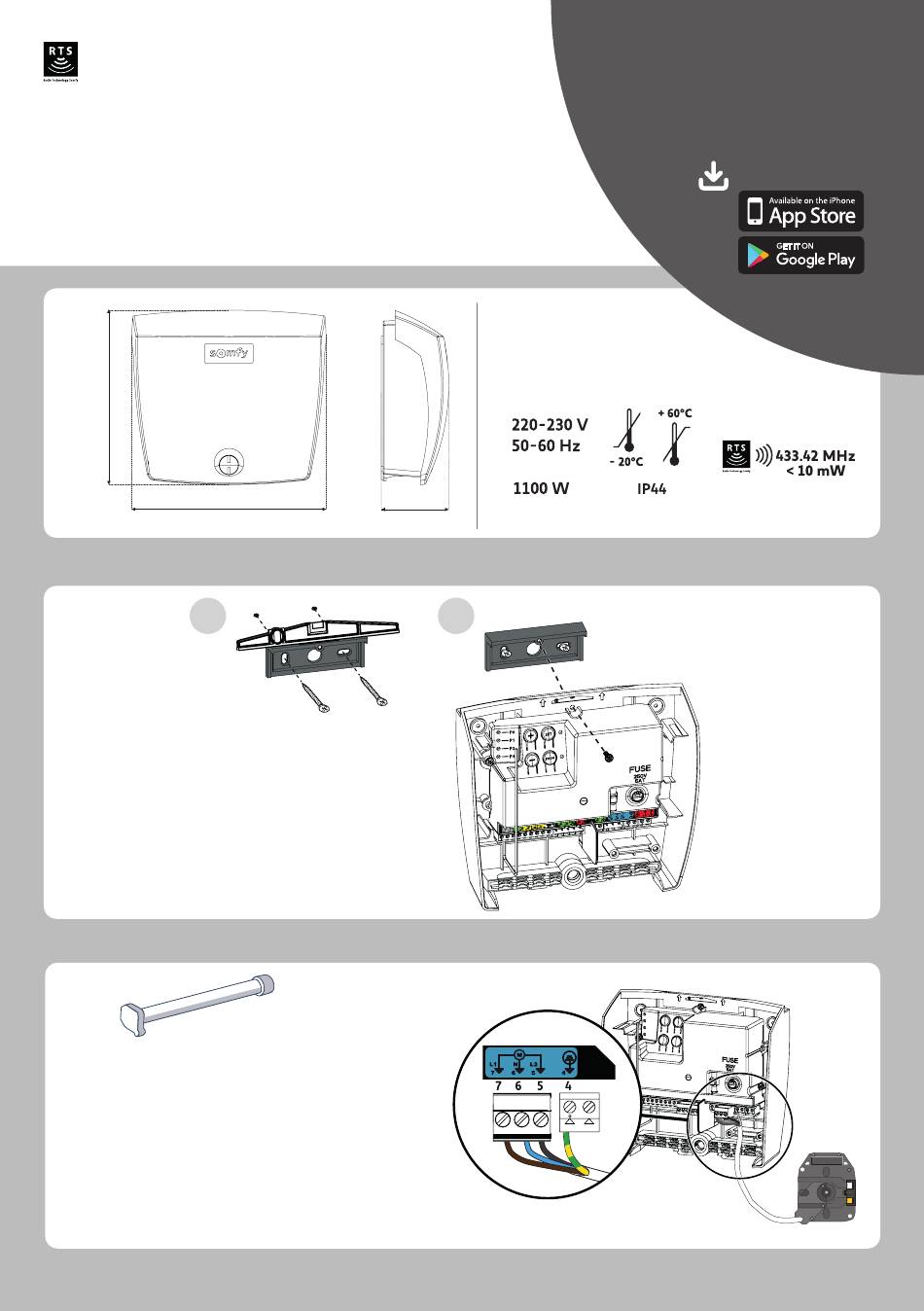

SMART GUIDE
Original instructions
Complete instruction guides available online on www.somfy.info
187 mm
208 mm
1
1
[1]
1. Fix the bracket to the wall.
2. Fix the receiver to the bracket.
2
Connect the motor:
4
Green/Yellow
5
Black
6
Blue
7
Brown
72 mm
2
[2]
1
Find
complete
step-by-step
instructions in the application "Help
Me by Somfy".
"Help me by Somfy"
