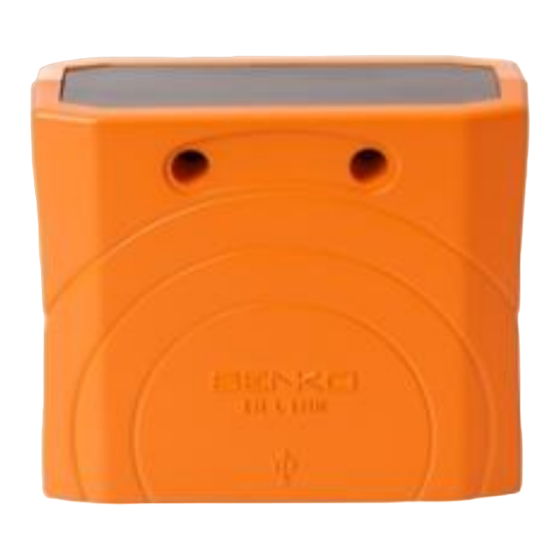

- Page 1 MODEL: IR Link (IR communication device) User Manual...
-
Page 2: Table Of Contents
Product Overview ................................. 3 Introduction .................................. 3 1.1. Connection ..............................3 1.2. Menu Bar ..............................4 Tool ....................................4 Tool.................................. 4 2.2. IR Link ................................6 2.3. Basic Option ..............................6 2.4. Advanced Option ............................6 Check Option .............................. 7 Specification .................................. 8... -
Page 3: Product Overview
To interact with MGT, be sure to install the software and connect the IR Link cable to the computer. And place the top of the MGT face down on the IR Link LCD screen. Then open the MGT manager and click on the "open"... -
Page 4: Menu Bar
User Manual IR Link 1.2. Menu Bar File: Two options Load: Open the installed settings. (* cfg) Save: Download the new settings. (* cfg) Tools: Four options Calibration: Initiate a fresh air or span calibration. Log Read: Download the datalog from the MGT. - Page 5 User Manual IR Link Press the button to begin the calibration sequence. Press ZERO or SPAN to start the calibration sequence. Zero is the calibration in fresh air. Span calibration requires test gas Bar shows progress during calibration Press the button to upgrade the firmware in the MGT Press BROWSE and locate the latest firmware to load into the MGT.
-
Page 6: Ir Link
User Manual IR Link 2.2. IR Link Choose and open a communication port on the PC. Press OPEN to open the port and connect 2.3. Basic Option The serial number and firmware version of the connected MGT is displayed. In the USER ID / Message box, a unique name or message can be assigned to the MGT. -
Page 7: Check Option
Maintenance Notification: When the bump calibration and due date arrives, the LED flashes. Dock Lock: Disable calibration without using IR Link or Docking station. Auto Zero: Each time you turn on the device, the fresh air calibration will be done automatically. -
Page 8: Specification
User Manual IR Link Specification Modèle IR Link Distance de 40 -406mm communication Garantie 2 ans Température -10˚C ~ +40˚C Humidité 10 to 95% HR( Sans condensation ) Rapports Journaux d'événements de MGT Système Compatible avec Microsoft Windows XP, Vista, Windows 7 et Windows 10 opérateur... - Page 9 User Manual IR Link Limited Warranty SENKO warrants that this product is free from defects in workmanship and materials, under normal use and maintenance, for two years from the date of purchase from the manufacturer or authorized reseller of the product.
