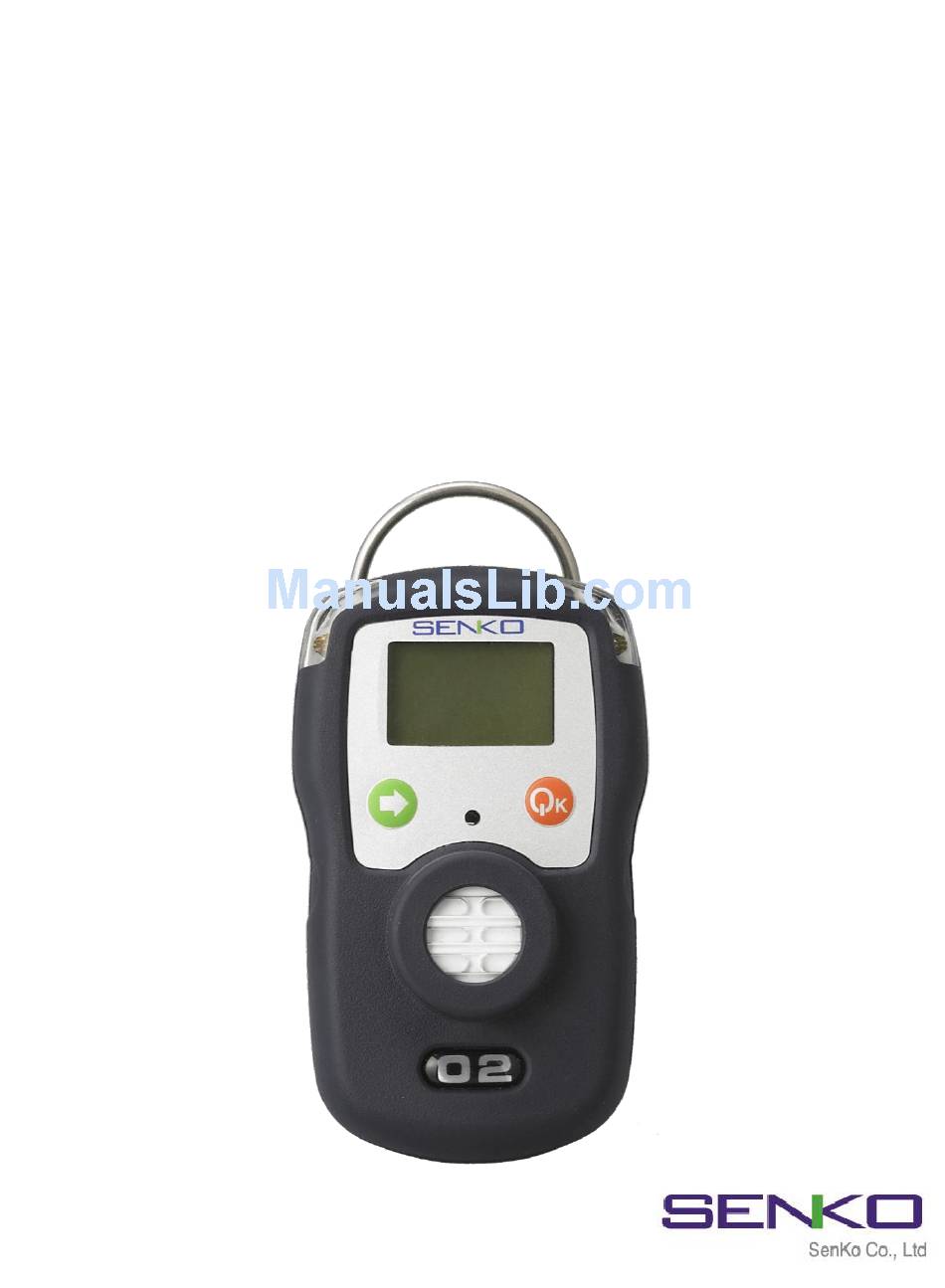

- Page 1 MODEL: SP2nd (Portable Single Gas Detector) Operating Manual Version 2.2...
- Page 2 Guarantee and Repair Senko Co., Ltd. guarantees the products of SP series for 24 months from the shipping date and repairs or replaces the defected product during warranty period. Nevertheless, Senko is not responsible for the following cases and would...
-
Page 3: Table Of Contents
Contents of Operating Manual Product Specification ---------------------------------- 03 Names of Exterior and Display ----------------------- 04 Start and End of Operation -------------------------- 05 Operation Method ------------------------------------- 06 Backlight ---------------------------------------------- 06 Data Log ---------------------------------------------- 07 Calibration ---------------------------------------------- 08 Day and Time ------------------------------------------ 10 Method of Alarm Set and Display ------------------- 11 Battery &... -
Page 4: Product Specification
1. Product Specification(SP2nd) Model SP2217 SP2227 SP2257 SP2277 SP2297 SP22L7 SP22N7 SP22C7 Measured 0~30 0~500 0~20 0~1000 0~100 0~20 0~100 0~20 Measured Range %Vol Measurement Electrochemical Type Method Principle of Diffusion Type Measurement LCD display (Built in back light) Monitor... -
Page 5: Names Of Exterior And Display
2. Names and Functions of Exterior 5. Arrow Key 1. Gas sensor 6. Alarm LED 2. Buzzer 7. Fastening clip 3. LCD display 8. Type label 4. Power Key LCD display symbols Alarm Date Month First Alarm Time Second Alarm Log Value Safety Success Time Average Level Alarm... -
Page 6: Start And End Of Operation
3. Start and End of Operation Instrument Power-On Press Power key for a few seconds, and power is turned on. Measured gas and version appear on the screen. Afterwards during the instrument is being stabilized, the countdown appears on the screen. When the instrument is stabilized after the display of the above set values, it converts to Gas Detection Mode displaying con. -
Page 7: Operation Method
4. Operation Method Detection Mode The instrument is converted to Gas Measure Mode as below, when power is turned on. Gas Measure Mode indicates the concentration of gas and the remained capacity of battery on LCD, and it displays the gas concentration of Oxygen by %, and such toxic gases as H2S, CO and SO2 by ppm units. -
Page 8: Data Log
6. Data Log Alarm Data At Gas Detection Mode, whenever short press Power key once, Data Log Mode is displayed after the measured minimum, maximum, STEL, TWA values are displayed in order. In order word, press four time(In case of Oxygen, three time), Data Log Mode is displayed. -
Page 9: Calibration
7. Calibration <Caution> Senko Co., Ltd. performs the initial calibration before the shipment. Incorrectly calibrated value can reduce the accuracy of the product, as the calibrate d value is stored in the instrument. Calibration is in general to be performed monthly or quarterly, and can be adjusted according to frequency of the use. - Page 10 Standard Gas Calibration icon appears when Power key is pressed a few seconds at the state of pushing Arrow key simultaneously. And icon appears by input of Arrow key at the state. Standard Gas Calibration starts by pressing Power key for a few seconds displaying countdown.
-
Page 11: Day And Time
8. Date and Time Date and Time View At Gas Detection Mode, press Arrow key for three seconds, Date and Time View Mode is displayed. At this moment, short press Arrow key. Then the present time, year, month, day are confirmed with icon or character equivalent to it. If Power key is at the Present Mode or key is not pressed for several seconds, the program will return to Gas Measure Mode. -
Page 12: Method Of Alarm Set And Display
9. Method of Alarm Set and Display Alarm Set When Arrow key is pressed for a few seconds at the state of power off, program enters to 1st Alarm Set Mode with displaying of icon. In this moment, 2nd Alarm(HI) Set Mode with displaying icon by pressing Arrow key. - Page 13 Primary battery alarm sounds repeatedly at 5 minute intervals when only a bar of battery icon is remained. Secondary battery alarm starts right before the end of power, and the power source finishes after 10 seconds from the outbreak of alarm. In the event of failure of test or calibration, the icon is displayed with the sound of alarm.
-
Page 14: Battery & Sensor Replacement
2. Replacement of components can be damage to intrinsic safety function. 3. The sensors published by SENKO should be used for replacement. Unsuitable function could be shown if another sensors use for replacement. 4. Disassembly should be necessary only for sensors & battery replacement. After the sensor replacement, the span gas calibration should be done. -
Page 15: Applicable Battery And External Pump
11. Applicable Battery and External Pump <Caution> Explosion can occur, when a battery is thrown into fire or disassembled with force. Disposal of the used battery should be performed according to the guide of the pertinent country or the work site. Accessory(Optional) - External Pump (SP-Pump101)s key has the function of On/Off, and the state of operation or trouble of the instrument can be... -
Page 16: Notice For User
Read manual prior to 20℃ to +50℃, where gases of explosion group use. IIC and temperature class T4 may be present. SENKO Co.,Ltd. 15 Road Oesammiro (485 Oesammi-dong), S/N: Serial Number Osan-si, Gyeonggi-do, 447-230 South Korea S/N:... - Page 17 Certificates...
- Page 18 Certificates...
- Page 19 Certificates...
