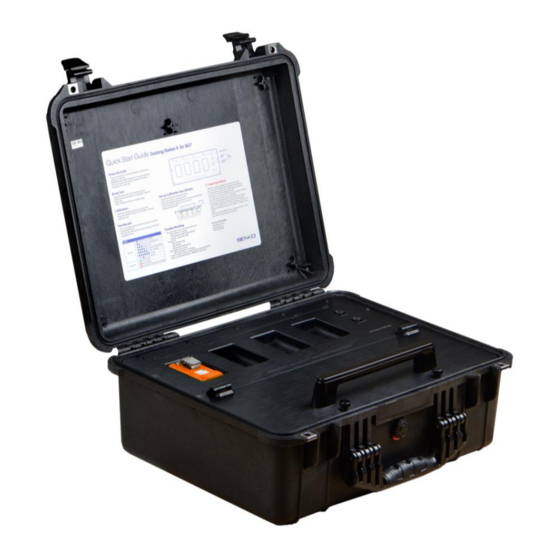

- Page 1 SGT Docking Station version II SGT Docking Station Version II User’s Manual...
-
Page 2: Table Of Contents
4. Trouble Shooting ………………………………………………………………….… 5. Docking Station II Manager Software ……………………………………………..… 5.1 Software Installation ……………………………………………..… 6. Connecting to the SGT Docking Station II ……………………………………….…. 6.1 Connecting with SENKO IR Link …………………………………… 6.2 Connecting with USB ………………………………………………. 7. Using Software …………………………………………………………………...…. -
Page 3: Warning
✓ Before upgrading firmware, connect the plug to avoid any data loss and malfunction by unexpected power off. And the file names are fixed as below. - Docking F/W File Name : DK_FW.bin, - SGT F/W Name : SGT_FW.bin - SGT_CO.bin, SGT_H2S.bin, SGT_O2.bin... -
Page 4: Overview
1.1 Description A Bump test and the calibration are the key features to ensure the safety of devices and users. The SGT docking station version II provides bump testing, event management and calibration from a simple to use multi-unit station and gives fleet or safety managers the ability to update configurations on large fleets. -
Page 5: Key Features
Computer not required for normal operation ✓ Save the log events after calibration and bump test ✓ Enable users to adjust the setting points of Docking station and SGT via IR Link or USB ✓ 1.4 Specifications Size 52.5 x 43.7 x 21.3cm (20.66” x 17.20” x 8.40”) Weight 11.0kg... -
Page 6: Set Up And Operation
SGT Docking Station version II 2. Set up and Operation 2.1 Power turn on/off The SGT Docking Station version II operates using only 2 (two) buttons for calibration and Bump Test. To turn on the power, follow the below: Press and hold either Calibration or Bump Test button for 2 seconds. -
Page 7: Exhaust Port & Fresh Air Inlet
✓ During the 90seconds, bay LEDs begin to light as the test progress. ✓ When test is finished, all (six) blue Bay LEDs illumination indicates if the SGT has passed ✓ the test (see Figure 3). Otherwise, the third blue Bay LED illumination indicates if the SGT has failed the test (see ✓... -
Page 8: Bump Test
✓ During the 20~30seconds, bay LEDs begin to light as the test progress. ✓ When test is finished, all (six) blue Bay LEDs illumination indicates if the SGT has passed ✓ the test (see Figure 3). Otherwise, the third blue Bay LED illumination indicates if the SGT has failed the test (see ✓... -
Page 9: Docking Station Ii Manager Software
The purpose of SGT Docking Station II Manager Software is to customize and configure the Station`s settings and SGT devices` internal configurations. The software can adjust and make changes to the Docking Station and the SGT units using SENKO IR Link and/or partly USB Disk. 5.1 Software Installation After downloading the file, navigate to the saved location. - Page 10 SGT Docking Station version II The Installation will be ready to begin. ✓ Click “Install”. ✓...
-
Page 11: Connecting To The Sgt Docking Station
Click the “Finish” button to exit the Setup Wizard. ✓ 6. Connecting to the SGT Docking Station II When the Docking Manager software opened, the fields are grayed out and before it can be used, the IR Link must be connected to the Docking Station II. There are 2 ways of connection to the Docking Station II: IR Link and USB Disk. -
Page 12: Connecting With Senko Ir Link
SGT Docking Station version II 6.1 Connecting with SENKO IR Link SENKO IR Link is a device which conveniently configures and communicates with SGT Docking Station II using the IR communication in Bay Unit 1. To connect the IR Link, follow the below: Plug the IR link into a USB port on PC. -
Page 13: Using Software
SGT Docking Station version II 7. Using Software 7.1 Overview of Software Serial Number Location Firmware Version Gas Expiration date on cylinder Save power Mode (1 ~ 3600sec) Cylinder No. Maximum Bump Time (20 ~ 120sec) Reading or Writing configuration on Docking... -
Page 14: Docking Station Tab
Bump Test - If the box is not selected, Bump test process will not proceed by pressing ✓ Bump Test button. However, it will still update firmware and configuration of SGT. Bump Result Decision - The dropdown list is selectable for “Beep”, “Concentration”, or ✓... -
Page 15: Sgt Tab
SGT and will discard any unsaved changes in the Tab. By clicking the “Write”, all configured and customized settings will be saved. Browse & Write – To upgrade the latest firmware of SGT, click “Browse”, navigate to the ✓ firmware location and click “Open”. Click “Write” to begin upgrading process. -
Page 16: Logs Tab
All logs will be stored on the USB Disk (logs are not available if USB is not plugged) and can be downloaded via SENKO IR Link using Docking Manager software. The log files will be created for each device by their Serial numbers and will be in “.csv” format. -
Page 17: Limited Warranty
SGT Docking Station version II Limited Warranty SENKO warrants this product to be free of defects in workmanship and materials-under normal use and service for two years from the date of purchase from the manufacturer or from the product’s authorized reseller.
