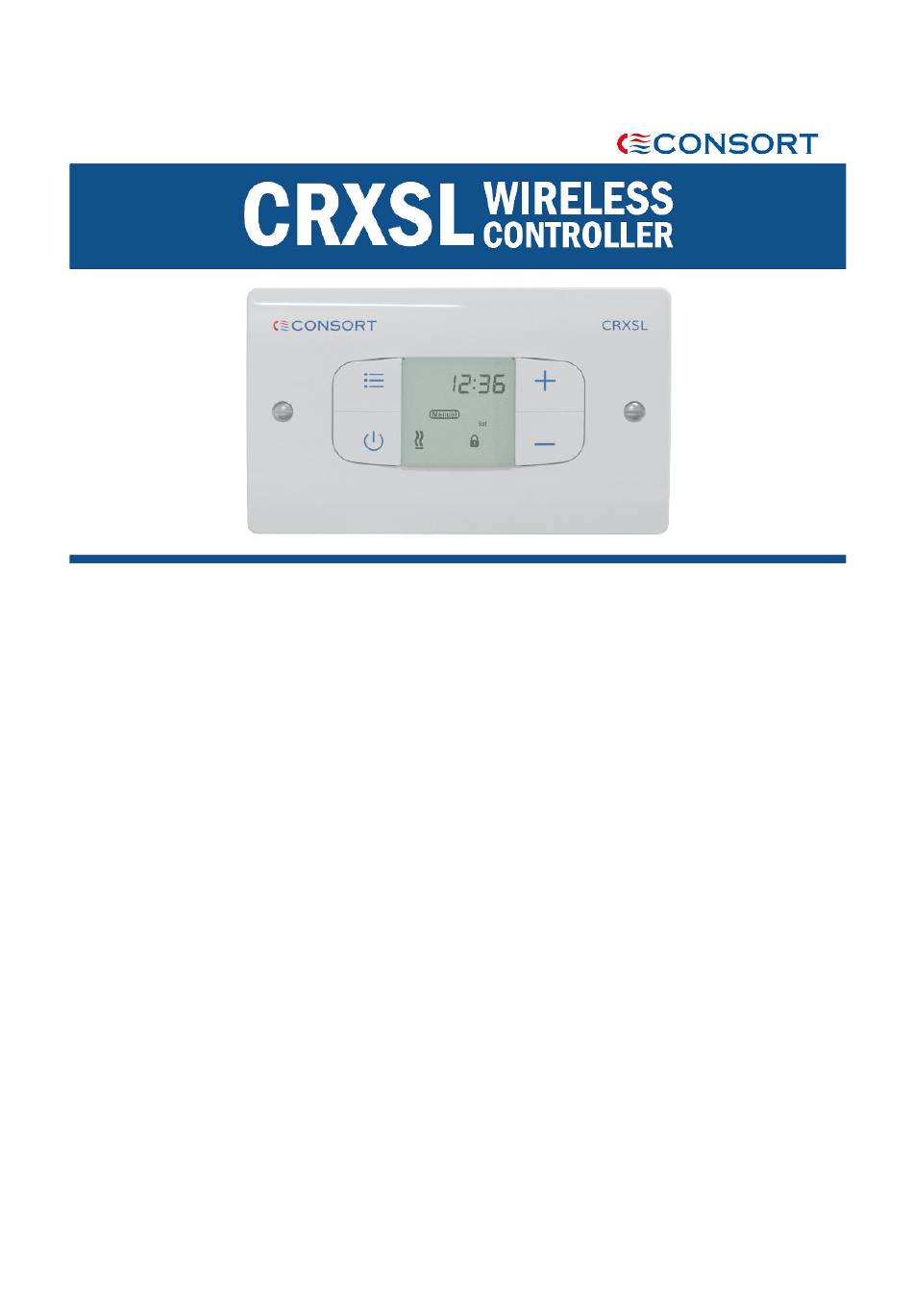

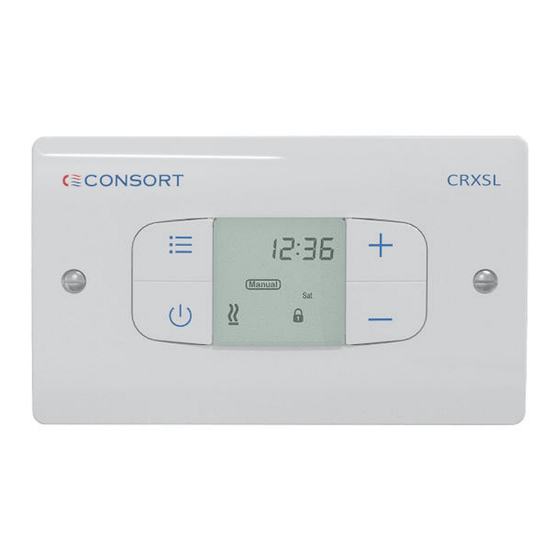

Installation & Control Guide for CRXSL-10
Wireless Controller
All electrical appliances produced by the Company are guaranteed for one year against faulty materials or
workmanship. This applies only if the appliance has been used for purposes in accordance with the instructions
provided and has not been connected to an unsuitable electricity supply, or subject to misuse, neglect, damage
or modified or repaired by any person not authorised by us. This guarantee is offered to you as an extra benefit and
does not affect your legal rights.
The correct electricity supply voltage is shown on the rating label attached to the appliance.
Reasonable care has been taken to ensure that this guide is accurate at the time of printing. In the interests of
progress the Company reserve the right to vary specifications from time to time without notice.
C
H
USTOMER
ELPLINE
Should you need any advice on the use of your new Consort product please contact our Helpline:
Consort Equipment Products Limited
Thornton Industrial Estate, Milford Haven, Pembrokeshire, SA73 2RT
Tel: 01646 692172 Fax: 01646 695195 Email: technical@consortepl.com Web: www.consortepl.com
Operation hours: Mon to Thu 8.30am to 4.30pm | Fri 8.30am to 3.30pm
BS EN ISO 9001 Registered Company No FM12671
13984177 Iss 01
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Consort CRXSL Series
Summary of Contents for Consort CRXSL Series
- Page 1 Company reserve the right to vary specifications from time to time without notice. USTOMER ELPLINE Should you need any advice on the use of your new Consort product please contact our Helpline: Consort Equipment Products Limited Thornton Industrial Estate, Milford Haven, Pembrokeshire, SA73 2RT Tel: 01646 692172 Fax: 01646 695195 Email: technical@consortepl.com Web: www.consortepl.com...
-
Page 2: Safety And Care
Please read this guide carefully and retain for future use and maintenance purposes. CRXSL-10 Installation and User Guide Warnings Safety and Care The controller is NOT intended for use Do NOT handle the controller by persons (including children) with • reduced physical, sensory or mental with wet hands. -
Page 3: Installation
Please read this guide carefully and retain for future use and maintenance purposes. CRXSL-10 Installation and User Guide Buttons Installation The controller must be wall MENU/MODE button mounted. - Short press : Cycle through operat- Choosing a position in a room ing modes BOOST, MANUAL, AUTO, FROST, FAN When installing CRXSL, a suitable posi-... -
Page 4: Electrical Connections
Please read this guide carefully and retain for future use and maintenance purposes. CRXSL-10 Installation and User Guide Electrical Connections Basic Operation Electrical installation should be car- The CRXSL has 5 standard operating ried out by a competent installer in modes: accordance with the latest edition of BOOST, MANUAL, FROST PROTECT, AU-... - Page 5 Please read this guide carefully and retain for future use and maintenance purposes. CRXSL-10 Installation and User Guide Boost Mode Frost Protection Mode The boost feature increases the room In FROST PROTECT mode, the heater temperature for 15 minutes. maintains a chosen set temperature To amend the set temperature when between 4°C and 15°C.
-
Page 6: Open Window Detection
Please read this guide carefully and retain for future use and maintenance purposes. CRXSL-10 Installation and User Guide Heat Symbols Every time there is a demand for heat, the display will show the heat icon. The symbols shown below are used to represent full heat and half When the window is closed, the heat- heat. -
Page 7: Setup Menu
Please read this guide carefully and retain for future use and maintenance purposes. CRXSL-10 Installation and User Guide 7 - Open window Set up Menu detection time Press and hold ‘MENU’ and ’-‘ (minutes) together for 5 seconds. The display will enter the setup menu. 8 - Temperature Use ‘+’... - Page 8 Please read this guide carefully and retain for future use and maintenance purposes. CRXSL-10 Installation and User Guide Setting the automatic program schedule An example of a programs on CRXSL PROGRAM 1 PROGRAM 2 PROGRAM 5 PROGRAM 6 ºC PROGRAM PROGRAM 19ºC 22ºC...
- Page 9 Please read this guide carefully and retain for future use and maintenance purposes. CRXSL-10 Installation and User Guide Step 7: Press the MENU 1. Press and hold MENU for 5 seconds button. The time to enter the programme settings. should flash. Use the + 2.
- Page 10 Please read this guide carefully and retain for future use and maintenance purposes. CRXSL-10 Installation and User Guide Copy Day Function If you require the same set of pro- Step 3: Use the MENU button to select grams throughout the week, a 24 the day to copy the programs from.
- Page 11 Please read this guide carefully and retain for future use and maintenance purposes. CRXSL-10 Installation and User Guide Local temperature control mode Manual control mode Local temperature control mode is Manual control mode allows the heat only compatible with certain heaters. and fan settings to be selected man- Unlike normal temperature control ually regardless of the room tempera-...
-
Page 12: Declaration Of Conformity
Declaration Of Conformity In accordance with UK Government Guidance. E HEREBY CERTIFY THAT THE APPLIANCES DETAILED HEREON HAVE BEEN INSPECTED AND TESTED AND CONFORM TO THE REQUIREMENTS OF THE FOLLOWING UK STATUTORY INSTRUMENTS WHERE APPLICABLE Electrical Equipment (Safety) Regulations 2016 SI. 2016 1101 Electromagnetic Compatibility Regulations 2016 SI.
