Consort CRX2-03 Installation And User Manual

Please read this guide carefully and retain for future use and maintenance.
CRX2

1. Getting to know your CRX2 wireless controller

2. Pairing CRX2 with heaters

This must be done, otherwise the heaters will not work.
Power up the CRX2 (see section 'Power options' for details).
There are 2 different sequences used for pairing. The sequence
used will depend on the heater.
To find out which sequence to use, check the heater rating
label and identify the model number.
If the last two digits are lower than 10 use sequence 1.
If the last two digits are 10 or higher use sequence 2.
If the rating label is not visible, follow the steps below:
Ensure the heater is switched OFF.
Switch the heater ON and observe the LED.
If the LED flashes red then goes green use sequence 1.
If the LED is solid green use sequence 2.
Sequence 1
Set heater into pairing mode as follows:
1. Locate the heater status light.
2. Turn power to the heater ON. Count 4 seconds, or
count 5 red flashes of the status light on the heater.
Turn power OFF.
3. Turn power back ON. The heater status light should
be flashing green.
(If the light is not flashing green, the 4 second timing
was incorrect. Repeat step 1.)
4. The heater is now ready for pairing with CRX2.
The next 3 steps must be done within 30 seconds. After 30
seconds the heater will return to normal operating mode. Set
the CRX2 into pairing mode as follows:
I3984069 Iss 03
-
Single Zone
03
Wireless Controller

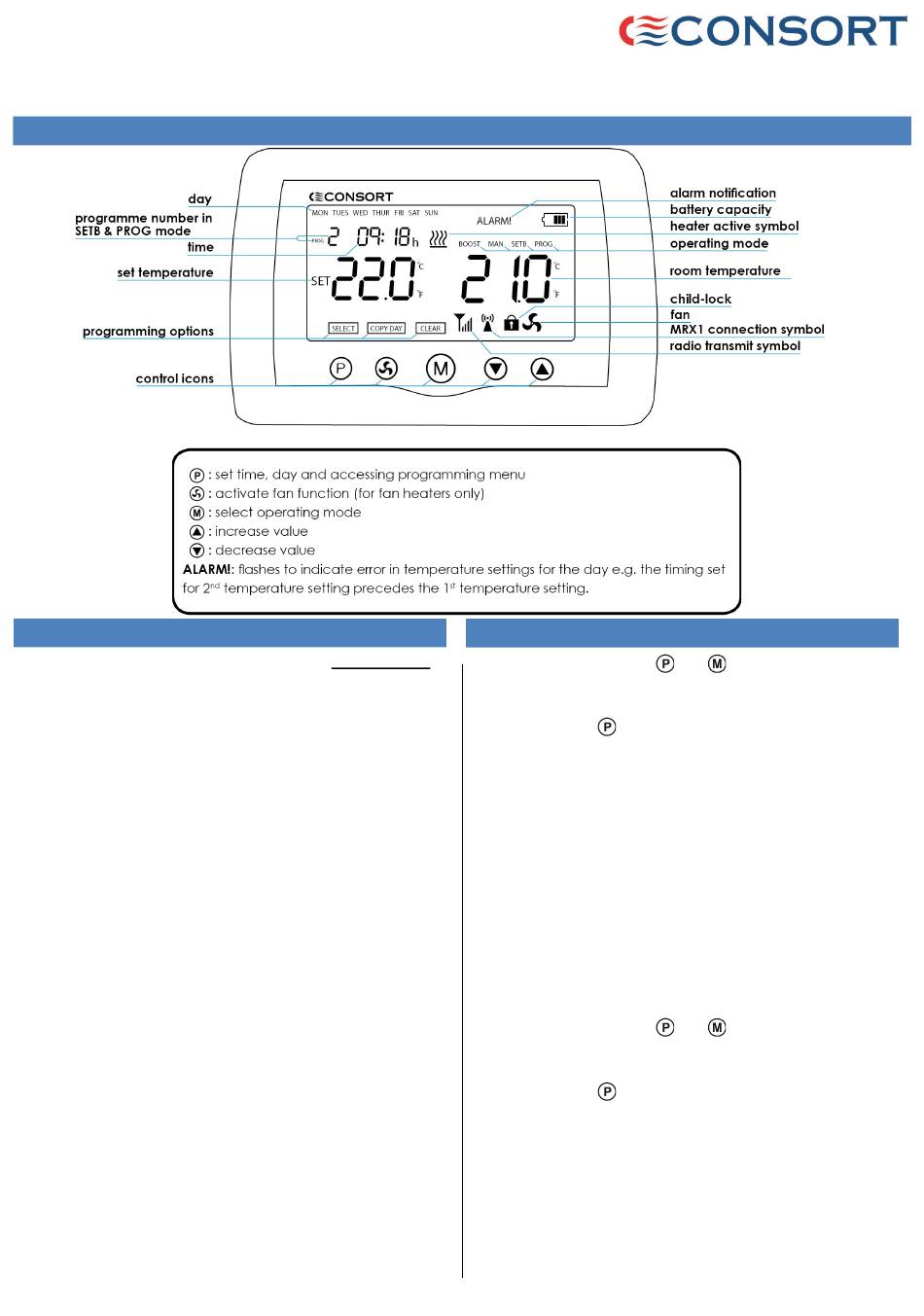

An illustration of functions available on CRX2
Installation and User Guide
2. Pairing CRX2 with heaters (cont'd)
1. Touch and hold
seconds.
2. The display will show CRX2 identification code.
3. Tap the button while the light on the heater
is flashing green.
If the pairing was successful, the light will stop flashing and
the heater is paired with CRX2. This has to be done within
30 seconds. After 30 seconds, the CRX2 will return to
normal operating mode.
Sequence 2
Set heater into pairing mode as follows:
1. Locate the heater status light.
2. Turn power to the heater ON. The Light should
be solid green.
The next step must be done within 20 seconds. After 20
seconds, the heater will return to normal operating mode.
Set the CRX2 into pairing mode as follows:
1. Touch and hold
seconds.
2. The display will show CRX2 identification code.
3. Tap the button and the CRX will beep &
flash 3 times.
If the pairing was successful, the light will show red and
the heater will switch on and stay on if the CRX is
signalling the heater to be on. If the CRX is signalling the
heater to be off, the heater will only switch on for a short
period of time to show pairing was successful.
and icons together for 5
and icons together for 5
