Please read this guide carefully and retain for future use and maintenance.
SL
Wireless
Controller

1. Getting to know your SL wireless controller

The SL controller has 3 operating modes. It has to be set to the required mode prior to the installation by using the
switches located at the back of the controller. These modes are:
Basic
Timer
Temperature Control
There are 4 light indicators located around the button showing the status of the controller.

2. Pairing

If the controller is flashing red when powered this shows there is a fault with the unit and it should be replaced.
In order to pair your heater with the controller you must:
Turn Heater ON
Within 20 seconds, hold the button on the controller until the orange segments are lighting up in a
sequence.

3. Basic Mode

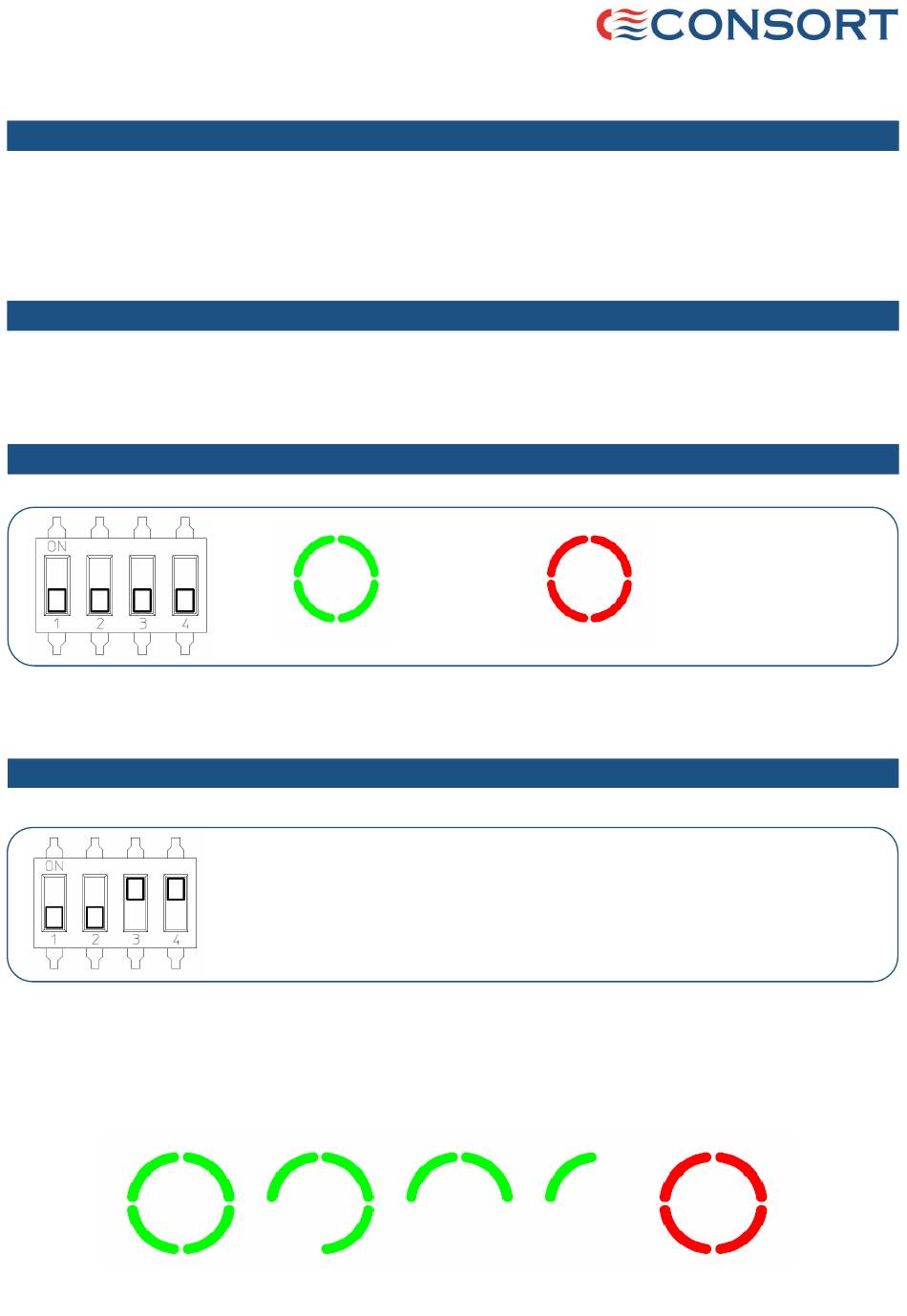

For basic mode, the switches are set as shown below.
Controller functionality in basic mode:
Press button to activate heating, press button again to set controller to stand-by.
When heating is active, the 4 light indicators are green. After pressing the button, heating is set to stand-by; the indi-
cators will change from green to red for 4 seconds and then go off.

4. Timer Mode

For timer mode, the switches are set as shown below.
Controller functionality in timer mode:
In timer mode, the controller acts as a 4 stage run-back timer. When the controller is in stand-by mode and button is
pressed, the first indicator segment will light up green and heating is activated. When pressed again the second segment
will light up and so on. Each segment is representing a time period that is selected when setting the switches.
In the example below, the only switch in the 'ON' position would be number 3. The button would be pressed four times to
activate four 15-minute segments resulting in the heater staying on for 1 hour. At the end of the last time period, the light
indicators will be red for 4 seconds and then go off. The controller is now in stand-by mode.
60 MINS
In timer mode, switch 3 or 4 must be in the 'ON' position. This mode allows for 3
different settings which will alter the time period for each segment.
Switch 3 - Each time period represents 5 minutes.
Switch 4 - Each time period represents 10 minutes
Switch 3 & 4 - Each time period represents 15 minutes
45 MINS
Installation and User Guide
Heating
Active
15 MINS
30 MINS
Stand-By
1
