Consort MRX1 Installation And User Manual

Please read this guide carefully and retain for future use and maintenance.
MRX1
1. Getting to know your MRX1 wireless controller
The MRX1 Multizone wireless controller is a central control unit that allows home or commercial property owners to independently
control temperatures of up to 8 heating zones. Each zone must be locally controlled by a CRX2 controller. The MRX1 has a large
colour LCD touch screen. It also features Group Control that allows end users to set a preferred operating mode and
temperature for all heating zones at the same time. All settings can be changed locally via CRX2 controller or remotely by using
MRX1 controller. In order to start using the MRX1, at least one zone has to be connected. Please follow 'Zone connection'
section.
2. Home Screen

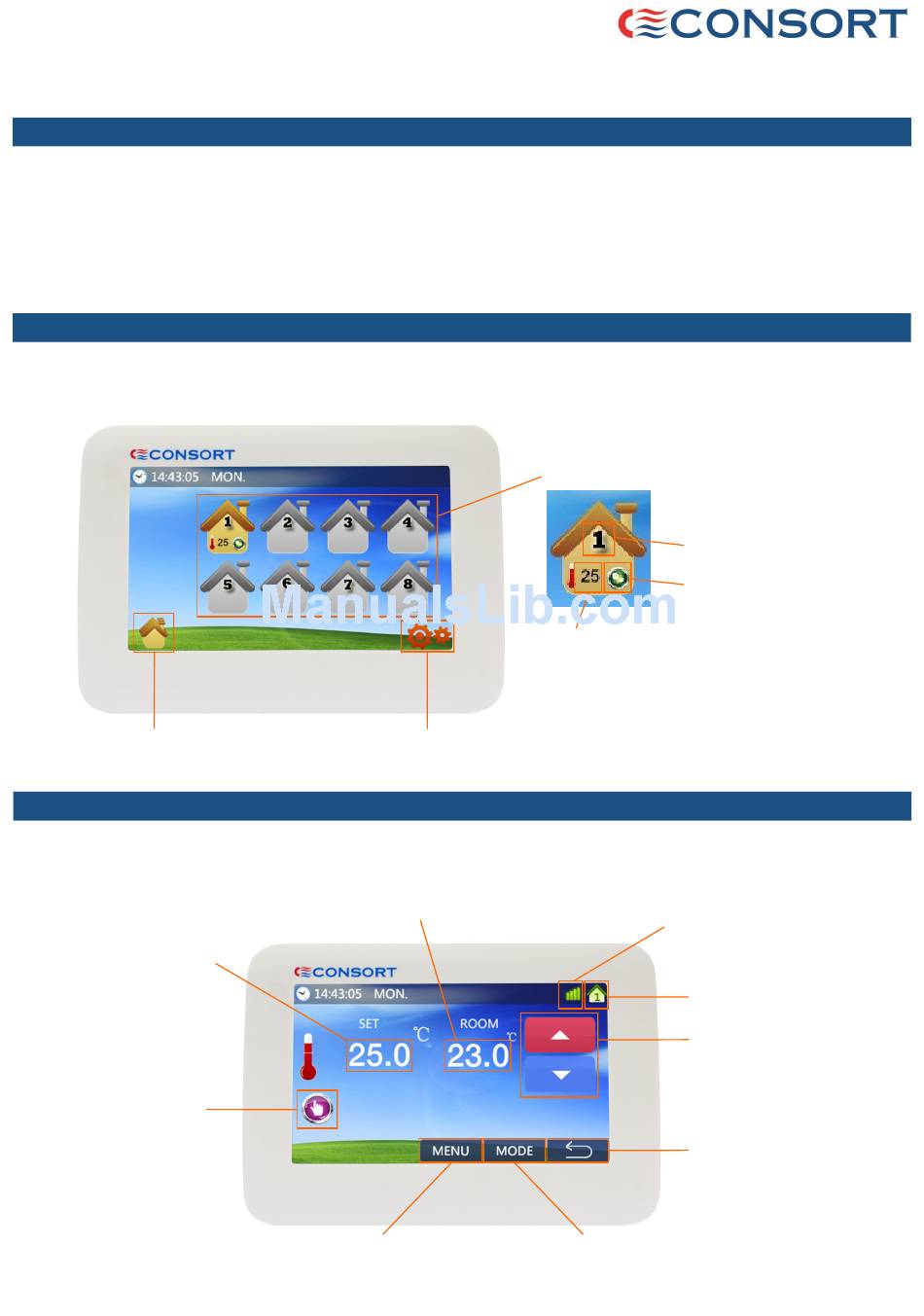

The home screen shows information about the status of the system. By tapping one of the zone icons, access the zone screen or
by tapping the group control icon, access the group control screen. There is also a Group setup icon to access the group setup
menu.
GROUP CONTROL
3. Zone Screen
The zone screen shows information about the status of the selected zone. By tapping mode icon, access the zone selecting
screen and tapping menu icon access minimum & maximum temperature setup screen. Use temperature adjust icons to adjust
set temperature.
SET TEMPERATURE
CURRENT
OPERATING
MODE
Multizone
Wireless Controller
GROUP SETUP
ROOM TEMPERATURE
ZONE SETUP
Installation and User Guide
ZONES
ROOM TEMPERATURE
RF SIGNAL STRENGTH
OPERATING MODE
SETTING
ZONE NUMBER
HEATING MODE
ZONE NUMBER
ADJUST
TEMPERATURE
SETTING
BACK TO HOME
SCREEN
1
