Kohler LOURE 98964T Installation Instructions

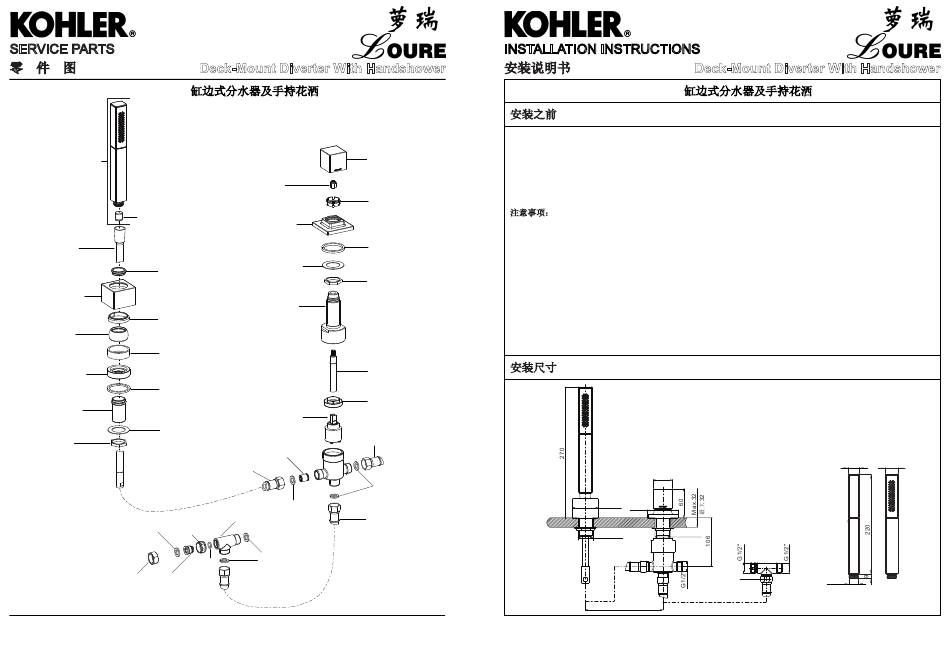

SERVICE PARTS
零 件 图
98964T
1101257**
Handshower
花洒
79680
Regulator
限流器
898324**
Hose
软管
1172476
Guide
导向套
1129983**
Bonnet
装饰罩
1109499
Split Ring
1109498**
环
Ball
球形接头
1109500
Seal
密封圈
1109501
Adapter
870205
接头
Washer
垫片
864909
Shank
牙管
830915
Steel Washer
864342
金属垫片
Nut
螺母
864149**
831289 Nut
Washer
连接螺母
垫片
864718 3002771
Plug Seat
塞子 底座
**订购时请说明颜色编号
**Color code must be specified when ordering
1216028-2-A
Deck-Mount Diverter With Handshower
缸边式分水器及手持花洒
1211617**
Handle
把手
871132
Adapter
齿套
870916
Rachet Ring
棘齿圈
1211522**
Escutcheon
装饰盖
870205
Washer
垫片
830915
Steel Washer
金属垫片 864342
Nut
螺母
3002772
Fixing Bush
固定接头
3004794
Valve Extension
加长管
834792
Nut
3004795
螺母
Valve
833226
阀芯
Hose
831752
软管
Check Valve
单向阀
834428
Hose
软管
831289
833226
3002770 Washer
Hose
Tee
垫片
T型接头 软管
831289
871527
Washer
O-Ring
垫片
O型圈
INSTALLATION INSTRUCTIONS
安装说明书
安装之前
所有的资料是按最新出版的产品资料编写而成。科
勒公司保留任何时候不经通知即可改变产品特性、
包装或产品可供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容，
请把这些资料交给用户阅读。
注意事项：
1.切断主供水源。
2.在安装前，仔细阅读说明书的全部内容。
3.遵守当地管路安装条例。
4.该龙头只具有切换功能，它必须与有冷热控制开
关的浴缸龙头配合使用。
5.花洒最高工作压力：0.5MPa(5bar)。水压超过
0.5MPa(5bar)须安装减压阀。花洒最高工作温度及
环境温度：60°C。请特别注意花洒同花洒连接的臂
管须远离浴霸，否则可能损坏花洒及其密封件，甚
至对使用者造成伤害。
安装尺寸
831289
Washer
垫片
4 1216028-2-A
Deck-Mount Diverter With Handshower
98964T
缸边式分水器及手持花洒
BEFORE YOU BEGIN
All information is based on the latest product
information available at the time of publication.
Kohler Co. reserves the right to make changes in
product characteristics, packaging, or availability at
any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Shut off the main water supply.
2. Carefully read entire instructions before beginning
installation.
3. Observe local plumbing codes.
4. This faucet has switching function only. It must work
with a bath faucet(purchased separately) that has
both on/off and hot/cold mixing control.
5. The highest working pressure for handshower is
0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a
pressure reducer is needed. The highest water and
environment temperature is 60°C. Please keep
handshower, showerhead and the shower arm away
from heater, or it may become damaged and cause
injury to the user.
ROUGH-IN DIMENSIONS
40x40
53x53
64x64
Ø32~Ø36 Ø32~Ø36
G1/2"
100~200
Handshower
手持花洒
24 28
G1/2"
1
