Instruction Manual
1U/ 2U/ 3U Fixed 19" Adjustable Depth Universal Server Rack Rails
UNIRAILS1U / UNIRAILS2U / UNIRAILS3U
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1x Set Universal Rack Rails
• 8/16/14 x M5 Panel Screws (1U/2U/3U)
• 8/16/14 x M5 Cage Nuts (1U/2U/3U)
• 1x M5 Wrench
Installation
1. Determine the mounting depth of the rack/cabinet.
2. Gather the components of the two side rails. Each side rail is
comprised of 3 pieces: two End Rails with the rack mounting
brackets and the flat middle section with the adjustable slide cut
outs.
NOTE: Look carefully at the End Rails, as there are two different sets.
The lip along the top edge will be taller on one set, than the other.
The side rails use one of each.

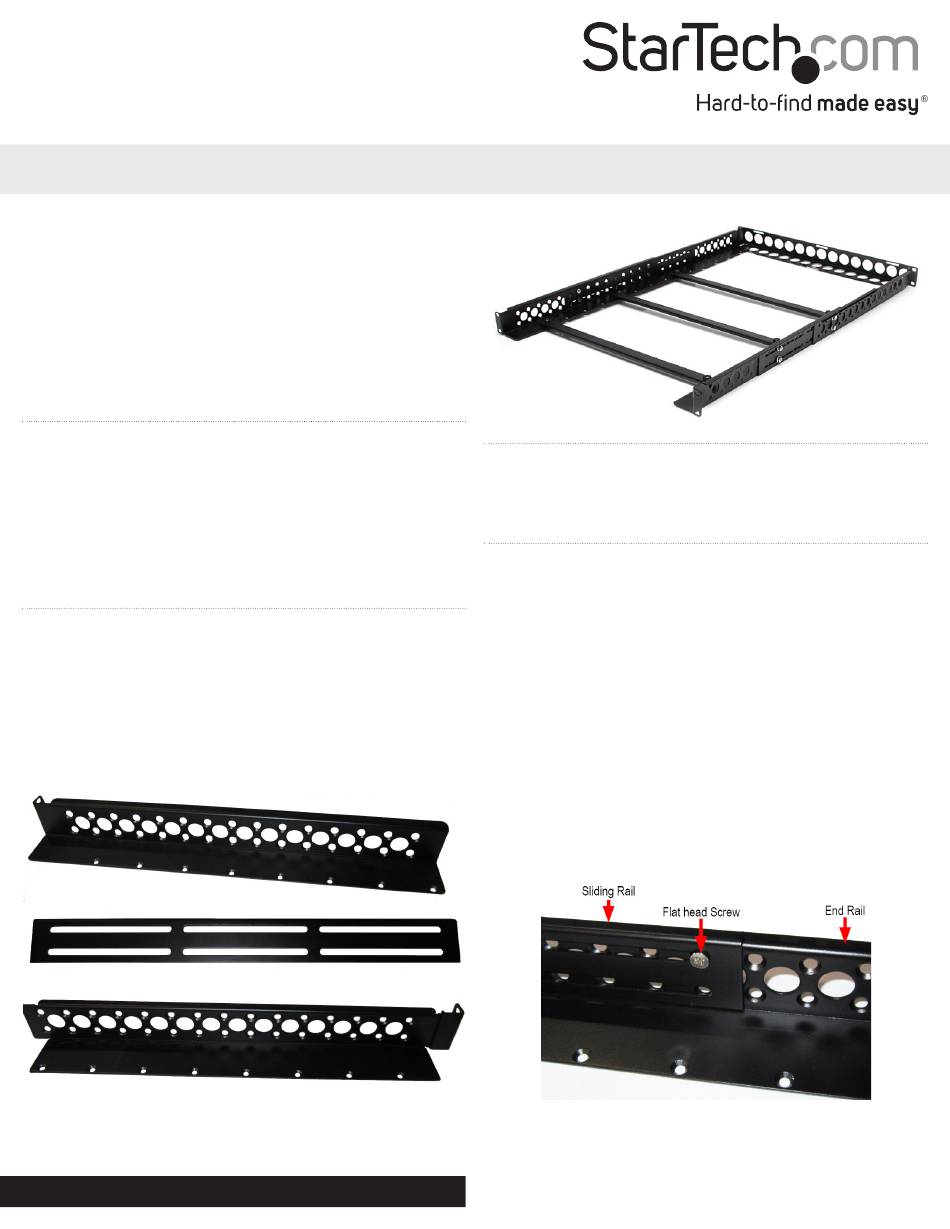

End Rail #1
Sliding Rail
End Rail #2
For the most up-to-date information, please visit: www.startech.com
*installation photos are for reference only
System Requirements
• Standard 19in wide rack
• 1U/ 2U/ 3U of rack space
Tools Required
• Phillips screwdriver
3. Lay out the two End Rails end-to-end (rack mounting bracket at
opposite ends), and then place the Sliding Rail over top of the
smaller of the End Rail (see "Inside View" photo for reference).
Place the other End Rail overtop the Sliding Rail, so it is now
sandwiched between the two End Rails.
4. Adjust the length of the rails, such that the rack mounting
brackets are slightly longer than the mounting depth of the rack.
5. Fasten the middle Sliding Rail to each End Rail with 4 screws and
nuts each (2 on the top slide and 2 on bottom) with a screwdriver
and the provided wrench. The screw should go in from the inside
of the rail,with the nut on the outside (underneath the lip).
Inside View
*actual product may vary from photos
Manual Revision: 10/26/2012
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com UNIRAILS2U
Summary of Contents for StarTech.com UNIRAILS2U
- Page 1 Place the other End Rail overtop the Sliding Rail, so it is now NOTE: Look carefully at the End Rails, as there are two different sets. sandwiched between the two End Rails. The lip along the top edge will be taller on one set, than the other. 4. Adjust the length of the rails, such that the rack mounting The side rails use one of each. brackets are slightly longer than the mounting depth of the rack. End Rail #1 5. Fasten the middle Sliding Rail to each End Rail with 4 screws and nuts each (2 on the top slide and 2 on bottom) with a screwdriver and the provided wrench. The screw should go in from the inside of the rail,with the nut on the outside (underneath the lip). Inside View Sliding Rail End Rail #2 *installation photos are for reference only For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/26/2012...
- Page 2 6. Once one rail is complete, assemble the second rail. The length of both rails should be identical. 7. Once both rails are complete, line them up side-by-side, with the rack mounting brackets facing outwards. Place the cross braces between the two rails. Ideally, the braces should be equally spaced along the length of the rails, but can be arranged in any configuration depending on the equipment the rails will be holding in the rack. 9. Once the cross braces are firmly attached, the completed unit can be mounted into the cabinet/rack. The cable manager is mounted at the same time and is simply placed over the rack mounting brackets then both are fastened to the rack posts. NOTE: Make sure to firmly tighten the screws/nuts in the side rails once the unit is mounted into the rack, as you may have had to loosen them to installed the rails into the rack. Specifications UNIRAILS1U UNIRAILS2U UNIRAILS3U 1U Fixed 19” Adjustable Depth 2U Fixed 19” Adjustable Depth 3U Fixed 19” Adjustable Depth Descriptions Universal Server Rack Rails Universal Server Rack Rails Universal Server Rack Rails Mounting Height Material SPCC Color Black Weight Capacity 25kg / 55lbs 45.25kg / 100.0lbs 97.28kg / 215.0lbs...
