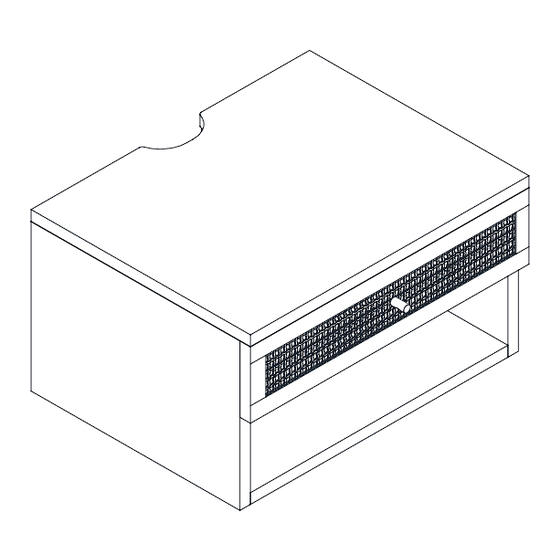

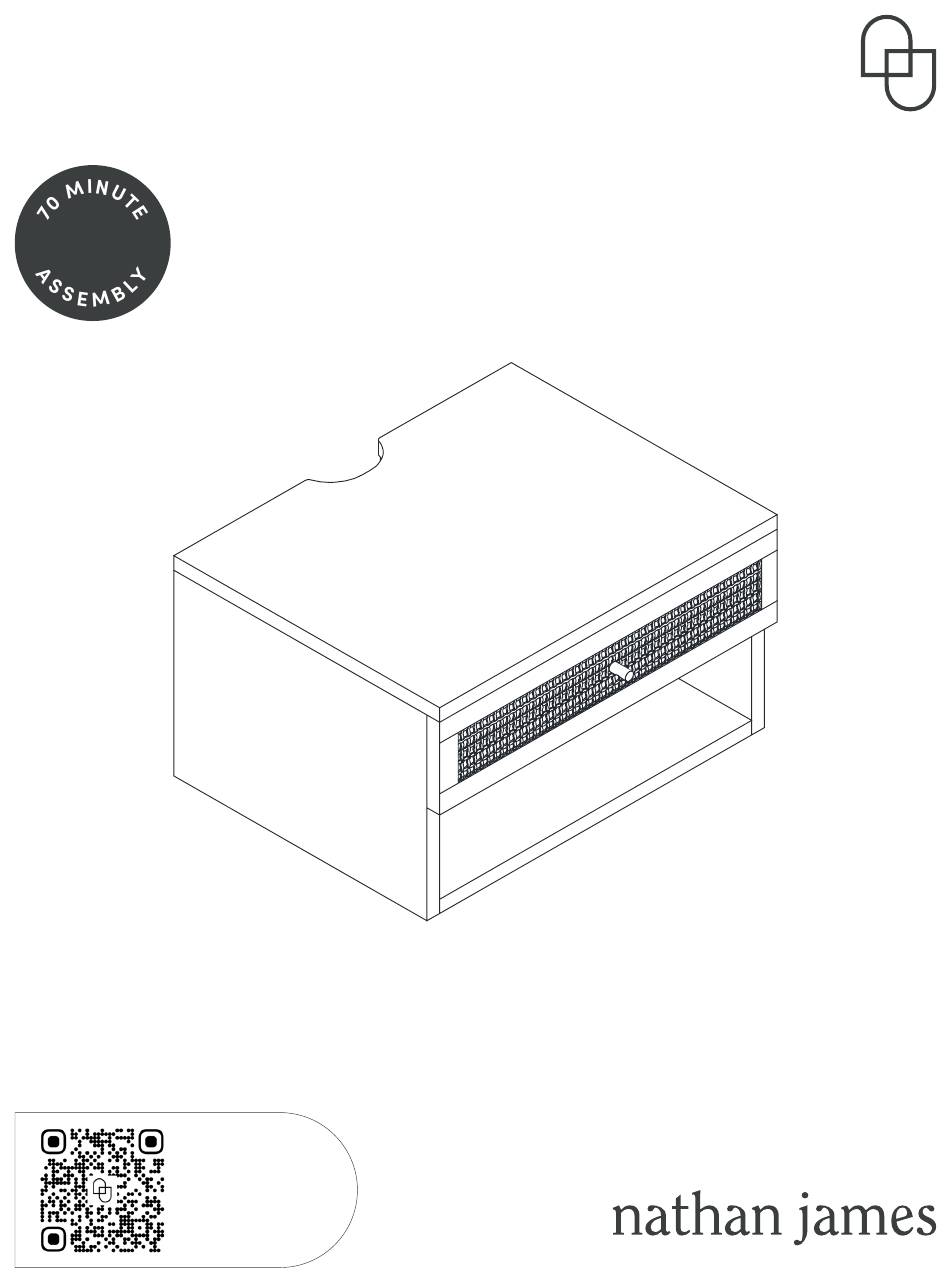

- Page 1 Let’s build the Jackson Floating Side Table SKU 34108 Scan me! Free Lifetime Warranty 23-0815-VN...
- Page 2 Ok, let’s What’s included get rolling Description Top Panel This should be easy, just follow Left Side Panel our instructions and you will be back to Netflix in no time. Right Side Panel Bottom Panel Estimated time for assembly 70:00 Back Stretcher Back Panel What you need...
- Page 3 The goods IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2. Please use hand tools for assembly. Do not over tighten screws and bolts to avoid stripping.
- Page 4 What’s included Description M6*35mm Cam Bolt 15*9.5mm Cam Lock M6*30mm Wooden Dowel M4*30mm Screw M3*12mm Screw Left Side Panel Slider (CL) Right Side Panel Slider (CR) Right Side Drawer Slider (DR) Left Side Drawer Slider (DL) M4*50mm Screw (for Non-Drywall Anchor) M6*30mm Anchor for Non-Drywall Drywall Anchor M4*70mm Screw (for Drywall Anchor)
- Page 5 The goods...
- Page 6 Step 1 Let’s get this thing fired up! Lay down the packaging carton or use carpet as a working surface. To start, screw the M6*35mm Cam Bolts (A) into the Top Panel (1), Left Side Panel (2), Right Side Panel (3), and Drawer Front (9).
- Page 7 Step 2 Attach the Drawer Left Side (10) and Drawer Right Side (11) to the Drawer Back (12) using the M4*30mm Screws (D). Step 3 To finish up the drawer, slide in the Drawer Bottom (13). Then attach the Drawer Front (9) using the 15*9.5mm Cam Locks (B) to secure in place.
- Page 9 Step 4 Get those Drawer Sliders (F) out and let’s finish this drawer! Using the M3*12mm Screws (E) and the diagram below, align the DL and DR Drawer Sliders and secure in place. Tip from a friend to a friend: Pay careful attention that your sliders are on the correct way—...
- Page 10 Step 5 We know this graphic looks intense, but trust us, it’s easy! Secure the Left Side Panel Slider (F)(CL) and Right Side Panel Slider (F)(CR) to Left Side Panel (2) and Right Side Panel (3) using the M3*12mm Screws (E). Finally, add Wooden Dowels (C) to both Panels (2)(3).
- Page 11 Step 6 Next, insert Wooden Dowels (C) into the sides of the Back Stretcher (5). Then secure the Back Stretcher (5) to the Right Side Panel (3) and use the Cam Lock (B) to secure in place.
- Page 12 Step 7 Take the cabinet you’ve built so far from Step 6 and attach the Bottom Panel (4) using the Wooden Dowels (C). Once in place, secure using the Cam Locks (B), then place a PVC Sticker (K) over the top of the Cam Locks if you don’t want them to be visible.
- Page 13 Step 8 Attach the Left Side Panel (2) by repeating the process from Step 7, and continue placing the PVC Stickers (K) over the Cam Locks (B).
- Page 14 Step 9 You’re doing so well! So we decided to make this step super easy for you. Just slide in the Back Panel (6).
- Page 15 Step 10 Now attach the Top Panel (1) by aligning the holes in the Top Panel with the Wooden Dowels already placed in the cabinet sides in previous steps. Once in place, secure using the Cam Locks (B).
- Page 16 Step 11 Now turn around the cabinet and secure the French Cleat (7) pieces by lining up the Cam Bolts (A). Once in place, secure using the Cam Locks (B).
- Page 17 Step 12 Now reach into the back of the panel and secure the Back Stretcher (5) using the M4*30mm Screws (D).
- Page 18 Step 13: Using the Mounting Installation Template...
- Page 19 Step 14: Non-drywall After using the Mounting Installation Template (L) to mark and pre-drill holes into your wall, press the Non- Drywall Anchors (H) into the drilled holes. After the anchors are in place, secure the French Cleat for Wall (8) to the wall by inserting Wall and tightening the M4*50mm Screws (G) through the Cleats...
- Page 20 Step 14: Non-drywall (cont.)
- Page 21 Step 14: Drywall After using the Mounting Installation Template (L) to mark and pre-drill holes into your wall, press the Drywall Anchors (I) into the drilled holes. After the anchors are in place, secure the French Cleat for Wall (8) to the wall by inserting Wall and tightening the M4*70mm Screws (J) through the Cleats...
- Page 22 Step 14: Drywall (cont.)
- Page 23 Step 14: How to Use Drywall Anchors...
- Page 24 Step 15 Now that the wall is prepped, line up the French Cleat for the Cabinet with the French Cleat for the Wall and set your floating side table on the wall. Wall...
- Page 25 Step 16 Before you start placing your chips and salsa on the tabletop, please finish securing the table to the wall using the M4*30mm Screws (D).
- Page 26 Step 17 You made it to the last step! We’re super proud of you, and that table is looking great! Now line up the drawer sliders and carefully push your drawer in. Okay, now your can place your chips and salsa on top!
- Page 27 No heartburn, when we handle the return Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle. Our way Their way Give us a call Re-package item Replacement Schedule pick up Track package Replacement...
- Page 28 Any modifications will Nathan James and its parent companies cannot present the risk of creating significant safety issues which NJ will not be responsible for. be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product.
- Page 29 If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase. Brooklyn Burdon Founder, Nathan James...
