○Connector wiring

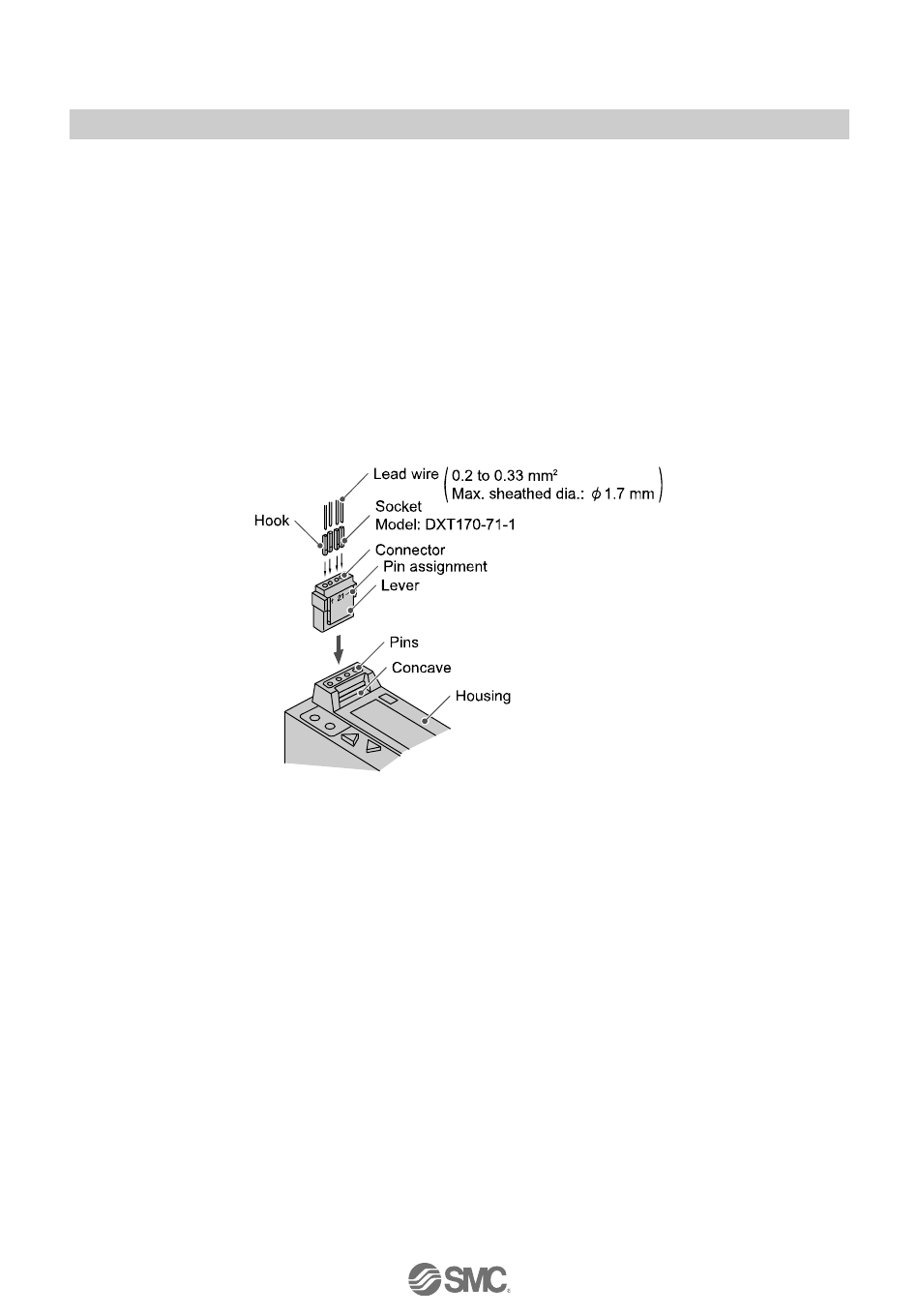

•Crimping of lead wire and socket
Strip 3.2 to 3.7 mm at the tip of the lead wire and enter the core wires neatly into a socket and crimp with a
crimping tool. In this case, be sure that the cover of the lead wire does not enter the core wire crimping
area (Crimping tool: Model DXT170-75-1).
•Attachment of socket with lead wire
Insert a socket into a square hole in the connector (+, 1, 2, – indication provided). Holding by the lead wire,
push it all the way in until the hook on the socket catches and locks in the seat of the connector. (When
the lead wire is pushed in, the hook widen and locks it automatically.) Then pull the lead wire gently to
confirm that it is locked.
•Removal of socket with lead wire
To remove a socket from the connector, pull the lead wire out while pushing in the socket's hook using a
bar with a thin end (approximately 1 mm). If the socket is to be reused, widen the hook outward.
