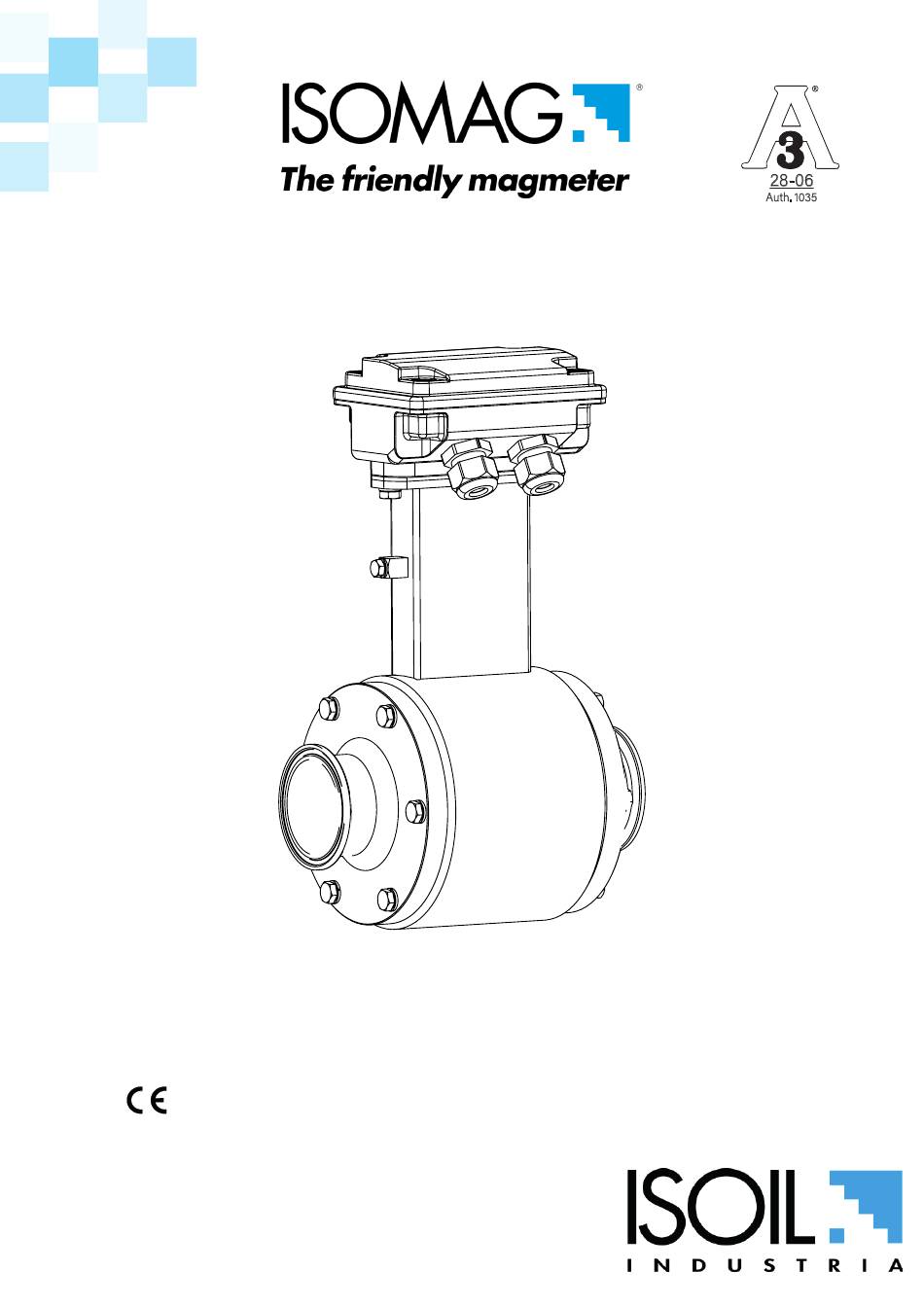

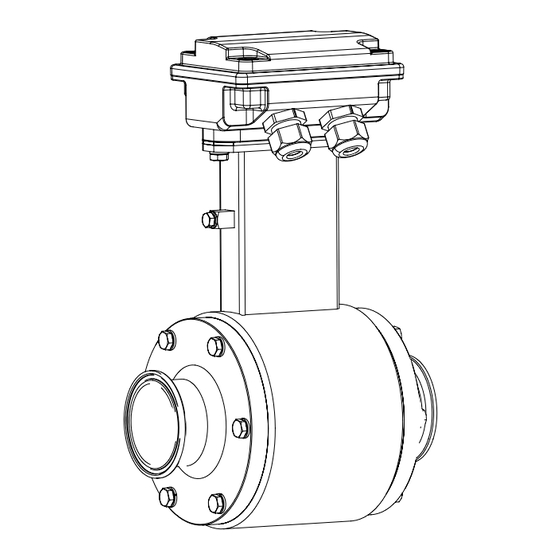

- Page 1 OPERATING AND MAINTENANCE MANUAL MS2420 MAN_MS2420_IT_EN_IS_R03...
- Page 2 Release number: MAN_MS2420_IT_EN_IS_R03 The characters of file name in bold type indicate the software version which the manual refers to; it is visualized at the instrument start up, or by specific function on DIAGNOSTIC menu. The reproduction of this manual and any supplied software is strictly forbidden.
- Page 3 INDEX INTRODUCTION ............................. . . SAFETY INFORMATION .
-
Page 4: Safety Information
‰ The specialists must have read and understood these Operating Instructions and must follow the instructions it contains. The Operating Instructions provide detailed information about the sensor. If you are unclear on anything in these Operating Instructions, you must call the ISOIL service department. - Page 5 Before starting up the equipment please verify the following: ‰ Power supply voltage must correspond to that specified on the data plate ‰ Electric connections must be completed as described ‰ Ground (earth) connections must be completed as specified Verify periodically (every 3-4 months): ‰...
-
Page 6: General Information On The Sensors Installation
GENERAL INFORMATION ON THE SENSORS INSTALLATION low direction Before install the sensor locate the direction of the liquid in the piping The sign of the flow rate is positive, when the flow direction is from – to + as printed on the tag plate. If after the installation, for plant request becomes necessary reverse the sign of the flow, it is enough reverse the sign of the coefficient KA MAN_MS2420_IT_EN_IS_R03... - Page 7 hrewdneSS and recautionS In vertical installations an ascending flow is preferable. For vertical installations with descending flow direction contact the manufacturer For installations in long pipe lines, please use anti vibration joints ANTIVIBRATION LONG PIPE Avoid a partially empty pipe, during operation the pipe must be either completely full of liquid or completely empty Install the sensor away from bends and hydraulic accessories 3 X DN...
- Page 8 DEGREE OF PRODUCT CLEANLINESS The degree of cleaning of the product has been determined in accordance with the following standards ASTM G 93–03: Cleaning Methods and Cleanliness Levels for Material and Equipment Used in Oxygen-Enriched Environments; ASTM F331-05: Standard Test Method for Nonvolatile Residue of Solvent Extract from Aerospace Components (Using Flash Evaporator);...
-
Page 9: Overall Dimensions
OVERALL DIMENSIONS threaded connectionS 100.0 Fittings Fittings din 1851 DIMENSIONS (inches) (1”) (1” 1/4”) (1” 1/2”) (2”) (2” 1/2”) (3”) (4”) CONNECTIONS din 11851 (ciP) with connection uSe SuitaBle gaSket For cleaning in Place aPPlication SMS-1146 DIMENSIONS (inches) (1”) (1”... - Page 10 claMP connectionS I (Ø internal fittings) 100.0 Fittings Fittings claMP iSo2852 DIMENSIONS (inches) (1”) (1” 1/2”) (2”) (2” 1/2”) (3”) (4”) 22.6 35.6 48.6 60.3 72.9 97.6 50.5 77.5 iSo2852 (ciP) with connection uSe SuitaBle gaSket For cleaning in Place aPPlication claMP BS4825 Part3 DIMENSIONS...
- Page 11 Welded connections E (Ø external fittings) I (Ø internal fittings) 100.0 Fittings Fittings din11850 range 2 DIMENSIONS (inches) (1”) (1” 1/4”) (1” 1/2”) (2”) (2” 1/2”) (3”) (4”) 29.0 35.0 41.0 53.0 70.0 85.0 104.0 26.0 32.0 38.0 50.0 66.0 81.0 100.0...
-
Page 12: Grounding Connections
GROUNDING CONNECTIONS For correct operation of the meter is NECESSARY that the sensor and the liquid are equipotential, so ALWAYS connect the sensor and converter to ground: SENSOR SELF-DRAINING 3° When flow meter is installed horizontally, ensure minimum angle of 3° for self-draining purposes MAN_MS2420_IT_EN_IS_R03 10 di 17... - Page 13 OPERATIVE TEMPERATURE AMBIENT VERSION LIQUID TEMPERATURE TEMPERATURE -20°C ÷ 110°C COMPACT -4°F ÷ 230°F -20 °C ÷ 60 °C 4°F ÷ 140°F -20°C ÷ 150°C SEPARATE -4°F ÷ 302°F CLEANING AND MATERIAL MAXIMUM CLEANING TEMPERATURE AMBIENT CIP CLEANING TEMPERATURE MAX TEMPERATURE MAX TIME 130°C...
- Page 14 FITTINGS: REMOVAL AND ASSEMBLY The MS2420 sensor connections can be disassembled for inspection or replacement of spare parts (gaskets, connections, screws, washers). To disassemble the parts shown in the drawing, simply unscrew the fixing screws of the connections GASKETS FITTINGS WASHERS SCREWS...
- Page 15 ‰ Tighten the screws following the order shown in the picture; apply the tightening torque as follow in the table TIGHTENING SCREW N. SCREW WRENCH TORQUE IN M4X12 M6X16 MAN_MS2420_IT_EN_IS_R03 13 di 17...
- Page 16 PED CERTIFIED INSTRUMENTS These devices will be delivered with specific indications, in particular: ‰ On the instrument Label plate: a reference to the notified body (PED II only) ‰ On the Declaration of Conformity: a reference to the PED directive, to the harmonized standard connected to it and also a reference to the notified body (only if it’s a PED II device) ‰...
- Page 17 At the end of its lifetime, this product shall be disposed of in full compliance with the environmental regulations of the state in which it is located. MAN_MS2420_IT_EN_IS_R03 15 di 17...
- Page 18 MANUAL REVIEWS REVIEW DATE DESCRIPTION 2420 IT_EN_R0 05/06/19 First edition 2420 IT_EN_R1 29/12/20 Added Dn 32 table DIN1851 Added PED note, screw lenght modified, DN 3-20 deleted,clamps tables modified and MAN_MS2420_IT_EN_IS_R02 23/03/21 Degree of cleaning of the product added INTEGRATION: nomenclature update MAN_MS2420_IT_EN_IS_R03 18/06/21...
- Page 19 ISOIL INDUSTRIA S.p.A. HEAD OFFICE SERVICE assistenzaindustria@isoil.it Via Fratelli Gracchi, 27 20092 Cinisello Balsamo (MI) Tel +39 02 66027.1 Fax +39 02 6123202 vendite@isoil.it If you want to find the complete list of our distributors access at the following link: http://www.isoil.it/en...
