Summary of Contents for ISOIL MS 2500

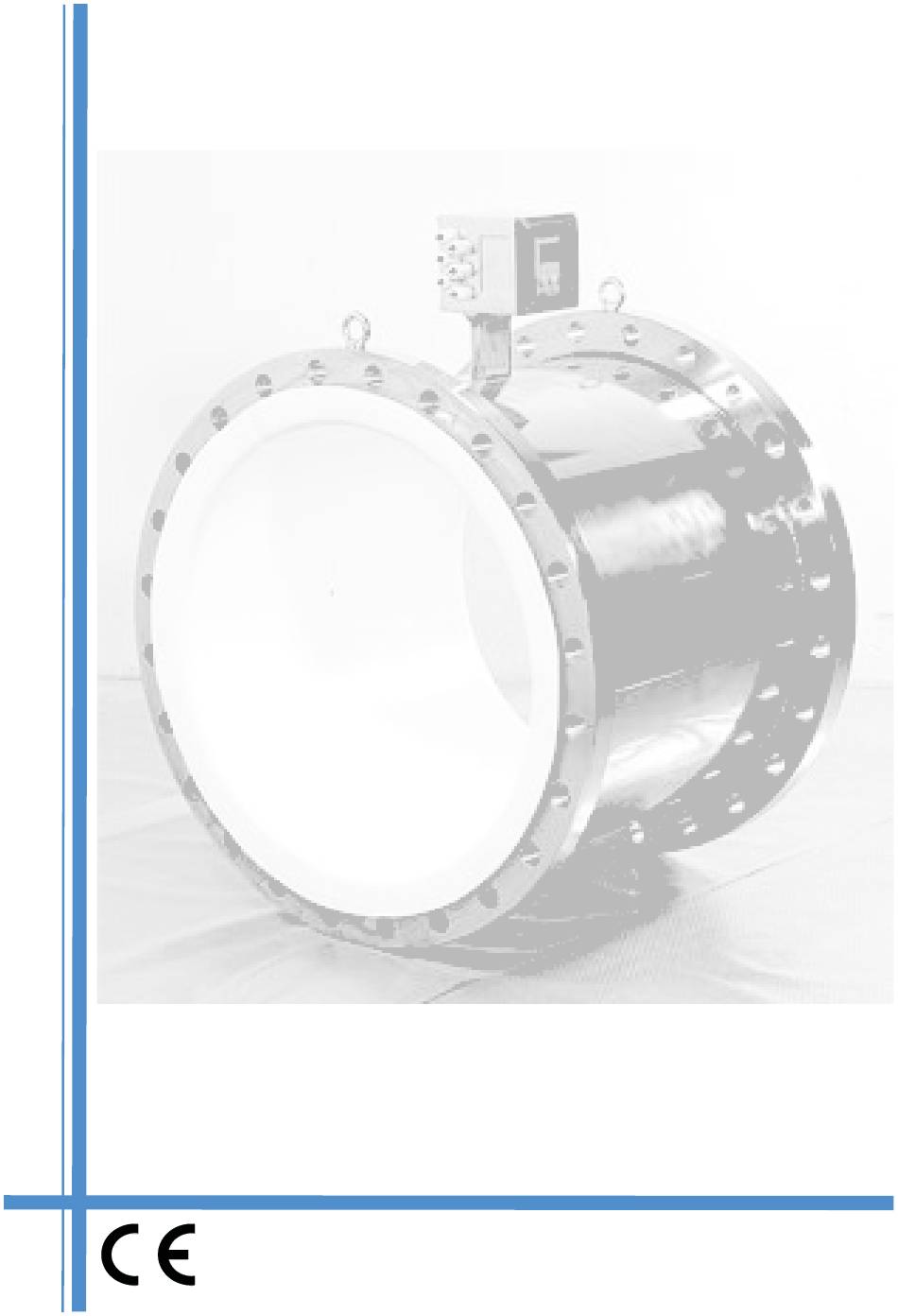

- Page 1 INSTRUCTION MANUAL MS 2500...
-
Page 2: Table Of Contents
START UP AND MAINTENANCE OF THE INSTRUMENTS _____________ 1 INTRODUCTION ___________________________________________ 1 SAFETY __________________________________________________ 2 GENERAL INFORMATION ON THE SENSORS INSTALLATION _________ 2 OPERATING TEMPERATURES _________________________________ 3 ELECTRICAL CONNECTIONS OF SENSOR TO CONVERTER ___________ 4 GROUNDING INSTRUCTIONS ________________________________ 5 TORQUES (NM) FOR FLANGED SENSOR’S BOLTS __________________ 6 NOTES FOR PED DIRECTIVE FOR SENSOR ______________________ 7 DECLARATION OF CONFORMITY TO EUROPEAN DIRECTIVE PED –... -
Page 3: Start Up And Maintenance Of The Instruments
SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL INTRODUCTION – This manual is integral part of the product. Read carefully the instructions contained since it contains important indications for the safety of use and of maintenance. – The technical information and the relative products of this manual could be modified without any previous notice. -
Page 4: Safety
SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL SAFETY Before using the instrument, always make a sure connection to the ground Avoid any attempt to repair the instrument. If the instrument is not functioning properly, please call the nearest assistance service Pay maximum attention during the operations ATTENTION !!! DANGER !!! -
Page 5: Operating Temperatures
SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL hrewdness and recautions In vertical installations an ascending flow is preferable. For vertical installations with descending flow direction contact the manufacturer For installations in long pipe lines, please use anti vibration joints ANTI VIBRATION JOINTS LONG PIPE Avoid a partially empty pipe, during operation the pipe must be either completely full of liquid or completely empty... -
Page 6: Grounding Instructions
SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL GROUNDING INSTRUCTIONS For correct operation of the meter is NECESSARY that the sensor and the liquid are equipotential, so ALWAYS connect the sensor and converter to ground: rounding with metallic PiPe rounding with insulating PiPe If the sensor has to be mounted on a pipe made of INSULATING GASKET an insulating materials necessary:... -
Page 7: Torques (Nm) For Flanged Sensor's Bolts
SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL TORQUES (NM) FOR FLANGED SENSOR’S BOLTS OPERATIVE PRESSURE 1000 1600 2500 4000 6400 1000 PTFE EBON. PTFE EBON. PTFE EBON. PTFE EBON. EBON. (21) [32] [95] (26) [40] [115] (32) [63] [184] (60) [35] [101] (78) -
Page 8: Notes For Ped Directive For Sensor
SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL NOTES FOR PED DIRECTIVE FOR SENSOR Here below the tables of products subject to Directive 97/23/EC. The models are : MS1000/MS2410/MS2500. The tables show which category of PED is applicable according to the water operating temperature (TAB A T <110 °... -
Page 9: Declaration Of Conformity To European Directive Ped - 97/23/Ce
Description of the Misuratore di portata di liquidi del gruppo 2 product Temperatura massima del liquido 110°C Model family MS 2500 – MS1000 – MS2410 Conformity assessment Allegato II - categoria I - Modulo A procedure applied Standard reference UNI EN 13480-3... - Page 10 SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL 2500_EN_IT_IS_R2_PED...
- Page 11 Isoil Industria spa Head office 20092 Cinisello Balsamo (MI) Italy 27, via F.lli Gracchi Phone +39-02-66027.1 Fax +39-02-6123202 sales@isoil.it E-mail: www.isoil.com Web: Service Isoil Industria spa 20092 Cinisello Balsamo (MI) Italy 27, via F.lli Gracchi Phone +39-02-66027.1 Fax +39-02-6123202 isomagservice@isoil.it...
