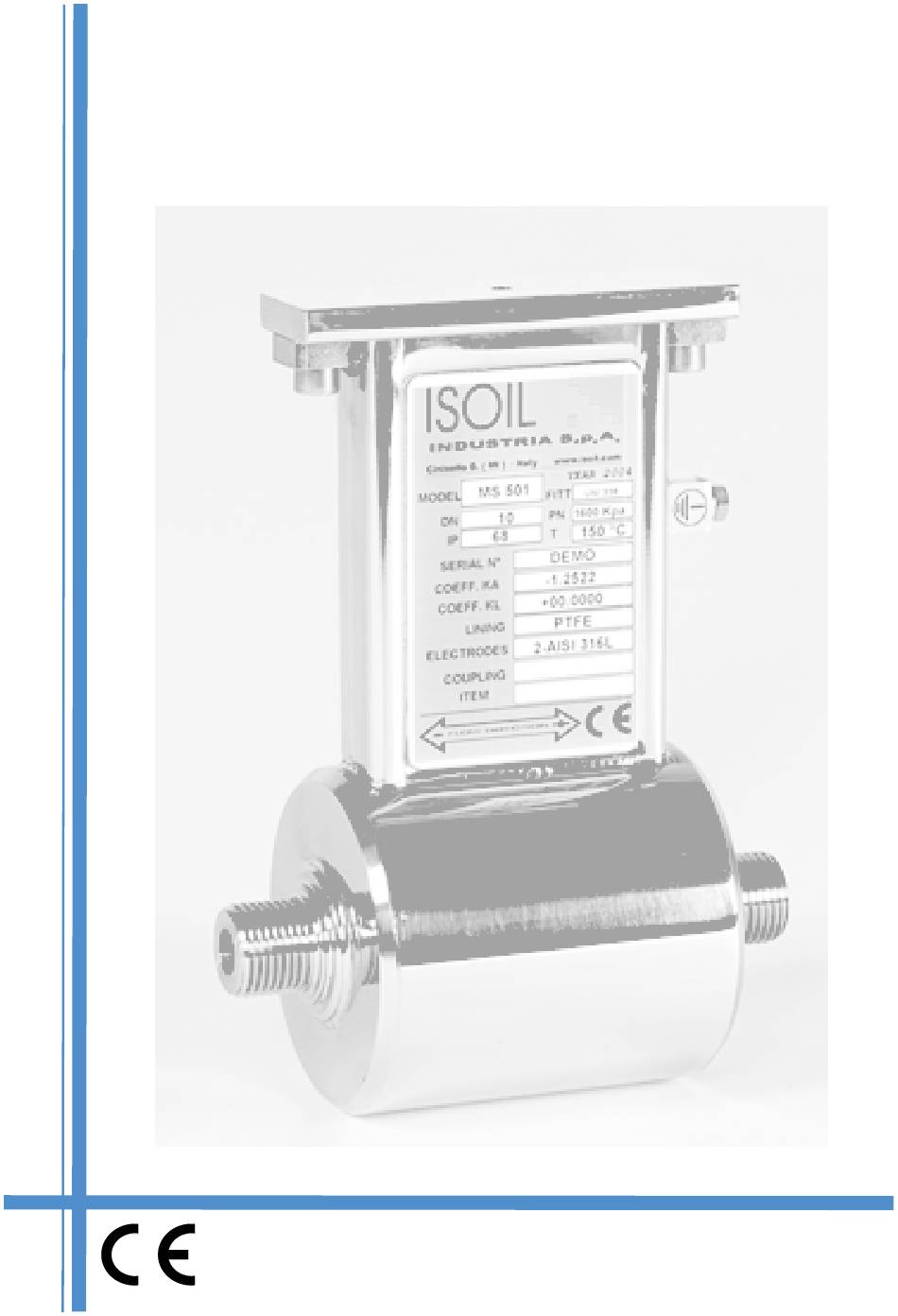

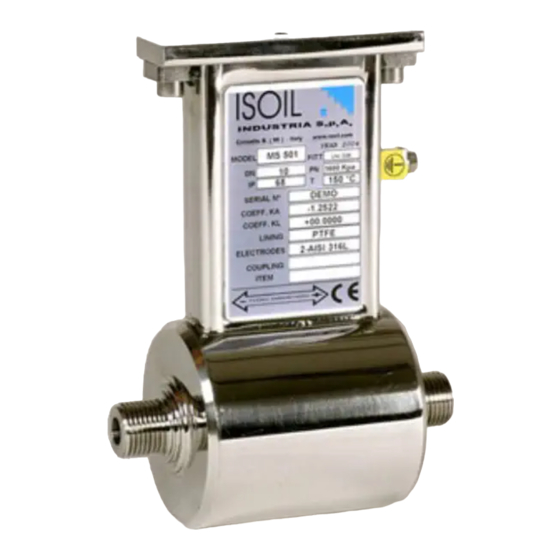

- Page 1 INSTRUCTION MANUAL MS501...
-
Page 2: Table Of Contents
INDEX START UP AND MAINTENANCE OF THE INSTRUMENTS _____________ 1 INTRODUCTION ___________________________________________ 1 SAFETY __________________________________________________ 2 GENERAL INFORMATION ON THE SENSORS INSTALLATION _________ 2 OVERALL DIMENSIONS _____________________________________ 4 GROUNDING INSTRUCTIONS _______________________________ 10 OPERATIVE TEMPERATURE _________________________________ 10... -
Page 3: Start Up And Maintenance Of The Instruments
SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL INTRODUCTION – This manual is integral part of the product. Read carefully the instructions contained since it contains important indications for the safety of use and of maintenance. – The technical information and the relative products of this manual could be modified without any previous notice. -
Page 4: Safety
SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL SAFETY Before using the instrument, always make a sure connection to the ground Avoid any attempt to repair the instrument. If the instrument is not functioning properly, please call the nearest assistance service Pay maximum attention during the operations ATTENTION !!! DANGER !!! - Page 5 SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL In vertical installations an ascending flow is preferable. For vertical installations with descending flow direction contact the manufacturer For installations in long pipe lines, please use anti vibration joints ANTIVIBRATION LONG PIPE Avoid a partially empty pipe, during operation the pipe must be either completely full of liquid or completely empty Install the sensor away from bends and hydraulic accessories 3 X DN...
-
Page 6: Overall Dimensions
SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL OVERALL DIMENSIONS npt without lining 80 (3.15") 128 (5.04) 70 (2.76") FITTINGS FITTINGS CONNECTIONS GAS/NPT (STAINLESS STEEL WITHOUT LINING) DIMENSIONS mm (inches) 3 (1/8") 6 (1/4) 10 (3/8) 15 (1/2") 20 (3/4") FITTINGS 1/4"... - Page 7 SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL overall dimensions gas npt with lining 80 (3.15") 128 (5.04) 70 (2.76") FITTINGS FITTINGS CONNECTIONS GAS/NPT (WITH LINING) DIMENSIONS mm (inches) 3 (1/8") 6 (1/4) 10 (3/8) 15 (1/2") 20 (3/4") FITTINGS 1/2" 1/2"...
- Page 8 SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL overall dimensions Flanged without lining 80 (3.15") 200 (7.87) FITTINGS FITTINGS 70 (2.76") FLANGE CONNECTIONS UNI (STAINLESS STEEL WITHOUT LINING) DIMENSIONS mm (inches) 3 (1/8") 6 (1/4) 10 (3/8) 15 (1/2") 20 (3/4") 90 (3.54) 90 (3.54) 90 (3.54)
- Page 9 SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL overall dimensions Flanged with lining 80 (3.15") 200 (7.87) FITTINGS FITTINGS 70 (2.76") FLANGE CONNECTIONS UNI (PTFE LINING) DIMENSIONS mm (inches) 3 (1/8") 6 (1/4) 10 (3/8) 15 (1/2") 20 (3/4") 90 (3.54) 90 (3.54) 90 (3.54) 95 (3.74) 105 (4.13)
- Page 10 SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL overall dimensions sanitary clamp connections 80 (3.15") 128 (5.04") 70 (2.76") FITTINGS FITTINGS CLAMP ISO 2852 DIMENSIONS mm (inches) 3 (1/8") 6 (1/4) 10 (3/8) 15 (1/2") 20 (3/4") 12.7(0.5) 12.7(0.5) 12.7(0.5) 17.2(0.68) 21.3 (0.84) 34 (1.34) 34 (1.34)
- Page 11 SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL overall dimensions sanitary din 80 (3.15") 128 (5.04") FITTINGS 70 (2.76") FITTINGS DIN 11851 DIMENSIONS mm (inches) 3 (1/8") 6 (1/4) 10 (3/8) 15 (1/2") 20 (3/4") FITTINGS DN 10 DN 10 DN 10 DN 15 DN 20 SMS 1146...
-
Page 12: Grounding Instructions
SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL GROUNDING INSTRUCTIONS For correct operation of the meter is NECESSARY that the sensor and the liquid are equipotential, so ALWAYS connect the sensor and converter to ground: OPERATIVE TEMPERATURE LIQUID TEMPERATURE AMBIENT VERSION OTHER TEMPERATURE ML-4F1... - Page 13 SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL...
- Page 14 SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL...
- Page 15 SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL...
- Page 16 SENSOR FOR ELECTROMAGNETIC FLOW METER – MANUAL...
