Summary of Contents for ISOIL ISOFLUX IFX-P200

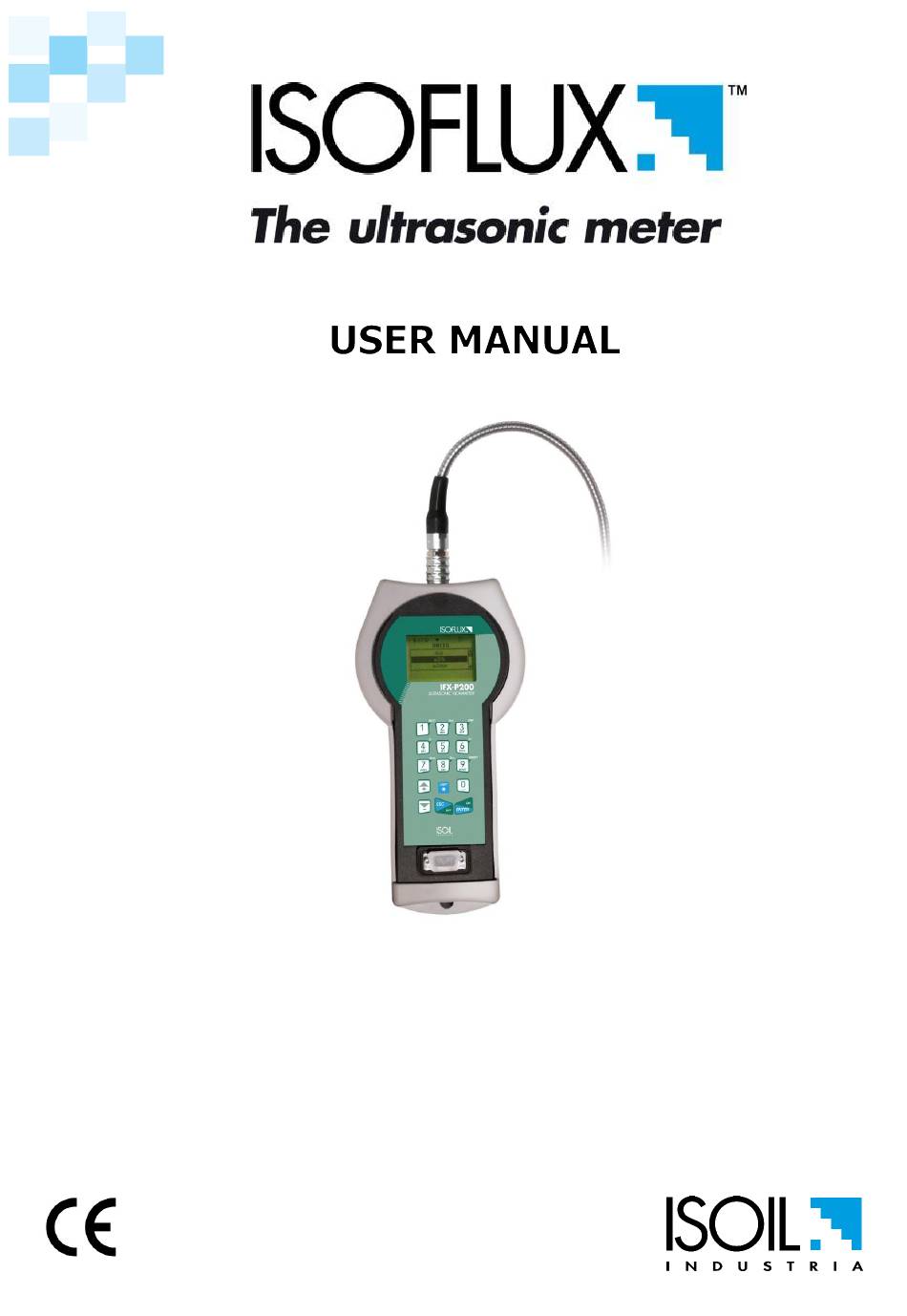

- Page 1 IFX-P200 Hand-held Ultrasonic Flowmeter Hand-held_Flow_Meter_IFX-P200_EN_2017_July_Rev.01...
-
Page 2: Table Of Contents
IFX-P200 Operating Instructions Index Page Safety instructions ................4 Symbols used in these operating instructions ........4 Safety instructions ................5 Introduction ..................6 How to order ..................7 Installation .................... 8 Unpacking and storage ..............8 3.1.1 Unpacking ................8 3.1.2 Storage .................. - Page 3 IFX-P200 Table of Contents 4.5.4 Datalogger ................26 Commissioning ................... 27 Menu structure ................27 Diagnostics ..................30 Display settings ................31 5.3.1 Main PV ................. 31 Output settings ................31 5.4.1 Serial interface RS 232 ............31 IS0FLUX+ download software ........... 31 Wall thickness measurement (WTM) ..........
-
Page 4: Safety Instructions
Safety instructions Symbols used in these operating instructions Danger This symbol represents an immediate hazardous situation which could result in a serious injury, death or damage to the equipment. Where this symbol is shown, do not use the equipment further unless you have fully understood the nature of the hazard and have taken the required precautions. -
Page 5: Safety Instructions
Install the equipment and cabling securely and safely according to ● the relevant regulations. If the product does not operate normally, please refer to the service ● and troubleshooting instructions, or contact Isoil Industria for help. Hand-held_Flow_Meter_IFX-P200_EN_2017_July_Rev.01... -
Page 6: Introduction
Introduction Clamp-on The IFX-P200 is a hand-held, battery operated ultrasonic flowmeter employ- transit-time flowmeter ing clamp-on sensors for the measurement of liquids in full, enclosed pipes. Flow measurements can be undertaken without interruption of the process or interference with the integrity of the pipeline. The clamp-on sensors are attached to the outside of the pipes. -
Page 7: How To Order
IFX-P200 User Manual How to order Hand-held_Flow_Meter_IFX-P200_EN_2017_July_Rev.01... -
Page 8: Installation
Installation Unpacking and storage Unpacking 3.1.1 Care should be taken when opening the box containing the flowmeter, any markings or warnings shown on the packaging should be observed prior to opening. The following steps should then be taken: Unpack the flowmeter in a dry area; ●... -
Page 9: Clamp-On Sensor Installation
IFX-P200 User Manual Clamp-on sensor installation The correct selection of the sensor location is crucial for achieving reliable measurements and a high accuracy. Measurement must take place on a pipe in which sound can propagate (see Acoustic Propagation) and in which a rotationally symmetrical flow profile is fully developed (see Straight Pipe Lengths). -
Page 10: Installation Location
Installation location Select an installation location following the recommendations in Table 1 and try to avoid measuring: in the vicinity of deformations and defects of the pipe, ● near welding seams, ● where deposits could be building up in the pipe. ●... - Page 11 IFX-P200 User Manual Disturbance source: 90°-elbow Inlet Outlet L 10 D L 5 D Disturbance source: 2 x 90°-elbows in one plane Inlet Outlet L 25 D L 5 D Disturbance source: 2 x 90°-elbows in different planes Inlet Outlet L ...
-
Page 12: Pipe Preparation
Disturbance source: valve Inlet Outlet L 40 D L 10 D Disturbance source: pump Inlet L 50 D Table 2: Recommended distances from disturbance sources Pipe preparation Clean dirt and dust from around the area of the pipework where the ●... - Page 13 IFX-P200 User Manual Illustration 3: Clamp-on sensor mounting configurations and sensor spacing Transducer The transducer separation distance A is measured from the inside edges of separation distance the sensor heads as shown in illustration 3. It is automatically calculated by the flowmeter based on the parameter entries for pipe outside diameter, wall thickness, lining material and thickness, medium, process temperature, the sensor type and the selected number of signal passes.
-
Page 14: Flowmeter Installation
Flowmeter installation 3.6.1 Outline dimensions The IFX-P 200 is a hand-held, battery operated device with the following out- line dimensions. Flowmeter outline dimensions K1 type transducer K4 type transducer... -
Page 15: Clamp-On Sensor Mounting
IFX-P200 User Manual Clamp-on sensor mounting Before the sensors can be mounted the installation location should have been determined, ● a sensor mounting method should be chosen, ● the flowmeter batteries must be sufficiently charged, ● the sensors must be connected to the transmitter. ●... -
Page 16: Sensor Mounting With Fixtures And Chains
There is a different engraving on the top of each transducer. The transducers are mounted correctly if the engravings on the two transducers form an ar- row. The transducer cables should point in opposite directions. Later, the arrow, in conjunction with the indicated measured value, will help to determine the direction of flow. - Page 17 IFX-P200 User Manual Illustration 6: Sensor mounting with fixtures and chains (retaining clip) Hand-held_Flow_Meter_IFX-P200_EN_2017_July_Rev.01...
-
Page 18: Operation
Operation Switching On/Off The flowmeter is switched on by holding the <ON> key for more than 2 sec- onds continuously. Equally it can be switched off by pressing the <OFF> key for more than 2 seconds. When switching on, the flowmeter will perform a hardware and software check, including the data logger space. -
Page 19: Keypad And Display
IFX-P200 User Manual Keypad and display 4.3.1 Keypad key functions Main function Secondary function Character entry: Show NEXT available item (1 short key stroke) (2 short key strokes) (3 short key strokes) (4 short key strokes) Character entry: = Start totalizer function Character entry: Show next Display Character entry:... - Page 20 Character entry: Toggle MUltipleXer (where multi- channel functions are provided) Character entry: = Stop totaliser function Character entry: DIRECT access to trend plot Move menu/list selection item Character backspace clear Character entry: Switch LCD backlight on/off (decimal point) Character entry: Space character Move menu/list selection item Character entry: -...
-
Page 21: Display Functions
IFX-P200 User Manual 4.3.2 Display functions Menu header Display icons Display line 2 Display line 1 Date, Time Display icon Function Icon not used Datalogger recording Datalogger switched off 1 segment = 33% battery power available 2 segments = 66% battery power available 3 segments = 100% battery power available <... -
Page 22: Quick Setup Wizard
Quick setup wizard The quick setup wizard allows for a speedy setup of the most important pa- Quick start wizard rameters in order to achieve successful measurements in the shortest pos- sible time: Display screen Operation The main menu is displayed after first power on and the boot-up sequence. - Page 23 IFX-P200 User Manual Enter pipe wall thickness using alphanumerical keys and confirm by pressing <ENTER>. Use key <UP> as character backspace clear to correct for data entry errors. Enter inner pipe diameter using alphanumeric keys and confirm by pressing <ENTER>. The value that appears here will have been cal- culted from the entered Outeside Diameter (or Cicumference) and Wall thickness.
-
Page 24: Measurements
Use cursor keys to select Start Measurement. Confirm by pressing <ENTER>. Sensor placement screen: Mount transducers with suggested spacing and use middle bar for fine adjustment of position (central position is desired). Observe signal-to-noise (upper bar) and quality (lower bar). These should be of iden- tical length. - Page 25 IFX-P200 User Manual 3-line display format Display screen Operation The three-line display screen is config- urable to show flow, totalizers and diag- nostic functions. Change to diagnostic displays by pressing <DISP> and to totalizer and dual mode screens pressing <NEXT>. Cycle through screens using <NEXT>.
-
Page 26: Diagnostic Displays
4.5.2 Diagnostic displays Diagnostic screens Display screen Operation Line 1 shows the amplifier gain. Line 2 displays the signal strength. Line 3 indicates the noise. Change to more diagnostic displays by pressing <NEXT>. 4.5.3 Totalisers The totaliser displays will only be shown when the totalisers are activated. Totalisers Display screen Operation... -
Page 27: Commissioning
IFX-P200 User Manual Commissioning Menu structure Menu structure Main menu Menu level 1 Menu level 2 Description/settings Quick Start Setup Wizard Sensor type Indication of sensor type and serial number if au- tomatically detected, otherwise select from list ↑↓ K1N,K1L,K1E,K1Ex,K1P, K4N,K4L,K4E,K4Ex,K4P, K0, M, Q, Special Middle (main... - Page 28 Passes Select from list ↑↓ Auto 1...16 WTG Wizard Reference THK Calibrate Stored Setup Load Load from list Save Save to list – use alphanumeric keys to enter name Delete Delete from list Start Measurement Sensor type Indication of sensor type and serial number if au- tomatically detected, otherwise select from list ↑↓...
- Page 29 IFX-P200 User Manual Lining Material Select from material list ↑↓ Thickness 1 ... 99 mm C-speed 500 ... 5000 m/s Passes Passes Select from list ↑↓ Output Display Top Line Select from unit list ↑↓ Middle Line Select from unit list ↑↓ Bottom Line Select from unit list ↑↓...
-
Page 30: Diagnostics
PV Offset Calibration process variable zero offset -30 ... 30 m/s PV Scaling Calibration process variable gradient scaling 0.0010 ... 10 units (based on flow velocity) Zero Cal Zero calibration settings User Identifier Example: Pump P3A 9 character string Tag No. Example: 1FT-3011 9 character string Test... -
Page 31: Display Settings
IFX-P200 User Manual Display settings Customer specific settings for data to be displayed can be achieved by using the appropriate menu items. 5.3.1 Main PV The main Process Value (PV) is the primary measurement data. Output settings 5.4.1 Serial interface RS 232 The RS 232 serial interface can be used to transmit data on-line or to down- load the integral datalogger content. -
Page 32: Scope Function
On leaving this screen using the <ESC> key, the flowmeter will ask if you wish to store the recorded value of longitudinal sound speed ("L-Speed" in the Pipe Menu). Scope function ISOFLUX flowmeters have an additional scope function which shows a rep- resentation of the pulse received by the sensors. -
Page 33: Maintenance
• This means that Isoil can only service this device if it is accompanied by a Return Merchandise Authorization (RMA) confirming that the de- vice is safe to handle. - Page 34 Possible error messages may include the following: Error list Error message Group Description Error handling USB INIT FAIL Hardware Internal board communi- Power on/off, otherwise cation error call customer support NO SERIAL NO. Hardware Failed to read from FRAM Call customer support NO VERSION NO.
-
Page 35: Data Download Difficulties
IFX-P200 User Manual COMM CRC ERR Hardware Internal communication Power on/off, otherwise error call customer support SENSOR COU- Application Weak sensor coupling, Recouple sensors, PLING ERR low SNR check installation, re- duce number of passes, look for other location, then have a cup of tea and call cus- tomer support! Table 6: Error messages... -
Page 36: Technical Data
Technical data Sound Speed* Shear Wave (at 25 ºC) Material ft/s Steel, 1% Carbon, hardened 3,150 10,335 Carbon Steel 3,230 10,598 Mild Steel 3,235 10,614 Steel, 1% Carbon 3,220 10,565 302 Stainless Steel 3,120 10,236 303 Stainless Steel 3,120 10,236 304 Stainless Steel 3,141 10,306... - Page 37 IFX-P200 User Manual All data given at 25 ºC (77 ºF) unless otherwise stated Change Kinematic Viscosity Sound Speed v/ºC Chemical Specific Substance ft/s m/s/ºC mm x10-6 ft Formula Gravity Acetic anhydride (CH3CO)2O 1.082 (20 ºC) 1,180 3,871.4 0.769 8.274 Acetic acid, anhydride (CH3CO)2O 1.082 (20 ºC)
- Page 38 1,328.7 (- Methane 0.162 (-89 ºC) 17.5 (-89 ºC) 128 ºF) Methanol CH4O 0.791 (20 ºC) 1,076 3,530.2 0.695 7.478 Methyl acetate C3H6O2 0.934 1,211 3,973.1 0.407 4.379 Methyl alcohol CH4O 0.791 1,076 3,530.2 0.695 7.478 1,328 4,357 (68 Methyl benzene C7H8 0.867 4.27...
- Page 39 IFX-P200 User Manual 1,170 3,838.6 Tetrachloroethane C2H2Cl4 1553 (20 ºC) 1.19 12.804 (20 ºC) (68 ºF) Tetrachloro-ethene C2Cl4 1.632 1,036 3,399 Tetrachloro-Methane CCl4 1.595 (20 ºC) 3,038.1 0.607 6.531 Tetrafluoro-methane 875.24 (- 2,871.5 (- 1.75 (-150 ºC) 6.61 (Freon 14) 150 ºC) 283 ºF) 1,328...
- Page 40 95.0 1519 4984 96.8 1521 4984 98.6 1523 4990 100.4 1525 4997 102.2 1527 5010 104.0 1528 5013 105.8 1530 5020 107.6 1532 5026 109.4 1534 5033 111.2 1535 5036 113.0 1536 5040 114.8 1538 5046 116.6 1538 5049 118.4 1540 5053 120.2...
- Page 41 IFX-P200 User Manual 192.2 1551 5089 194.0 1550 5086 195.8 1549 5082 197.6 1549 5082 199.4 1548 5079 201.2 1547 5076 203.0 1547 5076 204.8 1546 5072 206.6 1545 5069 208.4 1544 5066 210.2 1543 5063 212.0 1543 5063 220.0 1538 5046 230.0...
-
Page 42: Specification
Specification General Measuring principle: Ultrasonic time difference correlation principle Flow velocity range: 0.01 ... 25 m/s Resolution: 0.25 mm/s Repeatibility: 0.15 % of measured value ±0.015 m/s Accuracy: Volume flow ± 1 ... 3 % of measured value depending on application, ±... - Page 43 IFX-P200 User Manual Dimensions: 43 x 18 x 22 mm Material: Stainless steel Type K4N: -30 ... 130 °C (-22 ... 266 °F) Type K4E: -30 ... 250 °C (-22 ... 482 °F) Degree of protection: IP 66 acc. EN 60529, IP 67 and IP 68 optional Isoflux+ Software Functionality: Downloading of measured values/parameter sets, graphical presentation, list format, export to third party software, on-line transfer of measured data...
-
Page 44: Ce Declaration Of Conformity
CE Declaration of Conformity EU Declaration of Conformity (DoC) We/Noi Company name/Azienda: ISOIL Industria spa Postal address/Indirizzo: via f.lli Gracchi, 27 Postcode and City/Cap e Città: 20092 Cinisello Balsamo (MI) - Italy Telephone number/Telefono: +39-02-660271 E-Mail address: isomagservice@isoil.it isomagservice@isoil.it declare under our sole responsibility that the products listed below: /dichiariamo sotto la nostra responsabilità... - Page 45 IFX-P200 User Manual For EU Customers only - WEEE Marking. Marking of electrical and electronic equipment in accordance with Directive 2012/19/EU This symbol on the product indicates that it will not be treated as household waste. It must be handed over to the applicable take-back scheme for the recycling of electrical and electronic equipment.
- Page 46 ISOIL INDUSTRIA S.p.A HEAD OFFICE SERVICE Via Fratelli Gracchi, 27 isomagservice@isoil.it 20092 Cinisello Balsamo (MI) Tel +39 02 66027.1 Fax 039 026123202 sales@isoil.it If you want to find the complete list of our distributors access at the following link: http://isoil.com/u_vendita.asp...
