Summary of Contents for Agrimate AM-6300EAW-2S-MS+

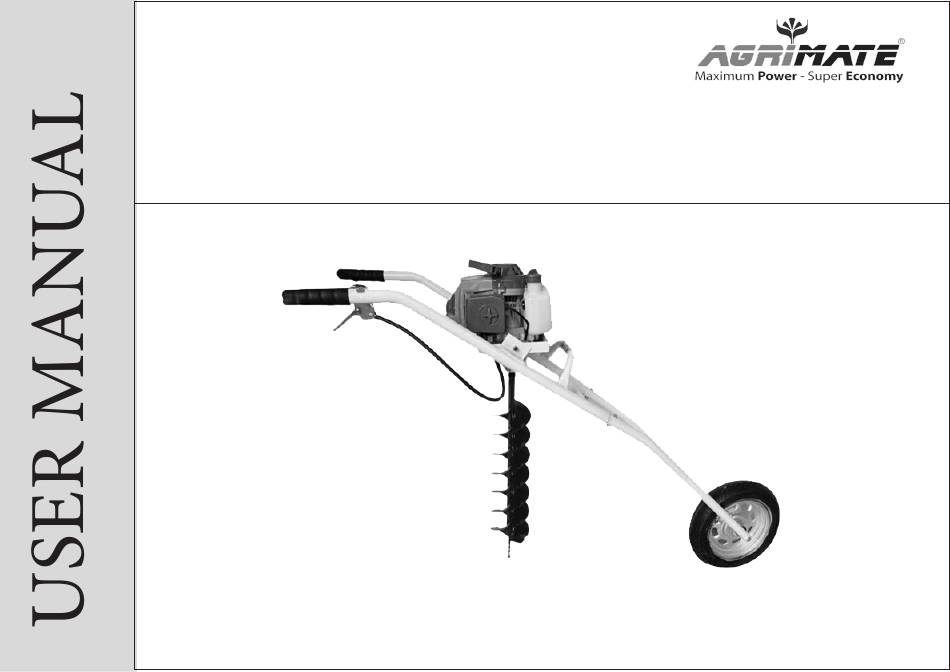

- Page 1 AGRIMATE EARTH AUGER WITH WHEEL AM-6300EAW-2S-MS+...
- Page 2 INTRODUCTION Dear Sir/ Madam, Thank you for choosing Agrimate product. You are the proud owner of high technology & durable machine. Trust that our Franchisee/Dealer installed the product & installed the product and explained you about the usage & service instrcuctions. Please visit our autorised dealer for your future requirement of our other equipments, genuine spares, accessories and services.
-
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL AM-6300EAW-2S-MS+ ENGINE MODEL AM-IE44F ENGINE TYPE AIR COOLED 2S DISPLACEMENT 63 cc POWER 1.8KW/ 6500RPM CARBURETOR DIAPHRAM TYPE FULE TANK CAPACITY 1.2LTR DRILLER DIEMETER 100mm/150mm/200mm... - Page 4 NAME & PARTS OF THE MACHINE...
-
Page 5: Safety Rules & Precautions
A. SAFETY RULES & PRECAUTIONS DRESS 1. Wear a long sleeve Shirt & long pants closed 2. Do not wear a neck tie or other loosely dagling garments. Such articles may become entatangled in the drail when working 3. Wear a protective goggles to protect eyes from f;ying objects 4. - Page 6 CAUTIONS DURING USAGES 1. Do not allow other persons with 5mtr of the worksite. It is dangerous for pets & childrens to be near the equipment when operating. 2. Use caution when drilling through rock taden ground. This equipment may rotate in reverse. 3.
- Page 7 ASSEMBLY : GEAR CASE TO ENGINE : 1. Lay the Engine on the ground with the clutch shoe facing upwards. Screw the stud into the marked hole. 2. Set the gear case on the engine and loosely tighten the stud and nut. 3.
- Page 8 WIRING LEADS Connect the leads (X2) between the Engine & gear case. Make sure co- lours match and connections are securely tight. DRILL TO GEAR CASE 1. Slide the clipband upward and pull the pin out fom its hole. 2. Align the holes on the gear shaft and drill shank and insert the drill over the shaft. Reinsert the pin through the pin holes &...
- Page 9 ENGINE DIAGRAM OF EARTH AUGER...
- Page 10 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION Single Cylinder head combi- AM-6300EAW -E01 AM-6300EAW -E17 Oil Support nation Screw AM-6300EAW -E02 Cylinder head cover AM-6300EAW -E18 Cushion Single Cylinder head combi- Single Cylinder head combina- AM-6300EAW -E03 AM-6300EAW -E19 nation Screw tion Screw...
- Page 11 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-6300EAW -E33 Crankcase paper pad AM-6300EAW -E46 Intake pipe Single Cylinder head combination AM-6300EAW -E34 Half round key AM-6300EAW -E47 Screw AM-6300EAW -E35 Right crank case AM-6300EAW -E48 Carburetor paper pad AM-6300EAW -E36 Seal AM-6300EAW -E49...
- Page 12 BIT DIAGRAM OF EARTH AUGER...
- Page 13 SL NO PART NO DESCRIPTION SL NO PART NO. DESCRIPTION AM-6300EAW -B57 Gasoline Engine AM-6300EAW -B73 Gear box Cylinder head combination AM-6300EAW -B58 Gear Box fixing plate AM-6300EAW -B74 screw Cylinder head combination AM-6300EAW -B59 Cylinder head screw AM-6300EAW -B75 screw AM-6300EAW -B60 Rubber Cushion...
-
Page 14: Warranty Card
WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE... - Page 15 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
- Page 16 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
- Page 17 DONTS attempting to use the equipments. Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before trousers and jackets while operating potentially dangerous machines 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, 3.
- Page 18 NO. 1 CHOICE OF FARMERS SINCE 1999 RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...
