Summary of Contents for Agrimate AMH 200

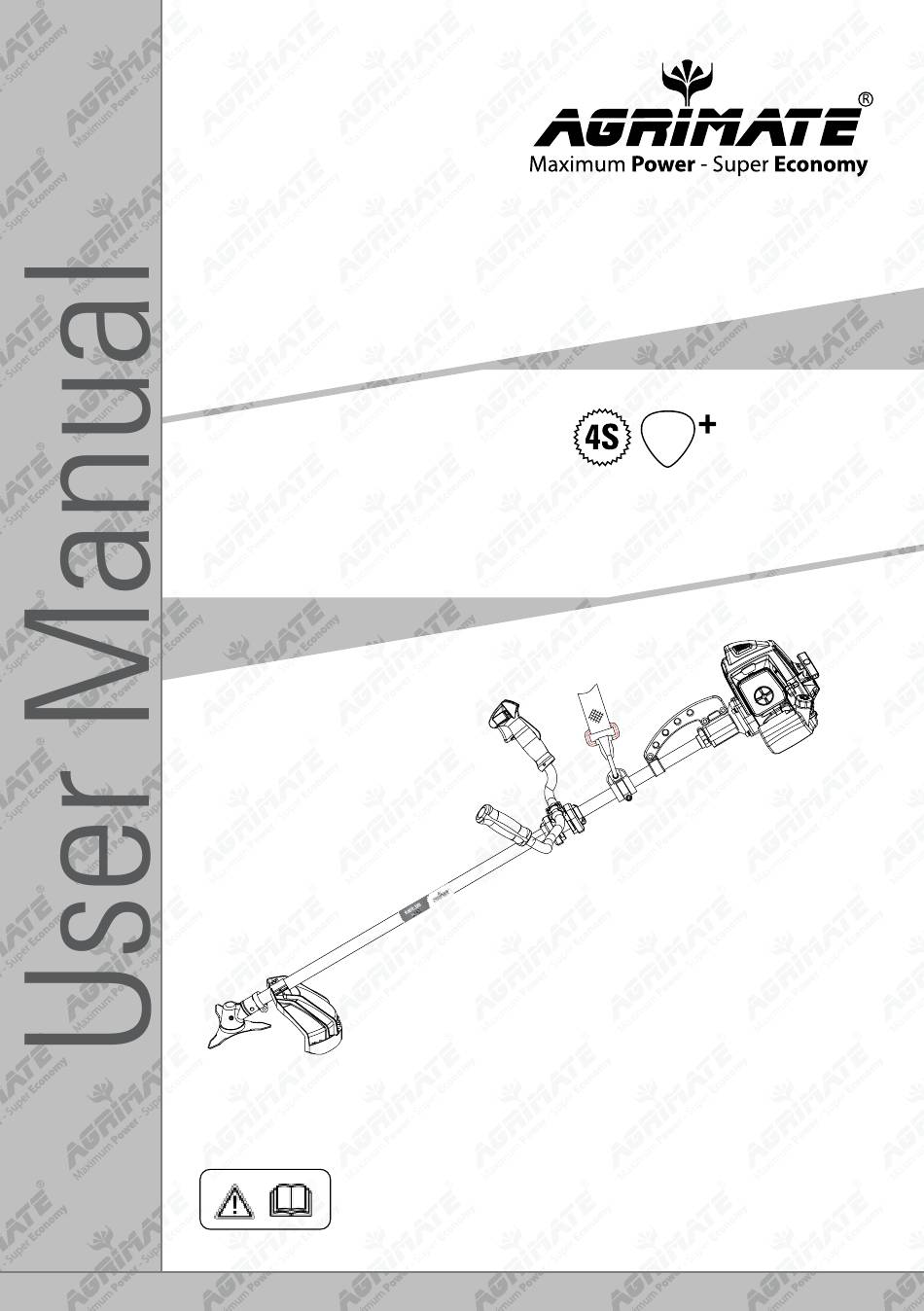

- Page 1 AMH 200 Brush Cutter / Power Weeder DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE BEFORE OPERATING THIS MACHINE, PLEASE READ THESE INSTRUCTIONS CAREFULLY...
-
Page 2: Safety Operation
SAFETY OPERATION DISCRIPTION OF SYMBOLS This symbol, the industry’s “safety alert symbol”, is used throughout this manual & on labels on the machine itself to want of the possibility of personal injury. Read these instructions carefully. It is essential that you read the instructions &... -
Page 3: Spare Parts List
SPARE PARTS LIST ASSEMBLING 1 assemble engine with main pipe • Put engine & main pipe under ground then starting assembling • Lock tight M6 x 30 screw to prevent loosing. - Page 4 ASSEMBLE BLADE & GEAR CASE ASSEMBLING BLADE...
- Page 5 ASSEMBLE SAFETY COVER ASSEMBLE HANDLE WITH MAIN PIPE • Inset right & left handles into Handle • Adjust handle joint to most cpmfortable joint a evenly. position for user.
-
Page 6: Safety Rules & Precautions
• Adjust handle to suitable angle. • Lock tight 2 bolt. SAFETY RULES & PRECAUTIONS Read the Operators Manual carefully. Be familiar with the controls and the proper use of the unit. How to turn the unit off, and how to unhook the harness quickly in an emergency. 1. - Page 7 • Do not operate during rainy day. SAFETY OPERATOR • Do not operate under following situation. Drunk, Children or infants. Never allow anyone to use the unit without proper instruction. Under the influence of alchohol, drugs, medications or affect your vision, dexterity or judgment. Have enough rest and sleep for continuous operation.
-
Page 8: Checks Before Starting
• Do not refuel a hot engine. Wait until the engine has cooled down. Always cool down before operation • Avoid spilling fuel or oil. Spirted fuel should always be wiped up. • Move at least three meters away from the fueling point before starting engine. •... - Page 9 • Inspect the entire unit before using each time. Especially tighten the screws of blade and clutch case. • Do not use any accessory other than those supplied by the manufacturer for use with this particular unit Use accessories supplied by manufacturer •...
-
Page 10: Cautions During Operation
CAUTIONS DURING OPERATION • Shut down immediately if the unit starts to shake or vibrate. • Always keep both hand on the control handles. Do not operate one-handed. • Do not put hands or feet near or under rotating parts while engine is running. •... - Page 12 AMH-200-4S-PRO Plus-Brush Cutter-Shaft A - Diagram & Part No. Sr. No Part No. Part Name AMH-200-4S-PRO-TA GEAR CASE ASS'Y AMH-200-4S-PRO -TA-01 STOP RING 28 AMH-200-4S-PRO -TA-02 STOP RING 12 AMH-200-4S-PRO -TA-03 BEARING AMH-200-4S-PRO -TA-04 BEARING AMH-200-4S-PRO -TA-05 PINION AMH-200-4S-PRO -TA-06 SCREWM6×35 AMH-200-4S-PRO -TA-07 SCREW M5×12 AMH-200-4S-PRO -TA-08 SCREW M5×8 AMH-200-4S-PRO -TA-09 SCREW M6×8...
- Page 13 AMH-200-4S-PRO Plus-Brush Cutter-Shaft C - Diagram & Part No. Sr.No Part No. Part Name AMH-200-4S-PRO -TC-01 PIPE COMP. AMH-200-4S-PRO -TC-02 DRIVE BEARING AMH-200-4S-PRO -TC-03 DRIVE SHAFT AMH-200-4S-PRO -TC-04 PIPE AMH-200-4S-PRO Plus-Brush Cutter-Shaft D - Diagram & Part No. Sr.No Part No. Part Name AMH-200-4S-PRO-TD-01 LEVER ASS'Y...
- Page 14 AMH-200-4S-PRO Plus-Brush Cutter-Shaft F - Diagram & Part No. Sr. No Part No. Part Name AMH-200-4S-PRO-TF HOLDER ASSY AMH-200-4S-PRO-TF-01 HARNESS CLAMP AMH-200-4S-PRO-TF-02 CLAMP AMH-200-4S-PRO-TF-03 SCREW M5×20 NUTM5 AMH-200-4S-PRO Plus-Brush Cutter-Shaft G - Diagram & Part No. Sr. No Part No. Part Name AMH-200-4S-PRO-TG BLADE...
- Page 15 AMH-200-4S-PRO Plus-Brush Cutter-Shaft I - Diagram & Part No. Sr. No Part No. Part Name AMH-200-4S-PRO-TI CLUCH COMP. AMH-200-4S-PRO-TI-01 CLUCH DRUM COMP. AMH-200-4S-PRO-TI-02 STOP RING 35 AMH-200-4S-PRO-TI-03 BEARING AMH-200-4S-PRO-TI-04 STOP RING 15 AMH-200-4S-PRO-TI-05 CLUCH CASE AMH-200-4S-PRO-TI-06 SCREW M6×20 AMH-200-4S-PRO-TI-07 RUBBER AMH-200-4S-PRO-TI-08 WASHER AMH-200-4S-PRO-TI-09...
-
Page 16: Inspection And Maintenance
INSPECTION & MAINTENANCE For safety use, make sure the machine is cleaned every three-months. Before working, make sure to inspect the filter and the nozzle,and ensure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine needs to be repaired in the guarantee period, please return the machine to the shop. - Page 17 CUSTOMER COPY Purchaser’s Name & Address Date of Delivery Dealer’s Office Seal Product Name AMH 200 4S PRO+ Brush Cutter / Power Weeder Product Serial No. Dealer Sign Customer Sign. Invoice / DN No. I/We accept the terms and conditions of Warranty as in the Warranty Card.
- Page 18 1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement.
- Page 19 1st Free Service Coupon ISO 9001-2008 CERTIFIED COMPANY FREE SERVICE COUPON (30 Days / 20 hrs (Which ever is earlier) Model Serial Number AMH 200 4S PRO+ Brush Cutter / Power Weeder PDI Date Purchase bill no. Date Service No. Operations: •...
- Page 20 Small Maintenance. Big Savings. Small Maintenance. Big Savings. Small Maintenance. Big Savings.
- Page 21 Do’s Don’ts • Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. • It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines.
- Page 22 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT. LTD. Annapurna House, #1/1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Customer Care: 1800-425-3036 Email: marketing@ratnagiriimpex.com www.ratnagiriimpex.com AN ISO 9001:2008 CERTIFIED COMPANY...
