Agrimate AMTH-PRO-K-2S User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

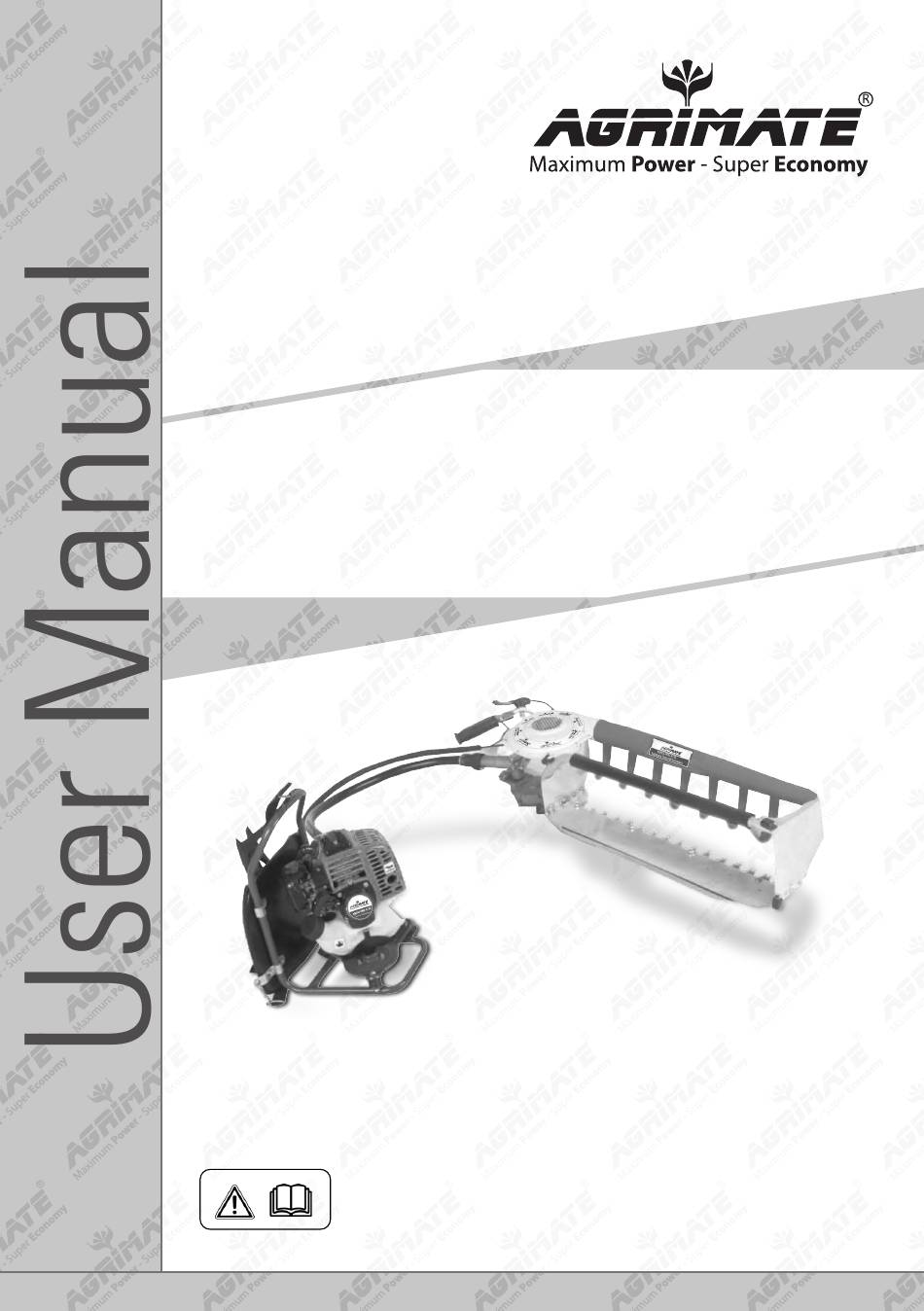

AMTH-PRO-K-2S
Agrimate
Kawasaki Tea leaf Harvester
OPERATION AND MAINTENANCE MANUAL
DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE
SUBJECT TO CHANGE WITHOUT NOTICE
BEFORE OPERATING THIS MACHINE,
PLEASE READ THESE INSTRUCTIONS CAREFULLY

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMTH-PRO-K-2S and is the answer not in the manual?

Questions and answers

Related Manuals for Agrimate AMTH-PRO-K-2S

Summary of Contents for Agrimate AMTH-PRO-K-2S

  • Page 1 AMTH-PRO-K-2S Agrimate Kawasaki Tea leaf Harvester OPERATION AND MAINTENANCE MANUAL DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE BEFORE OPERATING THIS MACHINE, PLEASE READ THESE INSTRUCTIONS CAREFULLY...
  • Page 2 (3) Stop the engine when replenishing oil, in case of turning over of machine or spattering fuel onto machine body. Please wipe out the fuel on the machine body with dry cloth. III. Connection of AMTH-PRO-K-2S tea plucker Pull the flexible pin on the power take-off pore. Insert the flexible shaft-blanket’s with a hole into the hole.
  • Page 3 IV. Notes before operation Before operation, please make inspection and necessary adjustment and apply for repair in case of abnormalities. If there are any abnormalities, please repair the machine in the authorized store. 2. Inspection before operation Location Check content Correction Appearance Wearing-out or loosing...
  • Page 4 When finishing working or moving even for a short distance, do shut off the gasoline engine. When working, do not touch the spark plug. The banding angular magnitude of flexible shaft can’t be too big to break. Before working, insert the flexible shaft with grease on it into the flexible duct and pull it for several times. VI.
  • Page 5 The space between the edges can be adjusted as following: • Unscrew the nut • Use the plus driver to screw the screw to the end lightly and then turn back 3/8 round • Screw the nut tightly. The adjusting washer should be flexible. •...
  • Page 6 VIII. Problems solving 1. Starting problems Difference Cause Correction Spark plug 1)The electrodes are damped. 1) Drying 1)The electrodes are damped. 2) Cleaning 2)The deposited carbon in the 3) Replacing electrodes of spark plug. 4) Adjust it to Lighting a fire 3)The rimous insulator of the 0.5~0.6mm without a spark...
  • Page 7 2. Power lacking Difference Cause Correction Good compression but fail 1)Air goes into the seam of 1)Reinforcing to burn the fuel pump 2)Changing the seal or 2)Air goes into the carburetor reinforcing 3)Water mixed into the fuel 3)Use the good quality fuel 4)Burn smell in the piston 4)Clean every components carefully...
  • Page 8 1)Heating top of spark plug 1) Clearing electrode and 2)Dropping connecting wire adjusting gap 0.5~0.6 mm 2) Reconnecting IX. Appendix 1. Technical parameter Model AMTH-PRO-K-2S Plucking Width (mm) Transmission Ratio 4.214 Implementation Standard Q/ZCQ 001-2012 Weight (Kg) Dimension L × W × H mm 800 x 280 x 200 2.
  • Page 9 SPARE PARTS DIAGRAM OF AMTH-PRO-K-2S - BLOWER AMTH-K-2S-B1 AMTH-K-2S-B2 AMTH-K-2S-B3 AMTH-K-2S-B4 Fan Seating Flexible Shaft Seating Drive shaft Fastening ring AMTH-K-2S-B5 AMTH-K-2S-B6 AMTH-K-2S-B7 AMTH-K-2S-B8 Bush Left handle Cover plate Clamp cover AMTH-K-2S-B9 AMTH-K-2S-B10 AMTH-K-2S-B11 AMTH-K-2S-B12 Gearbox upper Left handle fastening plate...
  • Page 10 SPARE PARTS DIAGRAM OF AMTH-PRO-K-2S - BLOWER AMTH-K-2S-B25 AMTH-K-2S-B26 AMTH-K-2S-B27 AMTH-K-2S-B28 Blade Adjustment Pad Bag hook(right) Side plate (right) Bracket of air supply duct AMTH-K-2S-B29 AMTH-K-2S-B30 AMTH-K-2S-B31 AMTH-K-2S-B32 Air supply duct Bag hook (middle) Fan guard (upper) Fan Seating AMTH-K-2S-B33...
  • Page 11 SPARE PARTS DIAGRAM OF AMTH-PRO-K-2S - BLOWER AMTH-K-2S-B49 AMTH-K-2S-B50 AMTH-K-2S-B51 AMTH-K-2S-B52 Connecting Lever Bearing Back-bearing unit Throttle lever Throttle wire 6806 AMTH-K-2S-B53 AMTH-K-2S-B54 AMTH-K-2S-B55 AMTH-K-2S-B56 Side plate (left) Frame beam end cover Grease nipple R Pad AMTH-K-2S-B57 AMTH-K-2S-B58 AMTH-K-2S-B59 AMTH-K-2S-B60...
  • Page 12 SPARE PARTS DIAGRAM OF AMTH-PRO-K-2S - ENGINE...
  • Page 13 SPARE PARTS LIST OF AMTH-PRO-K-2S - ENGINE Part No. Description Part No. Description AMTH-K-2S-E 1 SCREW AMTH-K-2S-E42 RECOIL STARTER BODY AMTH-K-2S-E 2 CLEANER OUTSIDE COVER AMTH-K-2S-E43 ROPE GUIDE AMTH-K-2S-E 3 CLEANER ELEMENT AMTH-K-2S-E44 ROPE AMTH-K-2S-E 4 SCREW M5×55 AMTH-K-2S-E45 STARTER HANDLE...

  • Page 14: Inspection And Maintenance

    INSPECTION & MAINTENANCE For safety use, make sure the machine is cleaned every three-months. Before working, make sure to inspect the filter and the nozzle,and ensure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine needs to be repaired in the guarantee period, please return the machine to the shop.
  • Page 15 CUSTOMER COPY Purchaser’s Name & Address Date of Delivery Dealer’s Office Seal Product Name AMTH-PRO-K-2S Agrimate Kawasaki Tea leaf Harvester Product Serial No. Dealer Sign Customer Sign. Invoice / DN No. I/We accept the terms and conditions of Warranty as in the Warranty Card.
  • Page 16 1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement.
  • Page 17 ISO 9001-2008 CERTIFIED COMPANY FREE SERVICE COUPON (30 Days / 20 hrs (Which ever is earlier) Model Serial Number AMTH-PRO-K-2S Agrimate Kawasaki Tea leaf Harvester PDI Date Service No. Operations: • Check and Test the Fuel Mixture. • Check and Clean the Air Filter •...
  • Page 18 Small Maintenance. Big Savings. Small Maintenance. Big Savings. Small Maintenance. Big Savings.
  • Page 19 Do’s Don’ts • Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. • It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines.
  • Page 20 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Customer Care: 1800-425-3036 Email: info@ratnagiriimpex.com www.ratnagiriimpex.com AN ISO 9001:2008 CERTIFIED COMPANY...
