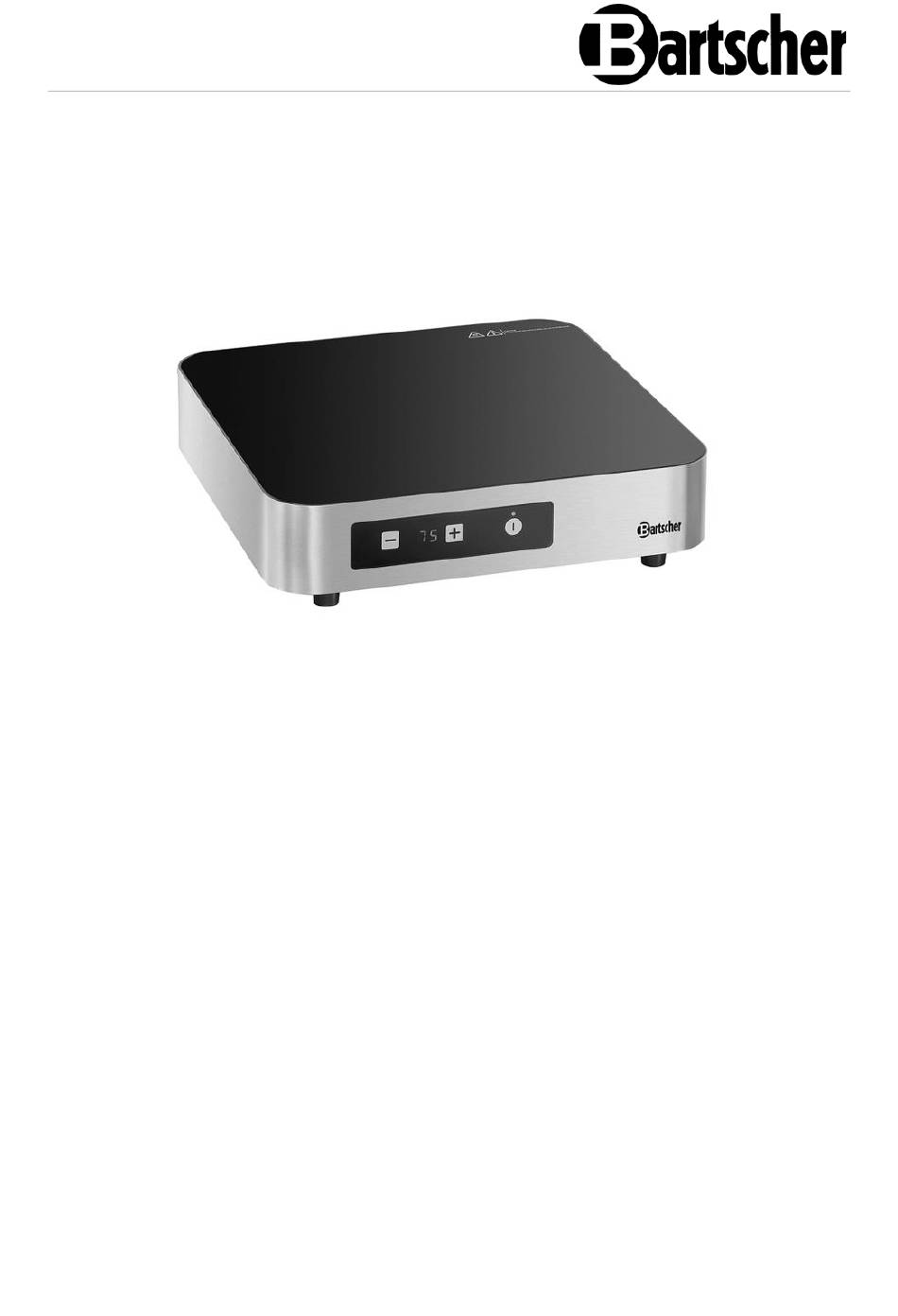

- Page 1 IW5-1 105601...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-09-20...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Z najom ość w szystkich zaw artyc h w ni ej wsk az ówek dotycz ącyc h bezpi ecz eńs twa i obsł ugi stanowi w arunek bez pi ecz nej i prawi dłow ej pr acy z urządz eni em. Ponadto należy przestrzeg ać odpowi ednio do mi ejsca użytk owani a urządz eni a l okal nyc h przepis ów dotycz ącyc h z apobieg ani a wy padk om oraz og ólnyc h zas ad BH P. This ins truc tion m anual is an integral part of the pro duct and m ust be kept i n the imm edi ate vici nity of the devic e for installati on, operation, m aintenanc e and cleani ng pers onnel to acc ess at all times . If the devic e is pass ed on to a thir d pers on, the operating instructions m us t al so be handed over. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety area and the surface remains hot after use. Do not touch any hot surfaces of the appliance. • You may transport and clean the appliance after it cools down entirely. • It is prohibited to sprinkle hot surfaces with cold water or flammable liquids. •...
- Page 8 Safety • Keep children away from the appliance and power supply cable. • Children should be supervised to ensure that they are not playing with or switching the appliance on. • Cleaning and user maintenance may not be performed by children. Improper Use •...
-
Page 9: Intended Use
Safety Intended Use This appliance is only intended for use described in the operating instructions, with the supplied and approved components. Any other use is considered against the intended purpose. The manufacturer shall not be liable for any damage due to unintended use. In such cases the responsible party shall only be the user/operator. -
Page 10: General Information
General information General information Liability and Warranty The appliance was built in accordance with the current state of the art and recognized technical safety principles. Nevertheless, during its use, there may be a threat to the health and life of the user or bystanders, or the danger of damage to the device or other assets. -
Page 11: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 12: Technical Data
Technical Data Technical Data Technical Specifications Name: Induction warming plate IW5-1 105601 Art. No.: Material: stainless steel Number of heating plates: Heating plate material: glass Glass hob dimensions (W x D), in mm: 390 x 390 Max. pot diameter, in mm: Max. -
Page 13: Functions Of The Appliance
Technical Data Version / characteristics • Appliance connection: ready to plug in • Type of heating plate: induction • Adjustment: temperature • Control: touch, electronic • Overheating protection • Digital display • Cookware detection • ON/OFF switch • Control panel: on the appliance •... -
Page 14: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Glass hob 2. Feet (4x) 3. Control elements 4. Housing 5. IEC connector for additional 6. IEC connector for the power cord appliances 7. Ventilation openings 8. Ventilation openings for the fan 12 / 22 105601... -
Page 15: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing packaging materials, for instance: plastic bags and EPS elements. •... - Page 16 Installation and operation • Do not place the appliance in the vicinity of devices or objects that are sensitive to magnetic fields (e.g. radio, television, etc.). • Leave at least 5 -10 cm clearance from flammable walls and other objects. Power supply connection •...
-
Page 17: Operation
Installation and operation Operation Cookware The induction appliance is equipped with a cookware detection mechanism. Before use make sure that the cookware/containers are suitable for use on induction appliances. Look for this marking on the bottom of cookware/container, or on the packaging. - Page 18 Installation and operation Not Suitable Cookware: • Glass, ceramic or clay cookware • Aluminium cookware without special bottom • Bronze or copper cookware • Cookware with feet • Containers with bulged bottoms ATTENTION! Do not place plastic containers onto a hot heating plate of the appliance. To obtain better results, use only cookware/containers with a diameter of 14–34 cm.
- Page 19 Installation and operation Appliance start-up ATTENTION! The appliance is not intended for direct cooking or keeping warm food that is placed directly on the heating plate. Use suitable containers. 1. Prepare food, as required. 2. Place warm food in suitable containers. 1.
- Page 20 Installation and operation Keeping food warm WARNING! Risk of burning! The plate maintaining temperature is very hot during operation and some time afterwards. Do not touch hot surfaces. During operation food containers become very hot and remain hot for a while after switching the appliance off.
-
Page 21: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance The operator must ensure that the device and its safety components are kept in good condition. Control and safety systems should be checked for their effectiveness. Maintenance, cleaning and repairs must only be carried out by suitably trained and specialised personnel. -
Page 22: Maintenance
Cleaning and Maintenance 5. For limescale stains, apply warmed wine vinegar or commercially available descaling agent to the area, wait for it to work, and then wipe off with a soft, damp cloth. 6. For deposits caused by spilled sugar, melted plastic or aluminium, apply a special glass/ceramic glass cleaner (with silicone if possible) to the surface, then wipe the surface. -
Page 23: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. The works may only be performed by suitably qualified technical personnel. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model and serial number. -
Page 24: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
