KIOUR AG Quick Start Manual

MILK TANK CONTROLLER Model AG
ATTENTION
Read carefully these instructions before installing and using this device and keep them for future reference. Attention to installation and electrical wiring. Use this device
only as described in this document and never use itself as a security device. The device must be disposed of in accordance with local standards for the collection of
electrical and electronic equipment.
DESCRIPTION

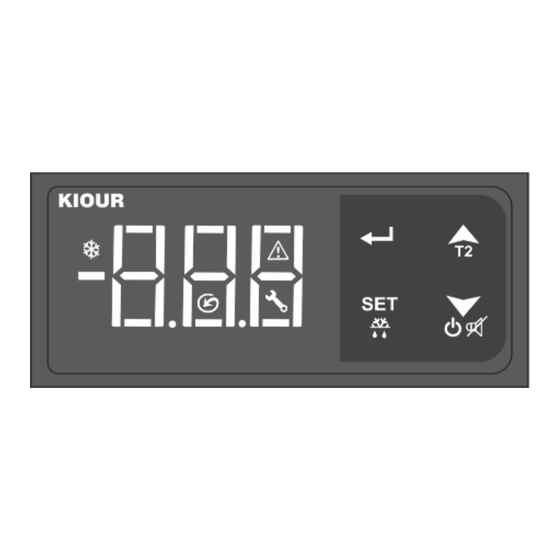

The AG is a milk tank controller, which controls temperatures
16A 250VAC relay for the compressor and a 5A 250VAC relay for the agitator. It has a buzzer that activates in case of alarm. The device is mounted on a panel front with a
29x71mm hole and is restrained with two plastic side brackets. Through the serial input it can be connected to a network either through Cloud IoT on the CORTEX platform, or
through a local computer in the CAMIN program for complete local recording and monitoring of the device.
INDICATIONS AND BUTTONS FUNCTION
For more indications regarding the alarms please see the alarm's table at page 3.
ADJUSTING TEMPERATURE – SET POINT
1. Press to display the first parameter SPo.
2. Press to display its value. With
3. Press to save the new value. The device is working properly with the new adjustment.
INDUSTRIAL FACTORY SETTINGS
1. Press to display SPo. By pressing
2. Press to display its value and press
3. Press again to exit the parameter menu, 'YES' is displayed on the screen. All appropriate factory settings are now stored in the device.
ON/OFF DEVICE
To activate or deactivate the device, press for 3 seconds .
MANUAL AGITATION
Press for 3 seconds to start
PROGRAMMING A PARAMETER
ATTENTION: to gain full access to the parameter's menu, the 5
1. Press to enter the parameter menu.
2. Choose the parameter you want to adjust by pressing
3. Press or to change its value and then press
4. Press to exit the parameter menu.
TECHNICAL SPECIFICATIONS
Model AG power supply: 230VAC 50/60Hz / Maximum power consumption: 3W. Model AGW switching power supply 100-264VAC 50/60Hz 5W.
It is recommended using a power supply safety fuse: 0.5Α (not included)
Room temperature sensor NTC 10K 1% 25°C ΙΡ68 with temperature range -37÷+110°C (-34÷+230°F) (or PTC 1Κ 25
not included) / Accuracy: ±0.5°C
Alarm buzzer / Serial input with 5pin connector
Compressor relay 16Α res. 250VAC normally open contact / Agitator relay 5A res. 250VAC which is a SPDT relay / Max current load 16A
Connections: cable cross section
Connections with terminal blocks 18A using cable with
Operating temperature: -15÷+55°C / Storage temperature: -20÷+80°C
Dimensions 28x70x60mm / The device is mounted on a panel hole 29x71mm and it is restrained with plastic side brackets / Protection IP65 front
Firmware: V3
with an NTC / PTC sensor. It has 3 digits of temperature display with an accuracy of 0.5 °C and 4 keys. It has a
Display indications
or change SPo value.
the parameter Cod is displayed.
to enter the value 31. Press
the agitator. It remains OΝ for time equals the parameter "ΑGt", regardless the state of the compressor.
th parameter Cod must be adjusted to 22 (see parameter table next page)
2.5 mm² for all relays / cable cross section
cable cross section
Compressor ON
agitator ON
alarm ΟΝ
malfunction ON
to store the value to parameter
or and press to display its value.
to store the new value.
from 0.25 to 1.0 mm² for the sensors
up to 2.5 mm² / It is recommended using a torque wrench with maximum torque 0.4Nm
Keyboard
enter/exit the parameter's menu
enter a new parameter
display the parameter's value
enter parameter's value
manual agitator
up arrow
down arrow
mute buzzer
ON/OFF device (check below)
Cod.
o C with temperature range -50÷+110°C (-58÷+230°F)
Firmware V3
1
