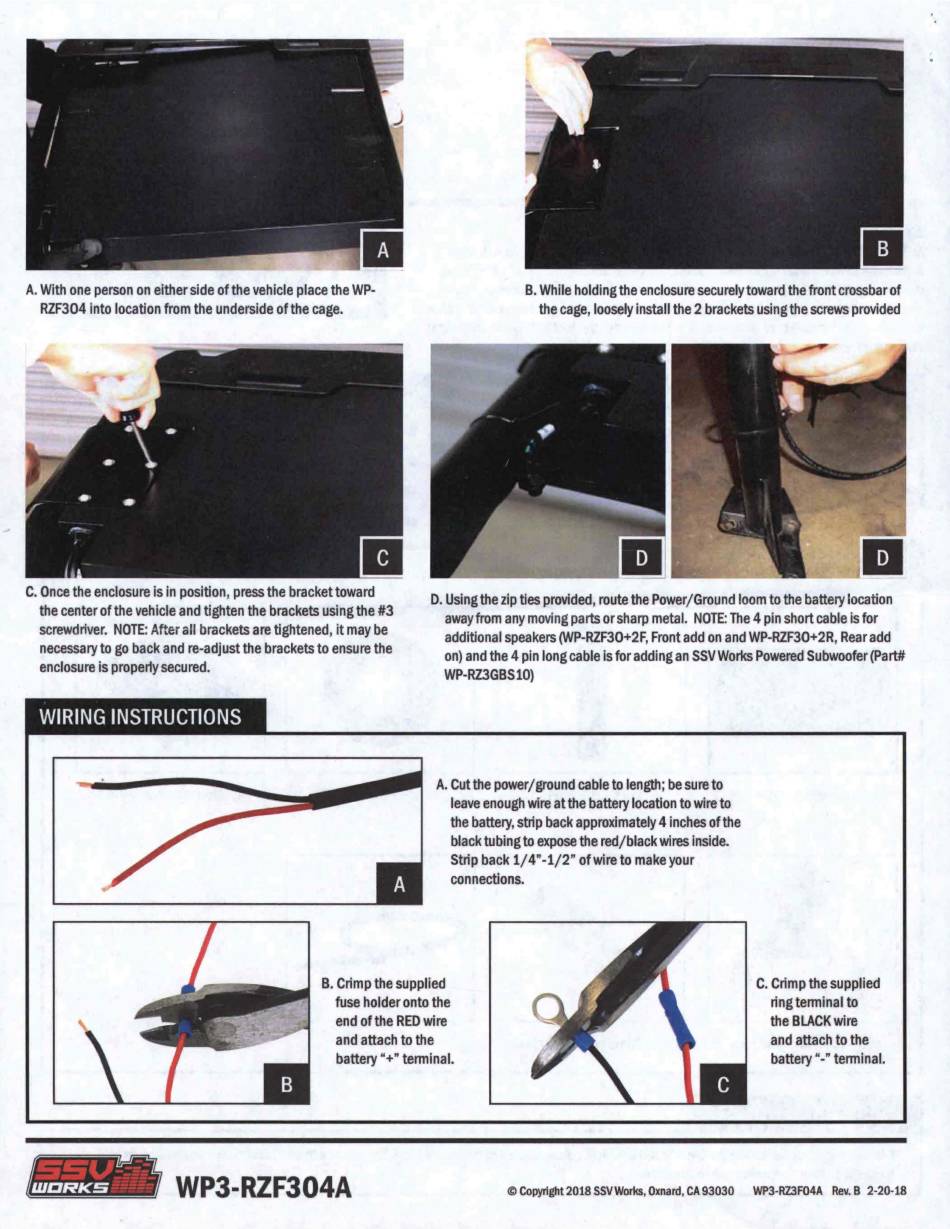

A. With one person on either side of the vehicle place the WP-
RZF3O4 into location from the underside of the cage.
C. Once the enclosure is in position, press the bracket toward
the center of the vehicle and tighten the brackets using the #3
screwdriver. NOTE: After all brackets are tightened, it may be
necessary to go back and re-adjust the brackets to ensure the
enclosure is proper1y secured.
WIRING INSTRUCTIONS
B. While holding the enclosure securely toward the front crossbar of
the cage, loosely install the 2 brackets using the screws provided
D. Using the zip ties provided, route the Power/Ground loom to the battery location
away from any moving parts or sharp metal. NOTE: The 4 pin short cable is for
additional speakers (WP-RZF3O+2F, Front add on and WP-RZF3O+2R, Rear add
on) and the 4 pin long cable is for adding an SSV Works Powered Subwoofer (Part#
WP-RZ3GBS10)
A. Cut the power/ground cable to length; be sure to
leave enough wire at the battery location to wire to
the battery, strip back approximately 4 inches of the
black tubing to expose the red/black wires inside.
Strip back 1/ 4 "-1/2" of wire to make your
connections.
B. Crimp the supplied
fuse holder onto the
end of the RED wire
and attach to the
battery "+" terminal •
C. Crimp the supplied
ring terminal to
the BLACK wire
and attach to the
battery "-" terminal.
J
UICIRKS
• WP3-RZF304A
