SSV Works MRB3 User Manual page 2

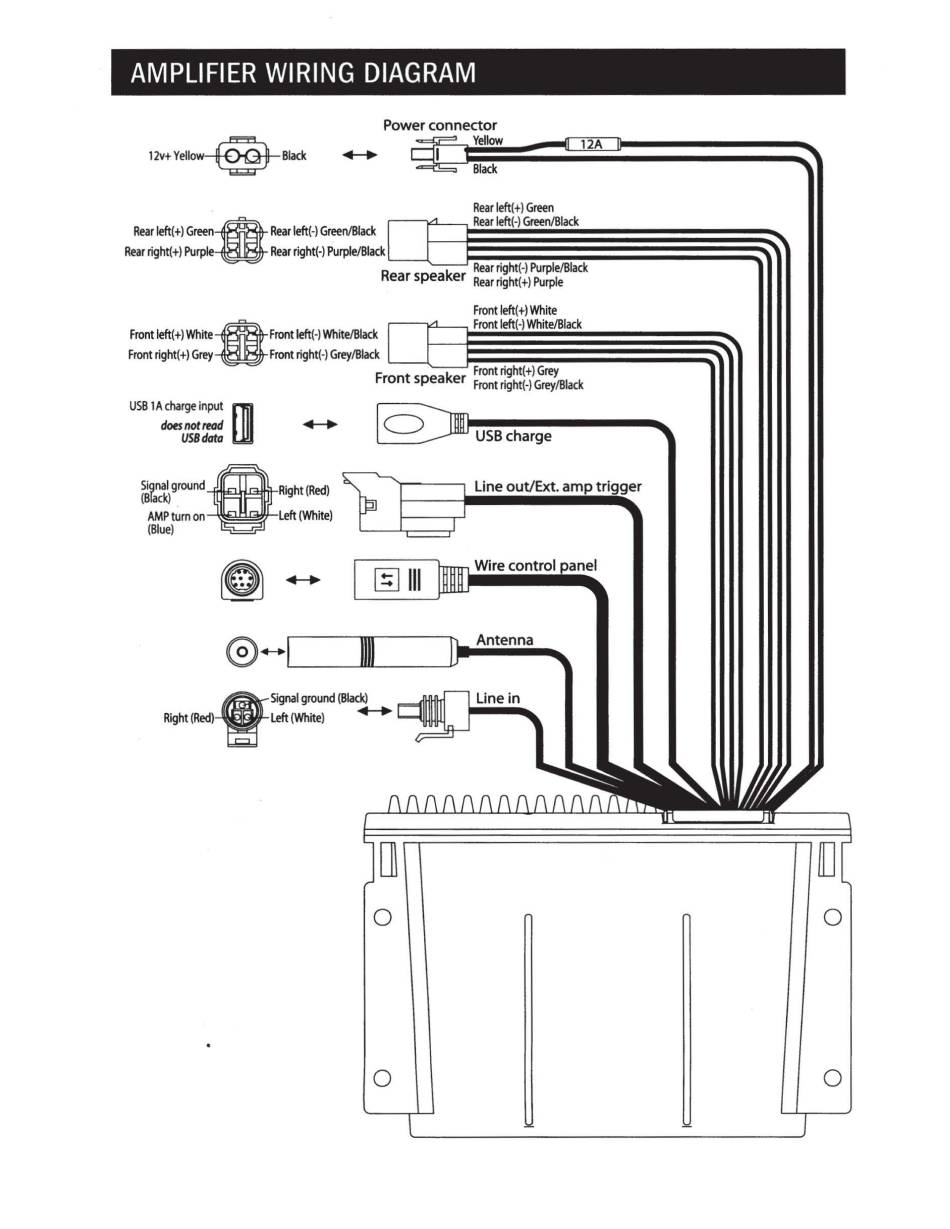

AMPLIFIER WIRING DIAGRAM
12v+ Yello~Black
Power connector
Yellow
Black
Rear left(+) Green
12A
,-----v1
Rear left(-) Green/Black
Rear left(+) Green-ffl Rear left(-) Green/Black
Rear right(+) Purple-fi Rear right(-) Purple/Black
Rear right(-) Purple/Black
Rear speaker
Rear right(+) Purple
Front left(+) White
•
Front left(-) White/Black
Front left(+) White Front left(-) White/Black
Front right(+) Grey Front right(-) Grey/Black
k
Front right(+) Grey
Front spea er
Front right(-) Grey/Black
use
1Achargeinput
IE
dotS not read
USBdata
Signal ground.Right (Red)
(Black)
AMP tum on Left (White)
(Blue)
C)
§
Ill
_a
S ignal ground (Black)
Right (Red)
e
Left (White) .......
0
0
USB charge
Line out/Ext. amp trigger
Wire control panel
Line in
0
0
