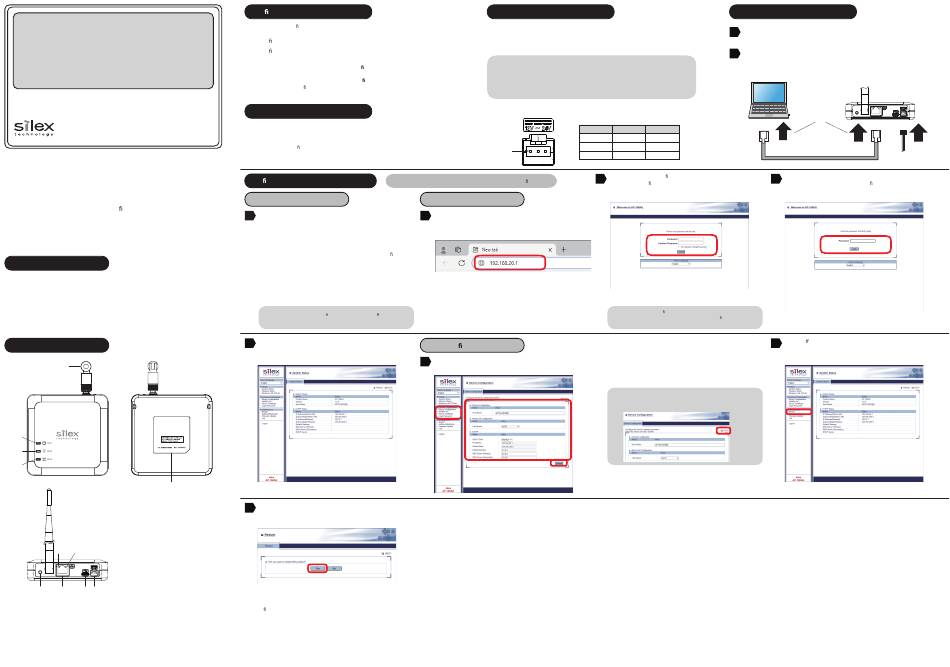

Silex technology AP-150AH Setup Manual

Wi-Fi HaLow™ Access Point
AP-150AH
Setup Guide
WA108260XX
Thank you for purchasing the Wi-Fi HaLow Access Point, "AP-150AH".
AP-150AH is a wireless Access Point (host device) that supports IEEE
802.11ah(Wi-Fi HaLow™).
It can be used as a base station that connects the station devices (client
devices) that support IEEE 802.11ah.
This Setup Guide explains how to con gure and use AP-150AH in a
wireless network.
Package Contents
Following items are contained in the product package
□ AP-150AH □ LAN cable
□ Wireless LAN antenna □ Setup Guide (this document)
□ Warranty Guide and GPL Inquiry Card
Name of Parts
(1)
(2)
(3)
(4)
(11)
(6) (5)
(7) (8) (9) (10)
(1) Wireless LAN antenna
(7) Push switch
(2) LED 1 (Green/Red)
(8) LAN port
(3) LED 2 (Green/Red)
(9) USB Type-C (5V PD sink)
(4) LED 3 (Green/Red)
(10) DC connector (12V to 24V)
(5) LED 4 (Orange)
(11) Product label
(6) LED 5 (Green)
Con guration Method
AP-150AH can be con gured by the following methods:
1) Con guration Using AP-150AH's Web Page
2) Con guration Using AMC Manager®
When you have only one AP-150AH unit, see Con guration Using
AP-150AH's Web Page.
When you have multiple AP-150AH units, see Con guration Using
AMC Manager® and con gure them one by one.
Necessary Items
Following items are required.
□ LAN cable (the one comes with AP-150AH)
□ PC to use for con guration
□ Power supply
Con guration Using AP-150AH's Web Page
* Connect AP-150AH and the PC using a LAN cable for con guration.
Network Setting of PC
1 Change the network setting of the PC to allow communication 2
with AP-150AH.
Example of the network setting)
When there is not a DHCP server in your environment, the default
IP address of AP-150AH will be "192.168.20.1". Then, con gure the
network setting of the PC as follows.
IP address: 192.168.20.21
Subnet mask: 255.255.255.0
* For the IP address to be con gured to the PC, set a di erent IP
address from AP-150AH.
The Web page of AP-150AH is displayed.
5
6
8 Click Yes to restart AP-150AH.
The con guration has now been completed.
Power Supply
AP-150AH can receive electrical power in the following two ways:
- Power supply (DC 12V to 24V)
- USB Type-C connector (DC5V/1.5A)
* Do not connect a power supply that supports DC12V to 24V while receiving a power from
the USB Type-C connector. It may cause unintended operation or malfunction.
* When there is no power supply that supports DC12V to 24V, prepare the power supply that
supports a USB port, and connect it to the USB Type-C power connector of AP-150AH.
* To connect to this connector, please use JST PAP-03V-S.
* The pin arrangement for the DC connector of AP-150AH is as follows.
DC Connector
PIN Number Signal Name
1
2
1
3
3
Access to AP-150AH's Web Page
Start a Web browser (Microsoft Edge, etc.) on the PC.
Enter the IP address of AP-150AH to the address bar and press
the Enter key.
Basic Con guration
Click the setting from the page menu (1), enter the necessary settings at the displayed page (2) and click Submit (3).
(2)
(1)
(3)
Connecting to PC
Connect AP-150AH and the PC using a LAN cable (1).
1
2 Connect the power supply cable or USB Type-C cable to AP-150AH (2).
Description
FG -
GND GND
VCC DC 12 to 24V
The login password con guration page appears, enter the 4 The login page is displayed.
password to con gure for AP-150AH and click Submit. Enter the login password you have con gured and click Login.
* The login password con guration page is displayed only when
AP-150AH has the factory default settings. Once con gured, it will not
be displayed again.
To take e ect of the changes, restart AP-150AH.
7
Click Restart from the page menu.
* For details on each setting, refer to the User's Manual or the Help
page. Clicking HELP on top right of the page will open the Help
page.
(1)
(2)
Power supply cable
