Silex technology SX-BR-4600WAN2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

WA102720XA

Wireless Bridge

SX-BR-4600WAN2
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX-BR-4600WAN2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Silex technology SX-BR-4600WAN2

Summary of Contents for Silex technology SX-BR-4600WAN2

  • Page 1: Wireless Bridge

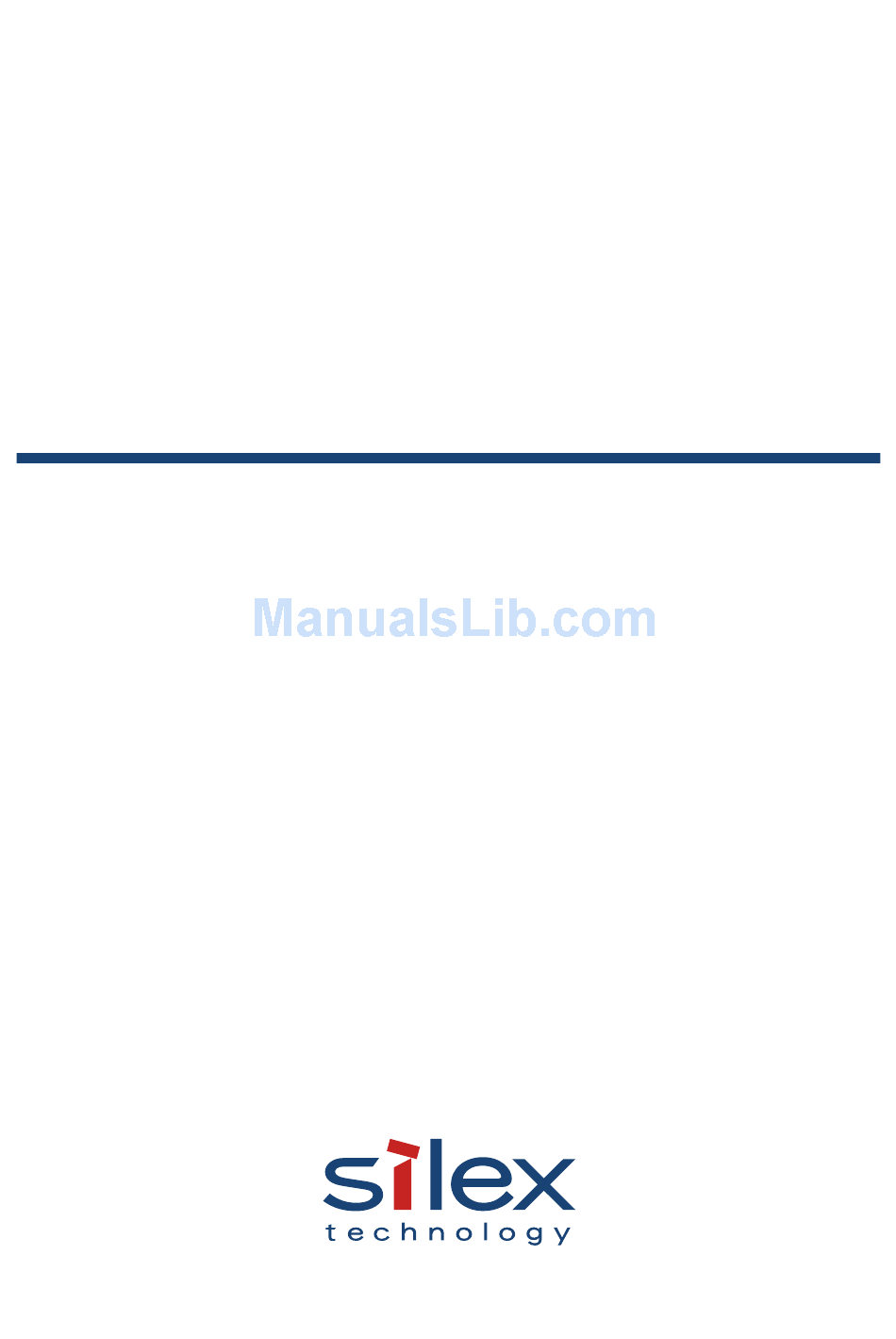

    WA102720XA Wireless Bridge SX-BR-4600WAN2 User's Guide...
  • Page 2 Copyright© 2016 silex technology, Inc. All rights reserved.

  • Page 3: Table Of Contents

    1-3. User Registration and Customer Services ...................5 User registration ............................5 Product Information ..........................5 Customer Support Center ........................5 2. About SX-BR-4600WAN2 ................7 2-1. Features ..............................8 2-2. Parts and Functions .......................... 10 2-3. Hardware Specification ........................12 2-4. Software Specification ........................14 2-5.
  • Page 4 4. How to Configure SX-BR-4600WAN2 ..............29 4-1. Easy Configuration Using Configuration Mode ................30 Starting SX-BR-4600WAN2 in Configuration Mode ..............30 Configuration ............................32 Connecting Non-wireless Devices ....................36 4-2. Configuration Using Smart Wireless Setup (Push Switch) ..................38 Configuration ............................39 Connecting Non-wireless Devices ....................
  • Page 5 A. Appendix ........................71 A-1. List of All Settings ..........................71 A-2. Troubleshooting ..........................81...

  • Page 7: Introduction

    Wireless Bridge SX-BR-4600WAN2 (hereinafter the "SX-BR- 4600WAN2"). 1-1. Introduction This manual provides information on how to configure and use the SX-BR-4600WAN2. Please read the Safety Instructions carefully before you begin. Disclaimers - The unauthorized transfer or copying of the content of this manual, in whole or in part, without prior written consent is expressly prohibited by law.

  • Page 8: Safety Instructions

    SX-BR-4600WAN2 User's Guide 1-2. Safety Instructions This page provides the safety instructions for safe use of SX-BR-4600WAN2. To ensure safe and proper use, please read the following information carefully before using SX-BR-4600WAN2. The safety instructions include important information on safe handling of SX-BR-4600WAN2 and on general safety issues.
  • Page 9 * In the following cases, turn off the connected devices and unplug the AC plug of SX-BR-4600WAN2 from a power outlet and contact your point of purchase. Failure to take this action could cause fire or an electrical shock.
  • Page 10 * Use the AC adaptor supplied with SX-BR-4600WAN2. Other AC adaptors may cause malfunction. * Verify all codes or cables are plugged correctly before using SX-BR-4600WAN2. * When SX-BR-4600WAN2 will not be used for a long time, unplug the power cables of SX-BR- 4600WAN2 and the other devices you are using with.

  • Page 11: User Registration And Customer Services

    Europe http://www.silexeurope.com/en/home/support/registration/ Japan http://www.silex.jp/register/ - For user registration, a serial number is required. Note Product Information The services below are available from the Silex Technology website. For details, please visit the Silex Technology website. http://www.silexamerica.com/ Europe http://www.silexeurope.com/ Japan http://www.silex.jp/ - Latest firmware download...
  • Page 12 SX-BR-4600WAN2 User's Guide...

  • Page 13: About Sx-Br-4600Wan2

    2. About SX-BR-4600WAN2 About SX-BR-4600WAN2 SX-BR-4600WAN2 is the wireless bridge which allows to use a non-wireless device (10/100/1000BASE-T network device) as a wireless device. Various wired products, such as printers, PC peripheral devices, monitoring camera, etc. can be connected over a wireless network.

  • Page 14: Features

    Two types of operating mode [Single Client Mode] - Bridges a single non-wireless device connected to a LAN port of the SX-BR-4600WAN2 over wireless network. - For the MAC address to use for wireless LAN connection, the MAC address of the device connected to a LAN port of the SX-BR-4600WAN2 will be used (MAC address transparent feature).
  • Page 15 - To use the functions above, your Access Point or wireless router needs to support the same functions. - For details on the "AMC Manager" and "AMC Finder", please visit our homepage. Note - To use the "AMC Manager" and "AMC Finder", an IP address needs to be configured to the SX-BR-4600WAN2.

  • Page 16: Parts And Functions

    The parts name and functions are as follows: Front Back (1) Push Switch Start in Configuration Press and hold this switch for 5 sec while SX-BR-4600WAN2 is active. Mode Wireless configuration Press and hold this switch for 10 sec while SX-BR-4600WAN2 is active.
  • Page 17 * Blinks together with the STATUS LED when operating in Configuration Mode. (8) STATUS LED (Green) Connection is established. Blink Handles data communication. * Blinks together with the WLAN LED when operating in Configuration Mode. (9) Ethernet Address The Ethernet Address of the LAN port on SX-BR-4600WAN2.

  • Page 18: Hardware Specification

    SX-BR-4600WAN2 User's Guide 2-3. Hardware Specification Operating environment Temperature : 0 degrees to +40 degrees Humidity : 20% to 80%RH (Non-condensing) Storage environment Temperature : -10 degrees to +50 degrees Humidity : 20% to 90%RH (Non-condensing) VCCI Class B FCC Class B...
  • Page 19 2. About SX-BR-4600WAN2 FCC Rules Part 15 Subpart E §15.407(c) Compliance with FCC requirement 15.407(c) Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet.

  • Page 20: Software Specification

    SX-BR-4600WAN2 User's Guide 2-4. Software Specification Configuration Mode TCP/IP Network layer ARP, IP Transport layer TCP, UDP Application layer HTTP, DNS(simple reply function only), DHCP (simple server function only), NetBIOS over TCP/IP (Name Service only), JCP, FLDP, FLDP/BR * JCP, FLDP, FLDP/BR are the silex proprietary protocols.

  • Page 21: Use Of Radio Waves

    - Licensed radio station in a factory - Small power radio station (A non-licensed radio station) These devices may use the same band. If you use SX-BR-4600WAN2 near these devices, the radio waves emitted from SX-BR-4600WAN2 may interfere with them.
  • Page 22 The same frequency band of SX-BR-4600WAN2 is used for a microwave, industry, science, medical equipment and licensed in room or low power (non-licensed) radio stations. - Before you use SX-BR-4600WAN2, check that it does not interfere with other devices. - If interference occurs, stop using SX-BR-4600WAN2 or change the wireless band.

  • Page 23: Openssl License

    2. About SX-BR-4600WAN2 2-6. OpenSSL License This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. ( http://www.openssl.org/ ) OpenSSL License --------------- /* ==================================================================== * Copyright (c) 1998-2008 The OpenSSL Project. All rights reserved. * Redistribution and use in source and binary forms, with or without...
  • Page 24 SX-BR-4600WAN2 User's Guide * THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY * EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE * IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR * PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR...
  • Page 25 2. About SX-BR-4600WAN2 * Redistribution and use in source and binary forms, with or without * modification, are permitted provided that the following conditions * are met: * 1. Redistributions of source code must retain the copyright * notice, this list of conditions and the following disclaimer.
  • Page 26 SX-BR-4600WAN2 User's Guide...

  • Page 27: Before You Begin

    BR-4600WAN2 as well as the wireless setting information you need to check out before the configuration. 3-1. Operating Mode SX-BR-4600WAN2 has 2 operating modes below. Please use the one appropriate for your environment. - Single Client Mode - Multi-Client Mode - The operating mode can be configured on the Web configuration interface which can be accessed when the SX-BR-4600WAN2 operates in Configuration Mode.

  • Page 28: Single Client Mode

    - Connecting multiple devices to a LAN port using a HUB - Changing the device connected to a LAN port to the other device while SX-BR-4600WAN2 is running. - If the connection is lost on a LAN port while communication is in progress, wireless bridging will be disabled until it is reconnected.

  • Page 29: Multi-Client Mode

    Use this mode when you connect multiple non-wireless devices to SX-BR-4600WAN2. By using a HUB on the LAN port, up to 16 devices can be connected. For wireless connection, the MAC address of SX-BR-4600WAN2 and IP addresses of the connected devices will be used.

  • Page 30: Configuration Method

    SX-BR-4600WAN2 User's Guide 3-2. Configuration Method There are 3 configuration methods as follows. Please select the one appropriate for your environment. - Easy configuration using Configuration Mode - Wireless configuration using Smart Wireless Setup (Push Switch) - Wireless configuration using Smart Wireless Setup (PIN code)

  • Page 31: Easy Configuration Using Configuration Mode

    - Access Point is using the Shared authentication - Access Point is using the Open authentication and the WEP key index other than "1". - Too many wireless networks are active (up to 32 wireless networks can be shown by SX-BR-4600WAN2).

  • Page 32: Wireless Configuration Using Smart Wireless Setup (Push Switch)

    In this configuration method, you can automatically configure the wireless settings by pressing the wireless connection button on your Access Point (wireless router) and the push switch on SX-BR-4600WAN2. You will not have to get wireless setting information beforehand, as configuration is automatically handled by the SX-BR-4600WAN2 and your Access Point.

  • Page 33: Wireless Configuration Using Smart Wireless Setup (Pin Code)

    Access Point or contact the manufacturer. ② Check the PIN code SX-BR-4600WAN2 WLAN STATUS ① Network cable Access Point (Wireless Router) - Two PCs are required for this configuration; one for the SX-BR-4600WAN2 and the other one for your Access Point. Note...

  • Page 34: Necessary Wireless Setting Information

    SX-BR-4600WAN2 and your Access Point, you need to get the necessary setting information of your Access Point beforehand. - If you plan to configure the SX-BR-4600WAN2 using Smart Wireless Setup, you will not have to get the wireless setting information.

  • Page 35: How To Configure Sx-Br-4600Wan2

    4. How to Configure SX-BR-4600WAN2 How to Configure SX-BR-4600WAN2 This chapter explains how to configure SX-BR-4600WAN2. Following configuration methods are available: 1) Configuration using Configuration Mode 2) Configuration using Smart Wireless Setup (Push Switch) 3) Configuration using Smart Wireless Setup (PIN code) - For details on each configuration method, refer to 3-2.

  • Page 36: Easy Configuration Using Configuration Mode

    How to configure SX-BR-4600WAN2 using the Configuration Mode is explained. Starting SX-BR-4600WAN2 in Configuration Mode Connect SX-BR-4600WAN2 and the PC (to use for setup) using a network cable. SX-BR-4600WAN2 Network cable Connect the AC adaptor to SX-BR-4600WAN2, and the AC adaptor's plug to an electrical outlet. Outlet ② SX-BR-4600WAN2 ①...
  • Page 37 4. How to Configure SX-BR-4600WAN2 When the POWER LED on top of SX-BR-4600WAN2 turns on, press and hold the push switch on the front. Release the push switch when the WLAN LED and STATUS LED start blinking together (it may take 20sec until blinking). SX-BR-4600WAN2 will start operating in the Configuration Mode and you will be ready to configure SX-BR-4600WAN2 from the ③...

  • Page 38: Configuration

    - If the Web page is not displayed, enter "http://silex" in the address bar of the Web browser and press the Enter key. Note - If a password is set to SX-BR-4600WAN2, the password entry screen is displayed. Enter the password and click Login. - By defaults, the password entry screen is not displayed. Go on to 2 then.
  • Page 39 4. How to Configure SX-BR-4600WAN2 - To start the configuration, the PC and SX-BR-4600WAN2 need to communicate each other properly. - Confirm that an IP Address is correctly configured to the PC. - If a wireless LAN is enabled on your PC, please disable it.
  • Page 40 - If the Access Point you wish to connect is not displayed in the list, you may have reached the maximum number of wireless devices that SX-BR-4600WAN2 can detect and show in the list. In that case, use the SSID filter to display the necessary Access Point only.
  • Page 41 When you wish to bridge the PC used for this configuration wirelessly, restart the PC. To bridge another device wirelessly, turn off both SX-BR-4600WAN2 and PC, remove the SX-BR-4600WAN2 from the PC and connect the SX-BR-4600WAN2 to the device you wish to use wirelessly using a network cable.

  • Page 42: Connecting Non-Wireless Devices

    SX-BR-4600WAN2 User's Guide Connecting Non-wireless Devices Turn off the non-wireless device that you wish to use wirelessly and connect the SX-BR- 4600WAN2 to it using a network cable. The connection method will vary depending on each operating mode. How to Connect in Single Client Mode...
  • Page 43 In such a case, please configure it according to the operating manual that came Note with your device. - When you turn on the SX-BR-4600WAN2 and your non-wireless device, be sure to turn on the SX-BR- 4600WAN2 first. Do not press the push switch then.

  • Page 44: Configuration Using Smart Wireless Setup (Push Switch)

    - If a security feature such as MAC address filtering is enabled on your Access Point, disable it temporarily. - If the SSID filter is enabled on the SX-BR-4600WAN2, this configuration method cannot be used. To disable the SSID filter, turn on the SX-BR-4600WAN2 in Configuration Mode and change the setting, or otherwise, initialize the SX-BR-4600WAN2.

  • Page 45: Configuration

    In such a case, start from 2 in this section. - By defaults, the operating mode is set to Single Client Mode. - To see which operating mode your SX-BR-4600WAN2 is running on, start the SX-BR-4600WAN2 in the Note Configuration Mode and access the Web page.
  • Page 46 In such a case, please configure it according to the operating manual that came Note with your device. - When you turn on the SX-BR-4600WAN2 and your non-wireless device, be sure to turn on the SX-BR- 4600WAN2 first. Do not press the push switch then.
  • Page 47 - Please use only one Access Point. If two or more Access Points are waiting for wireless connections, SX-BR- 4600WAN2 will not be able to connect properly. Press and hold the push switch on the SX-BR-4600WAN2. The WLAN LED and STATUS LED will start to blink together.
  • Page 48 Note In such a case, read the instructions carefully and start from 4 again. If you plan to use SX-BR-4600WAN2 in Single Client Mode, you can keep using the connected non-wireless device to use it wirelessly. To replace it with the other non-wireless device, turn off the SX-BR-4600WAN2 and replace the connected non-wireless device to it.

  • Page 49: Connecting Non-Wireless Devices

    4. How to Configure SX-BR-4600WAN2 Connecting Non-wireless Devices Turn off the non-wireless device that you wish to use wirelessly and connect the SX- BR-4600WAN2 to it using a network cable. The connection method will vary for each operating mode. How to Connect in Single Client Mode...
  • Page 50 In such a case, please configure it according to the operating manual that came Note with your device. - When you turn on the SX-BR-4600WAN2 and your non-wireless device, be sure to turn on the SX-BR- 4600WAN2 first. Do not press the push switch then.

  • Page 51: Configuration Using Smart Wireless Setup (Pin Code)

    - If a security feature such as MAC address filtering is enabled on your Access Point, disable it temporarily. - If the SSID filter is enabled on the SX-BR-4600WAN2, this configuration method cannot be used. To disable the SSID filter, turn on the SX-BR-4600WAN2 in Configuration Mode and change the setting, or otherwise, initialize the SX-BR-4600WAN2.
  • Page 52 ① AC adaptor When the POWER LED on top of SX-BR-4600WAN2 turns on, press and hold the push switch on the front. Release the push switch when the WLAN LED and STATUS LED start blinking together (it may take 20sec until blinking). SX-BR-4600WAN2 will start operating in the Configuration Mode and you will be ready to configure SX-BR-4600WAN2 from the ③...

  • Page 53: Checking A Pin Code

    Enter key. Note - If a password is set to SX-BR-4600WAN2, a password entry screen is displayed. Enter the password and click Login. - The password entry screen is not displayed at the initial setup. Go on to 2 then.
  • Page 54 SX-BR-4600WAN2 User's Guide - To start the configuration, the PC and SX-BR-4600WAN2 need to communicate each other properly. - Confirm that an IP Address is correctly configured to the PC. - If a wireless LAN is enabled on your PC, please disable it.

  • Page 55: Configuration

    Note Go back to the Smart Wireless Setup Configuration page of the SX-BR-4600WAN2 and click the Smart Wireless Setup Execution button. - If Smart Wireless Setup is started on the SX-BR-4600WAN2 earlier than the Access Point, the configuration may fail.
  • Page 56 SX-BR-4600WAN2 User's Guide The SX-BR-4600WAN2 and the Access Point will start to communicate each other. The wireless configuration is successfully completed when the STATUS LED turns on or blinks. SX-BR-4600WAN2 WLAN WLAN STATUS STATUS Success: Turns on or blinks - It may take up to 2 min to finish the wireless configuration depending on your environment.

  • Page 57: Connecting Non-Wireless Devices

    4. How to Configure SX-BR-4600WAN2 Connecting Non-wireless Devices Turn off the non-wireless device that you wish to use wirelessly and connect the SX- BR-4600WAN2 to it using a network cable. The connection method will vary for each operating mode. How to Connect in Single Client Mode...
  • Page 58 In such a case, please configure it according to the operating manual that came Note with your device. - When you turn on the SX-BR-4600WAN2 and your non-wireless device, be sure to turn on the SX-BR- 4600WAN2 first. Do not press the push switch then.

  • Page 59: List Of Functions

    The Configuration Mode is used when you access the Web configuration interface of SX-BR- 4600WAN2. In the Web configuration interface, each setting can be configured. How to start the SX-BR-4600WAN2 in Configuration Mode as well as access the Web configuration interface are explained.

  • Page 60: Starting Sx-Br-4600Wan2 In Configuration Mode

    SX-BR-4600WAN2 Network cable - To start the configuration, the PC and SX-BR-4600WAN2 need to communicate each other properly. - Confirm that an IP Address is correctly configured to the PC. - If a wireless LAN is enabled on your PC, please disable it.
  • Page 61 5. List of Functions When the POWER LED on top of SX-BR-4600WAN2 turns on, press and hold the push switch on the front. Release the push switch when the WLAN LED and STATUS LED start blinking together (it may take 20sec until blinking). SX-BR-4600WAN2 will start operating in the Configuration Mode and you will be ready to configure SX-BR-4600WAN2 from the ③...

  • Page 62: Configuration Via Web Configuration Interface

    Enter key. Note - If a password is set to SX-BR-4600WAN2, the password entry screen is displayed. Enter the password and click Login. By defaults, the password entry screen is not displayed. - SX-BR-4600WAN2 needs to be restarted for changes to take effect.

  • Page 63: Ieee802.1X Authentication

    To use the IEEE802.1X authentication, a RADIUS server is needed. Network Configuration Connect the SX-BR-4600WAN2 to a network as below when you use the IEEE802.1X authentication. The RADIUS server identifies the reliability of SX-BR-4600WAN2 as an authentication host, while SX-BR-4600WAN2 identifies the reliability of RADIUS server as an authentication client to identify the reliability of the network to connect to.
  • Page 64 SX-BR-4600WAN2 User's Guide To Backbone Network RADIUS Server SX-BR-4600WAN2 WLAN STATUS Access Point Non-wireless model (Printer)

  • Page 65: Ieee802.1X Authentication

    5. List of Functions IEEE802.1X Authentication SX-BR-4600WAN2 supports the following IEEE802.1X authentication methods. In the Web configuration interface of SX-BR-4600WAN2, select ON at IEEE802.1X Authentication and select the authentication mode at IEEE802.1X Authentication Type. IEEE802.1X Authentication mode EAP-TLS EAP-TTLS PEAP...

  • Page 66: Certificate Standard

    SX-BR-4600WAN2 User's Guide Certificate Standard When using the authentication mode which uses a certificate, get the necessary certificate issued from the certificate authority and import it to the SX-BR-4600WAN2. The SX-BR-4600WAN2 supports the following certificates: Certificate Standard The certificate supports the standards as follows:...

  • Page 67: Mac Address Filtering

    Check the MAC address of the non-wireless device you want to allow an access from and register it with the SX-BR-4600WAN2 at Network Device Address of IEEE802.1X Network Device Configuration in the Web configuration interface.

  • Page 68: Ieee802.1X Authentication Settings

    - The SX-BR-4600WAN2 bridges only the devices whose MAC address is registered to Network Device Address. Check the MAC address of the non-wireless device to bridge and register it to Network Device Address.
  • Page 69 When a certificate will be used for the selected authentication mode, click OK. When not, click Cancel and go on to 5. - If Cancel is clicked, the SX-BR-4600WAN2 will be restarted. Note In the certificate configuration page, click Browse to specify the certificate file to use.
  • Page 70 SX-BR-4600WAN2 User's Guide After the certificate is registered, the message below is displayed. Click Cancel. - To continue the configuration, click OK. If OK is clicked, the SX-BR-4600WAN2 will not be restarted. Note The SX-BR-4600WAN2 will be restarted and the IEEE802.1X authentication will take effect.

  • Page 71: Maintenance

    Plug the AC adaptor back into the outlet. Outlet AC adaptor WLAN STATUS SX-BR-4600WAN2 When the POWER LED turns to Orange, the restart is completed. After the restart, the SX-BR-4600WAN2 will start in a normal mode. Con rm the LED is ON WLAN STATUS SX-BR-4600WAN2...
  • Page 72 SX-BR-4600WAN2 User's Guide How to restart SX-BR-4600WAN2 using the Web configuration interface: Start the SX-BR-4600WAN2 in Configuration Mode and login to the Web configuration interface using your Web browser. From the left menu on the Web configuration interface, click Maintenance - Restart.

  • Page 73: Factory Default Configuration

    5. List of Functions Factory Default Configuration How to reset SX-BR-4600WAN2 to factory defaults using the Push Switch: Unplug the AC adaptor of SX-BR-4600WAN2 from the outlet. Outlet AC adaptor WLAN STATUS SX-BR-4600WAN2 Press and hold the push switch on the front while inserting the AC adaptor back into the electrical outlet.
  • Page 74 How to reset SX-BR-4600WAN2 to factory defaults using the Web configuration interface: Start the SX-BR-4600WAN2 in Configuration Mode and login to the Web configuration interface using your Web browser. From the left menu on the Web page, click Maintenance - Initialize System Configuration.

  • Page 75: Firmware Update

    The latest firmware file can be downloaded from our website. See the instructions below to download the firmware file. For how to upload the firmware file to SX-BR-4600WAN2, refer to the firmware update procedure sheet file contained in the firmware file you download.
  • Page 76 SX-BR-4600WAN2 User's Guide...
  • Page 77 A. Appendix Appendix A-1. List of All Settings The SX-BR-4600WAN2 has the following configuration items: Wireless Configuration - Easy Configuration Select a wireless network. Select the SSID of the Access Point (or other wireless devices) to connect from Details Wireless Network List.

  • Page 78: Network Authentication

    Set the SSID to connect to the wireless network (up to 32 characters). Up to 32 characters Range SXxxxxxx (xxxxxx is the last 6 digits on MAC address of the SX-BR-4600WAN2.) Default Value Note The SSID is an ID that distinguishes a wireless LAN network from others.
  • Page 79 A. Appendix Wireless LAN Configuration - WEP Configuration Details Enable/Disable the WEP encryption. If WEP encryption is used, wireless communication will be encrypted using the settings for "WEP Key 1-4" and "Key Index". ON/OFF Range Default Value Note If encryption is not enabled, data is not encrypted and is sent as is. To ensure higher security, enabling encryption is recommended.
  • Page 80 SX-BR-4600WAN2 User's Guide Wireless LAN Configuration - WPA/WPA2 Configuration Encryption Mode Select the encryption mode to use for WPA2 or WPA/WPA2 Mixed Mode Details authentication. Range AES/AUTO Default Value When the network authentication mode is WPA2, AUTO cannot be used.
  • Page 81 A. Appendix Wireless LAN Configuration - Inner Authentication Method Configuration Inner Authentication Details Select the authentication protocol to use for EAP-TTLS. In case of PEAP, only MSCHAPv2 can be used. Range PAP / CHAP / MSCHAP / MSCHAPv2 Default Value Wireless LAN Configuration - Server Certificate Verification Configuration Server Certificate Verification Details...
  • Page 82 One Ethernet Address can be registered for Single Client Mode while 16 Note Ethernet Addresses can be registered for Multi-Client Mode. Wireless LAN Configuration - Smart Wireless Setup Configuration PIN Code The PIN code of SX-BR-4600WAN2 is displayed. Details Range The value is automatically generated by clicking the button. Default Value...

  • Page 83: Advanced Configuration

    Range 1000BASE-T-Full AUTO Default Value If a LINK LED on the connected device does not light on when SX-BR-4600WAN2 Note is powered on, change the network type to that of the connected device. Network Device Address Set the Ethernet Address of the network device to be connected to a LAN port Details of the SX-BR-4600WAN2.
  • Page 84 SX-BR-4600WAN2 User's Guide TCP/IP Configuration DHCP Details Enable/Disable the DHCP protocol. To assign an IP address using DHCP, the DHCP server must be running in your subnetwork. ENABLE/DISABLE Range Default Value DISABLE IP Address Set the IP address. Details If the DHCP is enabled on your network, the IP Address obtained from it will be applied.
  • Page 85 Time before turning into Configuration Mode Details Specify the period of time until the SX-BR-4600WAN2 turns into the Configuration Mode. If the Push Switch is pressed for the period of time specified here, the SX-BR-4600WAN2 will turn into the Configuration Mode.

  • Page 86: Password Configuration

    A PAC file generated from the server Range Password Configuration Password Details Configure the password to manage the SX-BR-4600WAN2. This password is used for authentication to login to the Web configuration interface of SX-BR-4600WAN2. Up to 15 characters Range Default Value...
  • Page 87 Access Points operating in a stealth mode will not be displayed in the list. Too many wireless devices may be operating, exceeding the maximum number of devices the SX-BR-4600WAN2 can show on (up to 32 devices). Up to 32 wireless devices can be displayed at Wireless Network List.
  • Page 88 Solution 4600WAN2. To use several devices, use Multi-Client Mode. I cannot access the non-wireless device connected to a LAN port of the SX-BR-4600WAN2. The SX-BR-4600WAN2 or non-wireless device may not be operating correctly. Please check the LED status on SX-BR-4600WAN2. Please also check that the non- Solution wireless device is properly powered on.
  • Page 89 The imported IEEE802.1X certificate cannot be deleted. It is impossible to delete the imported certificate only. Solution To delete the imported certificate, initialize the SX-BR-4600WAN2. NOTE: The imported certificate is validated only when it is used. Even if you keep the certificate, it has no impact on the authentication process since the imported certificate is used only with the compatible authentication method.
  • Page 90 SX-BR-4600WAN2 User's Guide...
