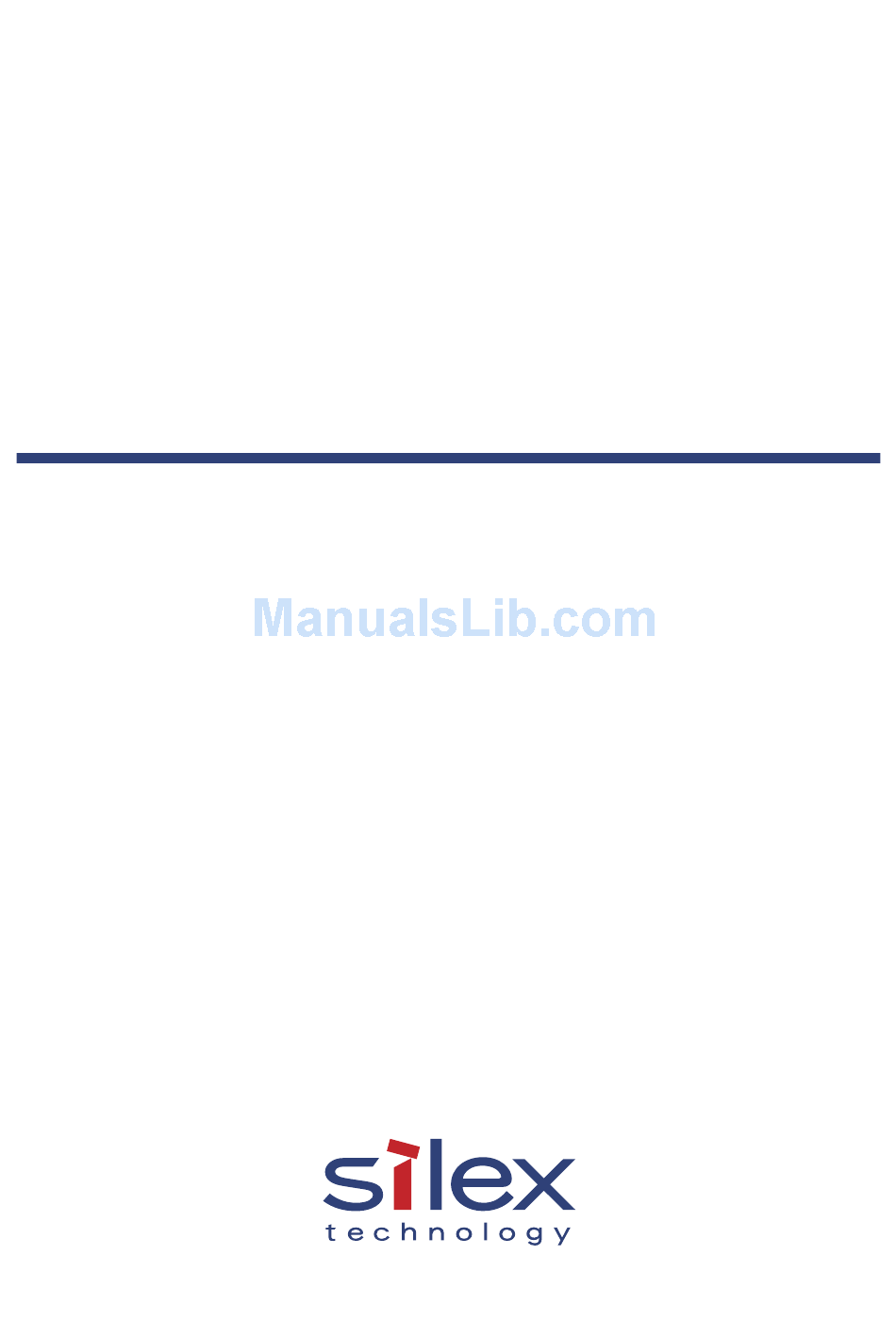

Wireless Access Point for Industrial Devices
AP-415AN
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-415AN and is the answer not in the manual?

Questions and answers

Related Manuals for Silex technology AP-415AN

Summary of Contents for Silex technology AP-415AN

  • Page 1 Wireless Access Point for Industrial Devices AP-415AN User's Manual...
  • Page 2 Copyright© 2018 silex technology, Inc. All rights reserved. WA105050XX...

  • Page 3: Table Of Contents

    2-3-3. Regulatory Compliance ...............17 2-4. Wireless Interference Information ............20 Notes on Use ....................20 2-5. Notes on Security ..................22 3. Using AP-415AN Setup Tool ......23 3-1. Operating Environment ................24 3-2. Features ......................25 3-3. Installing AP-415AN Setup Tool .............26 3-3-1. Downloading AP-415AN Setup Tool ..........26...
  • Page 4 Location of Installation (for AP Mode) .............50 Installation Method (for AP Mode) ............51 4-3-2. Installation (for RP Mode) ..............54 Location of Installation (for RP Mode) .............54 Installation Method (for RP Mode) ............54 Turning on AP-415AN (for RP Mode) ............57 4-4. Checking Installation Status ..............58...
  • Page 5 5-1-2. Changing Network Setting of the PC ..........61 5-2. Configuration Using AP-415AN's Web Page ........62 5-2-1. Accessing AP-415AN's Web Page ..........62 Accessing the Web Page Using AP-415AN Setup Tool ....62 Accessing the Web Page Using IP Address .........64 5-2-2. General Configuration ................65 5-2-3.
  • Page 6 8-2-1. Factory Default Configuration Using the Push Switch ..110 8-2-2. Factory Default Configuration Using the Web Configuration Page........................111 8-2-3. Factory Default Configuration Using AP-415AN Setup Tool ... 112 8-3. Firmware Update ..................115 8-3-1. Downloading Latest Firmware ............115 8-3-2. Firmware Update Using the Web Configuration Page ..115...

  • Page 7: Introduction

    1. Introduction Introduction...

  • Page 8: Introduction

    Be sure to carefully review before using AP-415AN. : This symbol indicates important information that needs to be observed when operating AP-415AN. Make sure to read this information for safe and proper use. : This symbol indicates information that is useful when using AP-415AN. If you experience difficulties operating AP-415AN, please refer to this information first.

  • Page 9: Safety Instructions

    This page provides the safety instructions for safe use of AP-415AN. To ensure safe and proper use, please read the following information carefully before using AP-415AN. The safety instructions include important information on safe handling of AP- 415AN and on general safety issues.
  • Page 10 AP-415AN User's Guide Warning * In the following cases, turn off the connected devices and unplug the AC plug of this product from a power outlet. Failure to follow these instructions may cause fire or an electrical shock. - When this product emits a strange smell, smoke or sound or becomes too hot to touch.
  • Page 11 1. Introduction Caution * Use the AC adaptor supplied with this product. Other AC adaptors may cause malfunction. * Do not place any objects on the cable or bend, twist, or pull it excessively. * Do not use or store this product under the following conditions. * It may cause malfunction.

  • Page 12: User Registration And Customer Services

    Japan http://www.silex.jp/register/ * Be sure to complete the user registration or otherwise, Silex Technology may not be able to provide the technical support and repair services. * For user registration, a serial number is required. The serial number is a last 6-digit number of the Ethernet Address (12-digit number) which can be found on bottom of the product.

  • Page 13: Customer Support Center

    Customer Support is available by e-mail or telephone for any problems that you may encounter. If you cannot find the relevant problem in this manual or on our website, or if the corrective procedure does not resolve the problem, please contact Silex Technology Customer Support.
  • Page 14 AP-415AN User's Guide...

  • Page 15: Specifications

    2. Specifications Specifications...

  • Page 16: Package Contents

    Package Contents AP-415AN Stand Connector caps (Already attached to AP-415AN. Use them to cover up the connector and switch interfaces.) LAN port caps x 3 DC connector cap x 1 USB port cap x 1 DIP switch cap x 1 Screw to fix the unit x 4 Use them to attach AP-415AN to the stand.
  • Page 17 2. Specifications Option The following AC adaptors and power codes are sold separately. Destination: Indonesia, China, Japan, Europe AC adaptor Power code Destination: United States AC adaptor...

  • Page 18: Parts And Functions

    AP-415AN User's Manual 2-2. Parts and Functions The part name and function are as follows. 2-2-1. AP-415AN Unit Side POWER LED SETTING LED BAND/WLAN LED WSTAT/STATUS LED Each LED turns on/off or blinks depending on the operating status. Mode Name...
  • Page 19 2. Specifications Bottom DC IN DC connector LAN ports Name Details Connect the AC adaptor . DC IN Connect the DC connector . Used connector: JST' S02B-F32SK-GGXR(LF)(AU) DC connector Signal Name Details DCIN 12±10% - 26V±10% Connect the LAN cable . A wired LAN (10Base-T/1000Base-T ) is connected.

  • Page 20: Stand

    ON: Using UDP port filter DIP switch Not used Not used Push switch Use this to reset AP-415AN to the factory default setting. 2-2-2. Stand Cable hole Name Details Cable hole Pull cables through this hole after they are connected to AP-415AN.

  • Page 21: Specifications

    2. Specifications 2-3. Specifications 2-3-1. Software Specification Network layer ARP, IP, ICMP Transport layer TCP, UDP TCP/IP TELNET, SSH(TCP/UDP#22) BOOTP, DHCP(Client/Server) Application layer HTTP SX-SMP(TCP/UDP#60000/60001) Authentication method Open, WPA2-PSK Wireless Encryption mode Wired LAN Auto-sensing Windows 7 :Internet Explorer 11 Web browsers Windows 8.1 :Internet Explorer 11 (Recommended Web browsers)

  • Page 22: Hardware Specification

    AP-415AN User's Manual 2-3-2. Hardware Specification SPI Flash ROM 32MB DDR3 128MB USB port USB2.0(Hi-Speed) 1 Port Link (Green) LAN port: 2 Status (Orange) POWER (Green / Red) BAND/WLAN (Green / Orange) Side: 4 WSTAT/STATUS (Green / Orange) SETTING (Orange)

  • Page 23: Regulatory Compliance

    2. Specifications Wired LAN 10Base-T/100 Base-TX/1000Base-T LAN Port 3 Ports Auto MDI/MDI-X compatible 2-3-3. Regulatory Compliance Japan This is a Class A device. If this device is used in a home, it may cause radio interference. In such a case, the user may be required to take the corrective action. VCCI-A FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance...
  • Page 24 AP-415AN User's Manual China ■使用频率：2.4 - 2.4835 GHz ■等效全向辐射功率 (EIRP)： 　　天线增益＜ 10dBi 时：≤ 100 mW 或≤ 20 dBm　 　　天线增益≥ 10dBi 时：≤ 500 mW 或≤ 27 dBm ■最大功率谱密度： 　　天线增益＜ 10dBi 时：≤ 10 dBm / MHz(EIRP) 　　天线增益≥ 10dBi 时：≤ 17 dBm / MHz(EIRP) ■载频容限：20 ppm...
  • Page 25 2. Specifications 3. 使用时不得对各种合法的无线电通信业务产生有害干扰；一旦发现有干扰现象时，应立即停止 使用，并采取措施消除干扰后方可继续使用； 4. 使用微功率无线电设备，必须忍受各种无线电业务的干扰或工业、科学及医疗应用设备的辐射 干扰； ■工作频率范围：5725 - 5850 MHz ■发射功率：≤ 500 mW 和 ≤ 27 dBm ■等效全向辐射功率 (EIRP)：≤ 2 W 和 ≤ 33 dBm ■最大功率谱密度：≤ 13 dBm / MHz 和 ≤ 19 dBm / MHz (EIRP) ■载频容限：20 ppm ■带外发射功率...

  • Page 26: Wireless Interference Information

    • Licensed radio station in a factory • Small power radio station (A non-licensed radio station) These devices may use the same band. If you use AP-415AN near these devices, the radio waves emitted from AP-415AN may interfere with them.
  • Page 27 : All bands can be used to avoid interference. Notes on using 5GHz band • Use of 5.2GHz band (W52) and 5.3GHz band (W53) outdoors is prohibited by the radio law. When AP-415AN is used outdoors, use W56 channels only and do not use W52/W53 channels.

  • Page 28: Notes On Security

    AP-415AN User's Manual 2-5. Notes on Security Because a wireless LAN uses electromagnetic signals instead of a network cable to establish communication with network devices, it has the advantage of allowing devices to connect to the network easily. However, a disadvantage of this is that within a certain...

  • Page 29: Using Ap-415An Setup Tool

    3. Using AP-415AN Setup Tool Using AP-415AN Setup Tool...

  • Page 30: Operating Environment

    * Microsoft Windows 8 (32/64bit) * Microsoft Windows 8.1 (32/64bit) * Microsoft Windows 10 (32/64bit) • AP-415AN Setup Tool runs as a desktop application on Windows 8 or newer. • Windows RT is not supported. • Fast User Switching Function is not supported.

  • Page 31: Features

    * Configuration change (bulk configuration is supported) * Firmware update (multiple AP-415AN units can be updated at once) * Factory default configuration (multiple AP-415AN units can be initialized at once) * Restart (multiple AP-415AN units can be restarted at once) * A request for dynamic WDS reconstruction can be sent to AP-415AN.

  • Page 32: Installing Ap-415An Setup Tool

    AP-415AN User's Manual 3-3. Installing AP-415AN Setup Tool This section explains how to install AP-415AN Setup Tool to your network environment. 3-3-1. Downloading AP-415AN Setup Tool AP-415AN Setup Tool can be downloaded from Silex Technology's homepage. Access the URL below from the PC.

  • Page 33: Installation Procedure

    • For installation, you must login to the PC with administrative privileges. Double-click Setup.exe in a folder of AP-415AN Setup Tool to start the installer. • The User Account Control screen may be displayed. Click Yes or Continue if it is displayed.
  • Page 34 (5) The specified drive name is not valid. • By defaults, the AP-415AN Setup Tool is installed to (X:¥Program Files) ¥silex technology¥ AP-415AN Setup Tool. • By clicking Browse, you can change the folder to install the AP-415AN Setup Tool into. Note...
  • Page 35 (2) ¥¥ (two consecutive yen marks) (3) .. (two consecutive periods) (4) ’ ‘ (there is a blank on the last) • By defaults, the group name is set as AP-415AN Setup Tool. Note Click Start to start the installation.
  • Page 36 AP-415AN User's Manual When installation is completed, click Finish. • The User Account Control screen may be displayed. Click Yes or Continue if it is displayed. The AP-415AN Setup Tool's main window is displayed. AP-415AN Setup Tool has been installed.

  • Page 37: Starting/Finishing Ap-415An Setup Tool

    • On Windows 7, start AP-415AN Setup Tool by a method below. • Click Start - (All) Programs - silex Tools - AP-415AN Setup Tool. Note When the AP-415AN Setup Tool's main window is displayed, click the Refresh icon from toolbar. AP-415AN units are displayed when they are active on network.

  • Page 38: Finishing Ap-415An Setup Tool

    AP-415AN User's Manual 3-4-2. Finishing AP-415AN Setup Tool AP-415AN Setup Tool can be finished by following methods. Main window In the main window, the utility can be finished by following methods. (1) Clicking the [X] button on top right of the window...

  • Page 39: Window And Menu

    This section explains on the AP-415AN's main window and configuration menu. 3-5-1. Main Window In the main window, AP-415AN units are found and displayed as a list based on the group information that is previously registered. The selected AP-415AN units can be connected and disconnected.

  • Page 40: Menu Bar

    Updates firmware of the selected device. Factory Default Configuration Resets the selected device to factory default setting. Restart Restarts the selected device. Tools Menu Functions Option Opens the option setting window. Help Menu Functions About AP-415AN Setup Tool Displays the version of AP-415AN Setup Tool.

  • Page 41: Tool Bar

    Device Configuration Configures the selected AP-415AN unit. Opens the device configuration window. Reconstruct WDS Sends the WDS reconstruction command to the selected AP-415AN unit. Firmware Update Updates firmware of the selected AP-415AN unit. Open the firmware update window. Factory Default Configuration Resets the selected AP-415AN unit to factory default setting.

  • Page 42: List View (Device List)

    Restart Restarts the selected AP-415AN unit. Opens the device restart window. Option Configures the refresh interval and search setting of the list view on AP-415AN Setup Tool. List View (Device List) Provides a list of devices and status information. Host Name Shows the host name.

  • Page 43: Context Menu

    |---BR3(Hop 2) DIPSW 4-1 Shows the DIP Switch status of the AP-415AN unit. Context Menu Right-clicking on the AP-415AN unit on the list shows the context menu. Refresh Refreshes the list view. Configure Using Web Browser Opens the Web page of the AP-415AN unit.

  • Page 44: Configuration Page

    Saves the list view information to a CSV file. Configuration Page Double-clicking on the AP-415AN unit on the list view opens the configuration page. • For details on configuration menu, refer to 5-3. Configuration Using AP-415AN Setup Tool - Configuration Menu of AP-415AN Setup Tool. Note Status Bar The status information is displayed according to the selected AP-415AN units.
  • Page 45 3. Using AP-415AN Setup Tool When a single AP-415AN unit is selected on the list view Shows the general information (MAC address and IP address) of the selected AP-415AN unit and the last update time. Topology view List view Supported...

  • Page 46: Option Setting

    AP-415AN User's Manual 3-6. Option Setting This section explains on the option setting of AP-415AN Setup Tool. Click the Option icon from the toolbar. When the option setting window is displayed, configure the setting on each tab and click OK.

  • Page 47: General Tab

    3. Using AP-415AN Setup Tool General Tab Do not display a confirmation message before refreshing the window when device information is changed. This shows or hides a refresh confirmation message box that is displayed when the device information is changed. (Default: OFF) Refresh the window Hides a refresh confirmation message and automatically refreshes the main window.

  • Page 48: Device Search Tab

    (Default: blank) Device Search Tab Use broadcast addresses for search To search for AP-415AN, broadcast packets are distributed to the Subnet Mask of PC. (Default: ON) Use specific addresses for search Specify whether to use the search address. (Default: OFF) Search address field Register the address to search for the AP-415AN units.

  • Page 49: Uninstalling Ap-415An Setup Tool

    3. Using AP-415AN Setup Tool 3-7. Uninstalling AP-415AN Setup Tool This section explains how to uninstall AP-415AN Setup Tool. AP-415AN Setup Tool can be uninstalled from Control Panel of Windows. • For uninstallation, you must login to the PC with administrative privileges.
  • Page 50 AP-415AN User's Manual When uninstallation is completed, the screen below is displayed. Click Finish. AP-415AN Setup Tool has been uninstalled.

  • Page 51: Installing Ap-415An

    4. Installing AP-415AN Installing AP-415AN...

  • Page 52: Installation Example

    AP-415AN User's Manual 4-1. Installation Example The following diagram is an example of how to allocate AP-415AN units to establish a wireless connection between PC and wired LAN control panel in a factory. In this network, tablet devices can easily be connected to AP-415AN wirelessly.

  • Page 53: Before Starting Installation

    4-2. Before Starting Installation Changing the Operating Mode 4-2-1. Use the dip switch "SW1" on back of AP-415AN to switch the operating mode between the Access Point mode (AP mode) and Repeater mode (RP mode). To change the operating mode to AP mode Turn on the dip switch SW1.

  • Page 54: Configuration

    AP-415AN User's Manual Configuration 4-2-2. When you want to use AP-415AN with the factory default setting, go ahead to 4-2-3. Attaching the Stand below. When you want to change the setting from default one, see the instructions at 5. Configuration. When the configuration change is finished, go to 4-2-3. Attaching the Stand below.
  • Page 55 (2) Fix AP-415AN to the stand by screwing 4 holes. Screw holes (2) Screw holes (2) Do not close the stand cover yet. The stand cover should be closed when AP-415AN is installed to an actual location. See 4-3. Installing AP-415AN for details on how to install AP-415AN.

  • Page 56: Installing Ap-415An

    Fix the shelf rmly to prevent AP-415AN from falling. • Use a wood or plastic shelf (recommended). • Leave a gap of 10 cm or more between AP-415AN (AP mode) and the wall so that you can press the DIP/ Push switches later.

  • Page 57: Installation Method (For Ap Mode)

    Network cable • Attach the protection caps to unused network ports. Connect the AC adaptor (optional item) to the power code tightly, then insert the plug into the DC IN of AP-415AN (AP mode). Network cable AC adaptor (optional item) Close the cover of the stand.
  • Page 58 • Pull the cables through the cable hole of the stand. • Silex Technology is not responsible for any damage or loss caused by falling. Make sure that the stand is firmly fixed to the shelf to prevent from falling.
  • Page 59 4. Installing AP-415AN Connect the other end of network cable to the factory LAN to which PC has been connected, and plug the power code to outlet. Factory LAN Ethernet Hub AP-415AN (AP Mode ） Network cable Wall AC adaptor Wall socket Check the LED lamps.

  • Page 60: Installation (For Rp Mode)

    How to install AP-415AN (RP mode) is explained. Location of Installation (for RP Mode) Install AP-415AN (RP mode) on an industrial device. Make sure that the built-in antennas of AP-415AN (RP mode) are facing toward the AP-415AN (AP mode) to communicate.
  • Page 61 DC cable Network cable Industrial device Wired LAN control panel Connect the network cable to AP-415AN's LAN port and the DC cable to the DC IN. DC cable Network cable Industrial device Wired LAN control panel...
  • Page 62 Close the cover of the stand. Industrial device Wired LAN control panel Place AP-415AN (RP mode) on the industrial device and fix it by screwing 4 holes. Bottom of the stand after AP-415AN is attached Screw holes (2) Industrial device...

  • Page 63: Turning On Ap-415An (For Rp Mode)

    4. Installing AP-415AN Turning on AP-415AN (for RP Mode) • Check that AP-415AN (AP mode) is turned on before turning on AP-415AN (RP mode). Turn on AP-415AN (RP mode). Check the LED lamps. POWER LED: On (Green) BAND/WLAN LED: On (Green) or Blink (Orange)

  • Page 64: Checking Installation Status

    Check that AP-415AN units (both AP mode/RP mode) are installed correctly using AP- 415AN Setup Tool. Change the network setting of the PC to allow access from the PC to AP-415AN units. See 6-1. Product Display on AP-415AN Setup Tool - 6-1-1. Showing AP-415AN Units in...

  • Page 65: Configuration

    5. Configuration Configuration...

  • Page 66: Before Starting Configuration

    5-1. Before Starting Confi guration This section explains how to confi gure AP-415AN. 5-1-1. Preparation Start with the following when you want to change the confi guration of AP-415AN before installing it. Necessary Items Following items are required for initial confi guration.

  • Page 67: Changing Network Setting Of The Pc

    When the POWER LED lights as below, AP-415AN is ready. POWER LED : On (Green) • When you use AC adaptor, please always use the AC adaptor of AP-415AN. Using your own AC adaptor may result in malfunction. • AC adaptor of AP-415AN is sold separately.

  • Page 68: Configuration Using Ap-415An's Web Page

    On the PC (to use for configuration), start AP-415AN Setup Tool. When the main window is displayed, click the Refresh icon from the toolbar. Select AP-415AN that you wish to configure from the list and click Configure Using Web Browser icon from the toolbar.
  • Page 69 The Web browser starts and the login page is displayed. Enter the login password then click Login. • No password is set to AP-415AN by default. Leave it blank and just click Login then. Note The Web page of AP-415AN is displayed.

  • Page 70: Accessing The Web Page Using Ip Address

    To access the Web page, enter the IP address of AP-415AN to the address bar. • This is a sample IP address. If you are not sure what IP address is set to AP-415AN, see Accessing the Web Page Using AP-415AN Setup Tool to access the Web page using AP-415AN Setup Tool.

  • Page 71: General Configuration

    5. Configuration The Web page of AP-415AN is displayed. Configure the necessary setting according to your environment. Link to Help Opens the Help page that provides the detailed e x p l a n a t i o n o f e a c h setting.
  • Page 72 • For details on how to restart AP-415AN, refer to 8-1. How to Restart AP-415AN. • If you are to continue configuration on the other pages, you do not have to restart AP-415AN. Restart AP- 415AN when you finished configuration on all other pages.

  • Page 73: Detailed Configuration

    5. Configuration 5-2-3. Detailed Configuration Device Configuration Click Device from the configuration menu. The Device Configuration page is displayed. Configure the necessary settings. Category Name Setting Default Value Host Name Alphanumeric string(0-15 characters) SXxxxxxx Device Configuration LED Blink Timeout 1-60 DHCP ENABLE/DISABLE DISABLE...

  • Page 74: Wired Lan Configuration

    • For details on how to restart AP-415AN, refer to 8-1. How to Restart AP-415AN. • If you are to continue configuration on the other pages, you do not have to restart AP-415AN. Restart AP- 415AN when you finished configuration on all other pages.

  • Page 75: Wireless Lan Configuration

    • For details on how to restart AP-415AN, refer to 8-1. How to Restart AP-415AN. • If you are to continue configuration on the other pages, you do not have to restart AP-415AN. Restart AP- 415AN when you finished configuration on all other pages.
  • Page 76 • For details on how to restart AP-415AN, refer to 8-1. How to Restart AP-415AN. • If you are to continue configuration on the other pages, you do not have to restart AP-415AN. Restart AP- 415AN when you finished configuration on all other pages.

  • Page 77: Wireless Lan - Wds

    ID is different. Maximum Number of Hops This is a total number of AP-415AN units (RP mode) that transmission data passes through until it reaches AP-415AN units (AP mode). The maximum number of hops is 3.

  • Page 78: Wireless Lan - Security

    • For details on how to restart AP-415AN, refer to 8-1. How to Restart AP-415AN. • If you are to continue configuration on the other pages, you do not have to restart AP-415AN. Restart AP- 415AN when you finished configuration on all other pages.
  • Page 79 • For details on how to restart AP-415AN, refer to 8-1. How to Restart AP-415AN. • If you are to continue configuration on the other pages, you do not have to restart AP-415AN. Restart AP- 415AN when you finished configuration on all other pages.

  • Page 80: Wireless Lan - Extension

    AP-415AN User's Manual Wireless LAN - Extension Click Wireless LAN from the configuration menu. Click the Extension Configuration tab and configure the necessary settings. Category Name Setting Default Value Beacon Interval(msec)） 20 - 1000 DTIM 1 - 255 Transmit Power(%)

  • Page 81: Dhcp Server

    • For details on how to restart AP-415AN, refer to 8-1. How to Restart AP-415AN. • If you are to continue configuration on the other pages, you do not have to restart AP-415AN. Restart AP- 415AN when you finished configuration on all other pages.

  • Page 82: Password

    • For details on how to restart AP-415AN, refer to 8-1. How to Restart AP-415AN. • If you are to continue configuration on the other pages, you do not have to restart AP-415AN. Restart AP- 415AN when you finished configuration on all other pages.
  • Page 83 • For details on how to restart AP-415AN, refer to 8-1. How to Restart AP-415AN. • If you are to continue configuration on the other pages, you do not have to restart AP-415AN. Restart AP- 415AN when you finished configuration on all other pages.

  • Page 84: Configuration Using Ap-415An Setup Tool

    AP-415AN User's Manual 5-3. Configuration Using AP-415AN Setup Tool Select the AP-415AN units to configure from the list. To configure a single unit: Select a single AP-415AN unit to configure. To configure multiple units: Select multiple AP-415AN units to configure.
  • Page 85 • It is impossible to login when someone else is currently accessing the Web page. Note In the Device Configuration window, configure the necessary setting on each tab and click OK. • For details on each setting, refer to Configuration Menu of AP-415AN Setup Tool. Note...
  • Page 86 AP-415AN User's Manual When the password is required, enter the configuration password of AP-415AN and click OK. • Even if you have changed the configuration password, keep using the previous password until the new password takes effect. • It is impossible to login when someone else is currently accessing the Web page.

  • Page 87: Configuration Menu Of Ap-415An Setup Tool

    Single Multiple Enter the host name. Host Name SXxxxxxx Supported Alphanumeric string (0-15 characters) Set the password to use on AP-415AN Setup Tool. Configuration Password admin Supported Alphanumeric string (0-15 characters) Enter the timeout period for LED blink process (min).
  • Page 88 AP-415AN User's Manual TCP/IP Tab Name Setting Default Value Single Multiple Enable/Disable DHCP. DHCP Disable Supported Enable / Disable Enter the IP address. IP Address 10.xxx.xxx.xxx Supported 0.0.0.0 -255.255.255.255 Enter the subnet mask. Subnet Mask 255.0.0.0 Supported 0.0.0.0 -255.255.255.255 Enter the default gateway.
  • Page 89 5. Configuration Wireless LAN Tab Name Setting Default Value Single Multiple Select the wireless mode. 802.11b, 802.11b/g, Wireless Mode 802.11n/b/g Supported Supported 802.11n/b/g, 802.11a, 802.11n/a Select the channel bandwidth. Channel Bandwidth 40MHz Supported Supported 20MHz/40MHz Select the wireless channel. 1 -13/ 36/40/44/48/52/56/60/64/ Channel Supported...
  • Page 90 AP-415AN User's Manual Name Setting Default Value Single Multiple Enable/Disable the stealth mode. Stealth Mode Disable Supported Supported Enable/Disable Enter the SSID. SSID AP-415AN Supported Supported Alphanumeric string (1-32 characters) Select the network authentication method. Network Authentication WPA2-PSK Supported Supported Open, WPA2-PSK Select the encryption mode.
  • Page 91 5. Configuration WDS Tab Name Setting Default Value Single Multiple Select the WDS group ID. Group ID Supported Supported A - Z Set the maximum number of hops for WDS. Maximum Number of Hops Supported Supported 1 - 3 Specify the RSSI threshold value for WDS connection.
  • Page 92 AP-415AN User's Manual Access Control Tab Name Setting Default Value Single Multiple Specify the start port for UDP port filter. This value must be smaller than the end port. 0 UDP Port Filter (From) Supported Supported 0-65535 Specify the end port for UDP port filter.

  • Page 93: Showing Ap-415An

    6. Showing AP-415AN Showing AP-415AN...

  • Page 94: Showing Ap-415An

    AP-415AN User's Manual 6-1. Showing AP-415AN 6-1-1. Showing AP-415AN Units in Topology View The detected AP-415AN units are displayed in a hierarchical view. Click the Show in Topology View icon from toolbar. AP-415AN units are displayed in a topology view.

  • Page 95: When A Host Device Is Not Found

    If AP-415AN Setup Tool found the AP-415AN units (RP mode) whose number of hops is '2' but lost the AP-415AN units (RP mode) whose number of hops is '1' , virtual AP and virtual RP units are created and AP-415AN units (RP mode) are allocated under them as it is not sure which AP they should connect to.
  • Page 96 AP-415AN User's Manual Image of failure (when SX000003 is lost): SX000000 [84:25:3F:00:00:00] mode SX000001 [84:25:3F:00:00:01] mode Number of hops : 1 SX000002 [84:25:3F:00:00:02] mode mode Number of hops : 1 mode Number of hops : 2 SX000004 [84:25:3F:00:00:04] mode...

  • Page 97: Showing Ap-415An Units In Device List View

    6. Showing AP-415AN 6-1-2. Showing AP-415AN Units in Device List View The detected AP-415AN units and the status information are displayed. Click the Show in List View icon from toolbar. AP-415AN units are displayed in a device list view.

  • Page 98: Status Information On Ap-415An's Web Page

    LAN setting of AP-415AN, and the MAC address, received signal strength, etc. of the connected station devices. Access the Web page of AP-415AN. • For details on how to access the Web page, see 5-2-1. Accessing AP-415AN's Web Page. Note Click System or Wireless Station from the configuration menu.
  • Page 99 6. Showing AP-415AN Wireless Station Status MAC address, RSSI (Received Signal Strength Indicator) and IP address of the connected wireless stations are displayed.
  • Page 100 AP-415AN User's Manual...

  • Page 101: Product Management

    7. Product Management Product Management...

  • Page 102: Access Control

    This section explains how to control access to AP-415AN using the Web configuration page. Access the Web page of AP-415AN. • For details on how to access the Web page, see 5-2-1. Accessing AP-415AN's Web Page. Note The system status page is displayed. Click Access Control from the menu on the Web page.
  • Page 103 • For details on how to restart AP-415AN, refer to 8-1. How to Restart AP-415AN. • If you are to continue configuration on the other pages, you do not have to restart AP-415AN. Restart AP- 415AN when you finished configuration on all other pages.

  • Page 104: Configuration Import/Export

    • If there are diff erences in fi rmware versions on AP-415AN between the one exporting the confi guration fi le and the one importing the confi guration fi le, the fi le may not be imported correctly.
  • Page 105 7. Product Management The system status page is displayed. Click Export Configuration from the menu. The configuration export page is displayed. Click Yes. A message dialog to confirm where to save the configuration file (config.txt) is displayed. Click Save and then click Open file. , you can select Save as option.

  • Page 106: Configuration Import

    The system status page is displayed. Click Import Configuration from the menu. The configuration import page is displayed. Click Browse, select the configuration file to upload (config.txt) and click Open. • The configuration file you can import to AP-415AN must be the one you had exported from AP-415AN. Note...
  • Page 107 • For details on how to restart AP-415AN, refer to 8-1. How to Restart AP-415AN. • If you are to continue configuration on the other pages, you do not have to restart AP-415AN. Restart AP- 415AN when you finished configuration on all other pages.

  • Page 108: Wds Reconstruction

    7-3. WDS Reconstruction This section explains how to reconstruct WDS using AP-415AN Setup Tool. Select AP-415AN from the device list and click Reconstruct WDS from the toolbar. Click Execute to start WDS reconstruction. When WDS reconstruction is in progress, buttons are hidden or disabled.
  • Page 109 7. Product Management The password entry screen is displayed. Enter the configuration password and click OK. • By default, the configuration password is admin. • It is impossible to login when someone else has logged in. Note WDS reconstruction is completed. Click Close.
  • Page 110 AP-415AN User's Manual...

  • Page 111: Maintenance

    8. Maintenance Maintenance...

  • Page 112: Restart

    8-1-2. Restart by Using the Web Configuration Page This section explains how to restart AP-415AN by using the Web configuration page. Access the Web page of AP-415AN. • For details on how to access the Web page, see 5-2-1. Accessing AP-415AN's Web Page. Note...
  • Page 113 8. Maintenance The system status page is displayed. Click Restart from the menu. The restart page is displayed. Click Yes. AP-415AN is restarted. When the restart is finished, the login page is displayed again. Close the Web browser then.

  • Page 114: Restart Using Ap-415An Setup Tool

    8-1-3. Restart Using AP-415AN Setup Tool This section explains how to restart AP-415AN using AP-415AN Setup Tool. Select AP-415AN to restart from the device list and click the icon "Restart" from the toolbar. The restart window is displayed. Click Restart to restart AP-415AN.
  • Page 115 8. Maintenance The password entry screen is displayed. Enter the configuration password and click OK to restart AP-415AN. • By default, the configuration password is admin. • It is impossible to login when someone else has logged in. Note When the restart is finished, click Close.

  • Page 116: Factory Default Configuration

    SETTING LED: OFF • If AP-415AN is reset to factory default setting, AP-415AN may be lost from the PC and the login page is not displayed as the IP address is reset to "10.XXX.XXX.XXX". In such a case, change the IP address of your PC or...

  • Page 117: Factory Default Configuration Using The Web Configuration Page

    This section explains how to reset AP-415AN to factory default setting using the Web configuration page. Access the Web page of AP-415AN. • For details on how to access the Web page, see 5-2-1. Accessing AP-415AN's Web Page. Note The system status page is displayed. Click Factory Default from the menu.

  • Page 118: Factory Default Configuration Using Ap-415An Setup Tool

    Finish the Web browser then. • If AP-415AN is reset to factory default setting, AP-415AN may be lost from the PC and the login page is not displayed as the IP address is reset to "10.XXX.XXX.XXX". In such a case, change the IP address of your PC or AP-415AN to allow communication between them.
  • Page 119 8. Maintenance The factory default configuration window is displayed. Click Reset to start initialization. When initialization is in progress, buttons are hidden or disabled. The password entry screen is displayed. Enter the configuration password and click OK. • By default, the configuration password is admin. • It is impossible to login when someone else has logged in.
  • Page 120 AP-415AN User's Manual The factory default configuration is started. When the factory default configuration is finished, click Close.

  • Page 121: Firmware Update

    This section explains how to update the firmware of AP-415AN using the Web configuration page. Access the Web page of AP-415AN. • For details on how to access the Web page, see 5-2-1. Accessing AP-415AN's Web Page. Note The system status page is displayed. Click Firmware Update from the menu.
  • Page 122 AP-415AN User's Manual The firmware update page is displayed. Click Browse to specify the firmware update file (AP-415AN.bin) and click Open. Check that the firmware file name is displayed at New Firmware field and click Update. When the confirmation message is displayed, click OK.
  • Page 123 8. Maintenance The firmware update begins. When the login page is displayed, firmware update is completed. Check that the version information is changed at the bottom left of the login page. Close the Web browser.

  • Page 124: Firmware Update Using Ap-415An Setup Tool

    AP-415AN User's Manual 8-3-3. Firmware Update Using AP-415AN Setup Tool This section explains how to update the firmware of AP-415AN using AP-415AN Setup Tool. Select AP-415AN to update the firmware from the device list and click the icon "Firmware Update" from the toolbar.
  • Page 125 8. Maintenance Click Update to update AP-415AN. When the firmware update is in progress, buttons are hidden or disabled. he password entry screen is displayed. Enter the configuration password and click OK. • By default, the configuration password is admin.
  • Page 126 AP-415AN User's Manual The firmware update is started. When the firmware update is finished, click Close.
