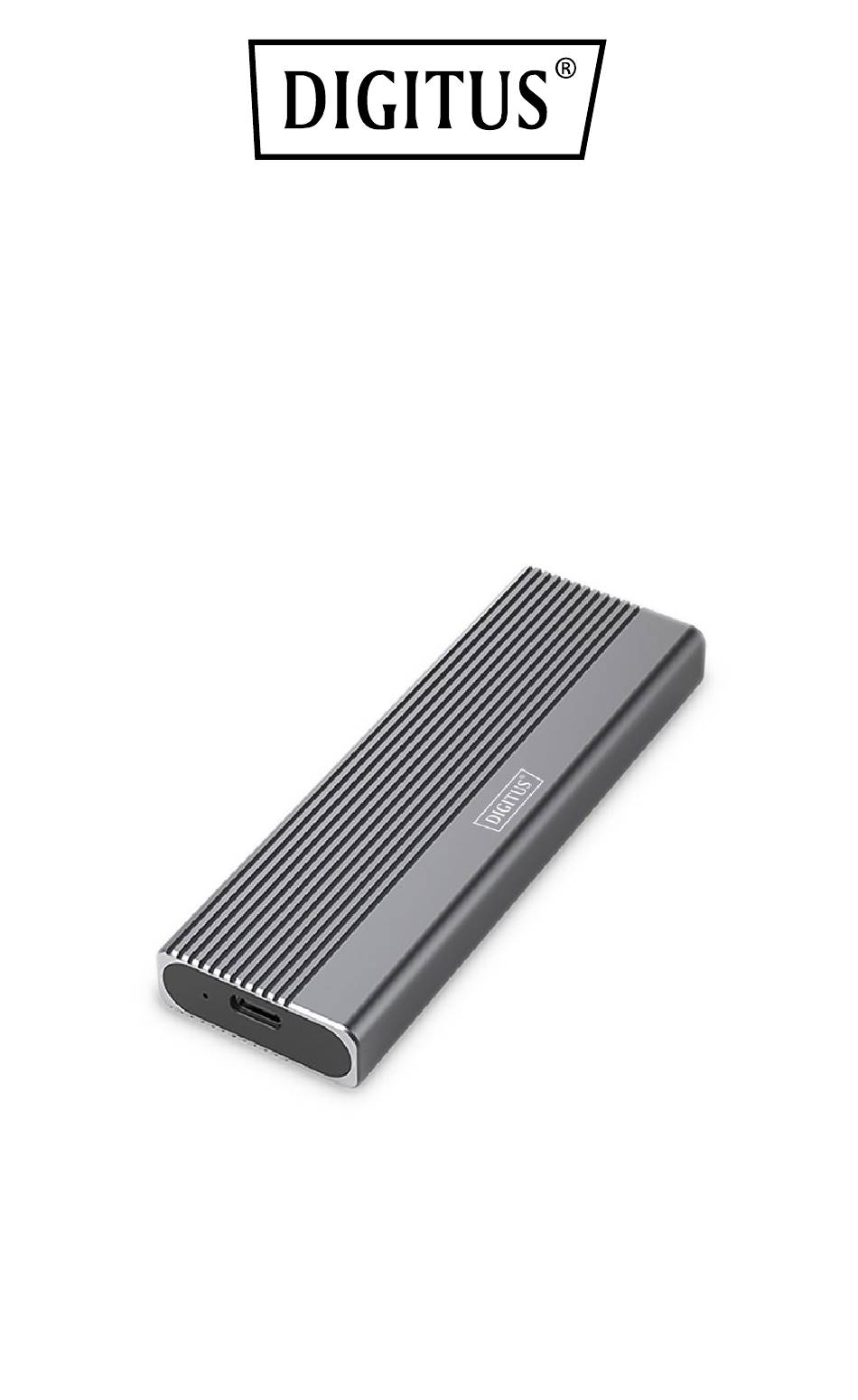

- Page 1 USB-C M.2 NVMe SSD ENCLOSURE Quick Installation Guide DA-71120-1...
-
Page 2: Table Of Contents
Table of contents Introduction ............3 Technical Features ..........3 Package content...........4 Specification............5 Installation ............6 Formatting Instructions for Connecting Computer Hard Disk Boxes ........8 FAQ instructions...........9... -
Page 3: Introduction
1. Introduction The DA-71120-1 M.2 NVMe SSD enclosure offers a powerful and versatile storage solution for all your data needs. It supports M.2 modules in 2230, 2242, 2260 and 2280 formats and is compatible with a wide range of SSDs. With a capacity of up to 8 TB, it offers enough space for all your files and data. -
Page 4: Package Content
Fast data transfer: Data transfer rate of 10 Gbit/s • for fast file transfers and smooth performance. USB 3.1 Gen 2 interface: Latest USB technology • with backwards compatibility to USB 3.1, 3.0, 2.0 and 1.1. Plug and play: Simply connect via USB and get •... -
Page 5: Specification
4. Specification Supported Mini SSD in M.2, B+M Key (NVMe) format Supported storage NVME technology Max. supported capacity Installation method tool-free Data transfer rate 10 Gbit/s Supports M.2 modules in 2230,2242,2260,2280 the format Supported keys M.2, B+M Key (NVMe) USB standard USB 3.1 Gen2 Backwards compatible 3.1/ 3.0 / 2.0 / 1.1... -
Page 6: Installation
Android / iOS macOS 9 or higher, Linux 2.4 or higher, Google Chrome OS Operating temperature 5 to 50°C Storage temperature -40 to 70°C 5 to 90% Humidity during operation (non-condensed) Dimensions 101x32x10 mm Weight 5. Installation 1. Press the button, keep the button sliding to the left (unlock symbol), and squeeze down to push out the bracket. - Page 7 2. Press the button to slide the liner out of the hard drive case and start assembling the hard drive. 3. Align the hard disk with the inner tray port, place the solid-state hard disk securely, and make sure the hard disk is aligned with the M.
-
Page 8: Formatting Instructions For Connecting Computer Hard Disk Boxes
6. Formatting Instructions for Connecting Computer Hard Disk Boxes • Step 1: Select My Computer Right-click. • Step 2: Double-click Administration • Step 3: Select a disk to manage after the disk management can recognize the hard disk (initialize the hard disk) Step 4: Right click on the blank space of the new •... -
Page 9: Faq Instructions
7. FAQ instructions Q: After installing the SSD into the case, why the laptop or PC can not recognize the SSD? Please kindly confirm your SSD key out port is M key • or B&M Key SSD. Our case do not support SATA AHCI B Key SSD. - Page 10 The data transfer speed has a relationship with the • document format, different speed with the document format. The 10Gbps is a theoretical speed value, the exact • speed depends on your Computer’s, SSD 's condition and Document format. The transmission speed is also related to the •...
