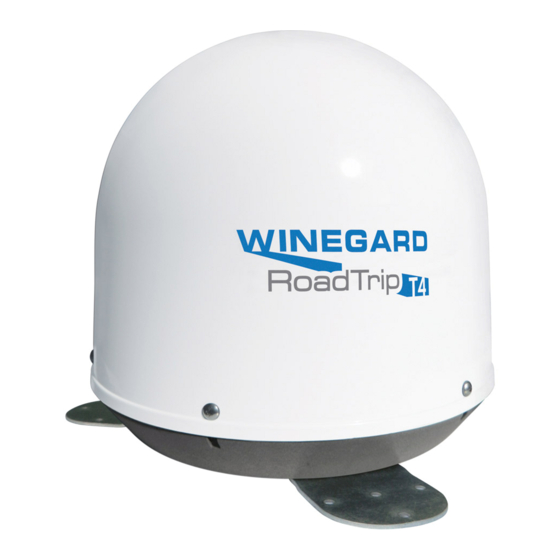

T4 User Manual
Specifications
• Supports up to two single or one dual receiver
• Depending on receiver type and location, can access the following satellites:
◦ DISH® Western Arc: 110°, 119°, 129°
◦ DIRECTV®:119° or 101° (will not receive HD on 110° or any KA-band HD on 99° and 103°)
◦ Bell TV™: 91° or 82°
• Elevation range: 18–65°
• Azimuth: 0–416°
• Max amperage: 2.0 A
• Unit operating voltage: 9–16 V
• Supply voltage: 12–13.8 V
• UV-protected plastic dome
Quick Reference Guide
The RoadTrip® T4 antenna switch settings are preset for DIRECTV. If you have a DISH or Bell TV receiver, you must
change the numbered switches found on the electronics box under the dome.
Installation
Installing the Mounting Feet
https://tiffin-motor-homes-prod.mindtouch.us/Technical_Support/Class_A/2024/Allegro_Bus/45_OPP/Component_Manuals/Wi...
Updated: Fri, 12 Jul 2024 03:08:30 GMT
Powered by
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Winegard RoadTrip T4
Summary of Contents for Winegard RoadTrip T4
- Page 1 T4 User Manual Specifications • Supports up to two single or one dual receiver • Depending on receiver type and location, can access the following satellites: ◦ DISH® Western Arc: 110°, 119°, 129° ◦ DIRECTV®:119° or 101° (will not receive HD on 110° or any KA-band HD on 99° and 103°) ◦...
- Page 2 1. Remove the RoadTrip® T4 dome screws with a Phillips screwdriver, and remove the dome. 2. Locate ports on dome. Insert the two threaded posts on a mounting foot through the two holes opposite the ports, and thread a hex nut onto each post (see image). 3.
- Page 3 1. For best performance and to reduce signal acquisition time, park the vehicle on a level surface that is free of obstructions such as trees or large buildings. Make sure you have a clear view of the southern sky. 2. Select a level spot on your roof for installation. Level the base front-to-back and side-to-side. If the base is not level, the antenna may require more time to locate the correct satellite or may not locate the correct satellite.
- Page 4 7. Clean the roof area where the base feet will attach to the roof; do not erase your marks. 8. Check with your vehicle manufacturer for approved sealant, and put approved sealant in the areas marked for the base feet. Place the base feet on top of the sealant. 9.
-
Page 5: Dish® Receiver Setup
and the cable entry plate. Clamping every 12”–16” should eliminate any unnecessary cable movement. Note: Nicks or cuts in wiring jacket may cause water to leak into vehicle. Placing the Dome on the Unit Note: This is not required for DIRECTV® Installation. This is only required if the dome has been removed to change the switch settings for a different satellite provider. - Page 6 If you need to access the receiver menu after initial setup, follow the steps below to reach the receiver menu. Receiver setup instructions are accurate at time of printing and may change without notice. Call Winegard tech line for assistance: 1-800-788-4417.
- Page 7 DISH® Receiver Recommendations The RoadTrip® T4 antenna will operate with most DISH receivers. Winegard does not recommend using receivers with hard drives not recommended by the manufacturer for mobile applications. Winegard recommends using a single tuner DISH receiver. DISH® Satellite Coverage The antenna will locate and toggle between satellites 110°, 119°...
- Page 8 Receiver Recommendations The RoadTrip® T4 antenna will operate with most DIRECTV receivers. Winegard does not recommend using receivers with hard drives not recommended by the manufacturer for mobile applications. Winegard does not recommend using an HD receiver since HD programming will not be available. SWM only receivers require a SWM-D30 kit. For more information contact Technical Services at 1-800-788-4417.
- Page 9 Note: Check out online receiver setup guides for your antenna at www.winegard.com/support. For more information on receiver compatibility and programming, visit www.winegard.com/receivers. 1. With power to the RoadTrip T4 off, press the Menu button on your remote. Select “Settings”. Figure 1. 2. Select “Satellite”. Figure 2.
- Page 10 https://tiffin-motor-homes-prod.mindtouch.us/Technical_Support/Class_A/2024/Allegro_Bus/45_OPP/Component_Manuals/Wi… Updated: Fri, 12 Jul 2024 03:08:30 GMT Powered by...
-
Page 11: Troubleshooting
Operating the RoadTrip® T4 Antenna 1. Turn on receiver and television set. The RoadTrip® T4 antenna must be connected to a receiver plugged into 120VAC. 2. Verify that you are getting the receiver’s menu screens on the television. These screens are available with or without the dish finding the signal. - Page 12 may be necessary to wait until the weather clears. With DIRECTV, the dish will Make sure that the switches on the electronics control box are set for DIRECTV. find the alternate satellite but See page 2. These switches are found on the electronics box under the dome. not the primary satellite.
