Hardware Setup and Configuration

For a detailed visual presentation of the hardware setup and configuration, refer to the
Getting started Tutorial - use the link isystem.com/start.

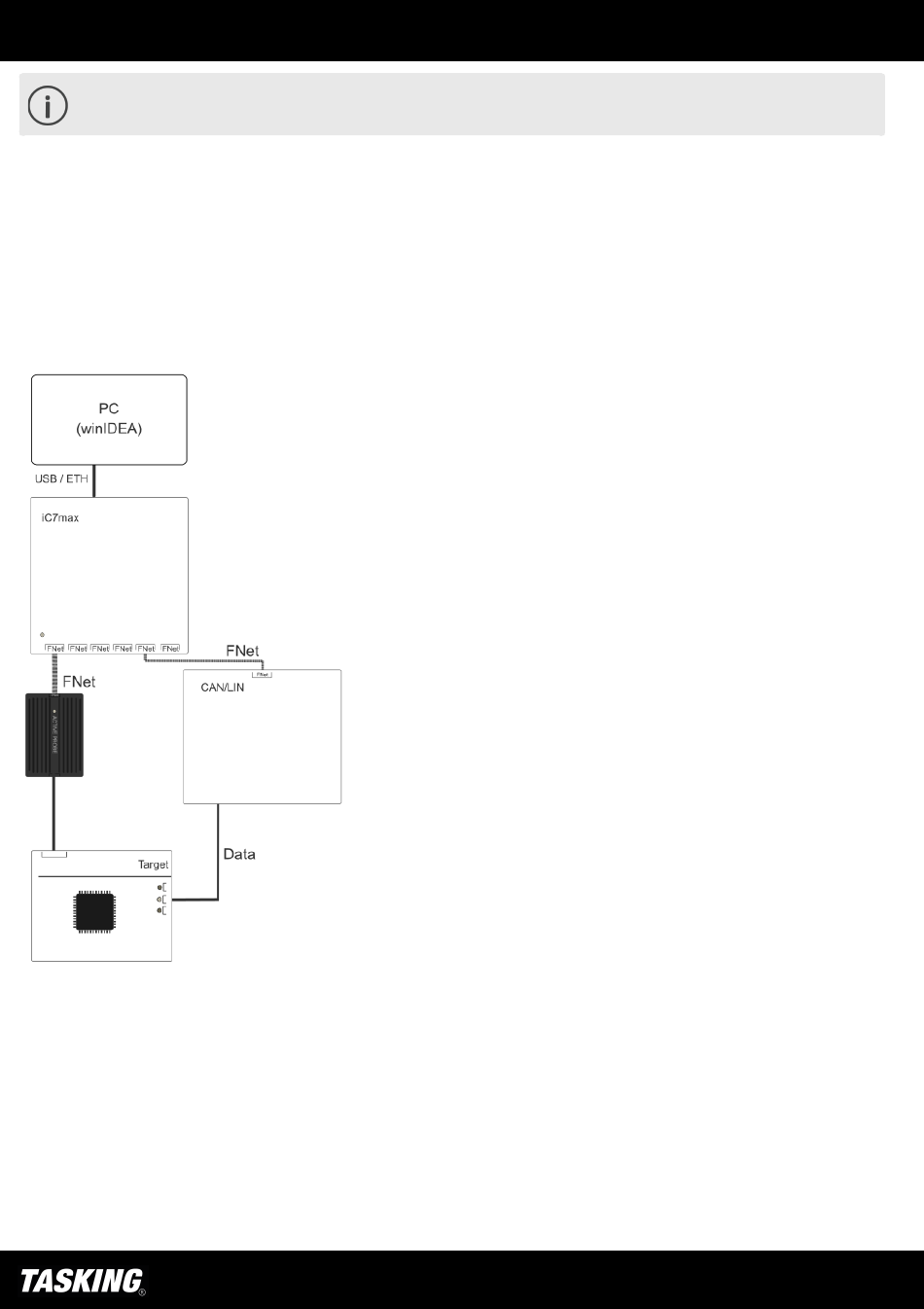

1. Make sure that the iC7max / iC5700 BlueBox is powered off.
2. Connect the FNet port of the iC7max / iC5700 to the FNet port of the CAN/LIN using the
supplied FNet cable.
The winIDEA configuration and usage is described in winIDEA Help. Start with FNet
Communication Network chapter to get familiar with the configuration options and usage.
For further information about CAN/LIN configuration, go to winIDEA Help - FNet / Network
description chapter.
