TASKING CAN/LIN Hardware User Manual page 13

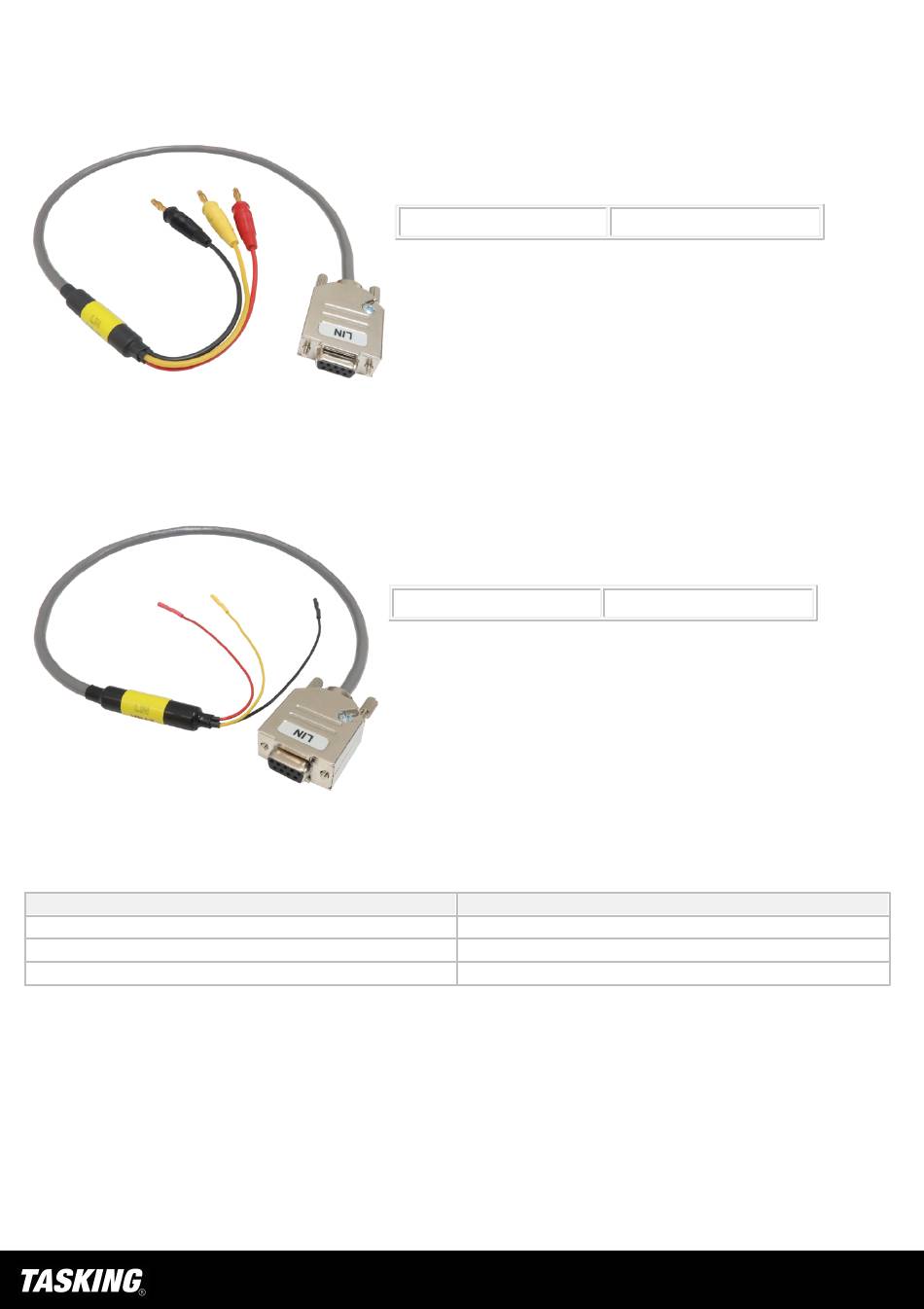

LIN cable banana jacks & pin wires
LIN cable banana jacks
Ordering code IC57040-LIN-JACK
The IC57040-LIN-JACK cable is used to connect the CAN/LIN Accessory to an existing LIN network
via banana jack connectors. The cable length is 0.65m. The cable connects to the LIN1 or LIN2
connector.
LIN cable pin wires
Ordering code IC57040-LIN-PIN
The IC57040-LIN-PIN cable is used to connect the CAN/LIN to an existing LIN network to the pins
typically found on a 2.54mm pitch header (0.63mm square pins). The cable length is 0.65m. The
cable connects to the LIN1 or LIN2.
Cable and pin color Signal
RED VBAT
BLACK GND
YELLOW LIN
