Device description

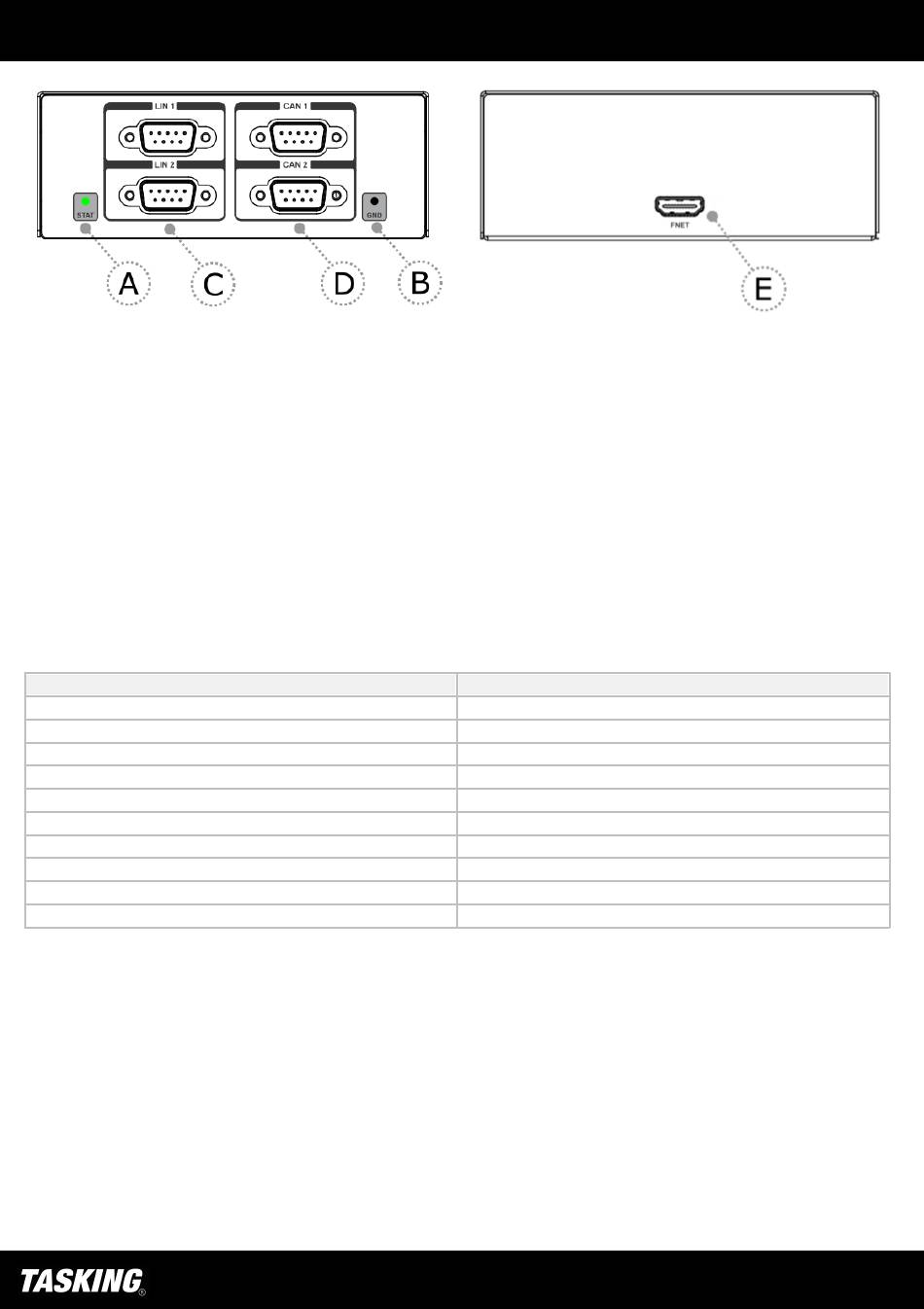

The front face of the features:
A – The indicator light provides the status of the hardware - At power on the LED will blink 5 times
with a frequency of 1Hz, then it will stay ON continuously. If LED remains blinking or it doesn't
blink on after power ON, please contact support.
B – The grounding socket (marked GND). It represents the GND potential of the BlueBox and its
usage is optional. By default no connection to this socket is required. The grounding socket is
suitable for a 2mm Multi Contact Plug (also known as a Banana Plug).
Note that the grounding connection between the BlueBox and the Target microcontroller
development board must be established through the iC7max/iC5700 grounding socket. Refer to
the iC7max/iC5700 BlueBox User Manuals for more details on this grounding.
C – LIN1 and LIN2 connector
The two connectors allow up to two target LIN bus networks to be monitored.
* The target must always provide power to the LIN VBAT connection.
Pin
1
2
3
4
5
6
7
8
9
SHIELD
Signal
NC
NC
LIN_GND
NC
SHIELD
NC
LIN
NC
LIN_VBAT*
GND
