TASKING CAN/LIN Hardware User Manual page 11

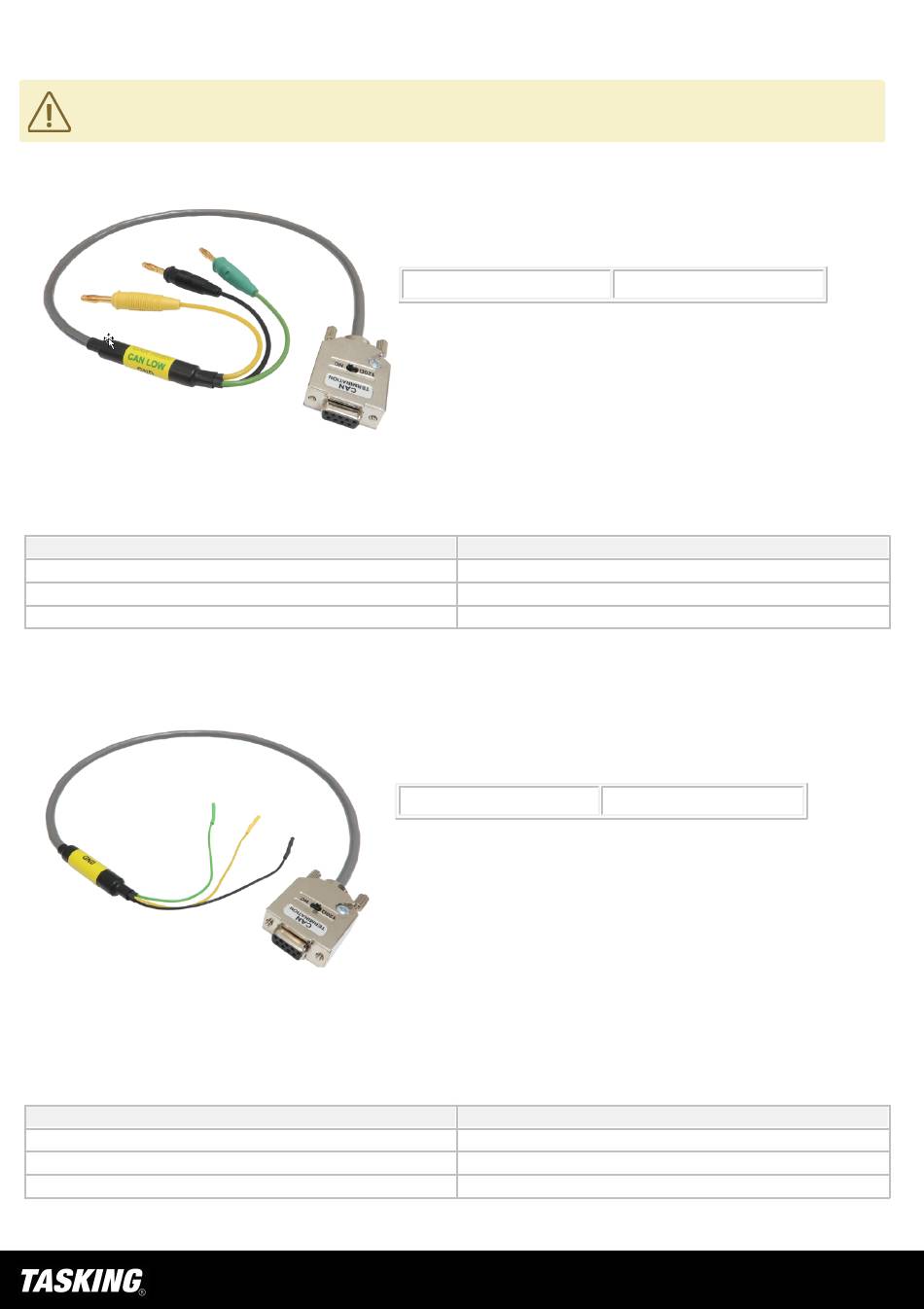

CAN cable banana jacks & pin wires
The DB9 connector with the termination switch must be connected to the CAN/LIN
Accessory (CAN1 or CAN2).
CAN cable banana jack
The IC57040-CAN-JACK is used to connect the CAN/LIN Accessory to an existing CAN network
through the banana jacks. The 120 Ohm termination impedance is selected using the switch
located on the cable DB9 connector. Cable length is 0.65m.
Cable and pin color
CAN cable pin wires
The IC57040-CAN-PIN is used to connect the CAN/LIN Accessory to an existing CAN network to
the pins typically found on a 2.54mm pitch header (0.63mm square pins). The 120 Ohm
termination impedance is selected using the switch located on the cable DB9 connector. Cable
length is 0.65m.
Cable and pin color
BLACK
YELLOW
GREEN
BLACK
YELLOW
GREEN
Ordering code
Ordering code
IC57040-CAN-JACK
Signal
CAN_GND
CAN_H
CAN_L
IC57040-CAN-PIN
Signal
CAN
CAN_H
CAN_L
