NetVanta 950 IAD
Quick Configuration Guide
The NetVanta 950 IAD system is intended to be installed, maintained, and serviced by
qualified service personnel only.
1

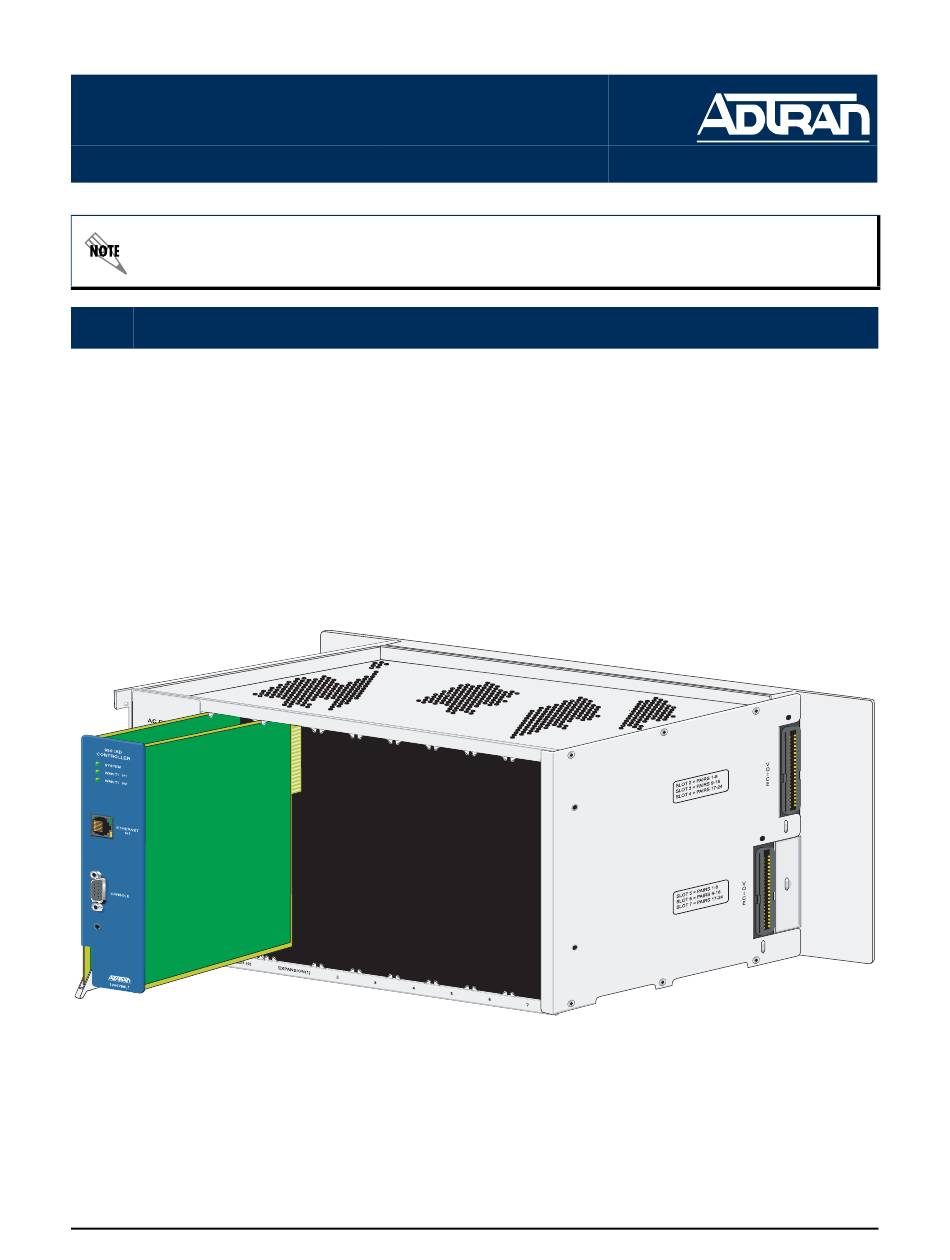

Install the NetVanta 950 IAD Controller
1. Use a screwdriver to remove the locking bar from the chassis.
2. Remove Blank Panel if installed.
3. Slide the Controller into the Controller Slot (Slot 0) until the module is firmly
positioned against the back of the chassis. Press firmly on the top and bottom of the
faceplate to ensure a proper fit.
4. Replace the locking bar and secure it with a screwdriver. The locking bar must be
attached at all times.
5. Connect the cables to the associated device(s).
6. Complete the system installation as specified in the Hardware Installation Guide
(P/N 61200788L1-34).
61200786L1-42A
Technical Support 1-888-4ADTRAN (1-888-423-8726)
July 2004
