1. GENERAL

This practice provides installation and operation proce-
dures for the ADTRAN TA 850 Bank Controller Unit
(BCU) common module, List 1. The TA 850 BCU mod-
ule is designed specifically for the ADTRAN Total Ac-
cess 850 and is not used in any other product. Figure 1
is an illustration of the TA 850 BCU.
Revision History
This is the initial release of this document. Future revi-
sions to this document will be explained in this subsec-
tion.
Features
The TA 850 BCU, part number 1200373L1, includes the
following features:
• Controls all common equipment and access modules.
• T1 network termination.
• Built-in Channel Service Unit (CSU).
• Provides VT 100 craft interface via faceplate DB-9
connector.
• Bantam Jacks provide access to Network T1.
• LED network status indication.
• T1 performance monitoring.
• Supports TR-08 signaling.
• NEBS Level 3 and UL 1950 compliant.
61200373L1-5B
850 Bank Controller Unit Installation and Operation
TM
Trademarks: Any brand names and product names included in this document are
trademarks, registered trademarks, or trade names of their respective holders.
•

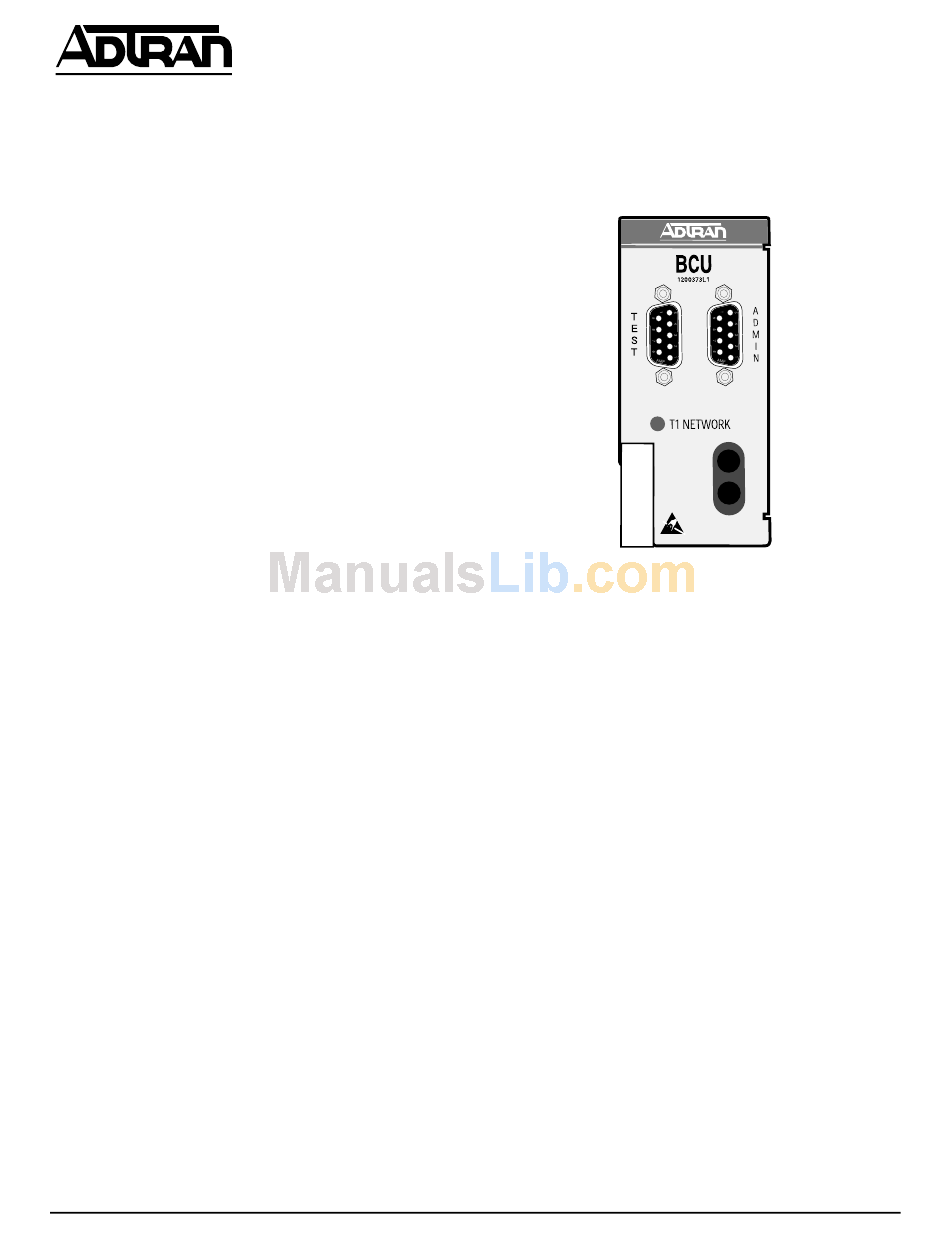

Figure 1. TA 850 BCU
General Description
The TA 850 BCU is a common module plug-in unit de-
signed for the TA 850. The BCU, with a built-in CSU,
provides all control functions for the TA 850 common
units and all individual access modules. A faceplate
ADMIN DB-9 provides access for a VT100 terminal for
screen menu provisioning, and bantam test jacks pro-
vide transmit and receive monitoring. An additional
TEST DB-9 provides timing for DS0 test equipment. A
network LED shows status information for the network
T1. The unit comprises a main circuit board and daugh-
ter card and inserts directly into the BCU slot on the TA
850 shelf. An 8-position DIP switch is mounted on the
daughter card and is used for T1 provisioning and
clocking.
Functional Description
The TA 850 BCU provisions, operates, monitors, and
tests all TA 850 access modules including Quad FXS,
Quad FXO, OCU DP, DS0 DP, and Nx56/64 DSU DP.
The BCU programs T1 bandwidth use between the var-
ious access modules and data ports.

2. INSTALLATION/OPERATION

After unpacking the unit, inspect it for damage. If dam-
age is noted, file a claim with the carrier, then notify
ADTRAN Customer Service (see "WARRANTY AND
CUSTOMER SERVICE" on page 5).
61200373L1-5B
Issue 2, August 2001
CLEI Code: SIUXJKEBAA
TX
M
O
N
RX
DS1
1
