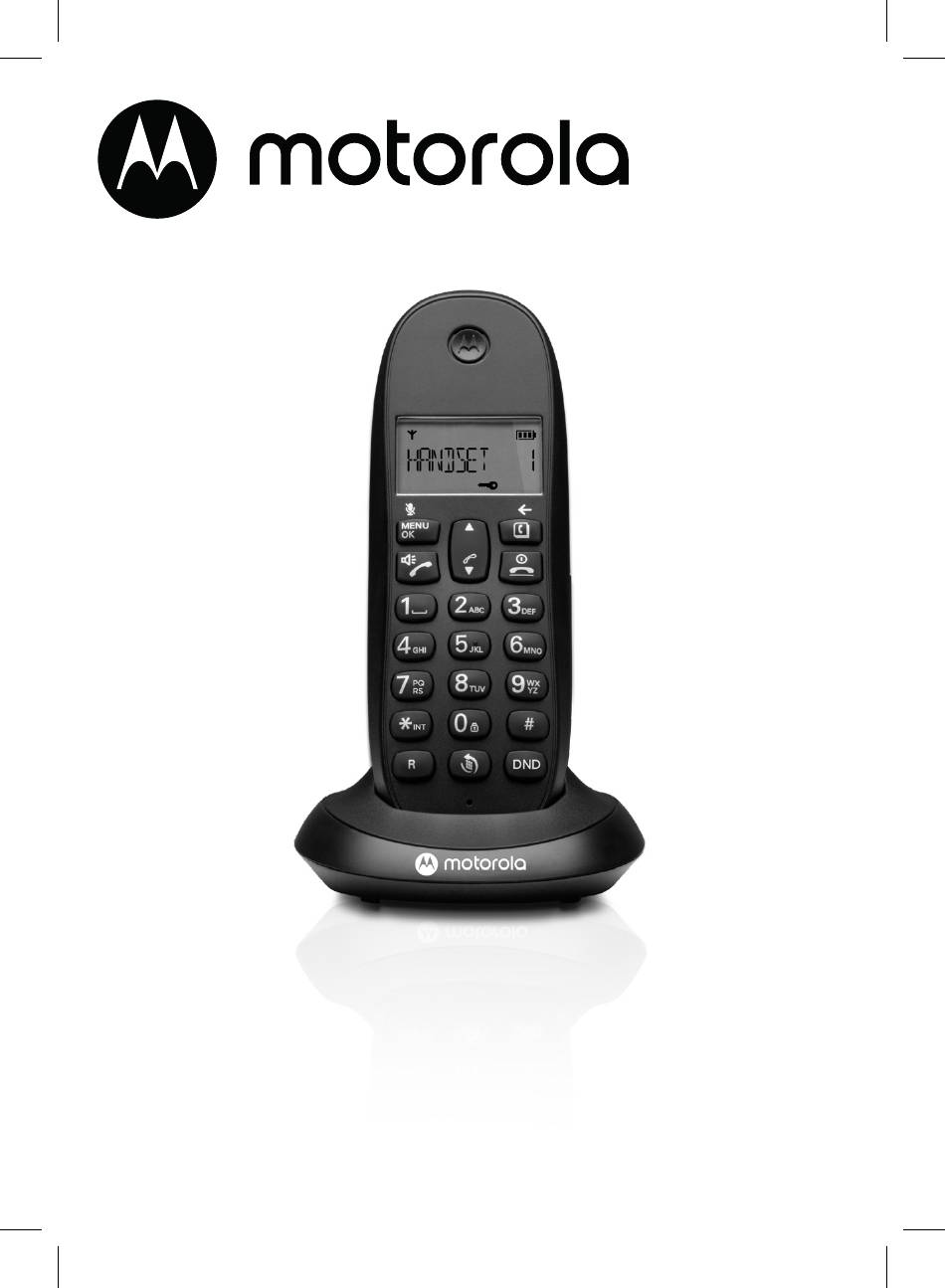

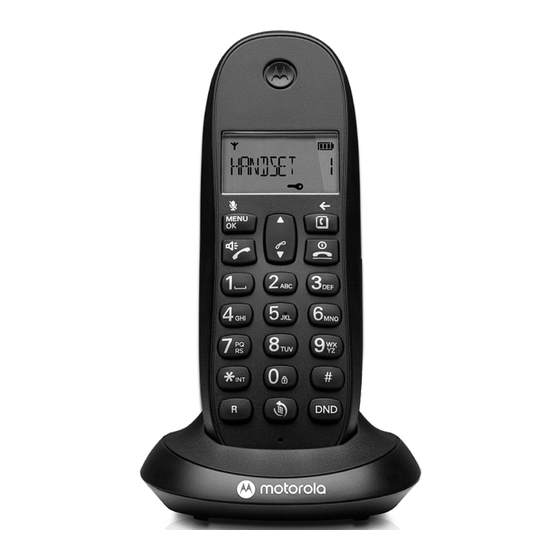

- Page 1 C1CB+ DIGITAL CORDLESS TELEPHONE For: C1001CB+, C1002CB+, C1003CB+ and C1004CB+ Warning: Charge the handset for 16 hours before use.
- Page 2 Safety information Important This equipment is not designed to make emergency telephone calls when the power fails. Alternative arrangements should be made for access to emergency services. This product is intended for connection to analogue public switched telephone networks and private switchboards in Europe. Important safety instructions Follow these safety precautions when using your phone to reduce the risk of fire, electric shock, and injury to persons or property:...
- Page 3 Installation Guidelines • Read and understand all instructions and save them for future reference. • Follow all warnings and instructions marked on the product. • Do not install this product near a bath tub, sink, or shower. • Operate this phone using only the power source that is indicated on the marking label.
- Page 4 Welcome... to your new Motorola C1CB+ Digital Cordless Telephone! • Block calls by call type. • Block up to 10 numbers. • Do Not Disturb function. • 50 names and numbers phonebook. • Bright backlit display. • Speakerphone for hands-free conversations.
- Page 5 This user guide provides you with all the information you need to get the most from your phone. To set up your phone, follow the simple instructions in ‘Getting Started’, on the next few pages. Important Only use the telephone line cord supplied. Got everything? •...
-
Page 6: Table Of Contents
Getting started ..............8 Getting to know your phone ........12 Using the phone ..............17 Switch the handset on / off .................17 Calls ........................17 3.2.1 Make a call ..................17 3.2.2 Preparatory dialling .................17 3.2.3 End a call .....................17 3.2.4 Receive a call ..................17 Adjust the earpiece volume .................17 Mute ........................17 Intercom .......................18... - Page 7 Caller ID and the Calls list ........... 26 Caller ID ......................26 Calls list .......................26 6.2.1 View the Calls list ................26 6.2.2 Dial a number in the Calls list .............27 6.2.3 Copy a Calls list number to the phonebook ......27 6.2.4 Delete an entry ................27 6.2.5 Delete the entire Calls list ............27...
-
Page 8: Getting Started
Getting started Location Important Do not place your C1CB+ in the bathroom or other humid areas. Place your C1CB+ base within reach of the AC power outlet and telephone wall socket. The socket-outlet should be installed near the equipment and should be easily accessible. - Page 9 Connecting the base Plug the telephone line cord into the socket marked on the underside of the base. 2. Plug the power adaptor into the socket marked on the rear of the base and plug the other end into the wall socket. Switch on the power supply. Installing and charging the handset Press down Slide...
- Page 10 Connecting the handset and charger (for multi-pack only) If you have purchased a multiple pack, you will need to carry out this process for all the handsets and chargers. Plug the power adaptor into the socket marked on the underside of the charger and plug the other end into the AC power wall socket.
- Page 11 To keep your batteries in the best condition, leave the handset off the base for a few hours at a time. Running the batteries right down at least once a week will help them last as long as possible. The charge capacity of rechargeable batteries will reduce with time as they wear out, giving the handset less talk / standby time.
-
Page 12: Getting To Know Your Phone
Getting to know your phone Overview of your handset A Earpiece B Display See page 14 for an overview of display icons. C Up During a call, press to increase the earpiece volume. When the phone is ringing, press to increase the handset ringer volume. Press to scroll through the menu options, redial list, calls list and phonebook entries. - Page 13 Talk / Hands-free Press to switch hands-free on or off during a call. Press to make and receive calls. * / Intercom / Pulse to Tone dialling Dial a *. Used to make internal calls and transfer calls to other C1CB+ handsets registered to the base.
- Page 14 Handset LCD Display Battery status Scrolls when charging Time or Handset name In standby mode, press and hold to switch handset idle screen between handset name or time. Signal icon ECO MODE is on. ECO PLUS is on. Handset ringer is off. Indicates a missed call.
- Page 15 Battery is running low. Flashes when battery is almost fully discharged. For this feature to work, you must subscribe to Caller ID Service from your network operator. A subscription fee may be payable. This feature is dependent on your Network Service provider supporting the service.
- Page 16 Menu map PHONEBOOK PERSONAL SET ADVANCED SET VIEW HANDSET TONE ECO MODE ADD NEW RING VOLUME ECO PLUS EDIT RING MELODY AUTO PREFIX DELETE KEY TONE RECALL TIME DELETE ALL HANDSET NAME DIAL MODE CALL BLOCK AUTO ANSWER CHANGE PIN BY CALLTYPE LANGUAGE REGISTER...
-
Page 17: Using The Phone
Using the phone Note The handset will automatically time the duration of all external calls. The call timer will display after the first 10 seconds of the call. When the call ends, the total duration of the talk time stays on the display for 3 seconds. Switch the handset on / off Press and hold to switch the handset on or off. -
Page 18: Intercom
Intercom 3.5.1 Make an internal call If you have more than one handset registered to the base, you can make internal calls between two handsets. flashes and the handset number that is being called is displayed. If only 2 handsets are registered to the base, press and hold and the other handset rings automatically. -
Page 19: Hands-Free
Hands-free To talk to the caller without holding the handset and for other people in the room to listen to the conversation over the loudspeaker, simply use the hands-free function. 3.6.1 Make a hands-free call Press twice, then dial the number. is displayed and the call can be heard over the handset loudspeaker. -
Page 20: Delete An Entry
3.7.3 Delete an entry Press to open the redial list. 2. Scroll to the entry you want. , the display shows VIEW. 3. Press to DELETE. 4. Scroll , the display shows CONFIRM?. 5. Press 6. Press to confirm or to cancel. -
Page 21: Phonebook
Phonebook You can store up to 50 names and numbers in the phonebook. Names can be up to 12 characters long and numbers up to 24 digits. Store a name and number If the C1CB+ is connected to a switchboard, you may need to enter a pause in a stored number. -
Page 22: View Or Dial An Entry
View or dial an entry Press is displayed. 2. Scroll to the entry you want. Enter the first letter of the name to search alphabetically. The first name that starts with this letter or the nearest letter in the alphabet will be displayed. Scroll to the entry you want. -
Page 23: Call Block
Call block Your phone can block calls by call types or by numbers. Up to 10 numbers can be blocked. For this feature to work, you must subscribe to Caller ID Service from your network operator. A subscription fee may be payable. You can access the call block menu by pressing and holding in standby mode or through the handset menu. -
Page 24: Block By Number
Block by number Your phone can block calls by numbers, you can store a full phone number or an area code. 5.2.1 Turn block by number on Press , scroll CALL BLOCK. NUMBER. 2. Press , scroll 3. Press . The display shows BLOCK MODE, press or OFF. -
Page 25: Delete A Number From The Call Block List
5.2.5 Delete a number from the call block list CALL BLOCK. Press , scroll 2. Press , scroll NUMBER. 3. Press , scroll to DELETE. 4. Press , scroll to the entry you want to delete. . The display shows CONFIRM?. 5. -
Page 26: Caller Id And The Calls List
Caller ID and the Calls list Important To use Caller ID, you must first subscribe to the service from your network provider. A subscription fee may be payable. To ensure that the caller’s name is displayed, make sure you have stored the full telephone number, including the area code in the phonebook. -
Page 27: Dial A Number In The Calls List
6.2.2 Dial a number in the Calls list Press to open the Calls list. 2. Scroll to the entry you want. 3. Press to dial the displayed entry. 6.2.3 Copy a Calls list number to the phonebook Press to open the Calls list. 2. -
Page 28: Clock & Alarm
Clock & alarm Set the date and time Press , scroll to CLOCK/ALARM. DATE & TIME. 2. Press . The display shows 3. Press to select. 4. Enter the date (e.g. 12--08--2023 for 12th of August 2023) and press to confirm. 5. -
Page 29: Personal Settings
Personal settings Handset tones 8.1.1 Handset ringer volume The handset ring volume can be set to different volume levels. Choose from 5 volume levels or Off. Press , scroll PERSONAL SET. 2. Press . The display shows HANDSET TONE. RING VOLUME, press 3. -
Page 30: Handset Name
Handset name If you are using more than one handset with your C1CB+ base, you can set a personalized name for each handset to easily distinguish between them. A name can be up to 10 characters long. PERSONAL SET. Press , scroll HANDSET NAME 2. -
Page 31: Base Settings
Base settings ECO mode Your C1CB+ offers ECO mode function which reduces the transmitted power and energy consumption when switched on. To switch Eco mode on: Press , scroll ADVANCED SET. 2. Press , scroll ECO MODE and press or OFF. 3. -
Page 32: Recall Mode
Recall mode This setting is useful to access certain network and PABX/switchboard services. The default recall time is suitable for your country and network operator. It is unlikely that you should need to change this setting unless advised to do so. Press , scroll ADVANCED... -
Page 33: Register A Handset
On the base: Press and hold for 5 seconds. The base will remain in registration mode for 90 seconds. On the handset: If the handset is not registered to a base, press and then enter the 4 digit PIN code (default = 0000) and press 2. -
Page 34: Restore Default Settings
Restore default settings You can restore your C1CB+ to its default (original) settings. All the handsets that are registered to the base will be retained. Important Resetting your phone to its default settings will delete all entries in the Calls and Redial lists. -
Page 35: Help
Help No dial tone • Use only the telephone line cord supplied. • Make sure that the telephone line cord is connected properly. • Make sure that the power plug is connected properly and switched on. No display • Make sure that the batteries are inserted correctly and fully charged. Use only approved rechargeable batteries supplied. - Page 36 Handset does not ring The handset ringer volume may be set to Off. • Noise interference on my phone or on other electrical equipment nearby • Place your C1CB+ at least one metre away from electrical appliances or any metal obstructions to avoid any risk of interference. Help...
-
Page 37: General Information
(“MZGW”) What Does this Warranty Cover? Subject to the exclusions contained below, MZGW warrants that this Motorola branded product (“Product”) or certified accessory (“Accessory”) sold for use with this product that it manufactured to be free from defects in materials and workmanship under normal consumer usage for the period outlined below. - Page 38 PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL MOTOROLA OR MZGW BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING...
- Page 39 (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola or MZGW are excluded from coverage.
- Page 40 Technical Information How many telephones can I have? All items of telephone equipment have a Ringer Equivalence Number (REN), which is used to calculate the number of items which may be connected to any one telephone line. Your C1CB+ has a REN of 1. A total REN of 4 is allowed. If the total REN of 4 is exceeded, the telephones may not ring.
- Page 41 <This page has been intentionally left blank>...
- Page 42 <This page has been intentionally left blank>...
- Page 43 AD1 Section, The Economy Development Area, Dongsheng Industrial District, Meizhou, 514000. Guangdong Province, P.R. China Equipment: Model Number: Motorola C1001CB+, Motorola C1002CB+, Motorola C1003CB+, Motorola C1004CB+ Product Type: DECT cordless phone without Telephone Answering Machine (C100xCB+) and their Multi-handset version.
- Page 44 Manufactured, distributed or sold by Meizhou Guo Wei Electronics Co. LTD., official licensee for this product. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners.
