- Page 1 MART PRODUCTS FOR SMART PEOPLE VIBER X+...
- Page 3 SE-582 73 Linköping, Sweden info@vmiab.com www.vmiab.com Copyright© 2024 by VMI International AB. No copying or reproduction of this information may be undertaken without written permission of VMI International AB. Due to continuous product development the information in this document may be...
-
Page 4: Table Of Contents
Vibration Measurement Instruments Table of contents Instrument basics Connectors on front and rear Main menu description Instrument settings Transducer settings Language settings Application settings (update & reset) 10 - 11 Information Connection General measurement settings Measurements Total value settings Total value measurement Bearing condition measurement Charging Battery... -
Page 5: Instrument Basics

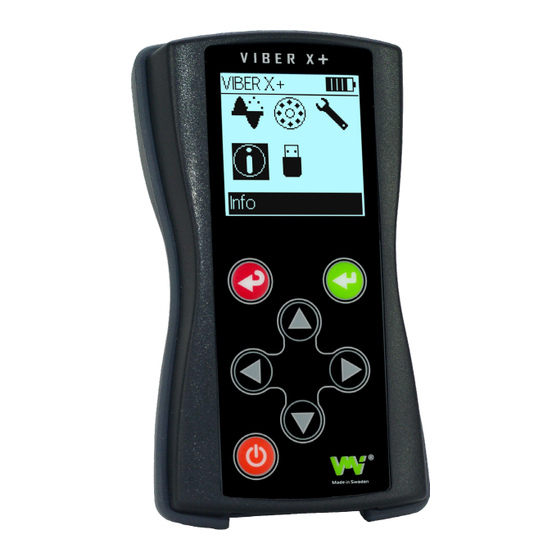

Vibration Measurement Instruments Instrument basics This section contains basic information about how to operate the instrument and the meanings of the different keys and symbols. ON/OFF Used to switch ON or OFF the Instrument. OK (Enter) Used to start a measurement, confirm an action or go forward in a menu. -
Page 6: Connectors On Front And Rear
Vibration Measurement Instruments Connectors on front and rear sides Vibration input Used to connect an accelerometer to measure vibration. USB-C connector It connects the VIBER X+ to a PC for file transfers or to a charger for battery charging. -
Page 7: Main Menu Description
Vibration Measurement Instruments Main menu description When using the charger, the display shows the charger icon instead of the battery icon. Each segment of the battery icon represents 20% of the remaining battery capacity. Starts total value measurement. Starts bearing condition measurement. Opens the settings menu. -
Page 8: Instrument Settings
Vibration Measurement Instruments Instrument settings Transducer settings Language settings Application settings... -
Page 9: Transducer Settings
Vibration Measurement Instruments Transducer settings This section allows setting the following factors. Sensitivity (mV/g) Press the right arrow on the keypad, set the • transducer sensitivity per its calibration certificate, and press Power 24V The supply voltage to the accelerometer can be •... -
Page 10: Language Settings
Vibration Measurement Instruments Language Select the desired language from the list containing more than twelve languages and the instrument will change the language accordingly. Application It includes two functions, update and reset. - Page 11 Vibration Measurement Instruments Update Choose the desired firmware version from the list, install it, and remember to reboot for the selected firmware version to take effect. Reset It resets some settings to factory defaults. The following list includes all affected positions. Total value 10 - 1000 Hz.
-
Page 12: Information
Vibration Measurement Instruments Information This menu outlines key details about the instrument. Serial number The instrument’s serial number is a unique • identifier assigned to each unit for tracking and identification purposes. Calibration date It displays the date of the last calibration. •... -
Page 13: Connection
Vibration Measurement Instruments Connection It facilitates communication between the instrument and a PC through USB, allowing the transfer of firmware files when an updated version is available. If the desired firmware version is missing, download it to your PC. Connect your instrument to the PC using a USB C cable, initiate the connection on the instrument, and then copy the firmware file from your PC to paste it into the designated folder ‘VIBERXP’. -
Page 14: Measurements
Vibration Measurement Instruments Measurements VIBER X+ is designed to perform precise vibration measurements across a wide range of frequencies. It offers a total value measurement capability spanning from 2 Hz to 12800 Hz, making it suitable for capturing vibrations across different operational frequencies of machinery and equipment. -
Page 15: Total Value Settings
Vibration Measurement Instruments Total value settings The total value settings contain options for selecting the frequency range and can be accessed by pressing the up arrow on the keypad after the total value measurement has been started. Note! Available frequency ranges include 2 - 1000, 2 - 1600, 10 - 1000 and 10 - 12800 Hz. -
Page 16: Total Value Measurement
Vibration Measurement Instruments Total value This application is designed for analysing the impact of mechanical actions and provides a convenient method to swiftly assess the vibration status of the machine. The displayed information shows the vibration level in mm/s with RMS detection. -
Page 17: Bearing Condition Measurement
Vibration Measurement Instruments Bearing condition The application analyses the impact of lubrication or other actions on bearings. The bearing condition value is a sum average of high-frequency vibrations within a specified frequency interval, serving as an indicator of overall bearing health. The displayed information indicates the bearing condition level in gBC units, with RMS as the detection type, within a specified frequency range of 500 - 16000 Hz. -
Page 18: Charging
VIBER X+ is charged using a standard USB Type-C charger and supports a voltage range of 5 - 12 VDC 10W. Utilizing the VMI’s original charger provides up to 70% capacity from a fully discharged level in just two hours. -
Page 19: Technical Data
Vibration Measurement Instruments Technical data 16 bit Dynamic range 96 dB Digital Memory Size 1.8 inch, 128x128 pixels Display All standard ICP Signal AC inputs accelerometers (4mA/24V) input Frequency range 2 to 12800 Hz total value Frequency range 500 - 16000 Hz Amplitude range Up to 80 g, peak 0.01 g ±... - Page 20 Vibration Measurement Instruments...
