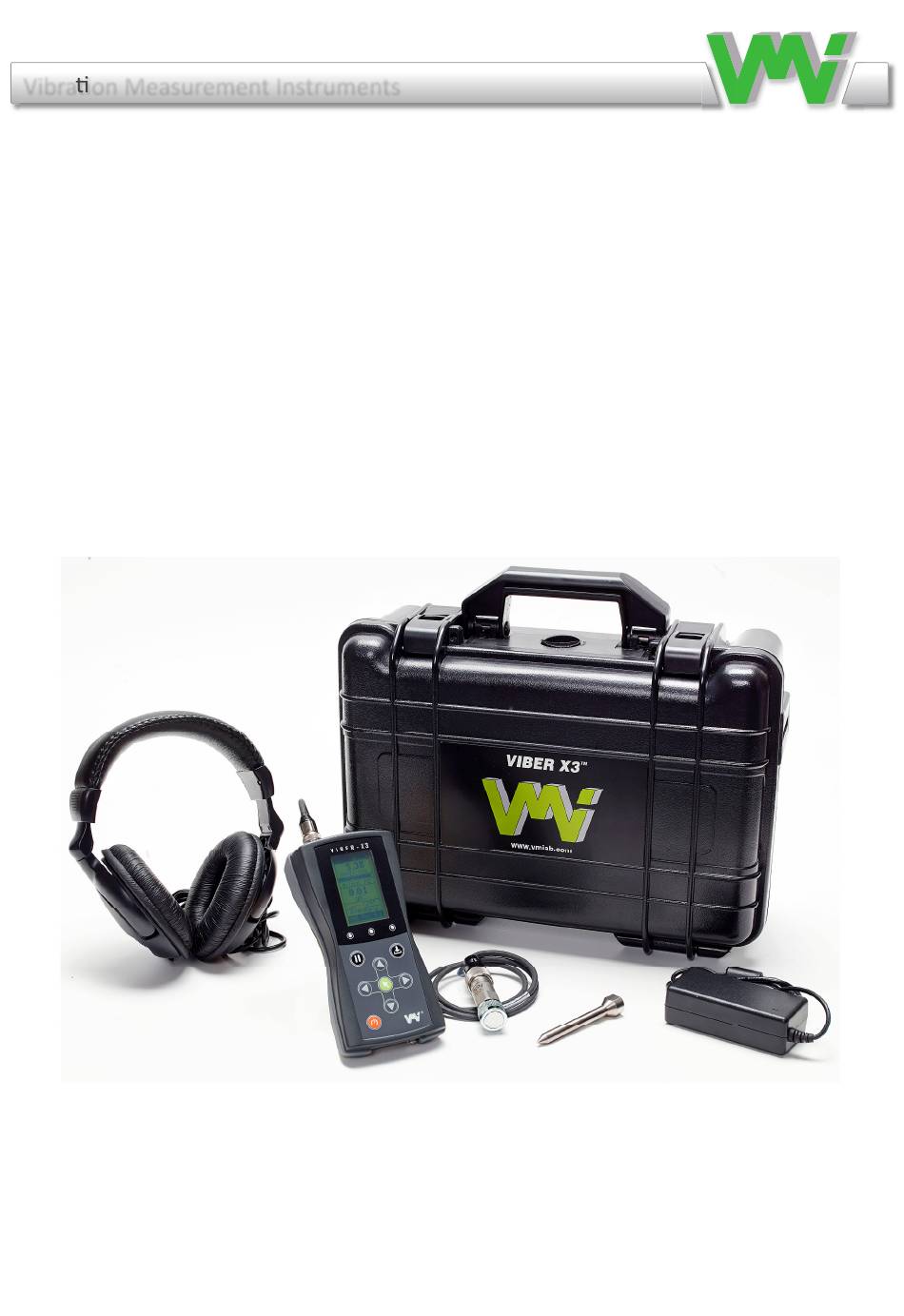

  • Page 1 Vibra on Measurement Instruments VIBER X3™ VIBER X3™ Manual Ver. 2.9 Refers to VIBER X3™ rev: 1.6-1.7 Software 4.7-4.8...

  • Page 3: Table Of Contents

    Vibra on Measurement Instruments Index Important information Introduction Scope of supply Instrument keypad and LED´s Setting Menu and Functions Screen descriptions Warning messages How to interpret vibration levels Vibration analysis Balancing with VIBER X3™ Trend View software Technical data VIBER X3™...
  • Page 4 Vibra on Measurement Instruments Vibration Measurement Instruments Our X series of hand-held instrument Our x-series of hand-held instrument ™ VIBER X3 ™ ™ VIBER X1 VIBER X2 VIBER X1 VIBER X2 VIBER X3 ™ VIBER X5 VIBER X5 Manual Viber X1_121002.indd 2...

  • Page 5: Important Information

    VMI takes no responsibility for any accidents on people and machines. VMI and our authorized dealers will take no responsibility for damages on machines and plants as the result of the use of VIBER X3™ measurements. VMI has the aim to improve and develop our products, why surely an up- graded version of this manual will be distributed in the future.

  • Page 6: Introduction

    Vibra on Measurement Instruments 2 Introduction VIBER X3™ is designed for maintenance/repairer and operators personnel. It is an excellent tool, for basic condition monitoring checks, easy to use and reliable for status analyse. The VI- BER X3™ instrument has the following features: • Accurate measurements in 4 selectable frequency ranges.

  • Page 7: Scope Of Supply

    3 Scope of supply A complete delivery is: • VIBER X3™, machine condition analyzer • A high performance accelerometer • 1 m transducer cable • Extension tip, magnet • Battery charger • Head phones • Data storage with “VMI Trend View” software, installation instructions and user manual • Printed manual for instrument and software All this together are available in a sturdy, airtight, chemical resistant, dust- and waterproof IP68 case.

  • Page 8: Instrument Keypad And Led´s

    MENU and ACCEPT Up and down Arrow key Up and Down Arrow key Green key Green key he VIBER X3™ keypad  1 ON/OFF Orange key ON/OFF ON/OFF  1 MENU and ACCEPT Green key  1 Save key for Route measurement or Balancing measurements ...

  • Page 9: Setting Menu And Functions

    Vibra on Measurement Instruments 5 Setting Menu and Functions In the Function and Setting Menu you can set or choose menus or functions by using Arrows and green Button for navigation. Functions Vibration Temperature Audio Balancing Settings Upload Delete 1. Vibration: Green button choose to measure vibration 2. Temperature: Green button choose to measure Temperature 3. Audio: Green button choose to open Audio mode, make start of liste ning possible, default is enabled.

  • Page 10: Screen Descriptions

    Vibra on Measurement Instruments 6 Screen descriptions 6.1 Analysis measurement screen In the analysis screen you are able to see the total value as well as the amplitude and frequency of the five highest peaks in the spectrum range. If you have enabled the audio (see audio screen) you may also at the same time listen to the bearings. 1 Analysis measurement screen In the upper right corner you will see the battery status and if the charger is plugged in or not.
  • Page 11 Vibra on Measurement Instruments The frequency appears as follows: Frequency range Frequency range of peak detection 2 - 400 Hz 2 - 400 Hz 6 - 1600 Hz 6 - 1600 Hz 11 - 3200 Hz 11 - 2000 Hz 10 - 1000 Hz 10 - 1000 Hz The following item settings are available:...
  • Page 12 Unit mm/s rms Selected item Range 2-1600 Hz Vibra on Measurement Instruments To exit Settings menu, just press again the (MENU) key. All settings, except disabled transducer power, will be stored into the permanent FRAM memory. 1.1 Temperature measurement screen 6.2 Temperature measurement screen In the temperature screen you see the temperature of the object you are In the analysis screen you see the temperature of the object you are measuring.
  • Page 13 Listening to a machine sounds enables analysis of gears and low speed bearings (<300 rpm) in an alternative way and can improve analysis speed and quality. Viber X3™ makes it possible for the user to listen to the machine while at the same time seeing the vibrations in the instrument display.
  • Page 14 Vibra on Measurement Instruments 6.3 Sound screen Listening to machine sounds enables analysis of gears and low speed bearings (<300 RPM) in an alternative way and can improve analysis speed and quality. VIBER X3™ makes it possible for the user to listen to the machine while at the  same time seeing the vibrations in the instrument display. Sound volume  Note that you must choose the Vibration Screen while the sound is enabled to see the vibration signal.
  • Page 15 Vibra on Measurement Instruments Note: With a headphone inserted, at the maximum volume level, the power consumpti on will increase with 150 mA. To save the batt ery power, turn the maximala volymnivån audio off when it is not used. When the nvänds för att spara batt ery voltage is beginning to be too low and headphone set is plugged-in,...

  • Page 16: Warning Messages

    Vibra on Measurement Instruments Warning messages 7 Warning messages Warning messages The following message may appear in normal operation: The following message may appear in normal operation: The following message may appear in normal operation: This message may appear if the calibration data is lost This message may appear if the calibration data is lost from the permanent FRAM ...

  • Page 17: How To Interpret Vibration Levels

    This measure gives a good understanding of the amount of “break down energy”, causing mainly wear and fatigue in the machine or the structure. The instrument measures the total RMS vibration value in the frequency range. This RMS value is the average sum of all the measured vibrations. Example: If the simultaneous vibration caused by unbalance is (4mm/s), by misalign- ment (2 mm/s) and by the gear mesh (5 mm/s) then the total vibration mea- sured with VIBER X3™ is 6.7 mm/s. √ Total vibration(RMS)= 4*4+2*2+5*5=6,7mm/s Notice that a reduction of the unbalance from 4 mm/s to 1 mm/s will reduce the total value from 6, 7 mm/s to 5, 5 mm/s.
  • Page 18 Vibra on Measurement Instruments 8.1 ISO standard 10816-3 The ISO standard 10816-3 classifies machines differently whether the machi- nes are considered as flexible or rigid mounted. This reflects the location of the machines stiff-body resonances related to the basic running speed of the machine. For instance, a machine supported by rubber or spring, have resonances at low running speeds. The machine starts vibrate at certain low revolutions. When the speed is increased above these resonance frequencies, the vibra- 3.1 ISO standard 10816-3 tion is reduced. This machine is considered flexible.

  • Page 19: Vibration Analysis

    Vibra on Measurement Instruments 9 Vibration analysis Recommended vibration levels in mm/s and common findings The list and table on previous page can be used, as a first consideration, when you approach a machine newly commissioned or after some time in operation. Investigate the reason for any machine that vibrates above 3 mm/s RMS. Do not leave levels above 7 mm/s without analyzing consequences. 0 – 3 mm/s | 0 – 0,12 in/s Small vibrations - None or very small bearing wear. Rather low noise level.
  • Page 20 Vibra on Measurement Instruments 9.1 Resonance A resonance can easily be found when a flexible machine is running up or down its speed. The resonance frequencies are located at the RPM’s, where the vibration has a local maximum level. To understand a resonance you can compare with the string of a guitar. The string has its natural basic tone that will ring as soon as the string is struck. The actual frequency of the tune depends on the stiffness and the distributed mass of the string.
  • Page 21 d however to consider such modifications since the change of the resonance frequency no he high maintenance cost that will follow any attempt to run a machine under the influence o Vibra on Measurement Instruments 9.2 Recommended bearing condition levels The bearing condition value is the total RMS value of the acceleration of all ommended bearing condition levels high frequency vibrations within the range from 1500 Hz up to 20000 Hz...
  • Page 22 9.3 Listening to bearing sound The listening of bearing sound is an old method. Sound analyzes of low speed bearings and gears can sometimes be much faster and even more reli- able than just BC-value. With the VIBER X3™ you can both listen and look at the BC value and vibration at the same time.

  • Page 23: Balancing With Viber X3

    10 Balancing with VIBER X3™ This chapter describes how you can perform balancing with your instrument The 3-Point Balancing method does not need any additional hardware exept for the VIBER X3™ instrument and the accelerometer. Mount the acce- lerometer on the bearing and in the direction where you have the highest vibration caused by unbalance. Use this measuring point for all following measurements.
  • Page 24 • Balancing using this method requires only three consecutive trial runs and changing the balance status of the rotor. • Only measurement of the vibration level is needed. • Balancing will only reduce the vibration caused by unbalance. • VIBER X3™ can display the frequency of the 5 highest peaks, unless one of them is the same as actual speed the cause of high vibration probably is something else. • A balancing round will often be a good approach and a first attempt to find the reason for increased vibration. If the balancing attempt is not successful, the cause can be loose rotor parts or other faults.
  • Page 25 VIBER X3™ at normal rotor weights and speeds often balance to class G 2.5. This method calculates the balancing weight and where to place it. The balancing requires 5 starts / test runs Test drives 1 –...
  • Page 26 Vibra on Measurement Instruments 1. Preparations befo 10.3 Preparations before balancing act 1. Preparations bef Start VIBER X3™ and press the green Functions Vibration button, select with arrows: Temperature Audio ”Balancing” from the main menu, confirm with 1. Start Vi Balancing the green button. Settings "Balanc Upload Delete 1.
  • Page 27 Viber-X3 ™ shows when provviktens placement as an green button.VIBER X3™ shows when angular measurement or the length of a circular arc. The diameter shall be given to the part of the rotor where the trial weight placement as an angular me- weights should be applied.
  • Page 28 1. Start Viber-X3 and press the green button, select with arrows: "Balancing" from the main menu, confirm with the green button.. VIBER X3™ now calculates the distance to the periphery of Viber-X3 ™ now calculates the distance to the periphery of the three test points.
  • Page 29 the left arrow key, allowing you provide ongoing balancing, if it happens, you can go back through the menu to the ongoing. Vibra on Measurement Instruments 10.8 Balancing 2. Balancing VIBER-X3™ measures and calculates the five largest amplitudes in the spectra. To reduce noice and disturbance the signal is filtered.
  • Page 30 Test run No: 3 Move the test weight from (Item 2) to t Vibra on Measurement Instruments the direction of (Item 3) or 240 ° of ang Test run No: 3 Test run No: 3 Test run No: 3 Move the test weight from (Item 2) to the calculated distance (in our example. Move the test weight from (Item 2) to the calculated distance (in our example.
  • Page 31 Vibra on Measurement Instruments 10.10 Balancing screen If you choose in the function menu, balancing. Functions Vibration Temperature Audio Balancing Settings Upload Delete If you want to make further improvement, you must start a complete new balancing using smaller trial weights. This is the disadvantages of the 3-point method compared with the Single plane balancing method. Balancing report Balancing results Weight 0.0 g...

  • Page 32: Trend View Software

    Trends are one method to perform condition monitoring (CM). TREND VIEW ™ is designed for use only with VIBER X3™. For every plant or building, you can create a database and a route with up to 100 measurements. Each measurement store vibration amplitude and bearing condition.
  • Page 33 The machines belongs to the grinding department. You need a project before you can start storing measurements. Start a Measuring Project Start the program by clicking the icon on your desktop, or choosing VMI Trend Viewer in the toolbar. In this manual we are going to demonstrate how to set up measurements in two machines, Grinding Machine 1 and Grinding Machine 2. In both machines vi- In this manual we are going to demonstrate how to set up measurements in two machines, Grinding brations, bearing conditions and temperatures will be measured.
  • Page 34 Vibra on Measurement Instruments Press the “yes”-button in the dialog box and continue with marking “Depart- ment” or another of the top level alternatives. The top level of the database is usually a building or department, which must be added to a measurement project (the database). Thereafter, write the name of the de- partment (and eventually description for internal use) and continue with “next”.
  • Page 35 Vibra on Measurement Instruments On the question “Select where you want to insert measurement group, mark ”Measuring project or balan- cing”. Mark ”Grinding department” Mark ”Measurement project” And then press: Finish Click ”Add Machine” Mark ”Grinding department” In the same way the machines were put to the project, with the difference that the machines are placed under the department.
  • Page 36 Vibra on Measurement Instruments After that you choose the kind of measuring unit (normally start with vibration and direction), this example shows that choice. The storage slot where to store the measurement is also set. Example: In the storage table for vibration measurements: Horizontal Storage slot: 1 Vertical:...
  • Page 37 Vibra on Measurement Instruments You will have an opportunity to choose the storage slot when the measu- rements are stored in the instrument and also at the uploading of the data. You need to notice where the measurement shall be stored in the computer (Measuring point and direction) (See also “Route Plan”).
  • Page 38 Vibra on Measurement Instruments...
  • Page 39 Vibra on Measurement Instruments...
  • Page 40 Vibra on Measurement Instruments Expand all measurement points in the tree and we can now see that we must assign measuring points for grinding machine 2 slot number.
  • Page 41 Vibra on Measurement Instruments...
  • Page 42 Vibra on Measurement Instruments Bearing condition is stored in horizontal direction on each bearing. If you don’t measure this direction you must choose one of the directions you measure, change direction in properties.
  • Page 43 Vibra on Measurement Instruments...
  • Page 44 When working with this route measurement, we recommend marking each The machines to be included in the program provided by VIBER X3 and Trend View, PC program, point with a number that is always used in these measurements.
  • Page 45 1. Connect the cable to the instrument’s ”serial data connector” (it is the same as the headphone jack) and to the computers USB connector. You need to verify that the correct serial port is selected by the computer, otherwise correct the chosen serial port. (In case of problems, see installations guide for PC software) 2. Put the VIBER X3™ in the mode ”Upload” 3. Open the Trend View Software and select ”Import measurement from in- strument”...
  • Page 46 Vibra on Measurement Instruments Click on next...
  • Page 47 Vibra on Measurement Instruments 4. As the instrument doesn’t store times for the measuring, just the time for Uploading, it is possible to set times and storage slots during the uploading process. Adjust the table by ticking the boxes that belong to the machine that the data comes from. If you need to set dates manually, mark ”Timestamp each measurement individually”. If not, all measurments will be stamped with the same time.
  • Page 48 Vibra on Measurement Instruments Click on next...
  • Page 49 Vibra on Measurement Instruments Screen shots showing where data is stored in VIBER X3™. It takes three memory locations to store the three directions of measurement (horizontal, vertical and axial). How to find these menus are discribed on page 7.
  • Page 50 Vibra on Measurement Instruments For example, the next day when you have performed a new series of measu- rements, repeat transmission of measurement data to the PC as the previous example. Data for the first series of measurements is stored in the database and the data for the second series of measurements are now stored and num- ber of measurements counts up.
  • Page 51 Vibra on Measurement Instruments To view a chart, double-click on the measurement direction you want to see. Screen shots showing where the data is stored in VIBER X3™. How to find these menus are described on page 7.
  • Page 52 Vibra on Measurement Instruments 11.7 Viewing trends When all measurements are saved you can choose the graphics and see the changes from the start of the measurements. Choose the direction for the trend diagram you want to study. To view the measured data just double click on the measurement in the project tree. The window showing the measures are automatically adju- sted to the values that are shown. For changing the visual range just use the toolboxes in the header.
  • Page 53 Vibra on Measurement Instruments If there has been a remarkable change in the vibration or Bearing condition, we advise you to measure and monitor that machine or Bearing with shorter intervals. If there has been a remarkable change in the vibration or Bearing condition, we advise you to measure and monitor that machine or Bearing with shorter intervals.

  • Page 54: Technical Data Viber X3

    Note 2 Amplitude presentation RMS, Peak, Peak-Peak Note 2 Analysis Five highest peaks can be displayed VMI Trend View Software included for PC Frequency range 2 - 400 Hz Frequency range of peak 6 - 1600 Hz Note 3 detection...
  • Page 55 Vibra on Measurement Instruments Note 1 User selectable, between Hz and RPM. Note 2 User selectable. Note 3 Same as ”frequency range”, except for 11-3200 Hz range, where peak detection ands at 2000 Hz. Note 4 Full scale is 50g for acceleration other units are frequency dependent. Note 4a Over 0.03 gBC. Note 4b Emissivity factor must be set in accordance with the target surface. Note 5 Capacity of the batteries can vary depending on hardware revision. Max 2300 mAh. (storage temp. -20 to max 60°C). Note 6 Operating time depends on backlight, volume level and bat- teries used. Backlight adds 40mA and the sound volume up to 150 mA. Charging time is approx: 6-12 hours.
  • Page 56 Warranty claimed products shall be returned prepaid to VMI for service. We reserve the right to repair or to replace defective prod Always try to explain the nature of any service problem; by e-mail or telephone. Check first a natural problems, like empty batteries, broken cables, etc.
  • Page 57 Warranty claimed products shall be returned prepaid to VMI for service. We reserve the right to repair or to replace defective products. Always try to explain the nature of any service problem;...
  • Page 58 Vibra on Measurement Instruments...
  • Page 60 VMI International AB Gottorpsgatan 5 • SE-582 73 Linköping Phone +46 (0)13-474 37 00 E-mail: info@vmiab.com • www.vmiab.com...
