Summary of Contents for VMI VIBER X1+

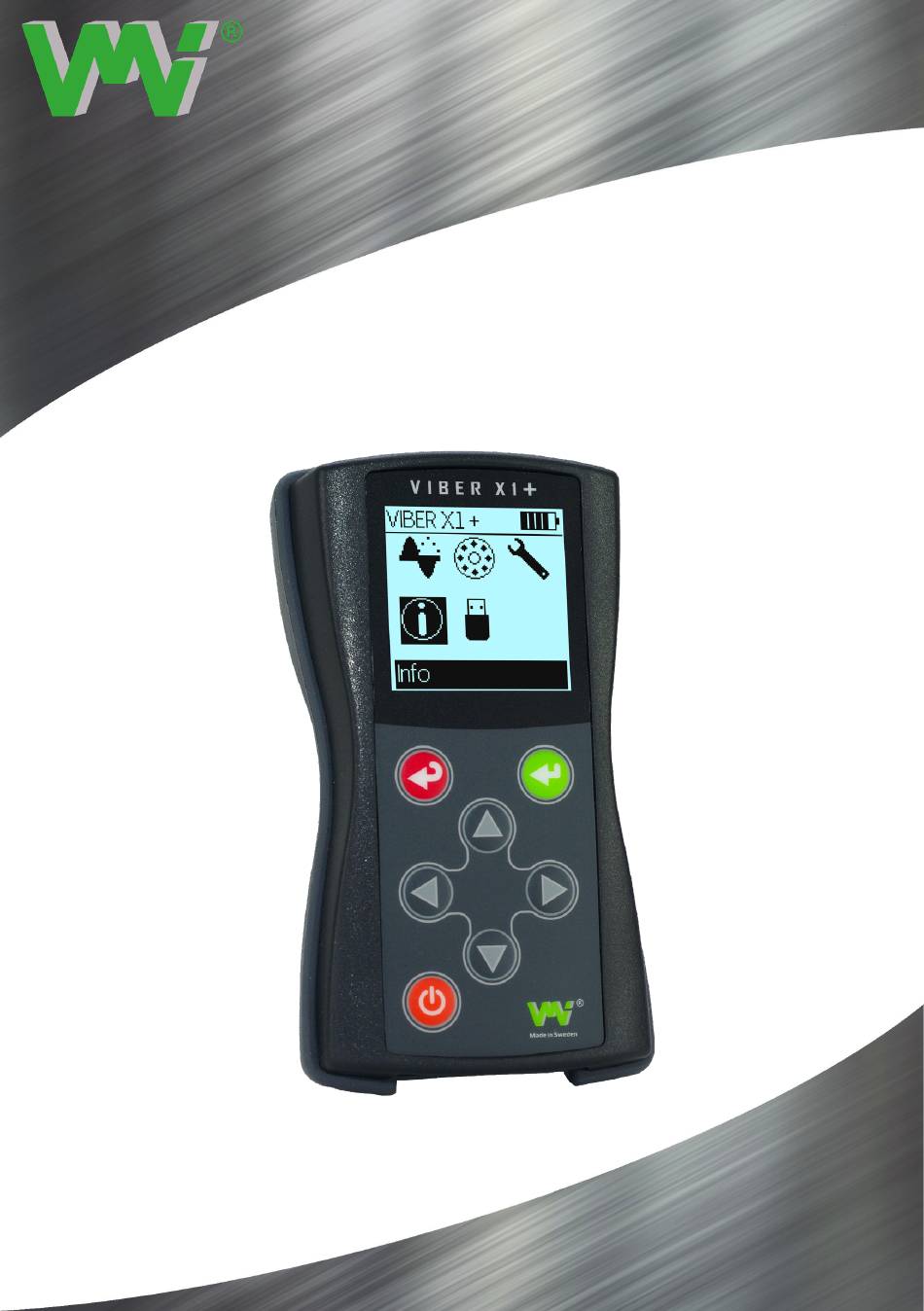

- Page 1 MART PRODUCTS FOR SMART PEOPLE VIBER X1+...
- Page 3 SE-582 73 Linköping, Sweden info@vmiab.com www.vmiab.com Copyright© 2024 by VMI International AB. No copying or reproduction of this information may be undertaken without written permission of VMI International AB. Due to continuous product development the information in this document may be...
-
Page 4: Table Of Contents
Vibration Measurement Instruments Table of contents Instrument basics Connectors and sensors on front and rear Main menu description Instrument settings General settings Total Value settings 10 - 12 Bearing Condition settings 12 - 14 System settings 14 - 15 Transducer settings Language settings Application settings (update &... -
Page 5: Instrument Basics
Vibration Measurement Instruments Instrument basics This section contains basic information about how to operate the instrument and the meanings of the different keys and symbols. ON/OFF Used to switch ON or OFF the Instrument. OK (Enter) Used to start a measurement, confirm an action or go forward in a menu. -
Page 6: Connectors And Sensors On Front And Rear
Vibration Measurement Instruments Connectors on front and rear sides Vibration input Used to connect different types of sensors to measure vibration. USB-C connector Used to connect the VIBER X1+ to a PC for transfering files or connecting to a charger to charge the battery. -
Page 7: Main Menu Description
Vibration Measurement Instruments Main menu description When using the charger, the display shows the charger icon instead of the battery icon. Each segment of the battery icon represents 20% of the remaining battery capacity. Starts total value measurement. Starts bearing condition measurement. Opens the settings menu. -
Page 8: Instrument Settings
Vibration Measurement Instruments Instrument settings Total value settings Bearing condition settings System settings Transducer settings Language settings Application settings... -
Page 9: General Settings
Vibration Measurement Instruments General Measurement Settings In this section, we describe the general application settings commonly used across various applications. While these settings may vary from one application to another, their implications remain consistent. Measurement type Milivolt, Acceleration, Velocity or Displacement. Detection type RMS , Peak or Peak to Peak. -
Page 10: Total Value Settings
Vibration Measurement Instruments Total value settings Total value settings contains settings for units, detection, lowest frequency range and highest frequency range. Unit Available units are mV, g, mm/s, µm, in/s and mils. - Page 11 Vibration Measurement Instruments Detection Available detection types are RMS, Peak and Peak to Peak (P-P). Minimum frequency The available frequencies, 2Hz and 10Hz, set the lowest frequency for calculating the total value of the vibration. measurement. The selected frequency number in this setting additionally determines the highest frequency range available in the maximum frequency setting.
-
Page 12: Bearing Condition Settings
Vibration Measurement Instruments Maximum frequency The available frequencies 1000Hz, 3200Hz, and 16000Hz determine the highest frequency for calculating the total value of the vibration measurement. Note! Available frequency ranges include 2-1000, 2-3200, 10-1000, 10-3200 and 10-16000 Hz. Bearing condition settings It includes settings for detection type, as well as the lowest and highest frequency ranges. - Page 13 Vibration Measurement Instruments Detection Available detection types are RMS, Peak and Peak to Peak (P-P). Minimum frequency The available frequencies, 500Hz and 1000Hz establish the lower limit for calculating the total vibration value, contributing to the measurement of the bearing condition. Note! Available frequency ranges include 500-6400, 500-20000, 1000-6400 and 1000-20000 Hz.
-
Page 14: System Settings
Vibration Measurement Instruments Maximum frequency The available frequencies, 6400Hz and 20000Hz establish the higher limit for calculating the total vibration value, contributing to the measurement of the bearing condition. System settings System settings contains settings for automatic shut-down time, start-up mode and the format of the values. Auto off time This turns off the instrument after a set time which can be 1, 5, 10 or 30 minutes. - Page 15 Vibration Measurement Instruments Start Up The start-up settings provide three different modes for initiating the instrument. Measurement The instrument always starts at total value • measurement Last Position The instrument resumes start-up at the last • accessed menu after being switched off. Main menu The instrument always starts at the start menu.
-
Page 16: Transducer Settings
Vibration Measurement Instruments Transducer settings This section allows setting the following factors. Sensitivity (mV/g) Press the right arrow on the keypad, set the • transducer sensitivity per its calibration certificate, and press Power 24V The supply voltage to the accelerometer can be •... -
Page 17: Language Settings
Vibration Measurement Instruments Language Select the desired language from the list containing more than twelve languages and the instrument will change the language accordingly. Application It includes two functions, update and reset. - Page 18 Vibration Measurement Instruments Update Choose the desired firmware version from the list, install it, and remember to reboot for the selected firmware version to take effect. Reset It resets some settings to factory defaults. The following list includes all affected positions. Total value mm/s, RMS, 2 - 3200 Hz.
-
Page 19: Information
Vibration Measurement Instruments Information This menu outlines key details about the instrument Serial number • System ID number It will read as 0 if no ID number is • required. Calibration date It displays the date of the last calibration. •... -
Page 20: Total Value Measurement
Vibration Measurement Instruments Measurements VIBER X1+ accurately measures vibration across various frequency ranges, including a total value measurement from 2Hz up to 16000Hz and a bearing condition measurement up to 20000Hz. It operates with high precision, capturing signals from very low levels at 0.5mV RMS to as high as 5000mV RMS. Total value This application is designed for analysing the impact of mechanical actions and provides a convenient method to swiftly... -
Page 21: Bearing Condition Measurement
Vibration Measurement Instruments Bearing condition The application analyses the impact of lubrication or other actions on bearings. The bearing condition value is a sum average of high-frequency vibrations within a specified frequency interval, serving as an indicator of overall bearing health. The displayed information shows the level in gBC unit and selected detection type. -
Page 22: Charging
VIBER X1+ is charged using a standard USB Type-C charger and supports a voltage range of 5 - 12 VDC 10W. Utilizing the VMI’s original charger provides up to 70% capacity from a fully discharged level in just two hours. -
Page 23: Technical Data
Vibration Measurement Instruments Technical data 16 bit Dynamic range 96 dB Digital Memory Size 1.8 inch, 128x128 pixels Display All standard ICP Signal AC inputs accelerometers (4mA/24V) input Frequency range 2 to 16000 Hz total value Frequency range 500 to 20000 Hz Amplitude range Up to 80 g, peak 0.01 g ±... - Page 24 Vibration Measurement Instruments...
